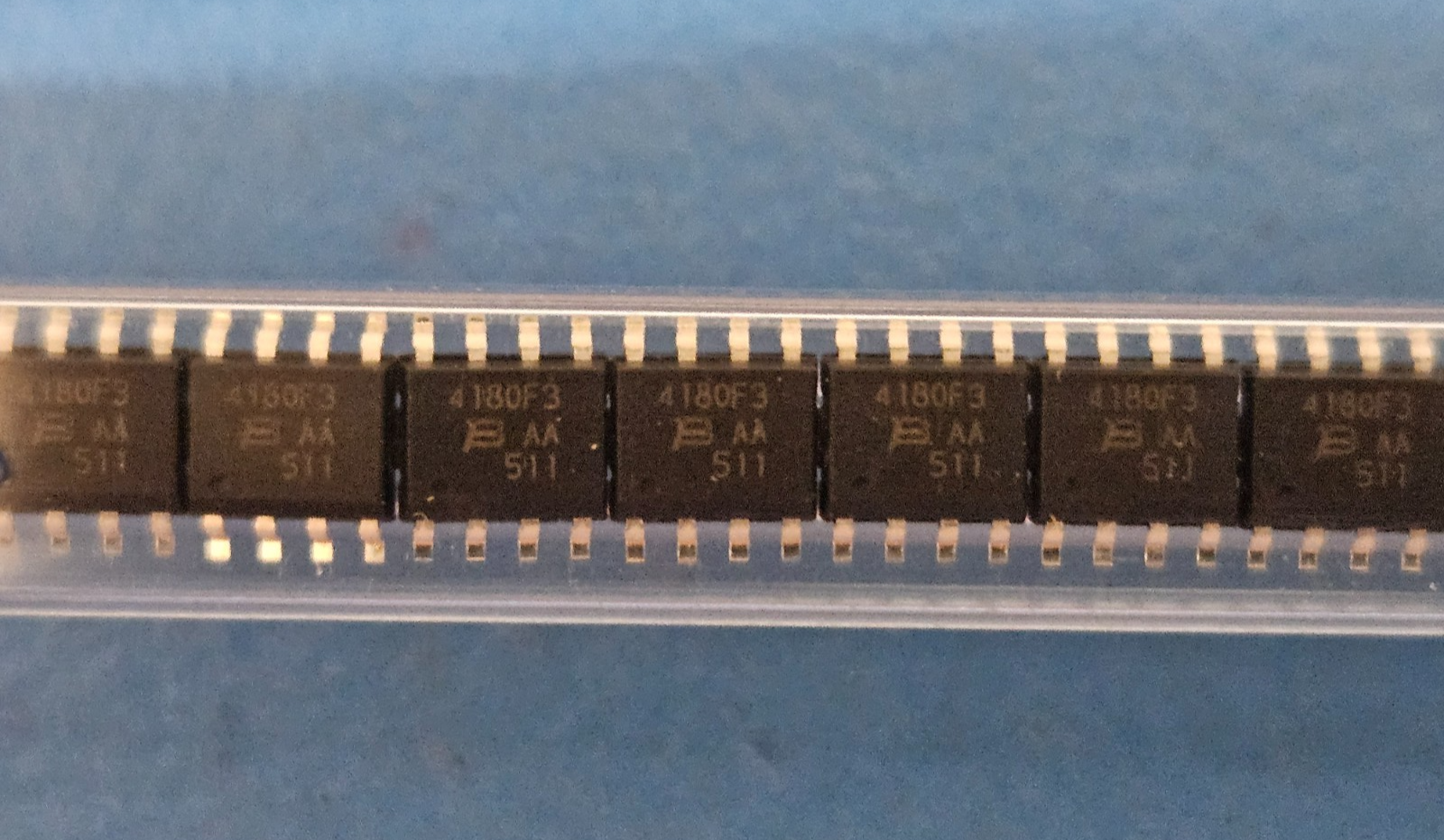

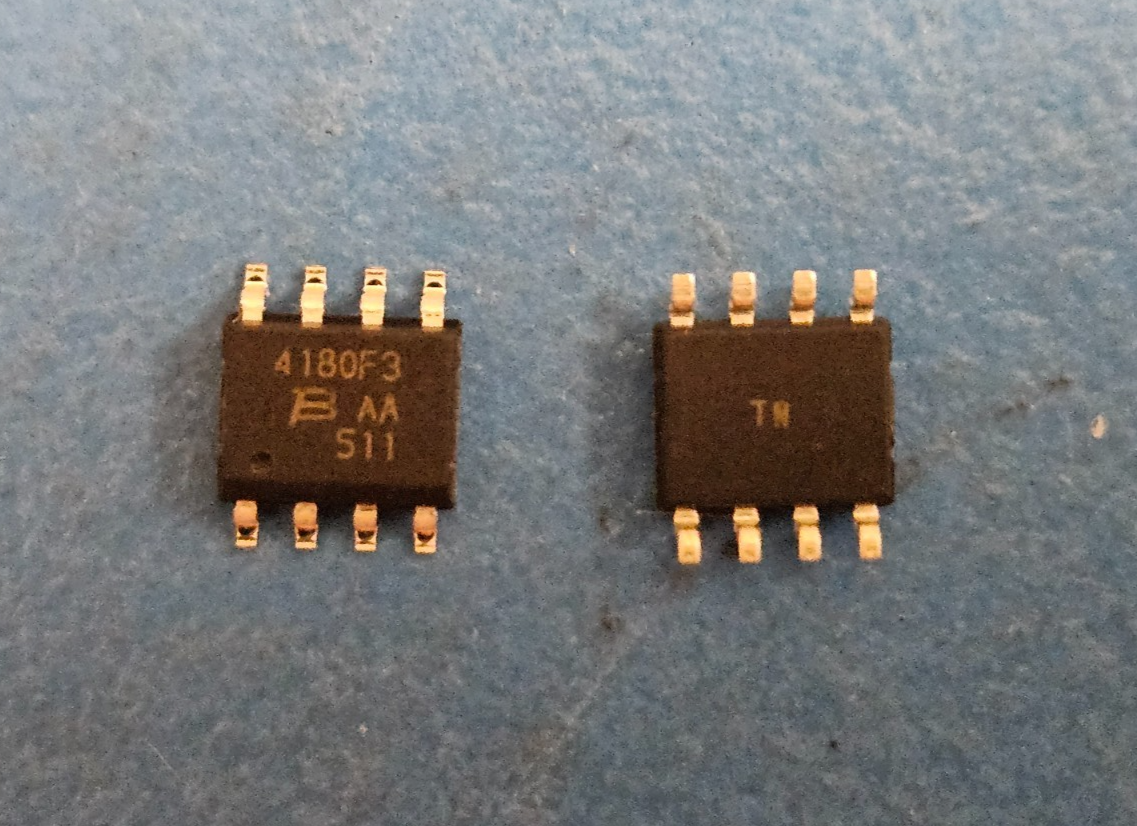

(10PCS) TISP4180F3D Silicon Surge Protector, 180V 4A SOIC-8 4180F3
Tax included.
This listing is for (10PCS) of TISP4180F3D by Bourns
Status Discontinued
Breakover Voltage-Max (V) 180.0000000000000000
Configuration SINGLE
DC Off-state Voltage-Max (V) 145.0000000000000000
JESD-30 Code R-PDSO-G8
Non-Repetitive Pk On-state Cur (A) 4.0000000000000000
Number of Elements 1
Number of Terminals 8
Operating Temperature-Max (Cel) 150
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
DLA Qualification Not Qualified
Screening Level / Reference Standard UL RECOGNIZED
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Trigger Device Type SILICON SURGE PROTECTOR
