(10PCS) TIP29A Bourns Power Bipolar Transistor, 1A, 60V, 1-Element, NPN, TO-220A
(10PCS) TIP29A Bourns Power Bipolar Transistor, 1A, 60V, 1-Element, NPN, TO-220A
(10PCS) TIP29A Bourns Power Bipolar Transistor, 1A, 60V, 1-Element, NPN, TO-220A
(10PCS) TIP29A Bourns Power Bipolar Transistor, 1A, 60V, 1-Element, NPN, TO-220A

(10PCS) TIP29A Bourns Power Bipolar Transistor, 1A, 60V, 1-Element, NPN, TO-220A

Tax included.
Only 37 left!

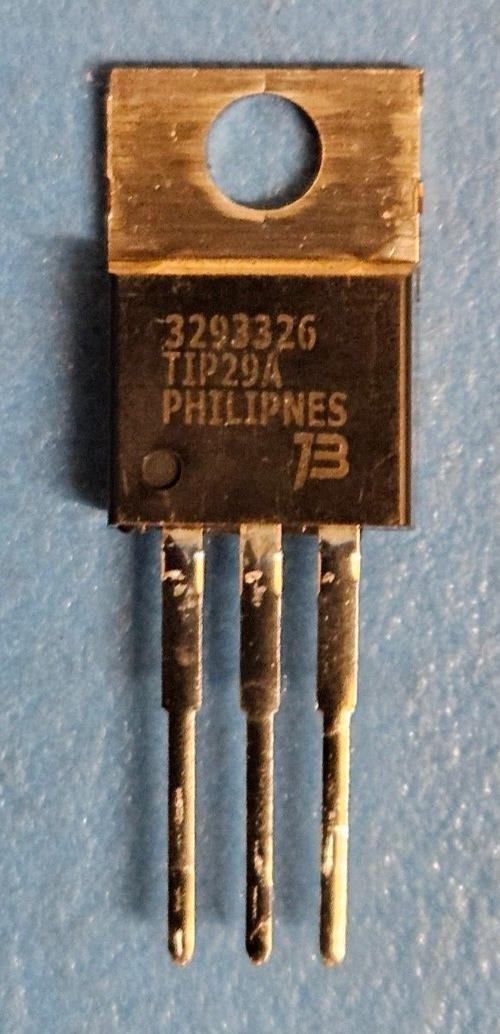

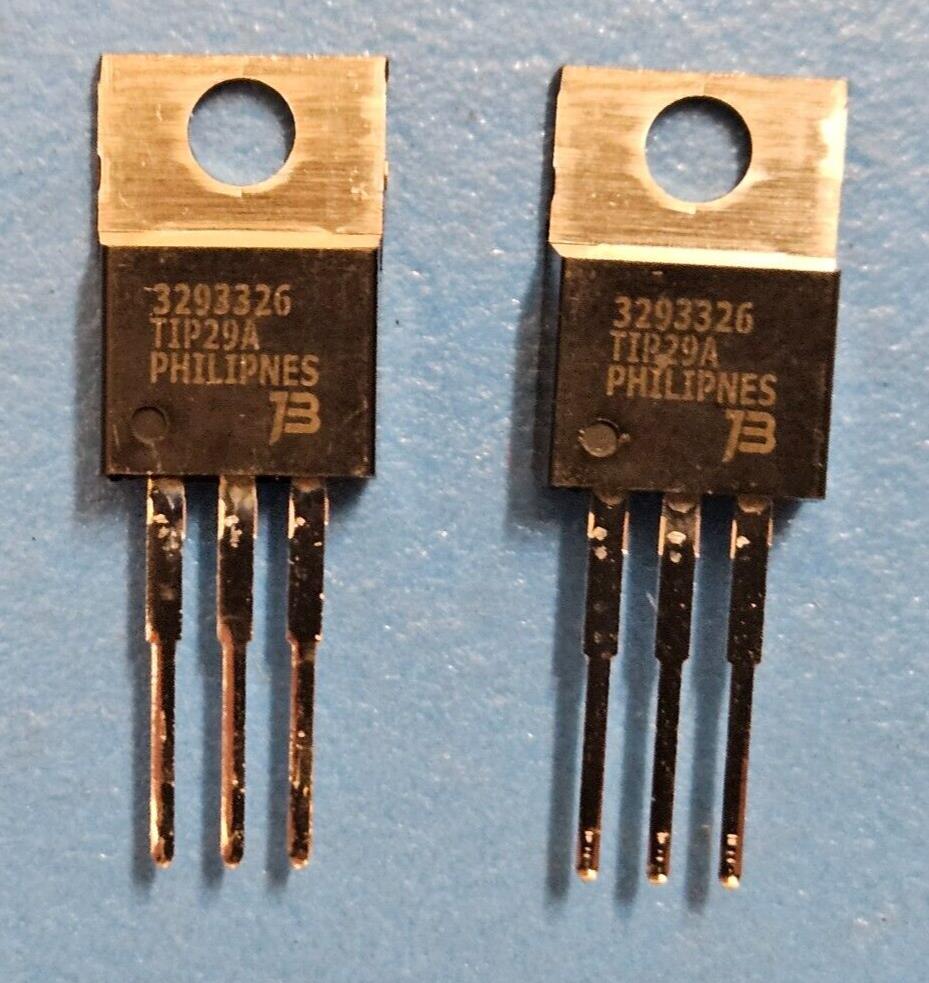

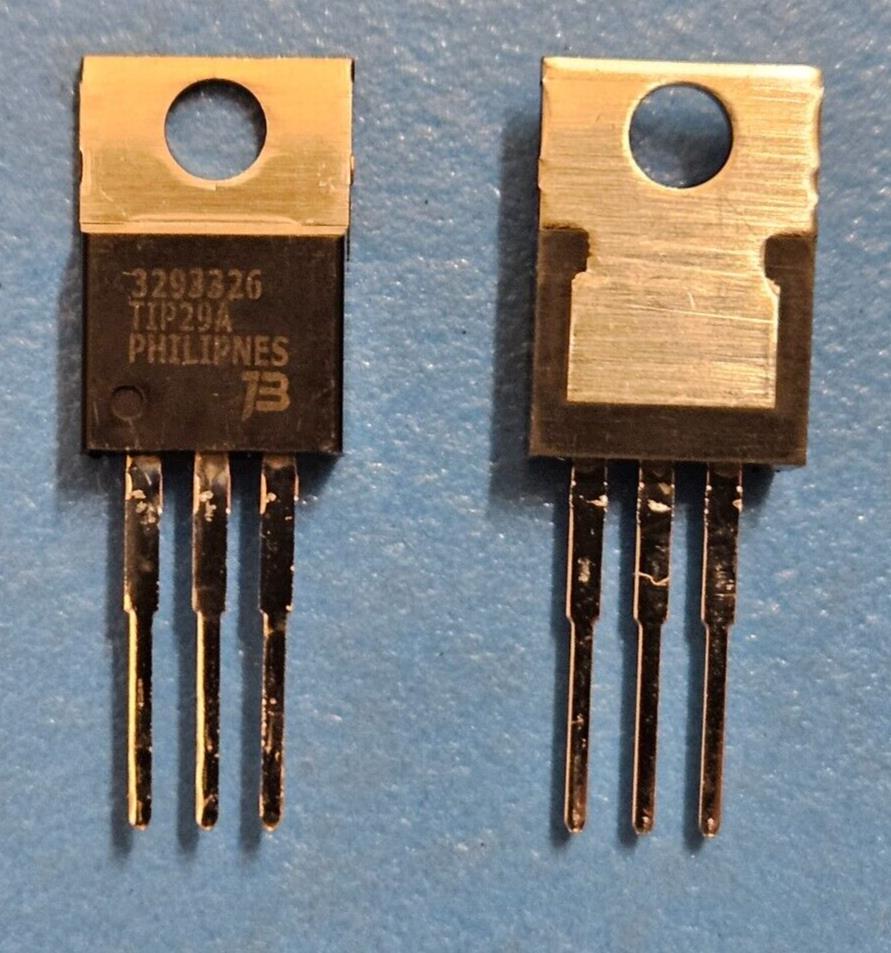

This listing is for (10PCS) of TIP29A by Bourns


Mfr Package Description TO-220, 3 PIN
Status Transferred
Case Connection COLLECTOR
Collector Current-Max (IC) 1.0  A
Collector-emitter Voltage-Max 60.0  V
Configuration SINGLE
DC Current Gain-Min (hFE) 15.0
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON
