(10PCS) SN75451BPSR TI Pref DRVR Dual 4.75V to 5.25V 8-Pin SOP
Tax included.

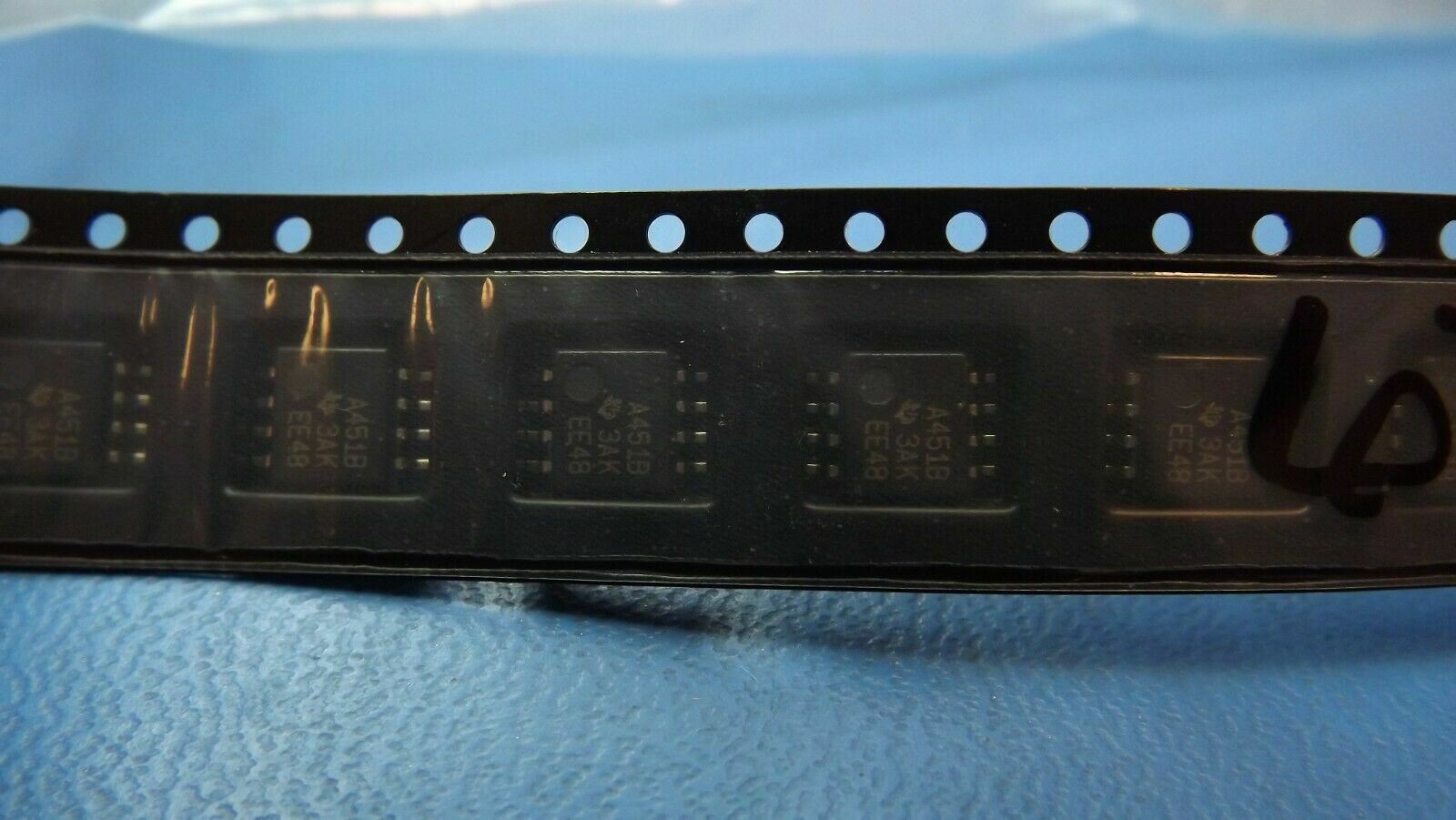

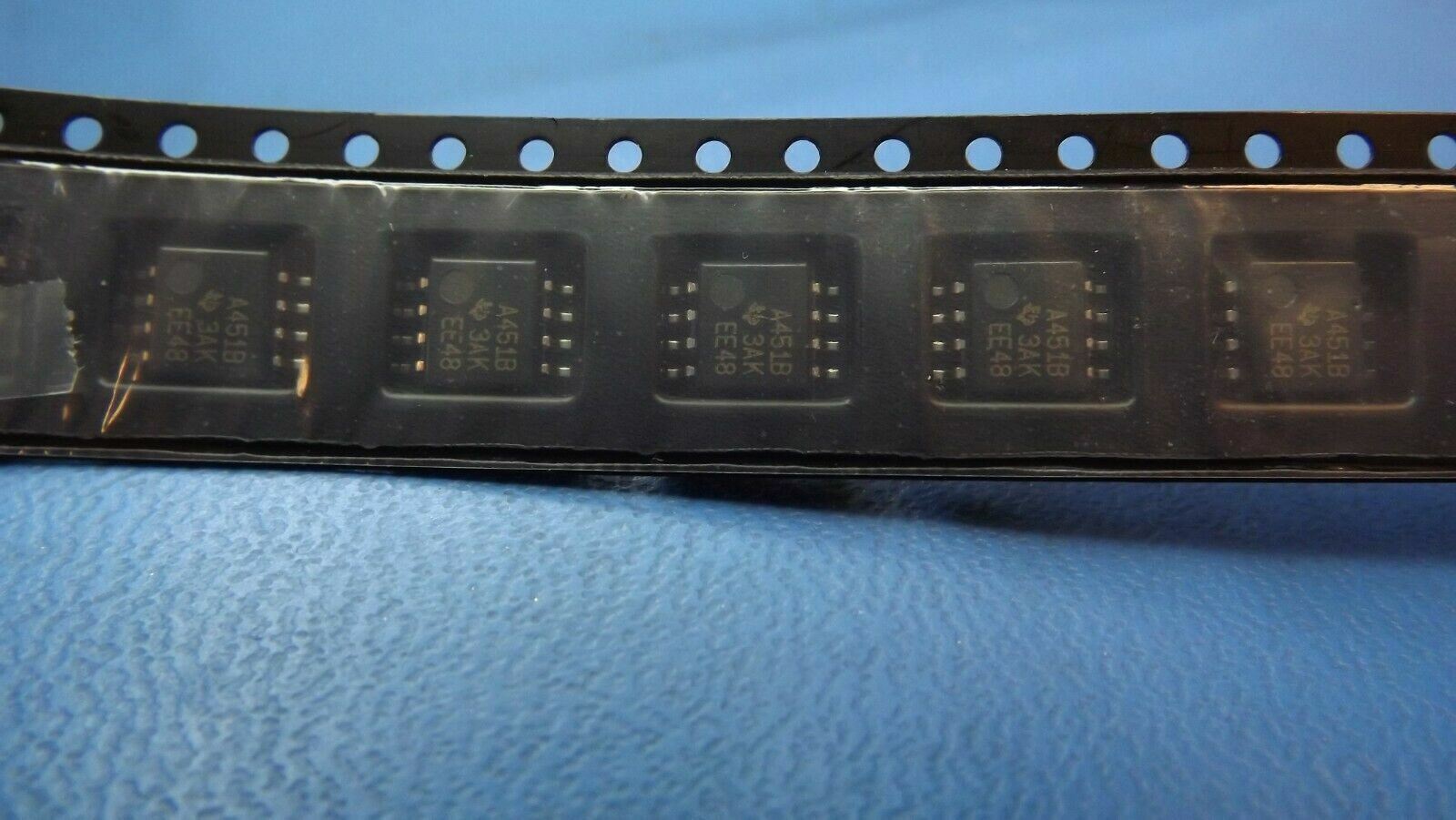

THIS LISTING IS FOR (5PCS) OF SN75451BPSR BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | SOP-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Interface IC Type | AND GATE BASED PERIPHERAL DRIVER |
| Driver Number of Bits | 2.0 |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e4 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Current Flow Direction | SINK |
| Output Peak Current Limit-Nom | 0.5 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.0 mm |
| Sub Category | Peripheral Drivers |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Turn-off Time | 0.025 µs |
| Turn-on Time | 0.025 µs |
| Length | 6.2 mm |
| Width | 5.3 mm |
