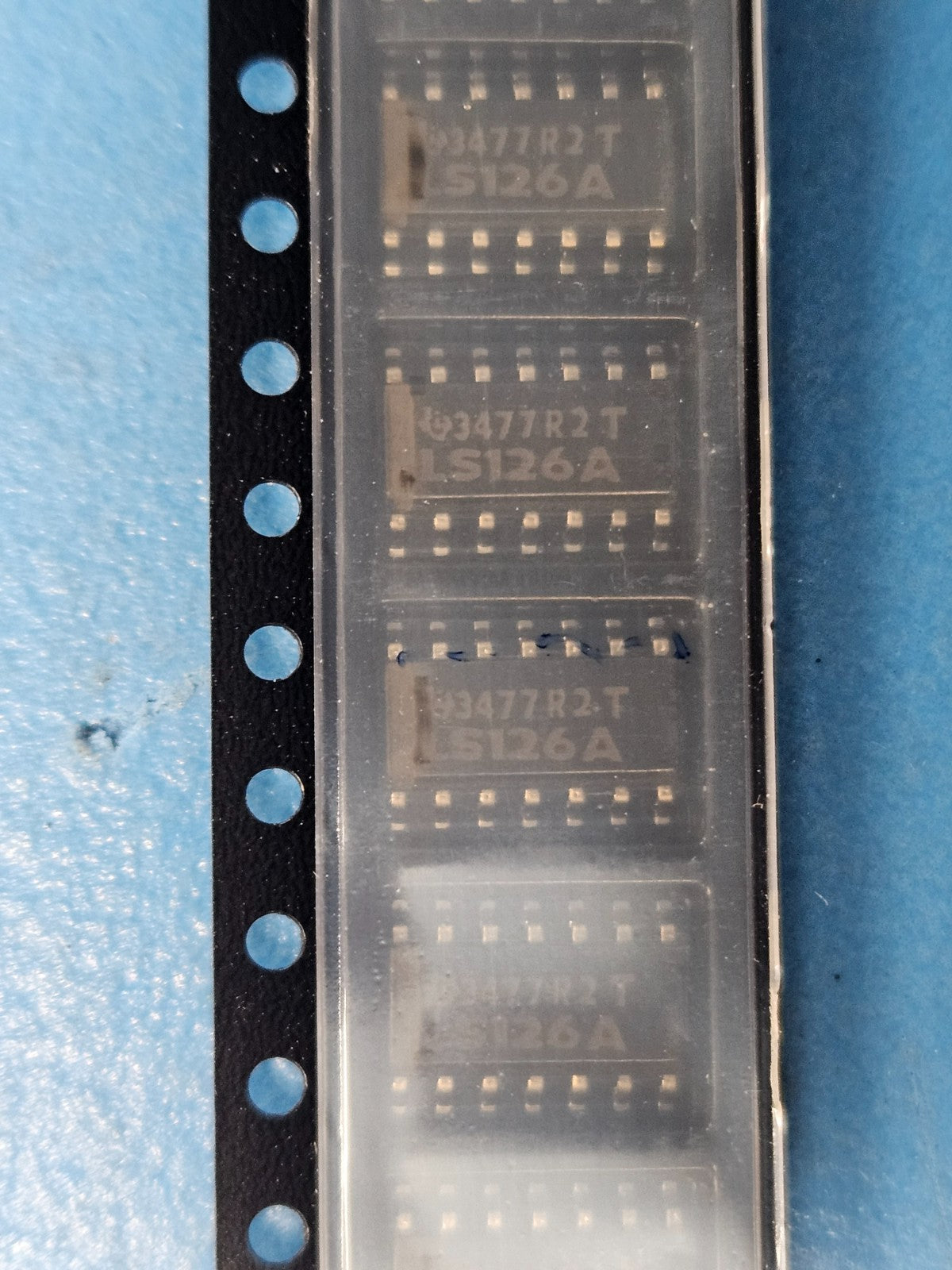

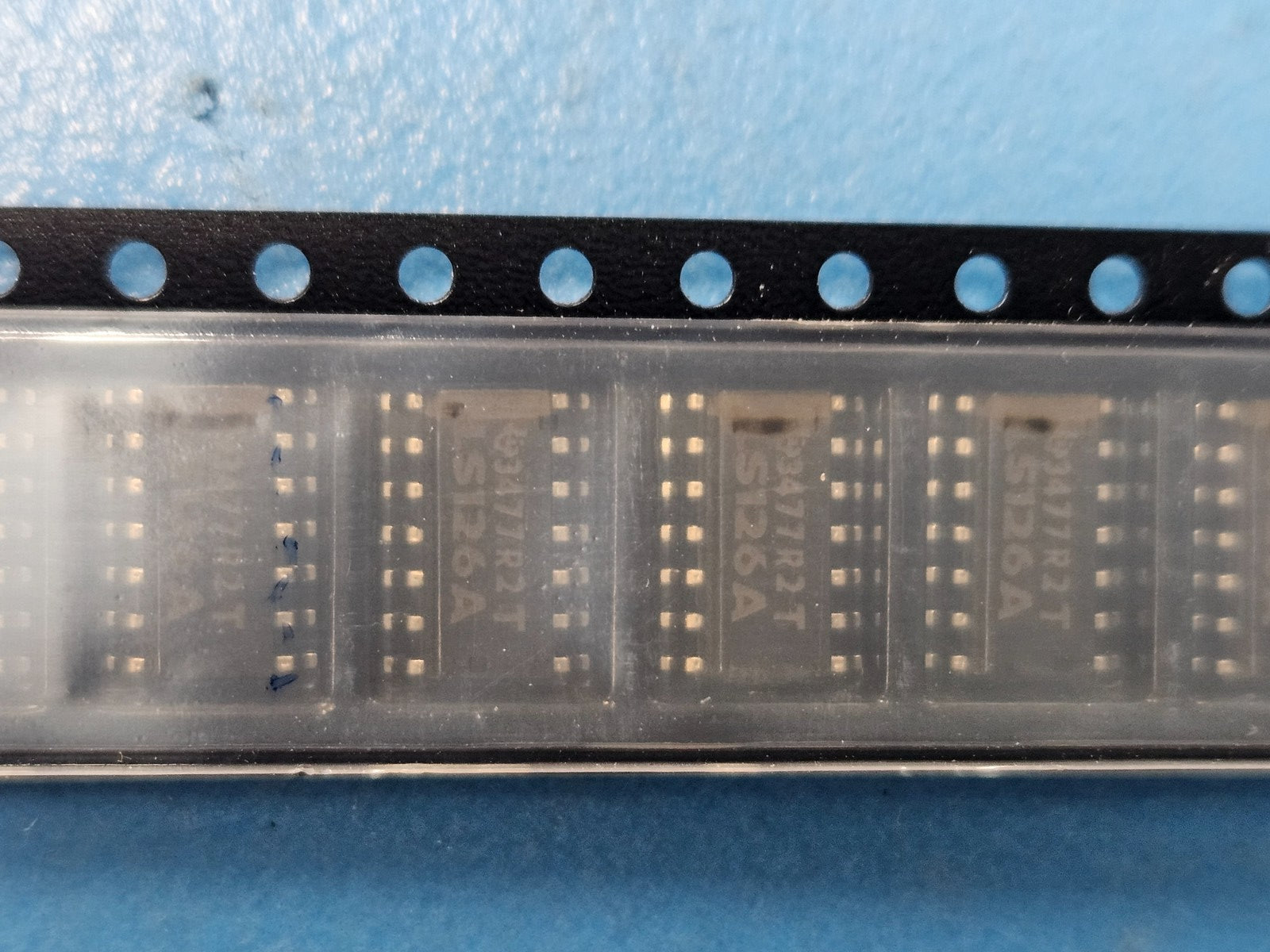

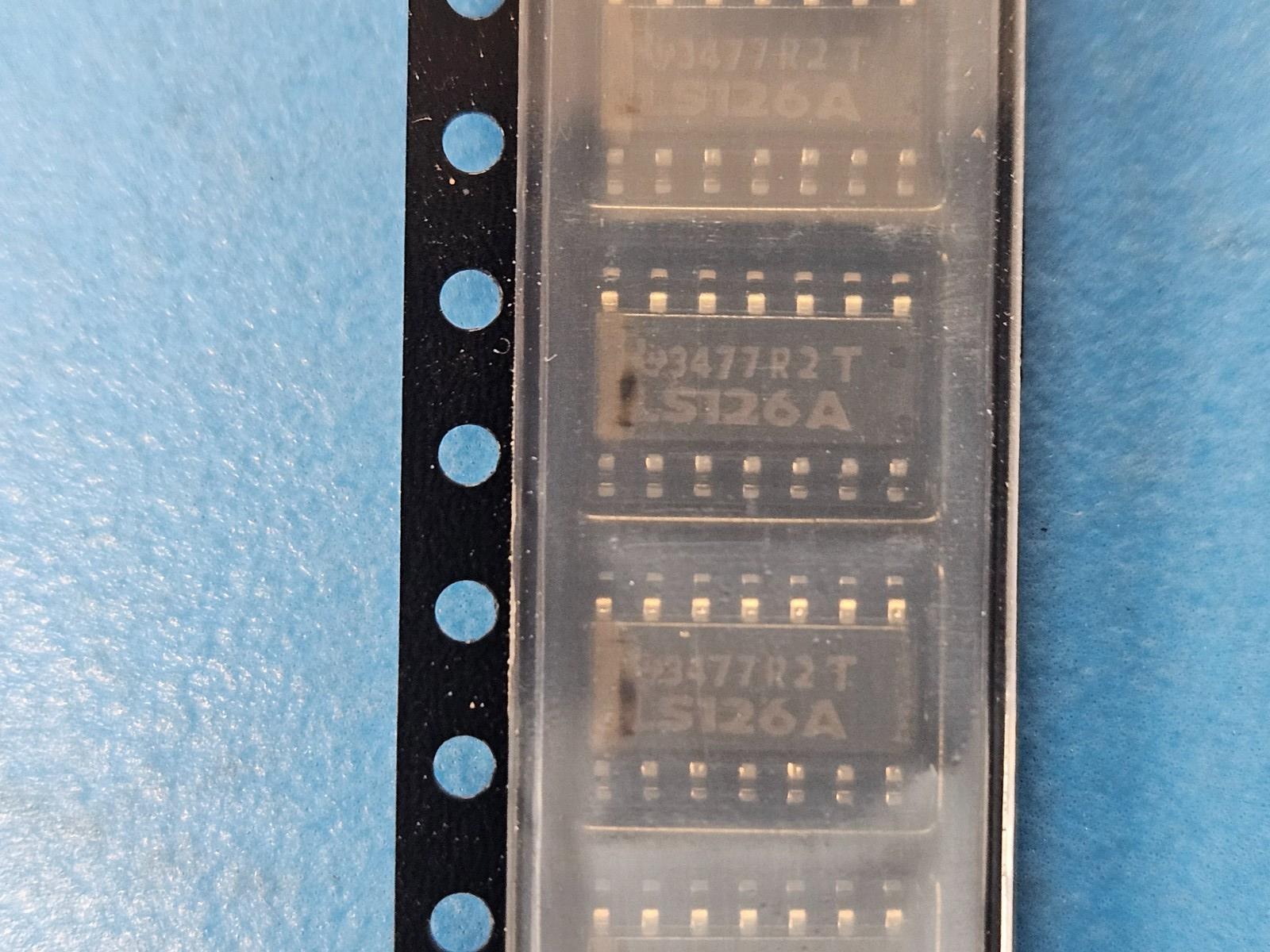

(10PCS) SN74LS126AD TI Bus Driver, 4-Func, 1-Bit, True Output, TTL, SOIC14
Tax included.
This listing is for (10PCS) of SN74LS126AD by Texas Instruments
Mfr Package Description SOIC-14
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceiver
Control Type ENABLE HIGH
Count Direction UNIDIRECTIONAL
Family LS
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Load Capacitance (CL) 45.0 pF
Max I(ol) 0.024 Amp
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 4
Number of Ports 2
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 22.0 mA
Prop. Delay@Nom-Sup 18.0 ns
Propagation Delay (tpd) 18.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
