(10PCS) SN74HCT32D TI OR Gate, HCT Series, 4-Func, 2-Input, CMOS, SOIC14 HCT32
(10PCS) SN74HCT32D TI OR Gate, HCT Series, 4-Func, 2-Input, CMOS, SOIC14 HCT32
(10PCS) SN74HCT32D TI OR Gate, HCT Series, 4-Func, 2-Input, CMOS, SOIC14 HCT32
(10PCS) SN74HCT32D TI OR Gate, HCT Series, 4-Func, 2-Input, CMOS, SOIC14 HCT32

(10PCS) SN74HCT32D TI OR Gate, HCT Series, 4-Func, 2-Input, CMOS, SOIC14 HCT32

Tax included.
Only 50 left!

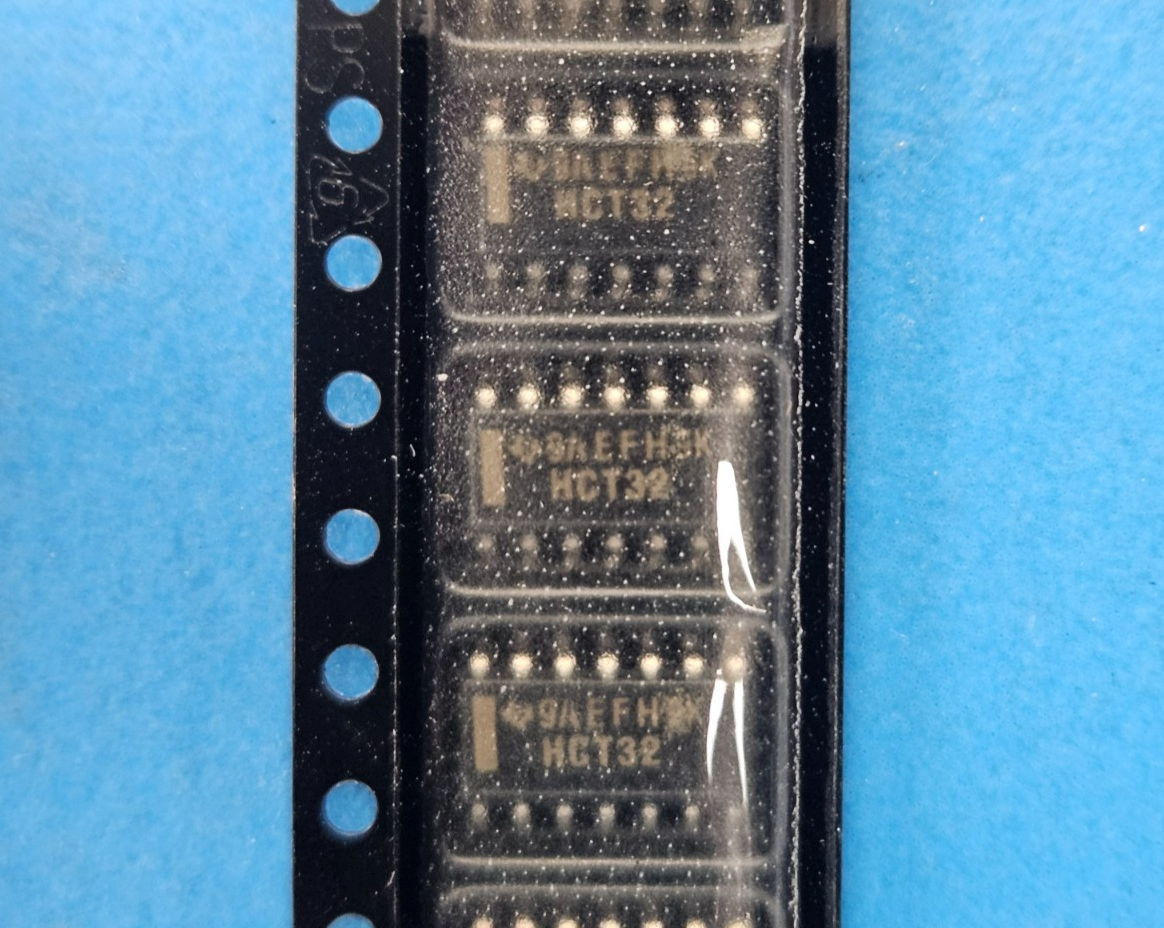

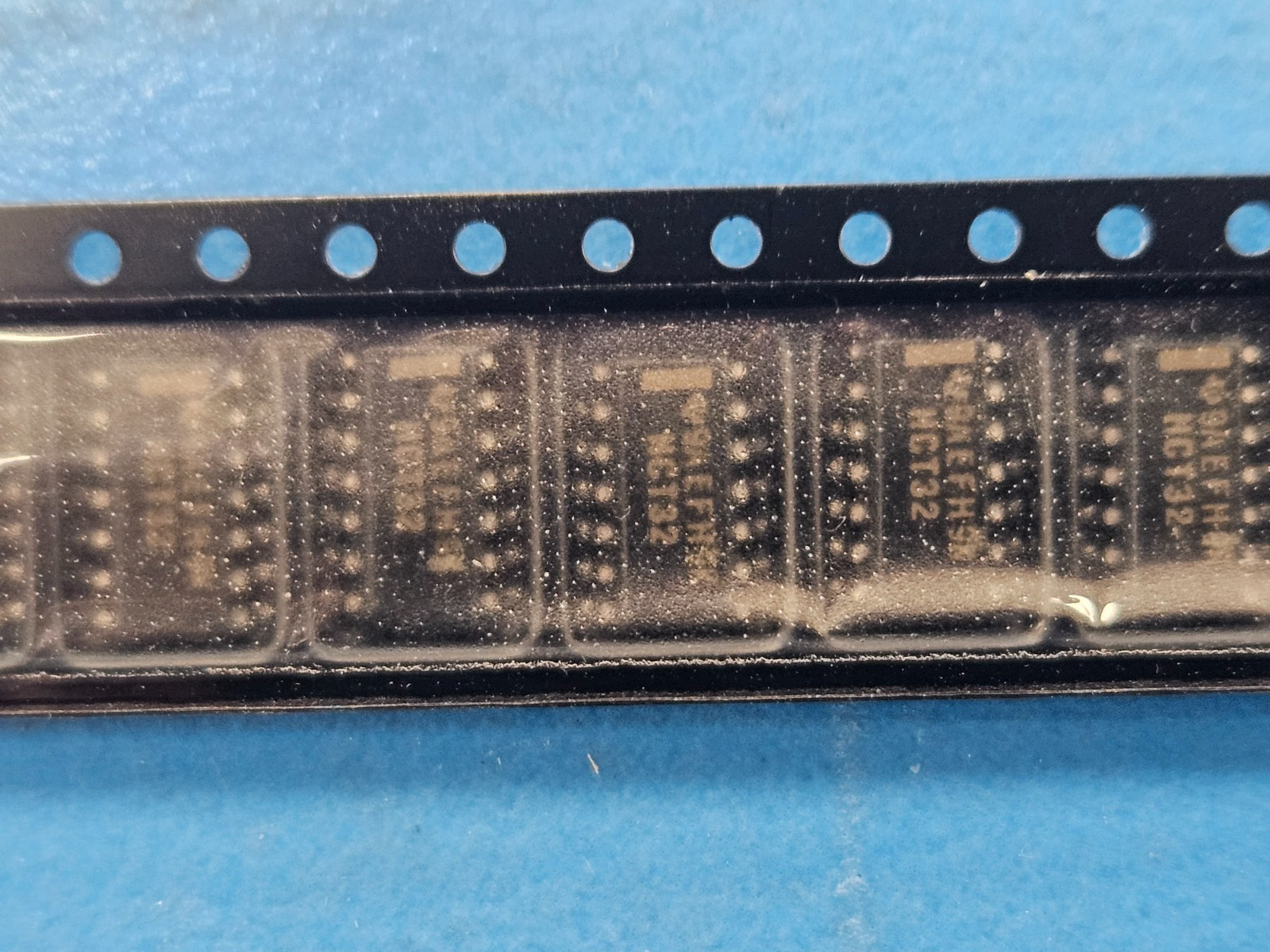

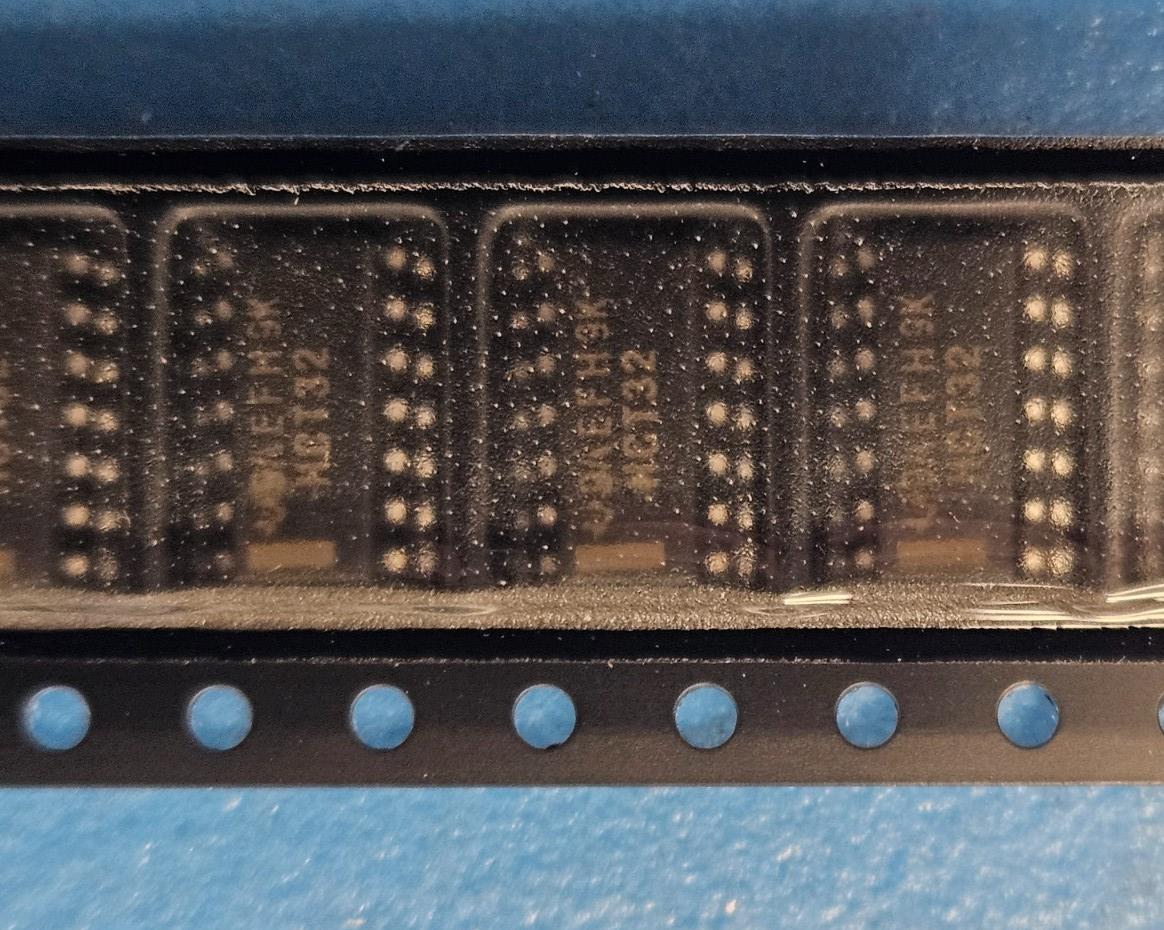

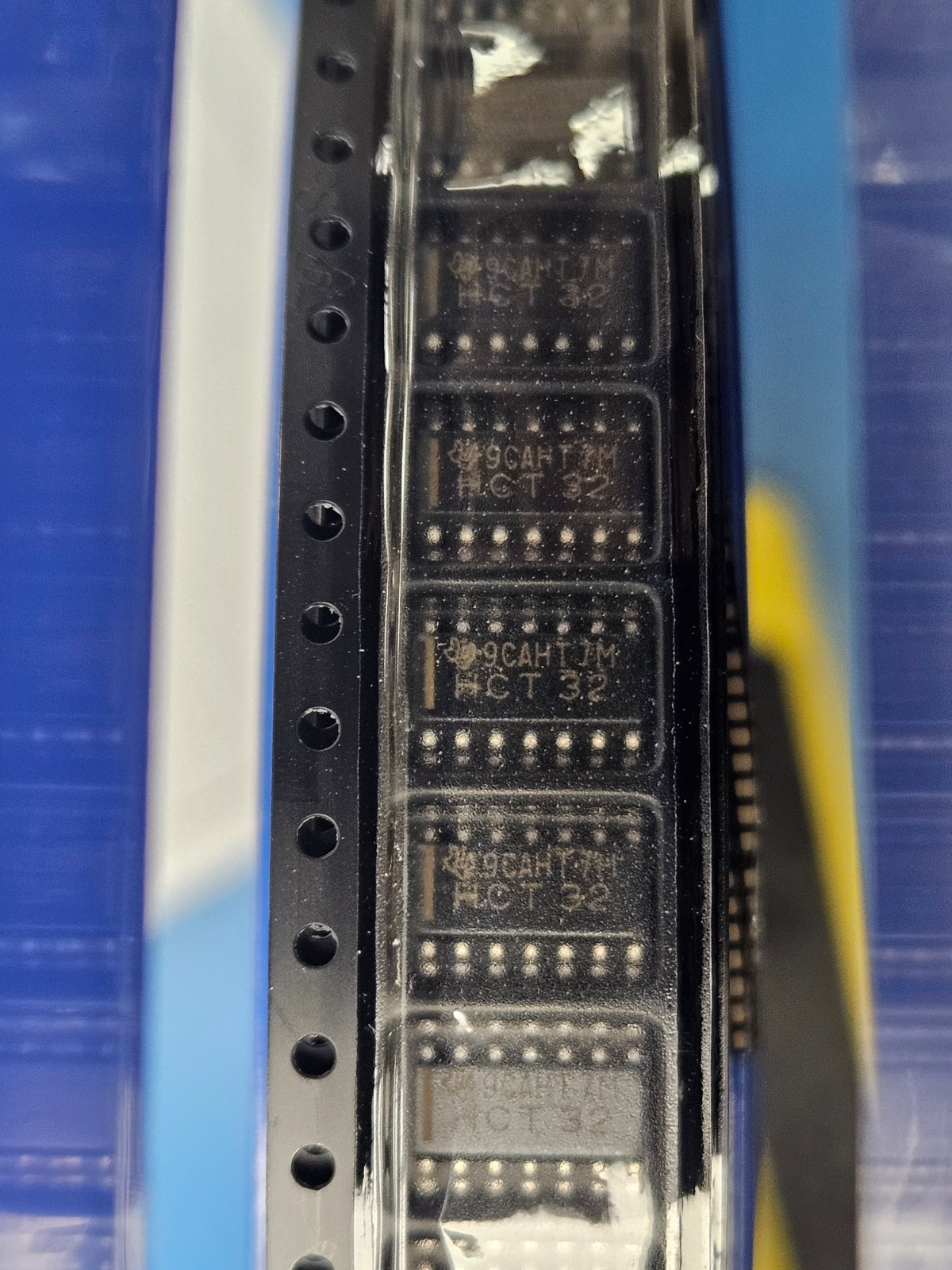

This listing is for (10PCS) of SN74HCT32D by Texas Instruments

Status Discontinued
Family HCT
JESD-30 Code R-PDSO-G14
J-STD-609 Code e4
Length (mm) 8.6500
Load Capacitance (pF) 50.0000
Logic IC Type OR GATE
Output Low Current-Max (mA) 4.000000000000000
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Supply Current-Max (mA) 0.02000000
Propagation Delay-Max@Nom-Sup (ns) 30.000000000000000000
Propagation Delay (ns) 30.0000
DLA Qualification Not Qualified
Schmitt Trigger NO
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width (mm) 3.9000
