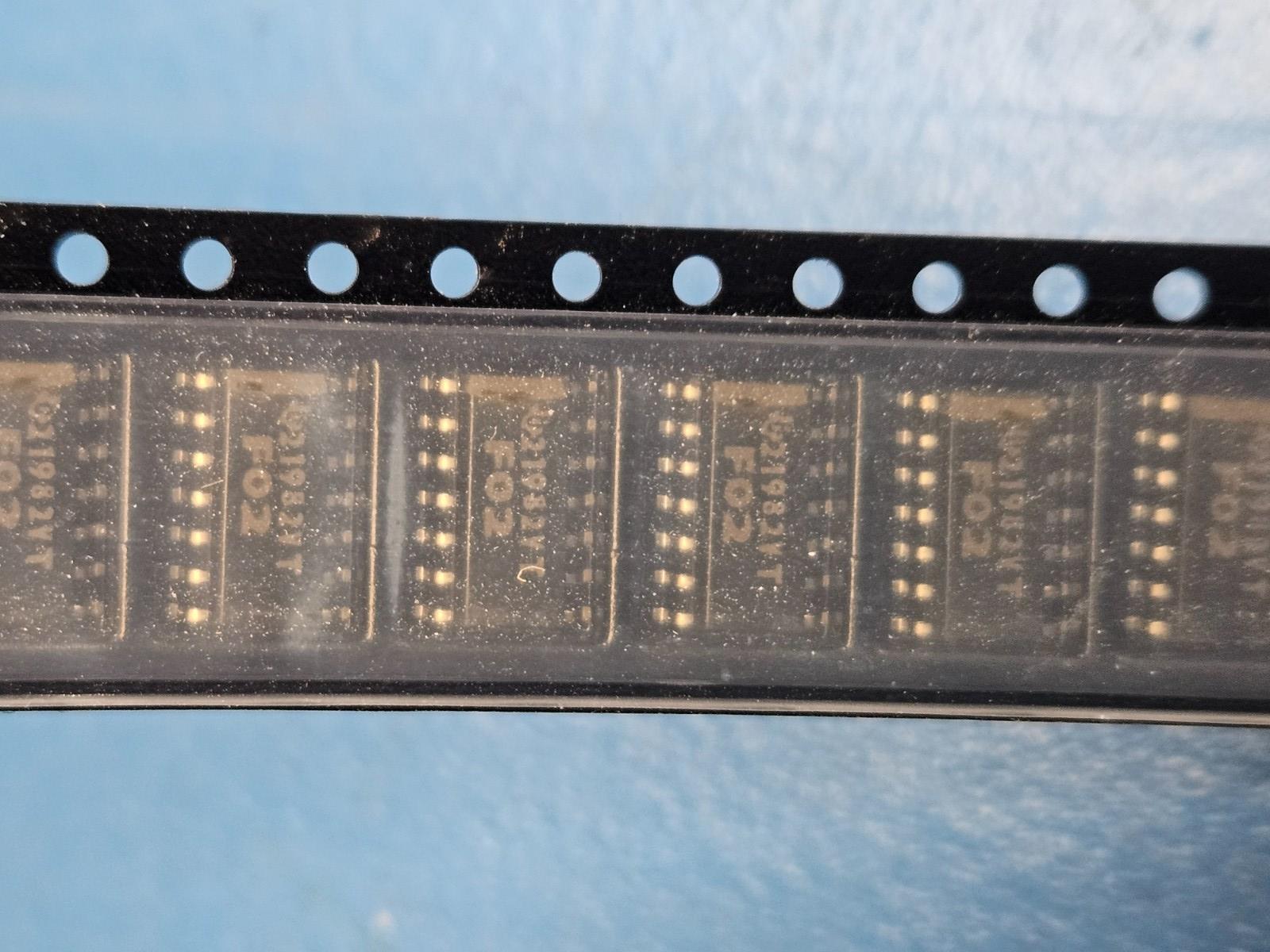

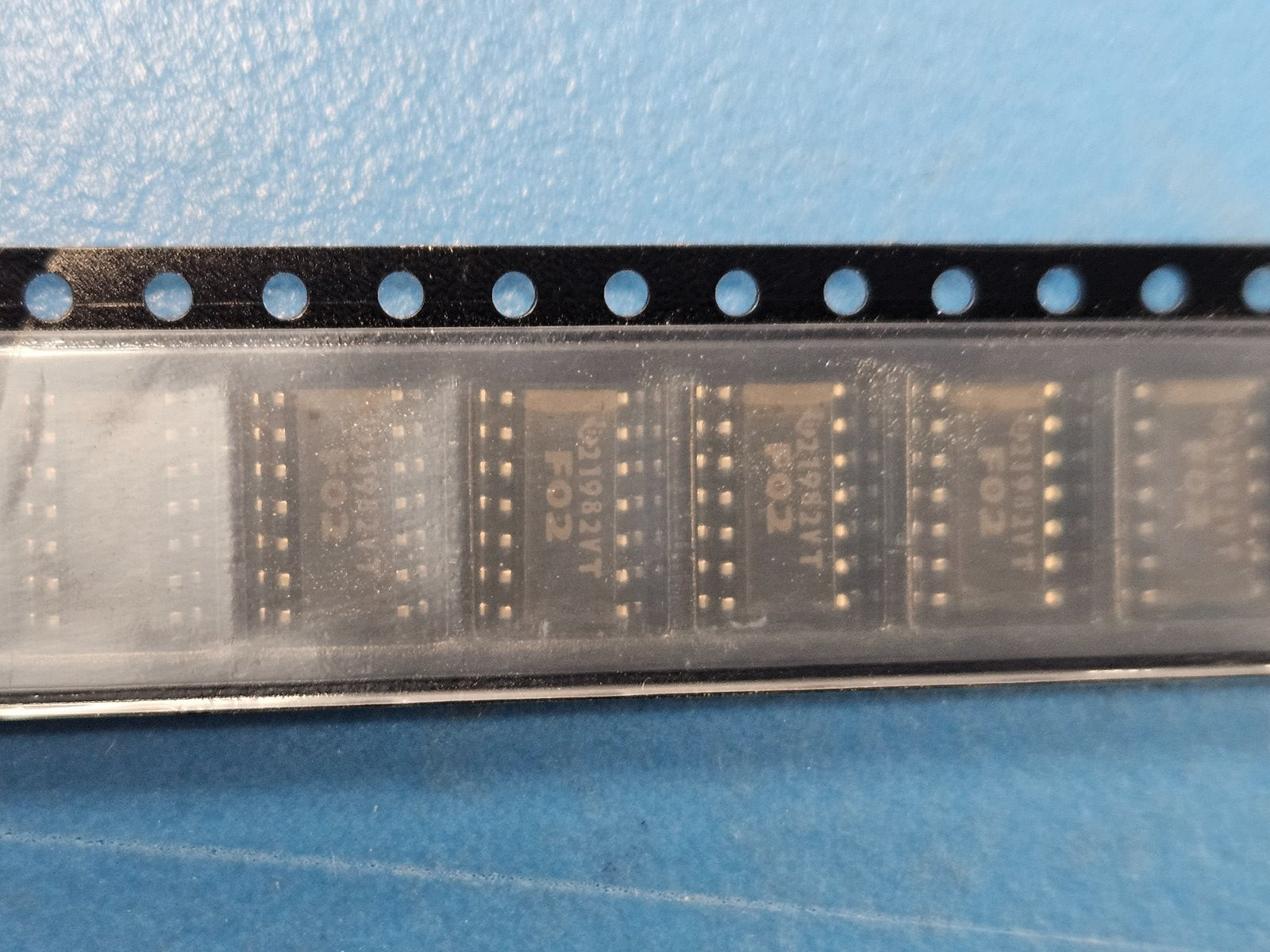

(10PCS) SN74F02DR TI NOR Gate, F/FAST Series, 4-Func, 2-Input, TTL, SOIC-14
Tax included.
This listing is for (10PCS) of SN74F02DR by Texas Instruments
Mfr Package Description SOIC-14
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Logic IC Type NOR GATE
Sub Category Gates
Family F/FAST
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.02 Amp
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 13.0 mA
Prop. Delay@Nom-Sup 6.5 ns
Propagation Delay (tpd) 6.5 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
