(10PCS) SMCJ8.0A TVS DIODE 8VWM 13.6VC SMC

  • $6.50
    Unit price per
Tax included.

Only 18 left!

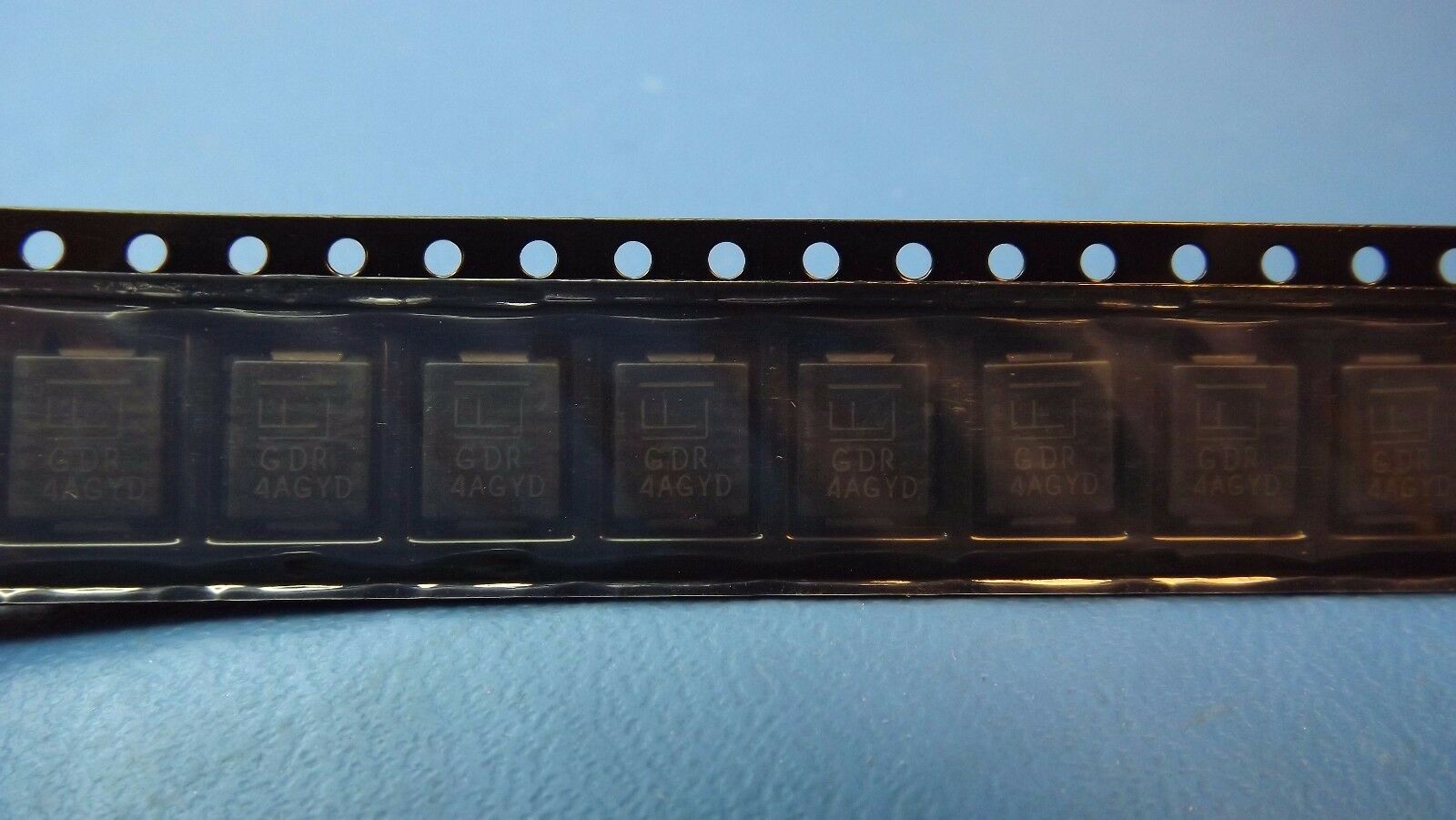

THIS LISTING IS FOR (10PCS) OF SMCJ8.0A BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 9.36 V
Breakdown Voltage-Min 8.89 V
Breakdown Voltage-Max 9.83 V
Clamping Voltage-Max 13.6 V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500.0 W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 8.0 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature LOW INDUCTANCE, EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
