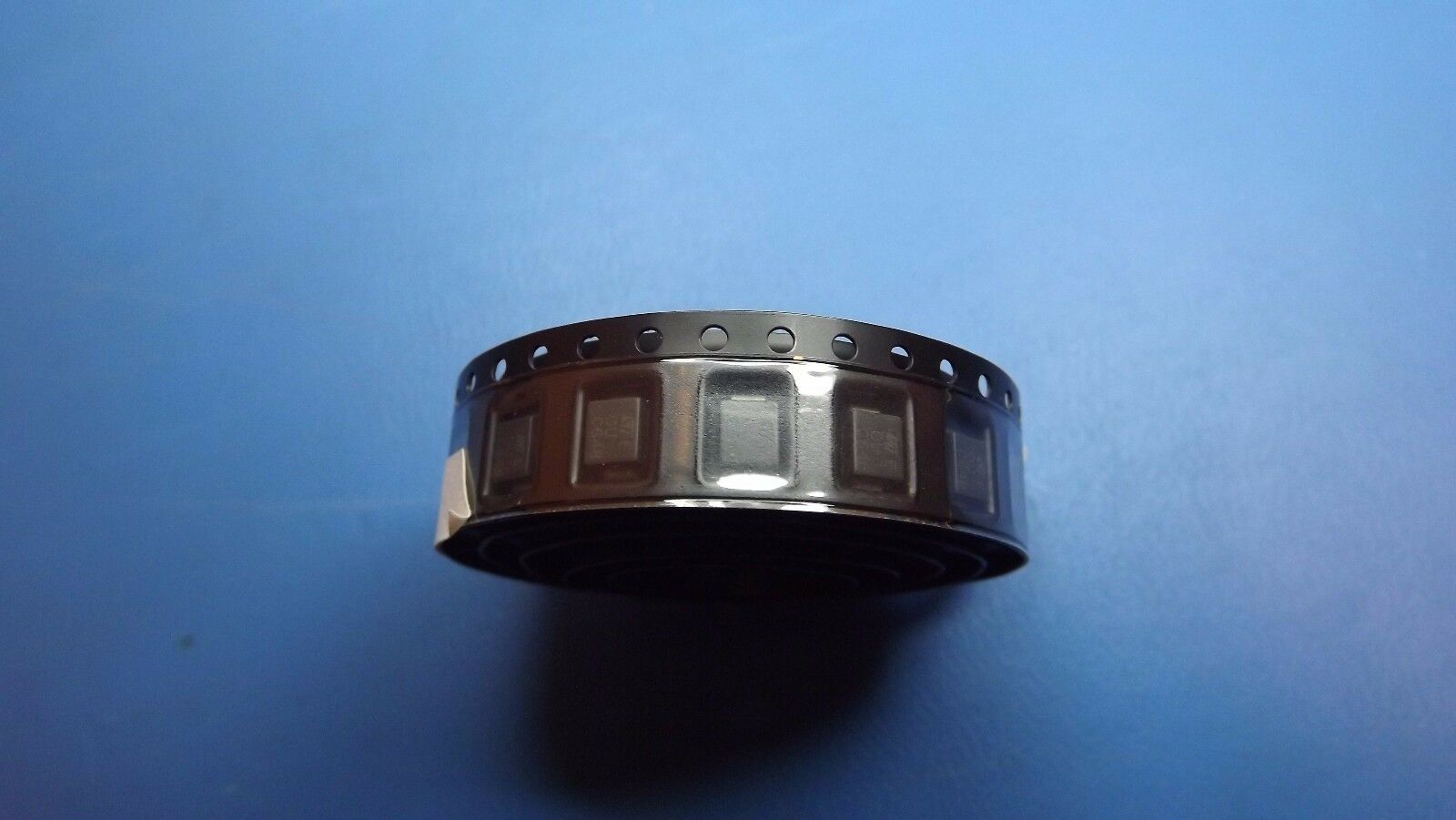

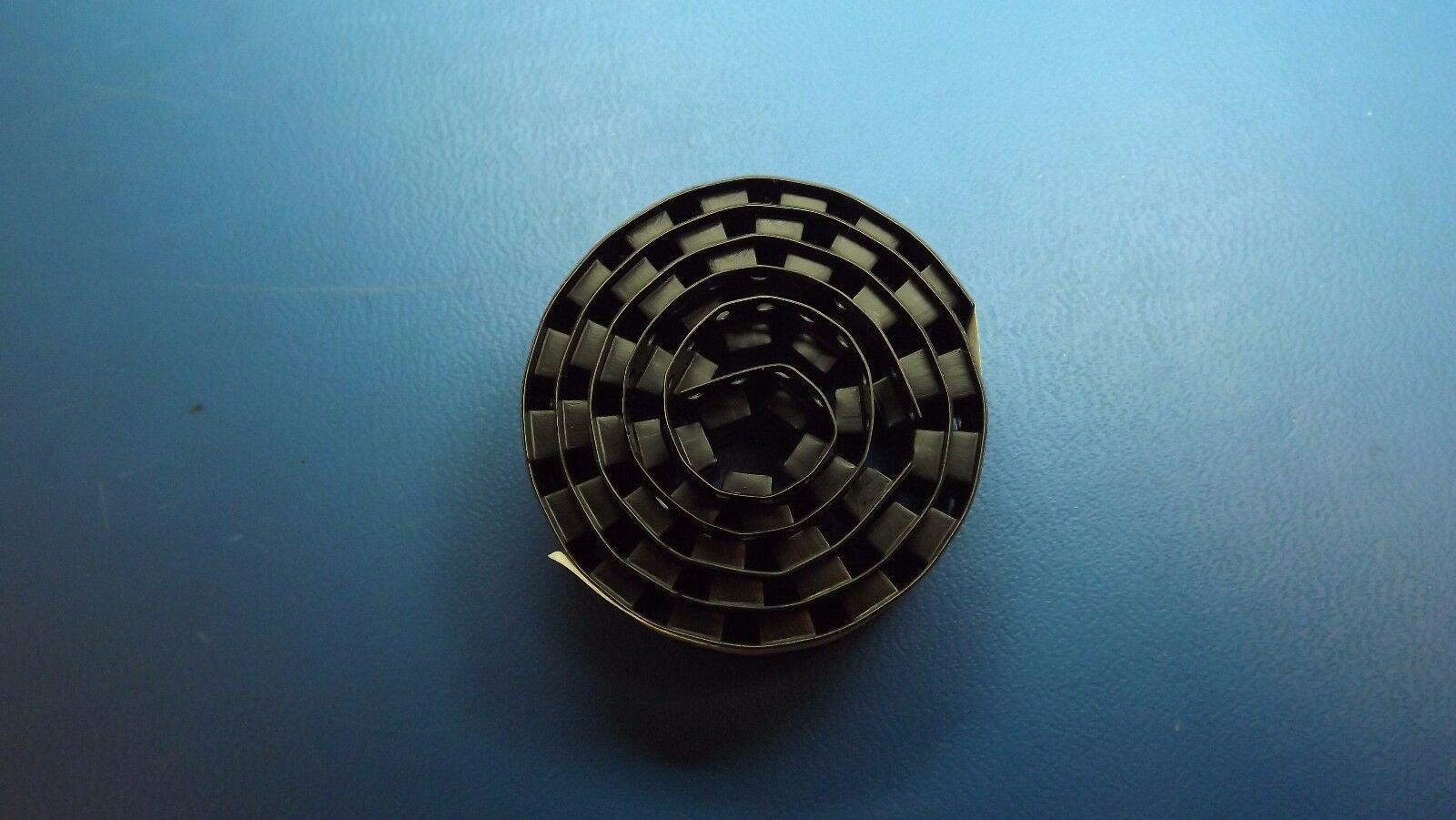

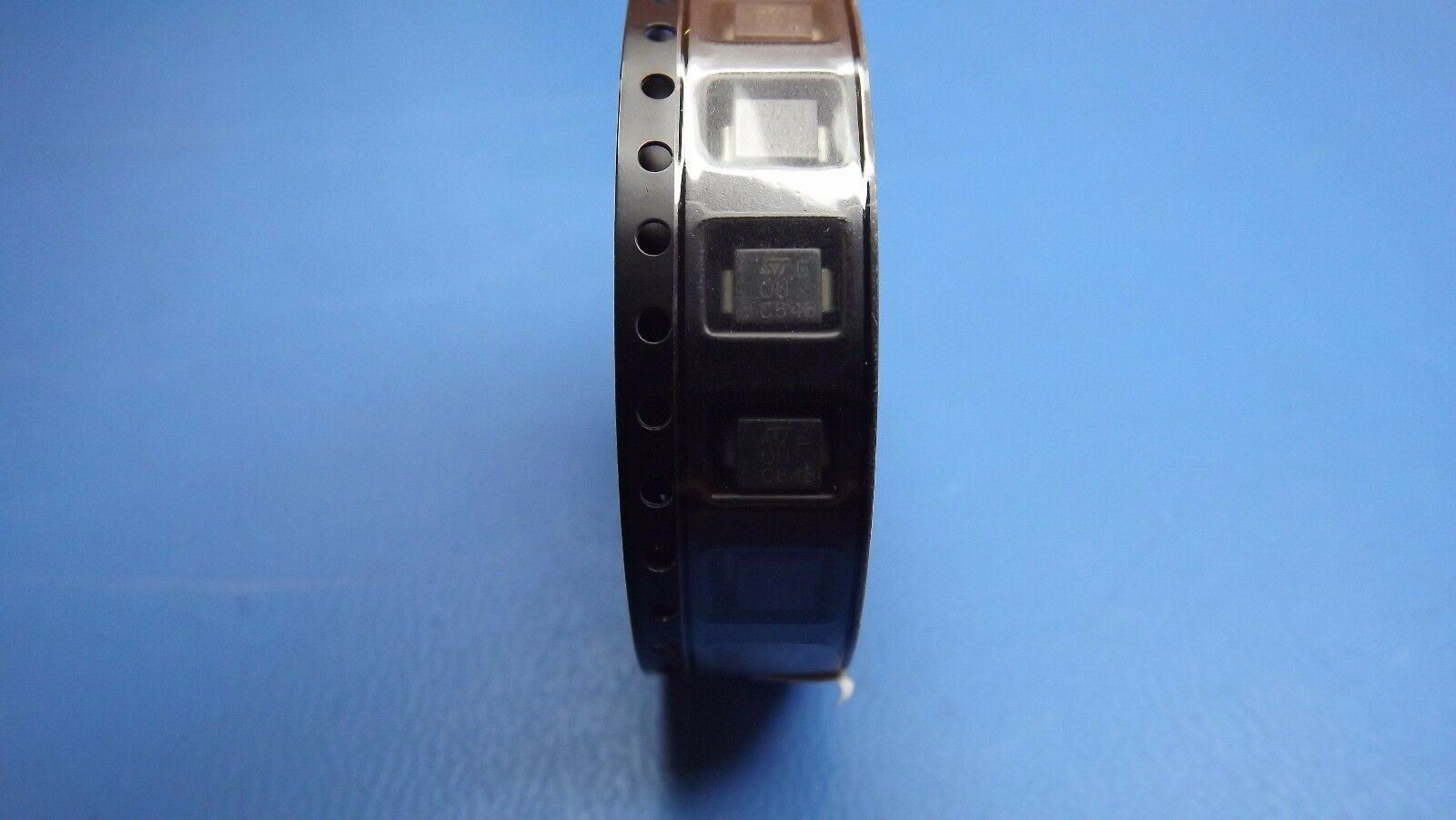

(10PCS) SM6T200CA Diode TVS Single Bi-Dir 171V 600W 2-Pin SMB
Tax included.
THIS LISTING IS FOR (10PCS) OF SM6T200CA BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC, SMB, 2 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Nom | 200.0 V |
| Breakdown Voltage-Min | 190.0 V |
| Breakdown Voltage-Max | 210.0 V |
| Clamping Voltage-Max | 353.0 V |
| Configuration | SINGLE |
| Diode Capacitance-Min | 175.0 pF |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-214AA |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Non-rep Peak Rev Power Dis-Max | 4000.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | BIDIRECTIONAL |
| Power Dissipation-Max | 5.0 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 171.0 V |
| Reverse Current-Max | 5.0 µA |
| Sub Category | Transient Suppressors |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Additional Feature | UL RECOGNIZED |
