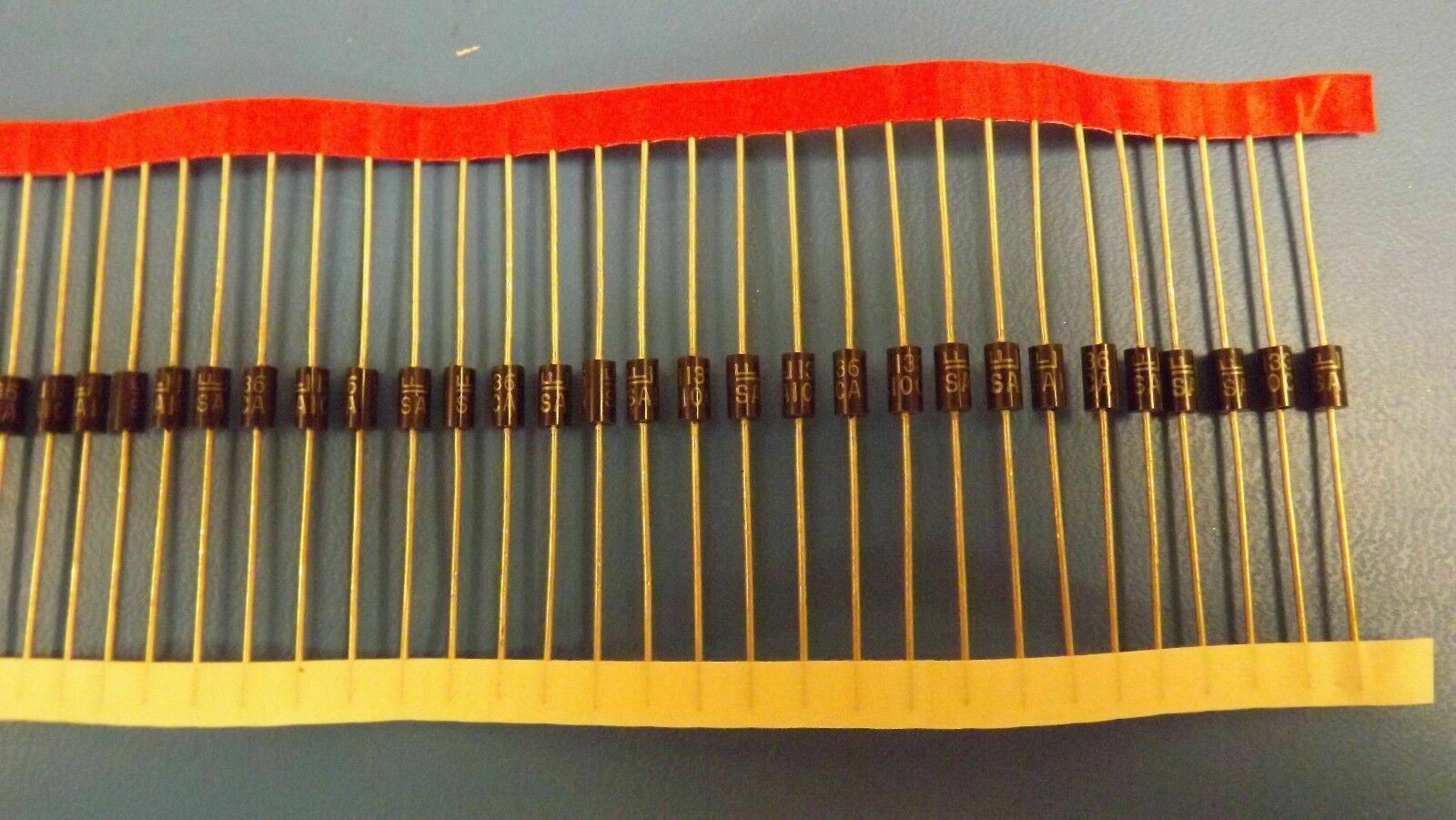

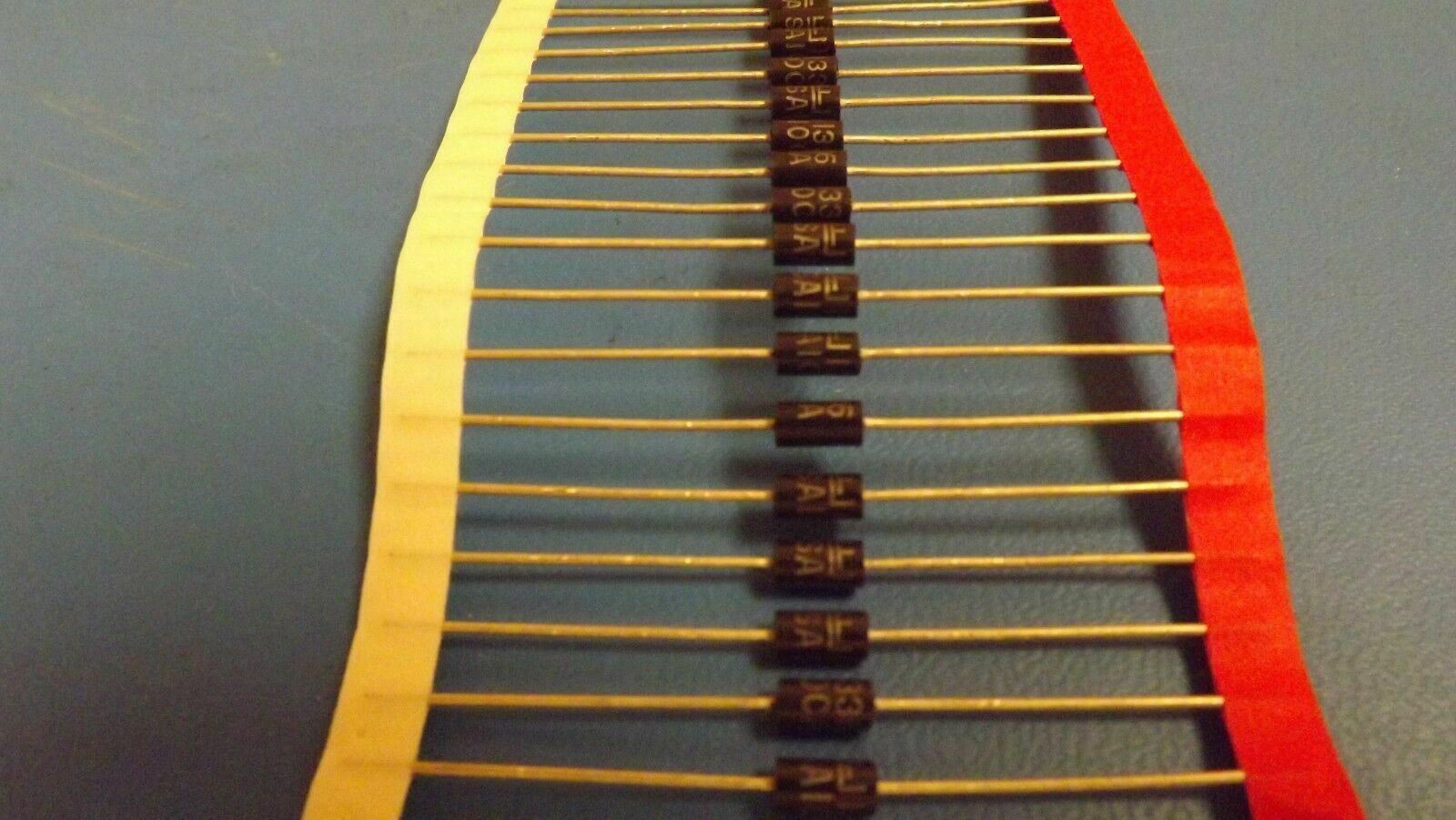

(10PCS) SA10CA TVS DIODE 10VWM 17VC DO204AC

  • $5.00
    Unit price per
Tax included.

Only 9 left!

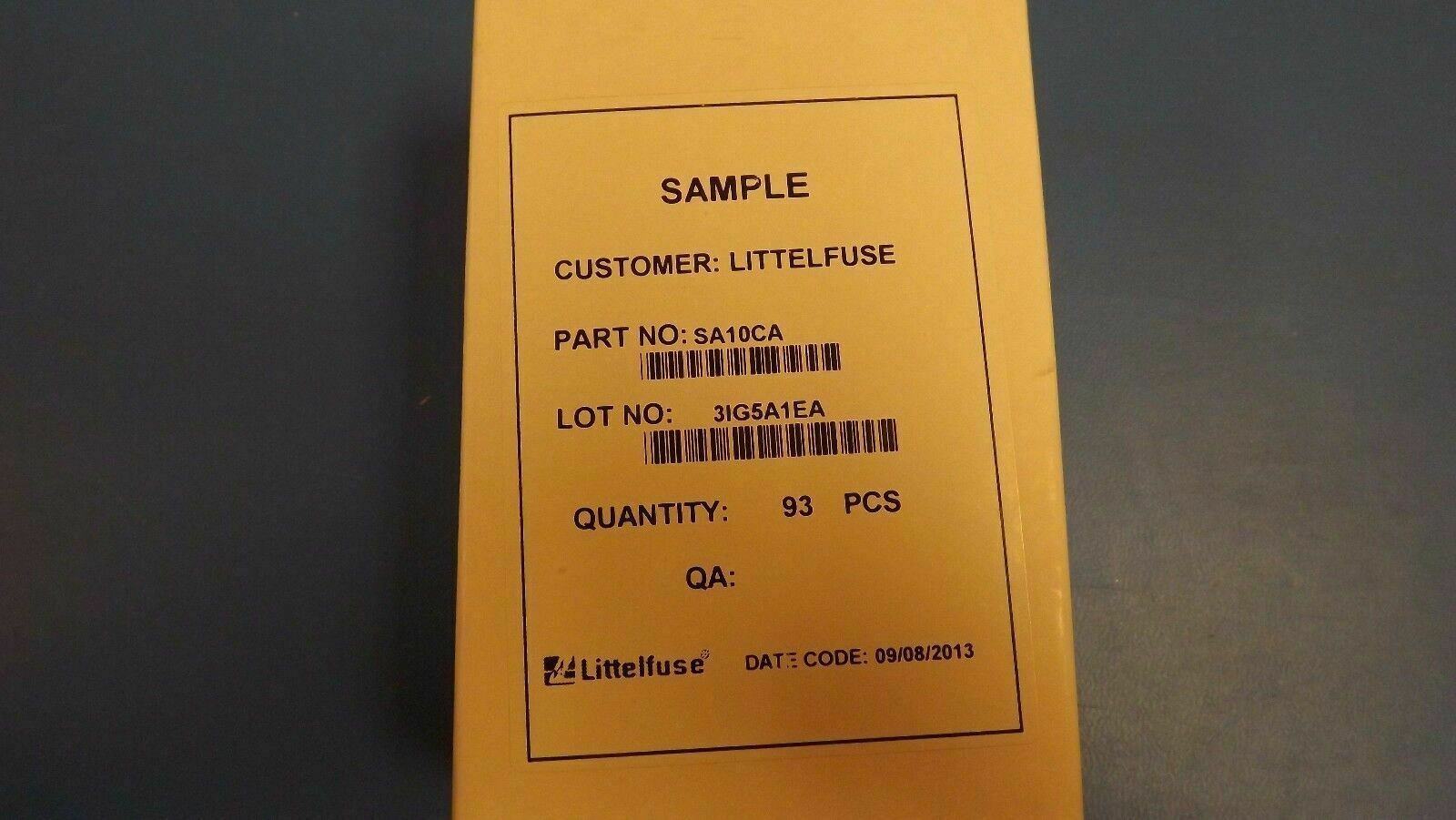

THIS LISTING IS FOR (10PCS) OF SA10CA BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 11.1 V
Breakdown Voltage-Max 12.3 V
Case Connection ISOLATED
Clamping Voltage-Max 17 V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-15
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max 175 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 3 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 10 V
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 30
Additional Feature UL RECOGNIZED
