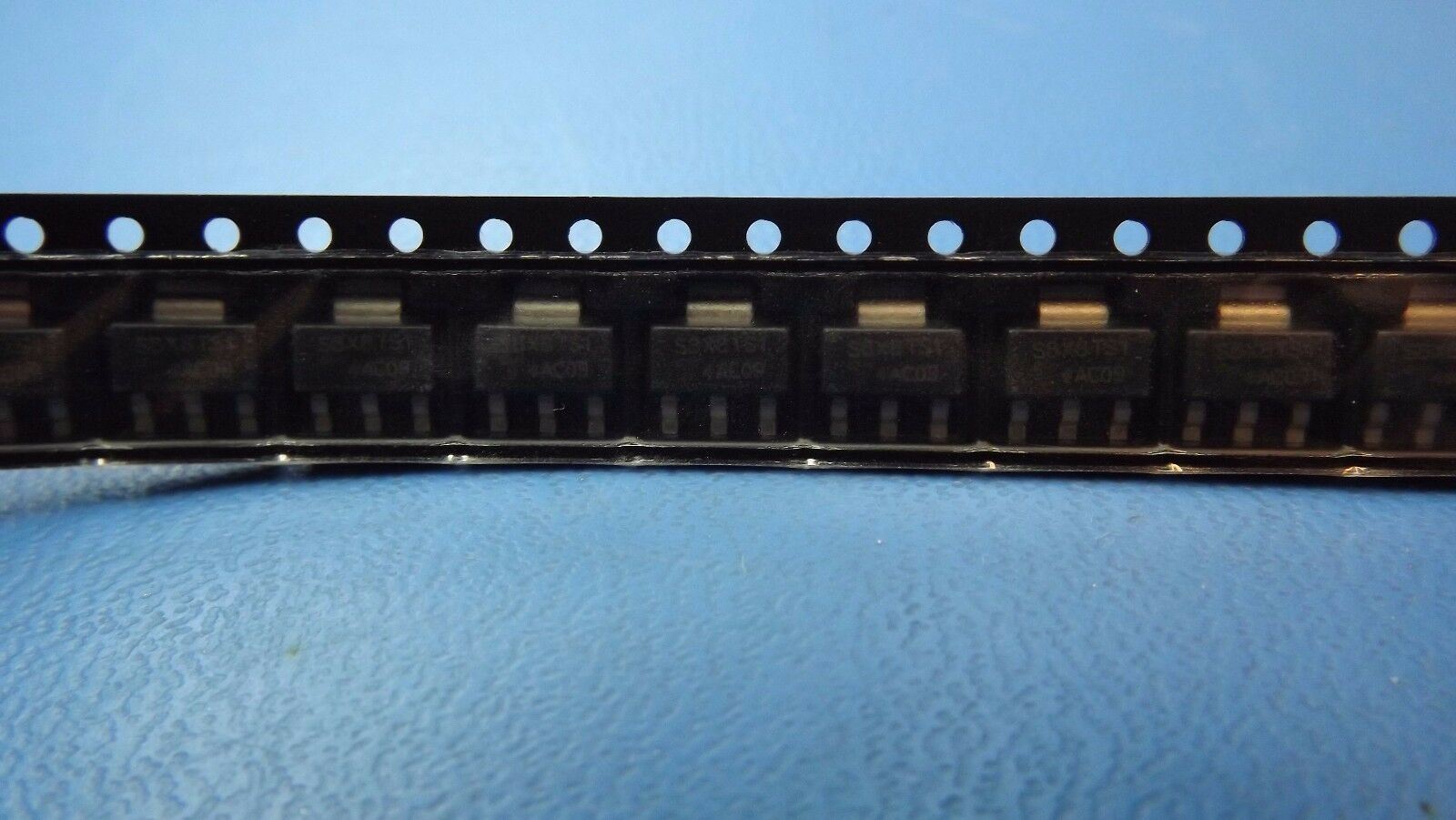

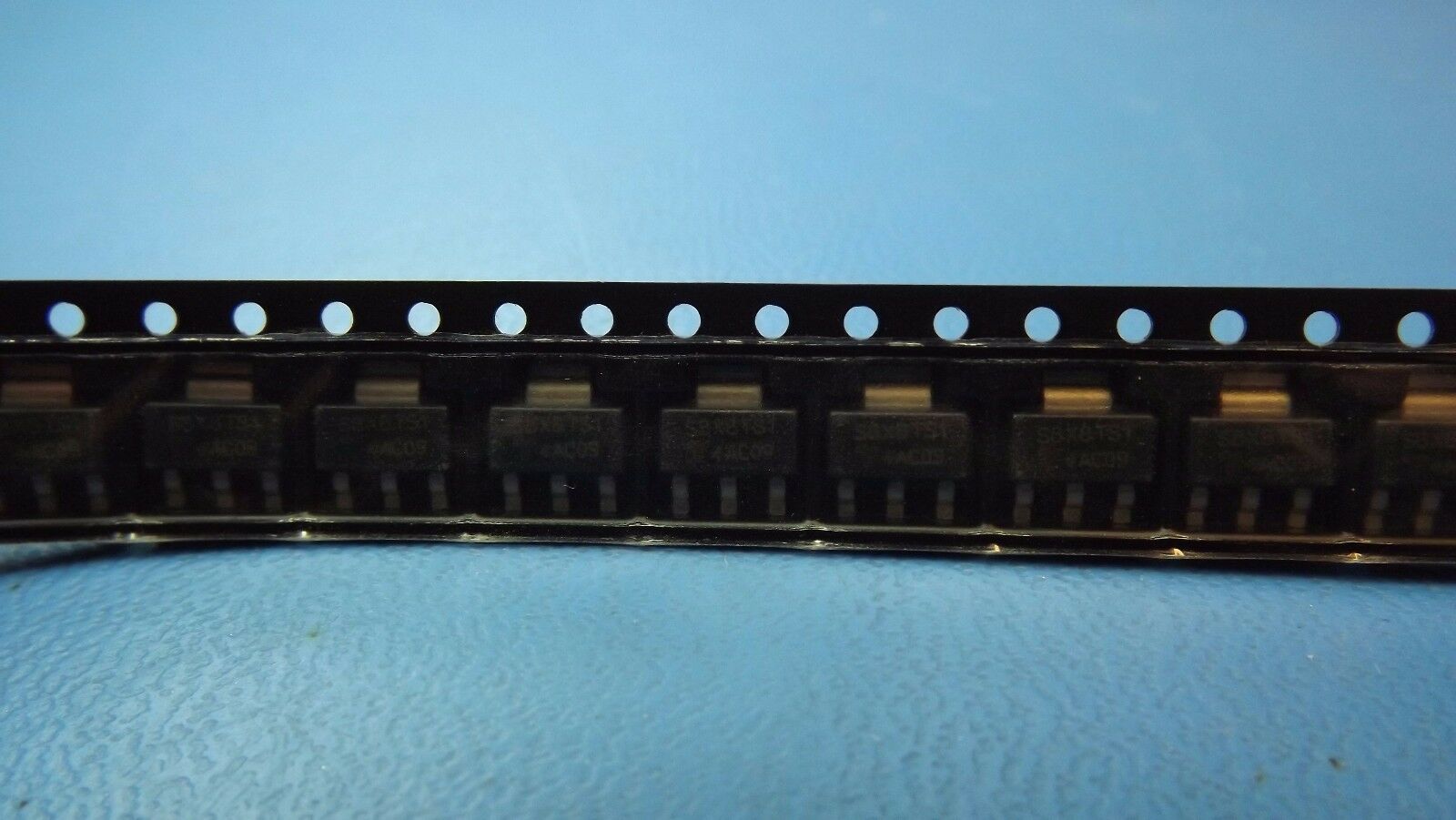

(10PCS) S8X8TS1RP LITTELFUSE Thyristor SCR 800V 10A 4-Pin(3+Tab) SOT-223
Tax included.

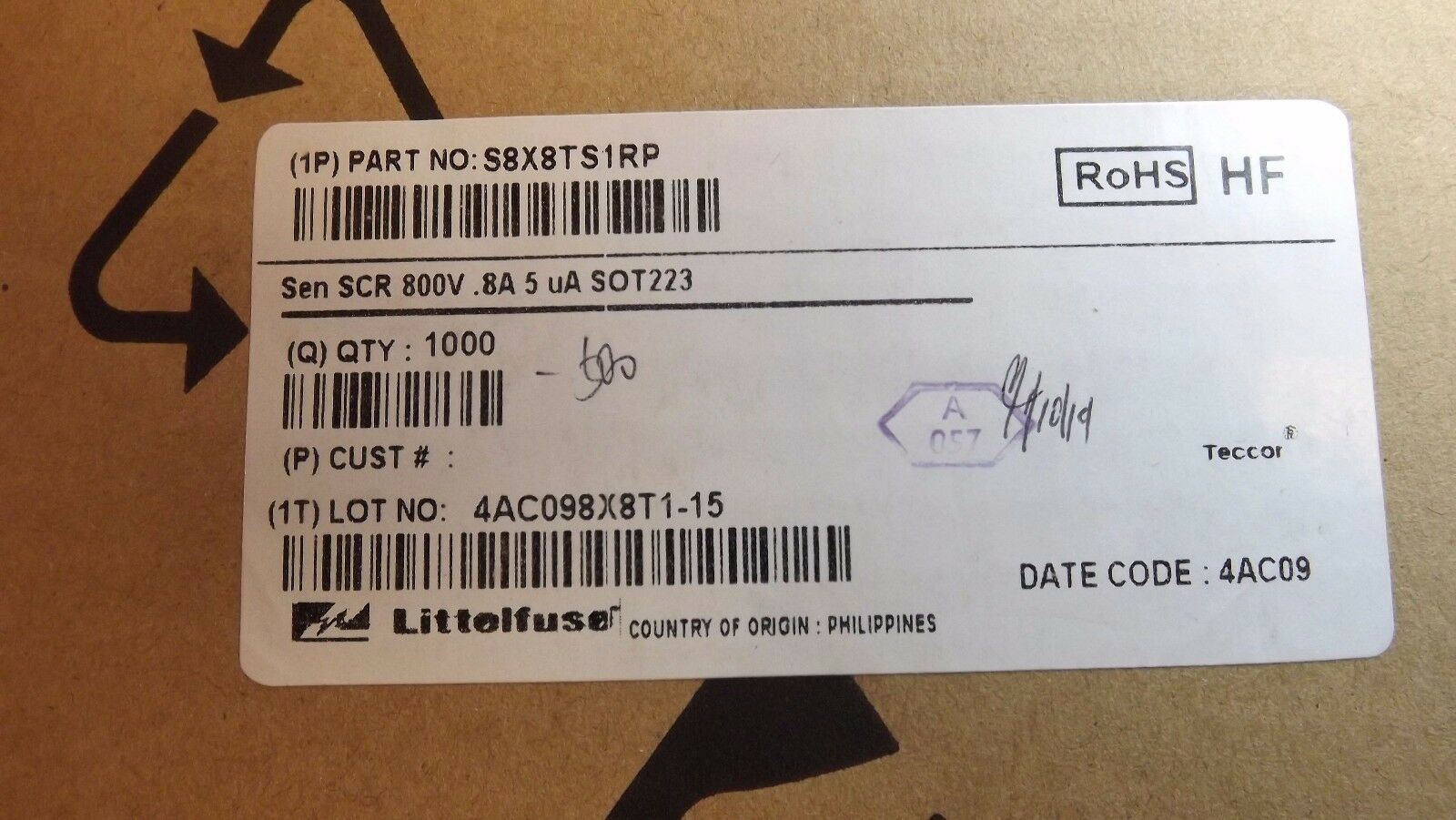

THIS LISTING IS FOR (10PCS) OF S8X8TS1RP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-4 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SCR |
| Case Connection | ANODE |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-state Voltage-Min | 75.0 V/us |
| DC Gate Trigger Current-Max | 0.005 mA |
| DC Gate Trigger Voltage-Max | 0.8 V |
| Holding Current-Max | 5.0 mA |
| JESD-30 Code | R-PDSO-G4 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 0.5 mA |
| Non-Repetitive Pk On-state Cur | 10.0 A |
| Number of Elements | 1.0 |
| Number of Terminals | 4 |
| On-State Current-Max | 800.0 mA |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 800.0 V |
| Repetitive Peak Reverse Voltage | 800.0 V |
| RMS On-state Current-Max | 0.8 A |
| Sub Category | Silicon Controlled Rectifiers |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Additional Feature | HIGH RELIABILITY |
