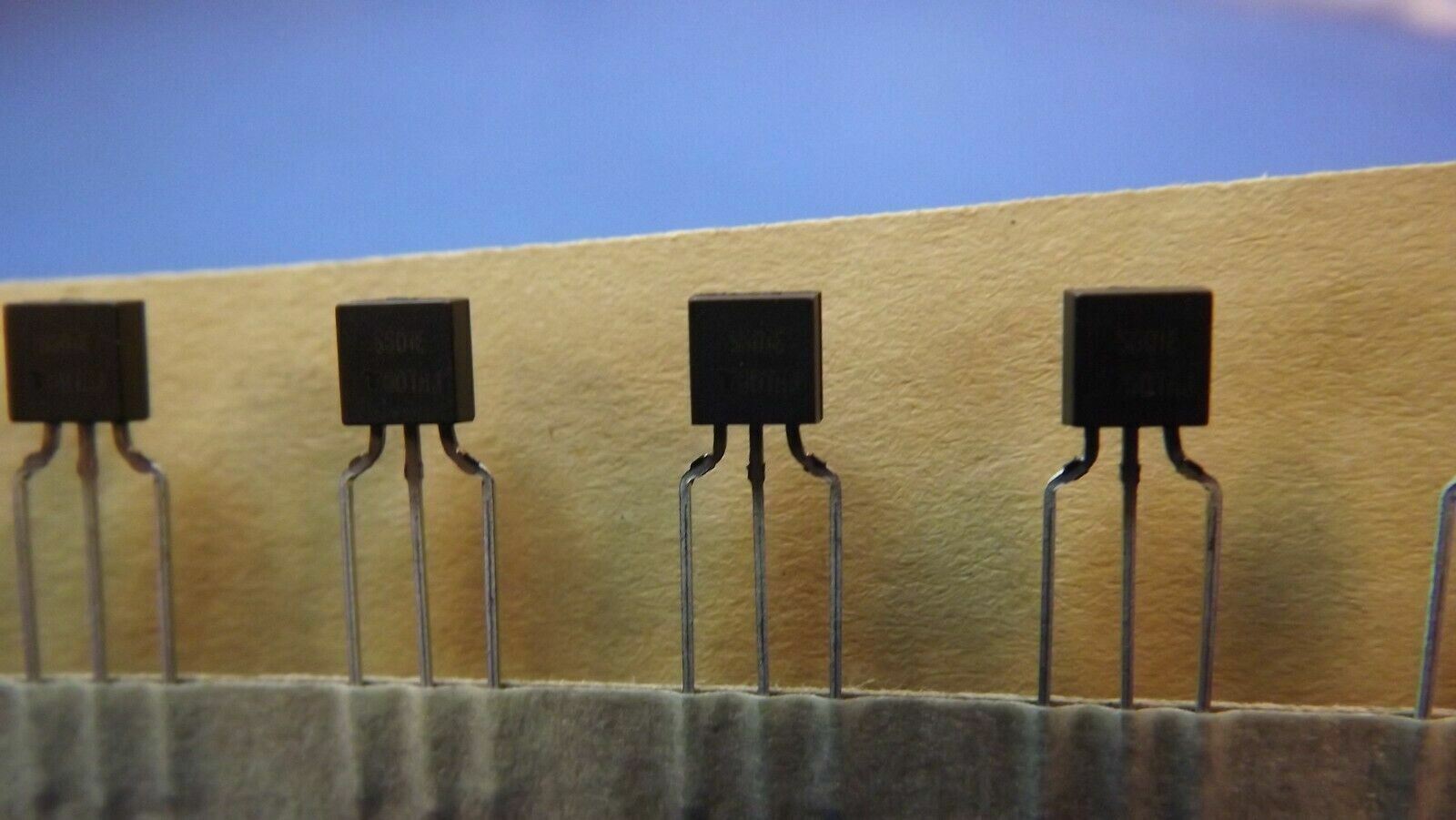

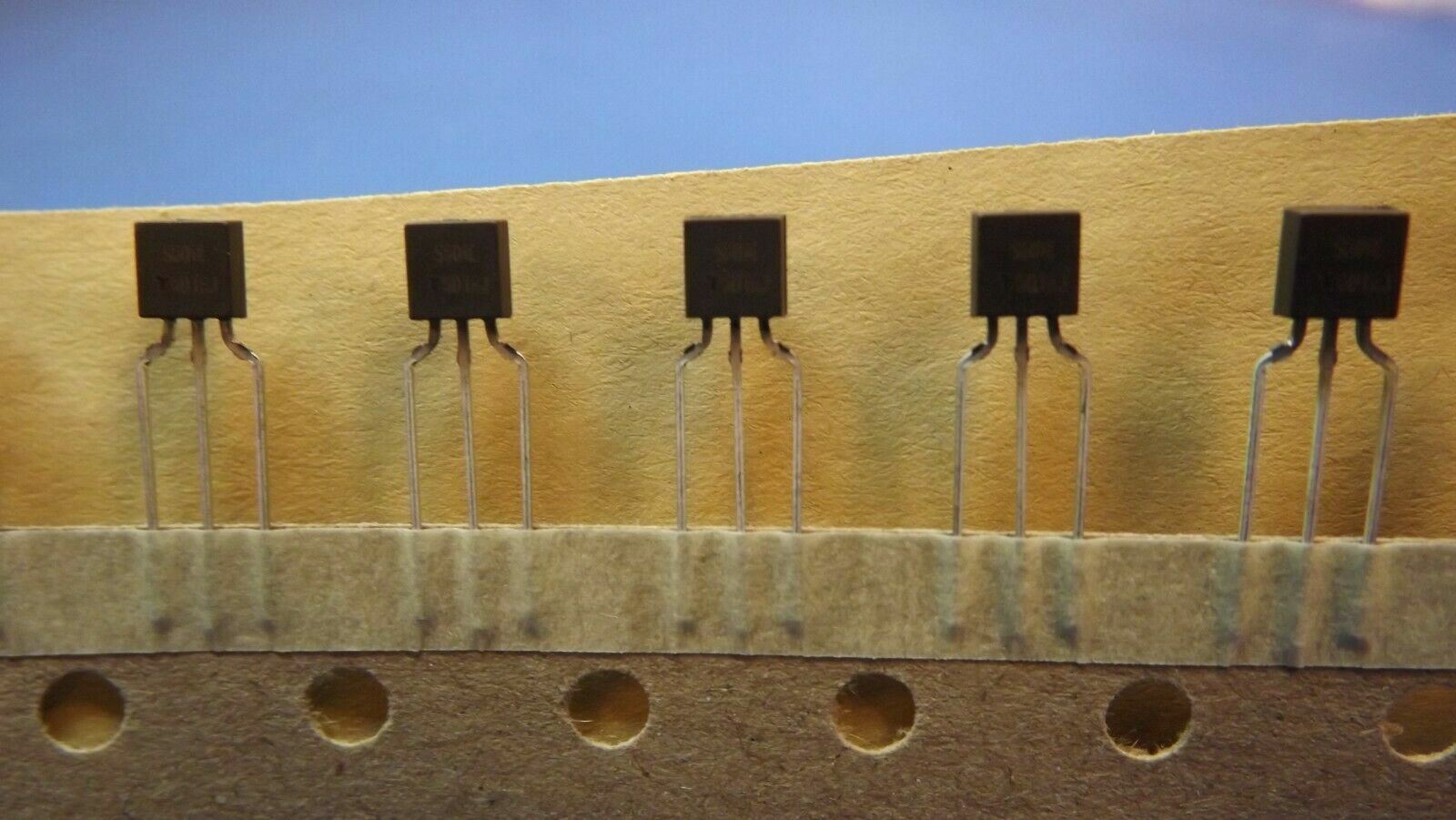

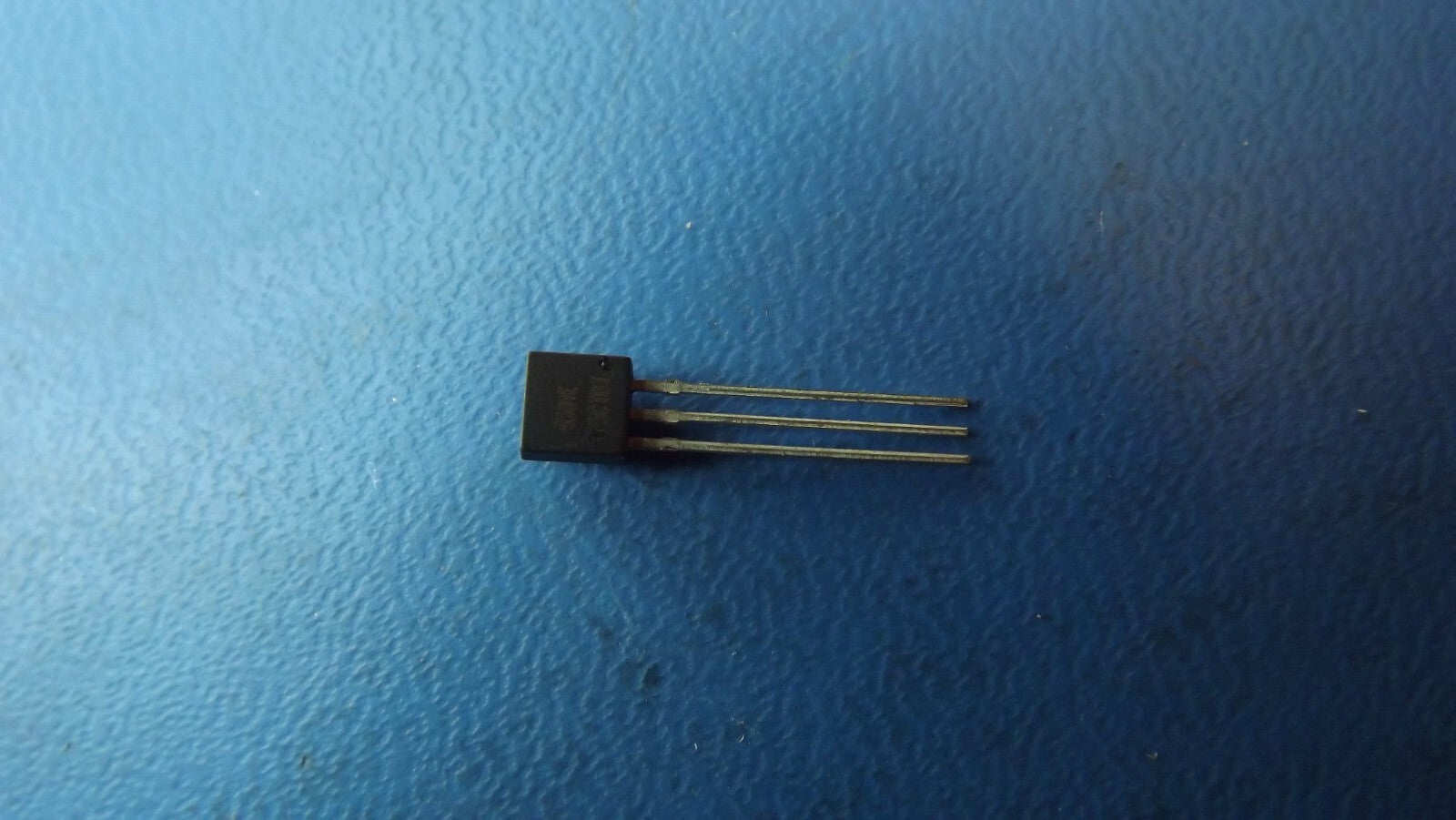

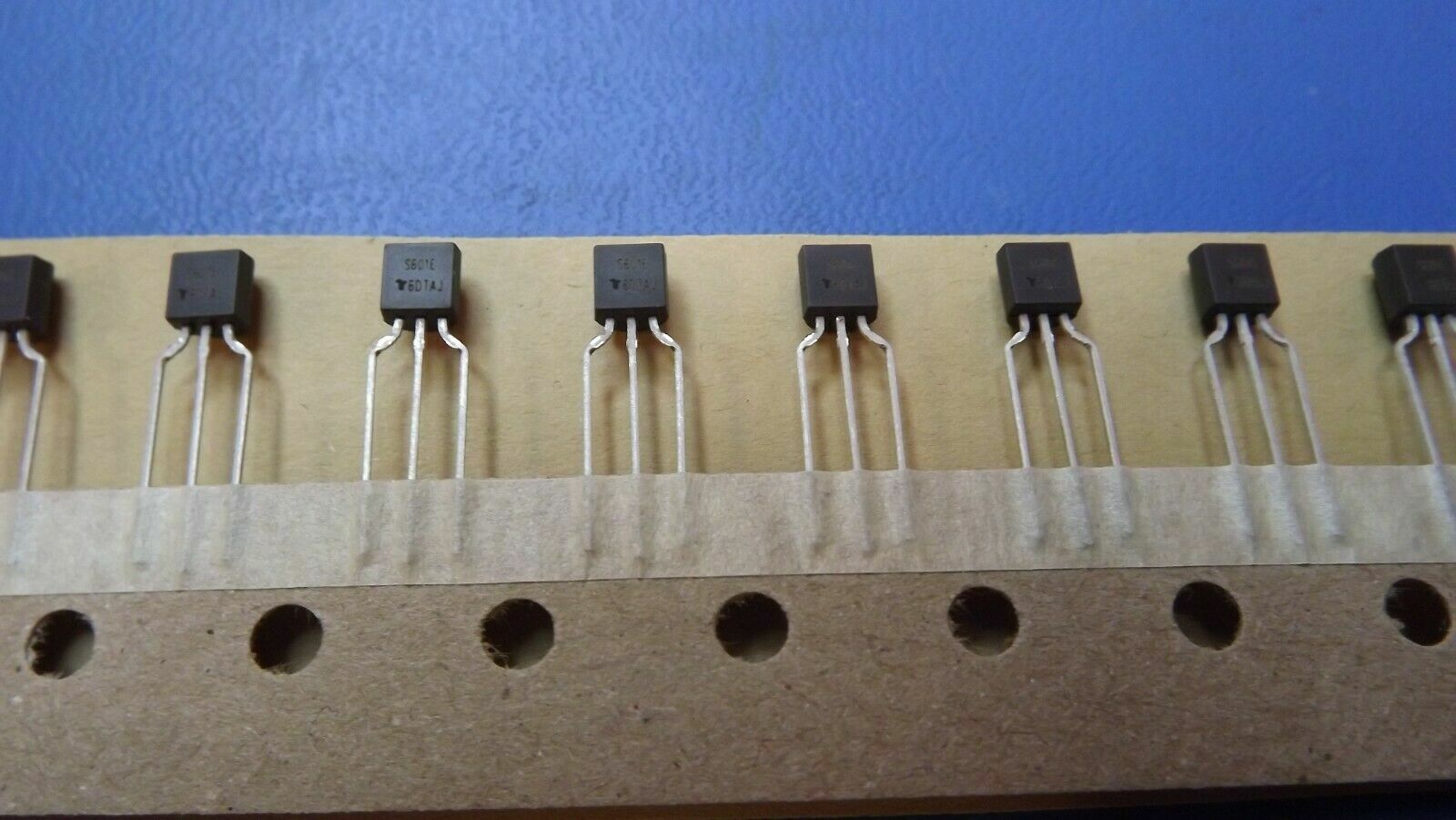

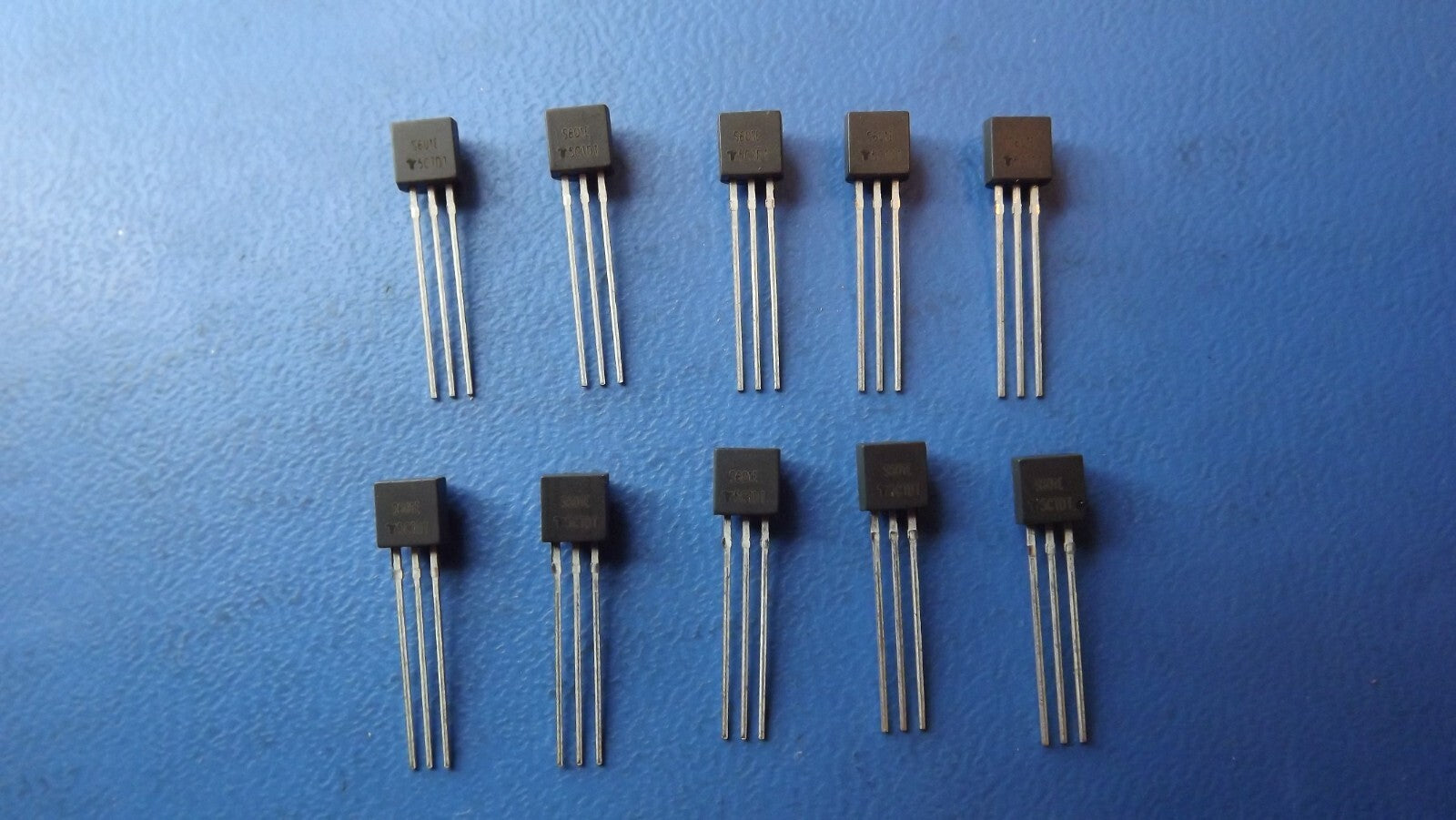

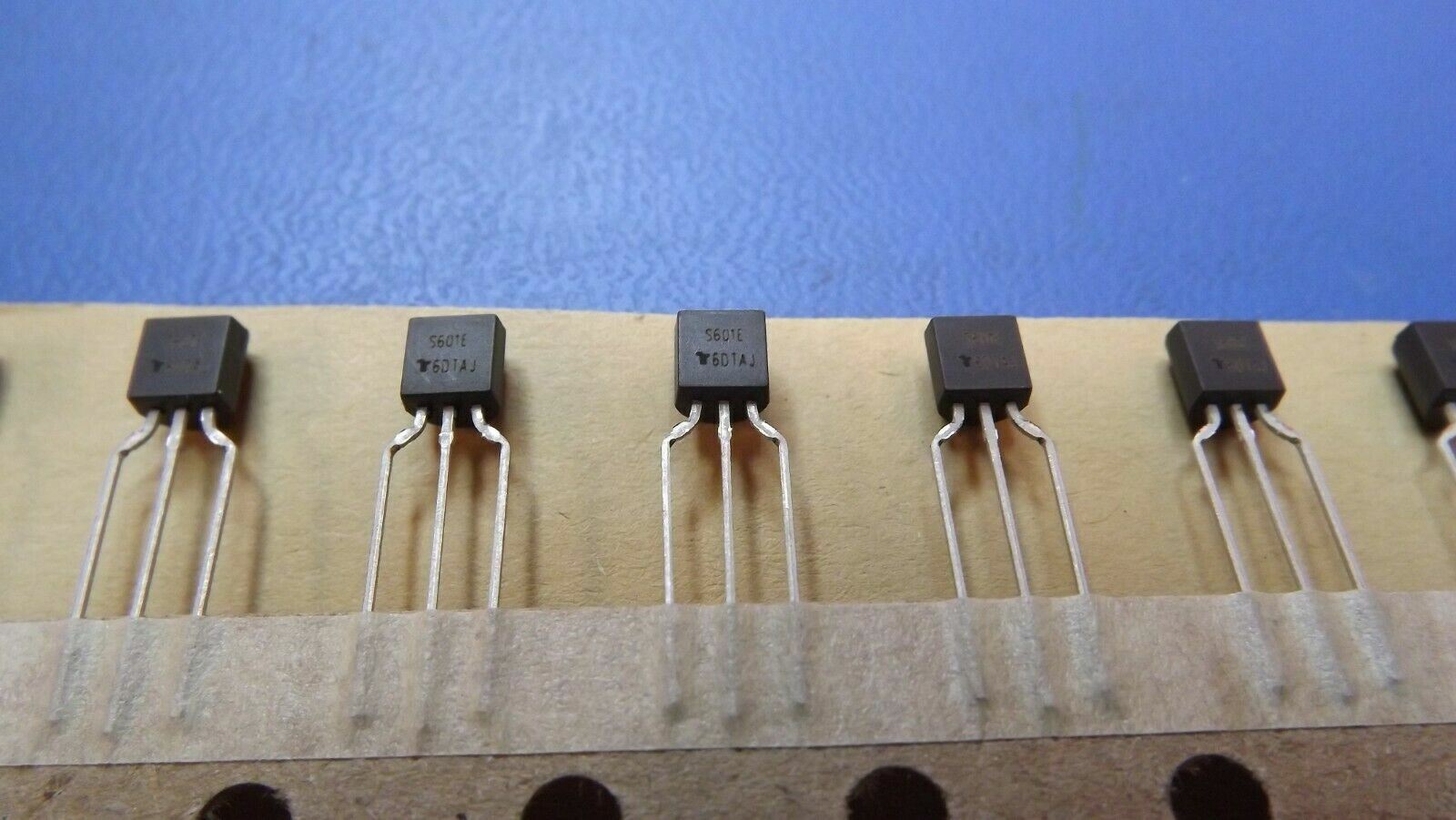

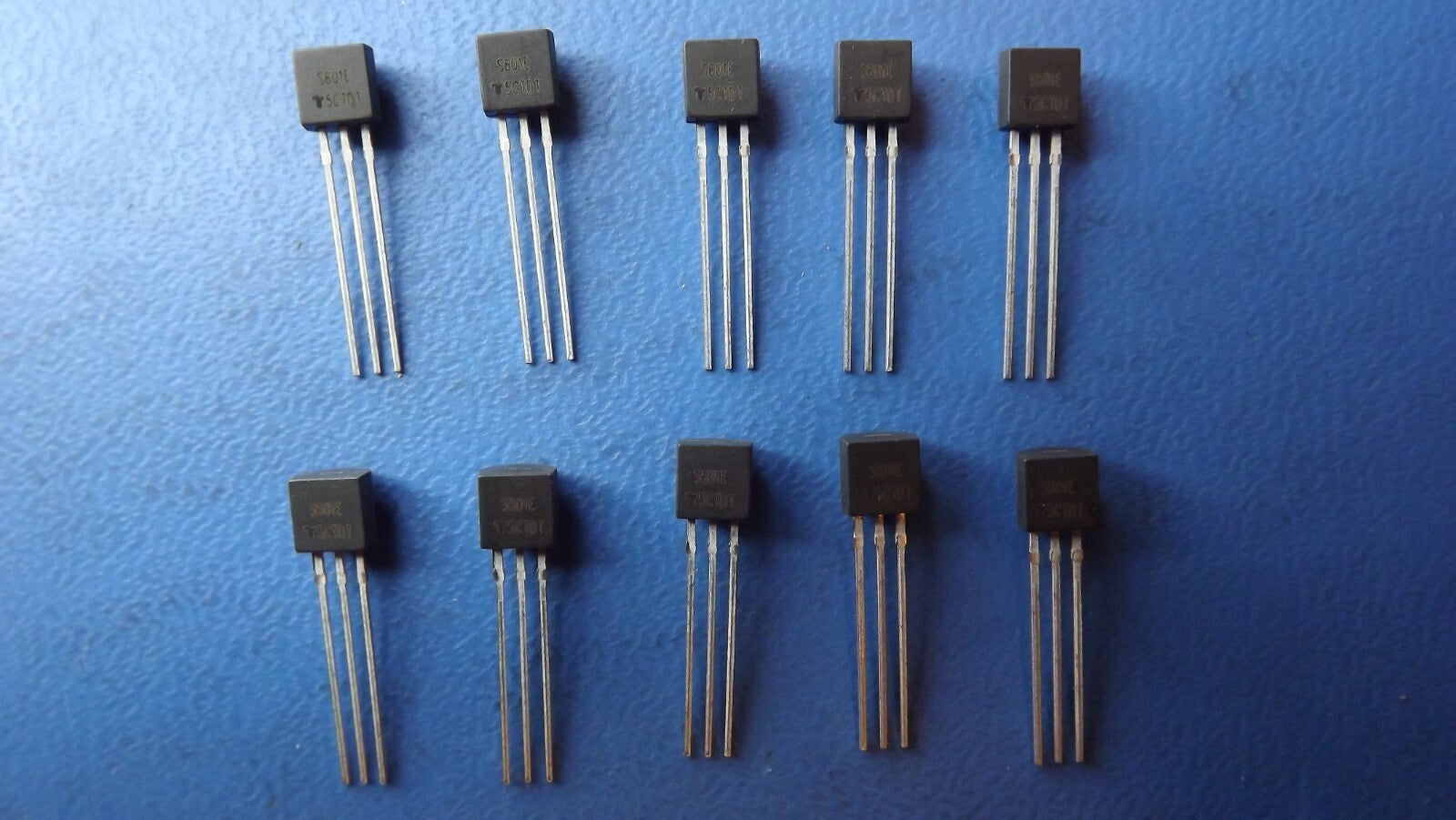

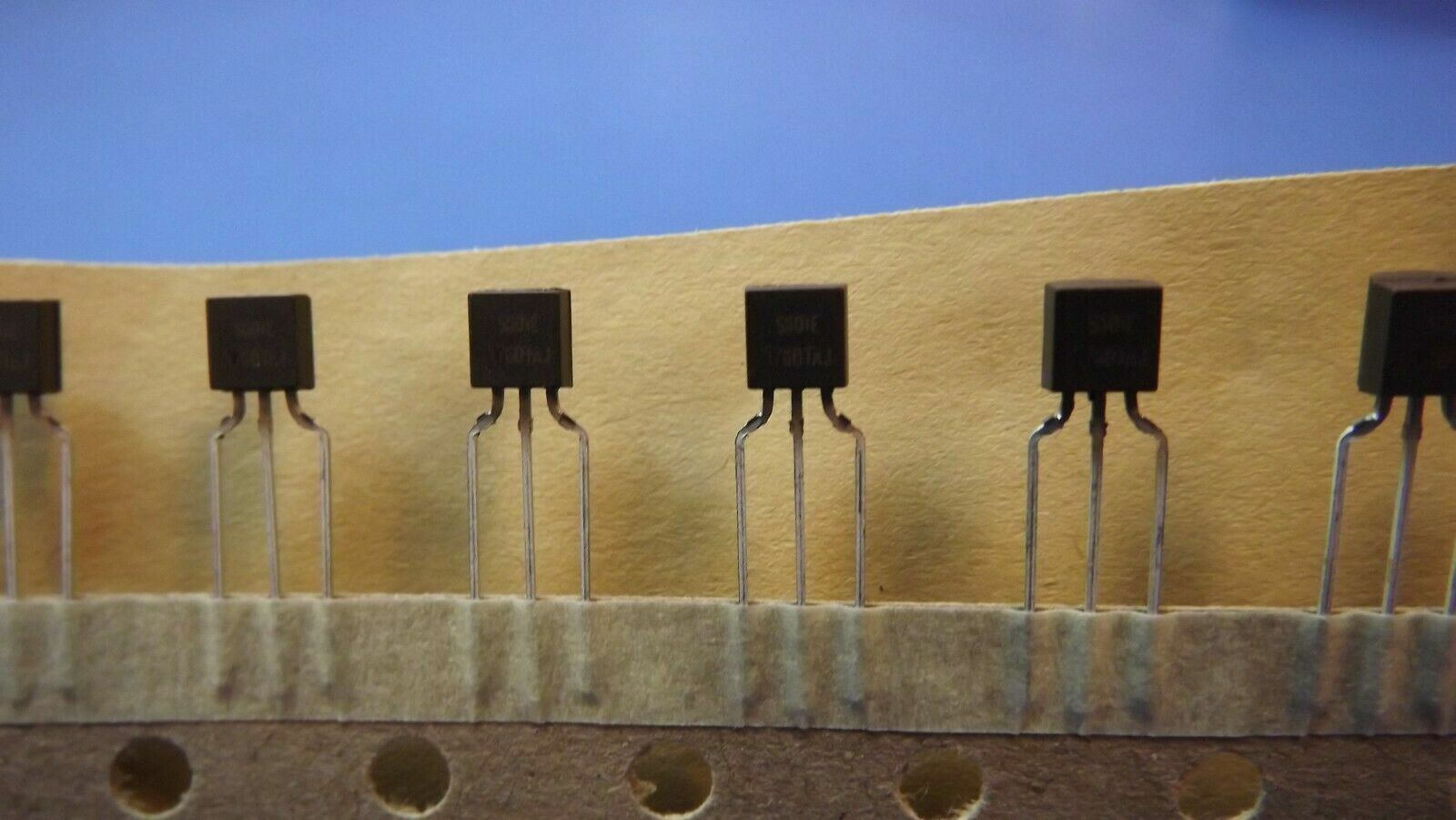

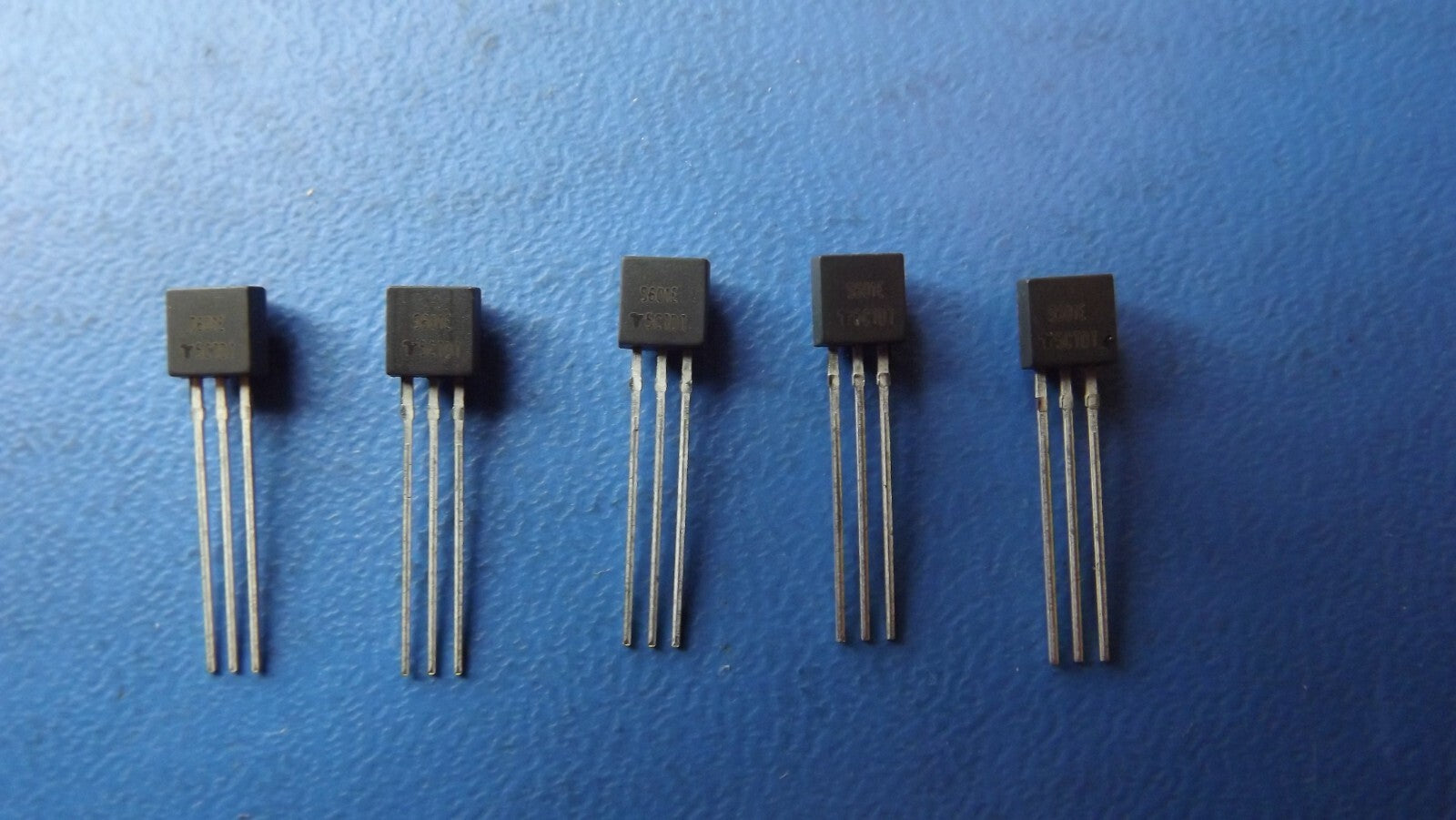

(10PCS) S601E S601ERP LITTELFUSE Thyristor SCR 400V 30A 3-Pin TO-92
Tax included.
THIS LISTING IS FOR (10PCS) OF S601E S601ERP BY LITTELFUSE
SPECIFICATIONS
Mfr Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
EU RoHS Compliant Yes
Status Active
Trigger Device Type SCR
Configuration SINGLE
Critical Rate of Rise of Off-state Voltage-Min 20.0 V/us
DC Gate Trigger Current-Max 10.0 mA
DC Gate Trigger Voltage-Max 1.5 V
Holding Current-Max 30.0 mA
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T3
JESD-609 Code e3
Leakage Current-Max 0.5 mA
Moisture Sensitivity Level 2
Non-Repetitive Pk On-state Cur 30.0 A
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 600.0 V
Repetitive Peak Reverse Voltage 600.0 V
RMS On-state Current-Max 1.0 A
Sub Category Silicon Controlled Rectifiers
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 10
