(10PCS) S6015L58 S6015L58TP LITTELFUSE SCR 600V 15A TO220
Tax included.

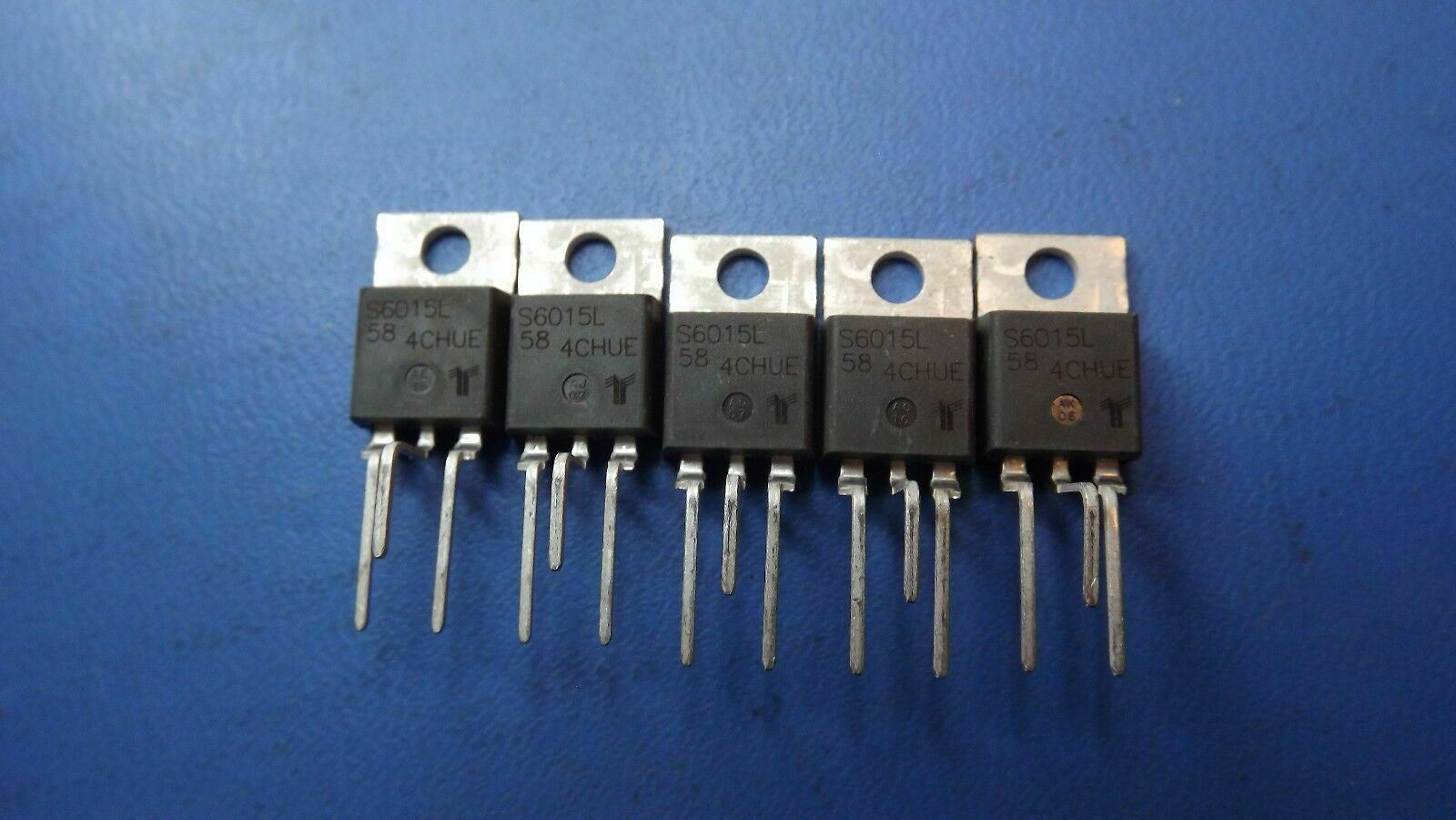

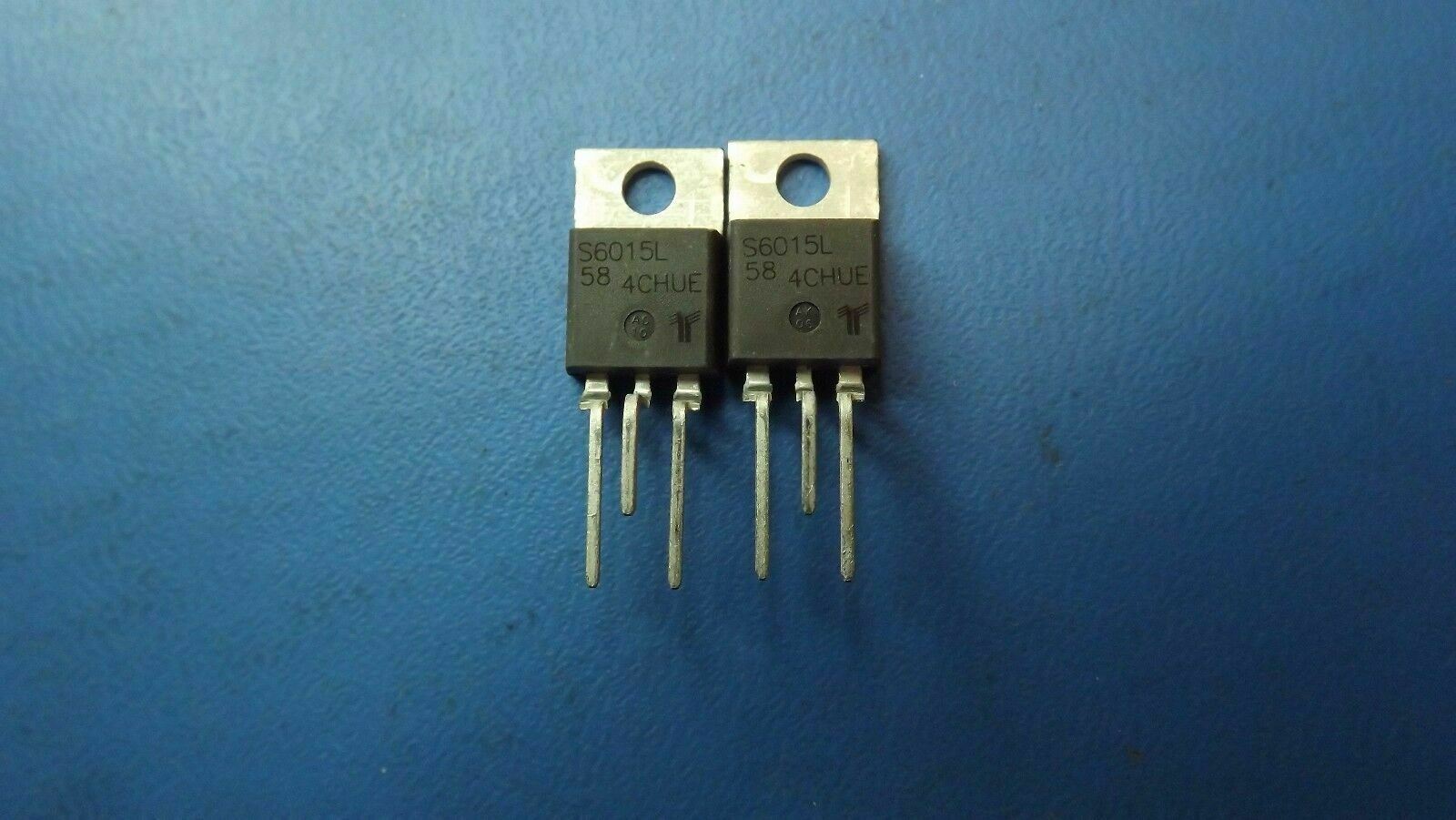

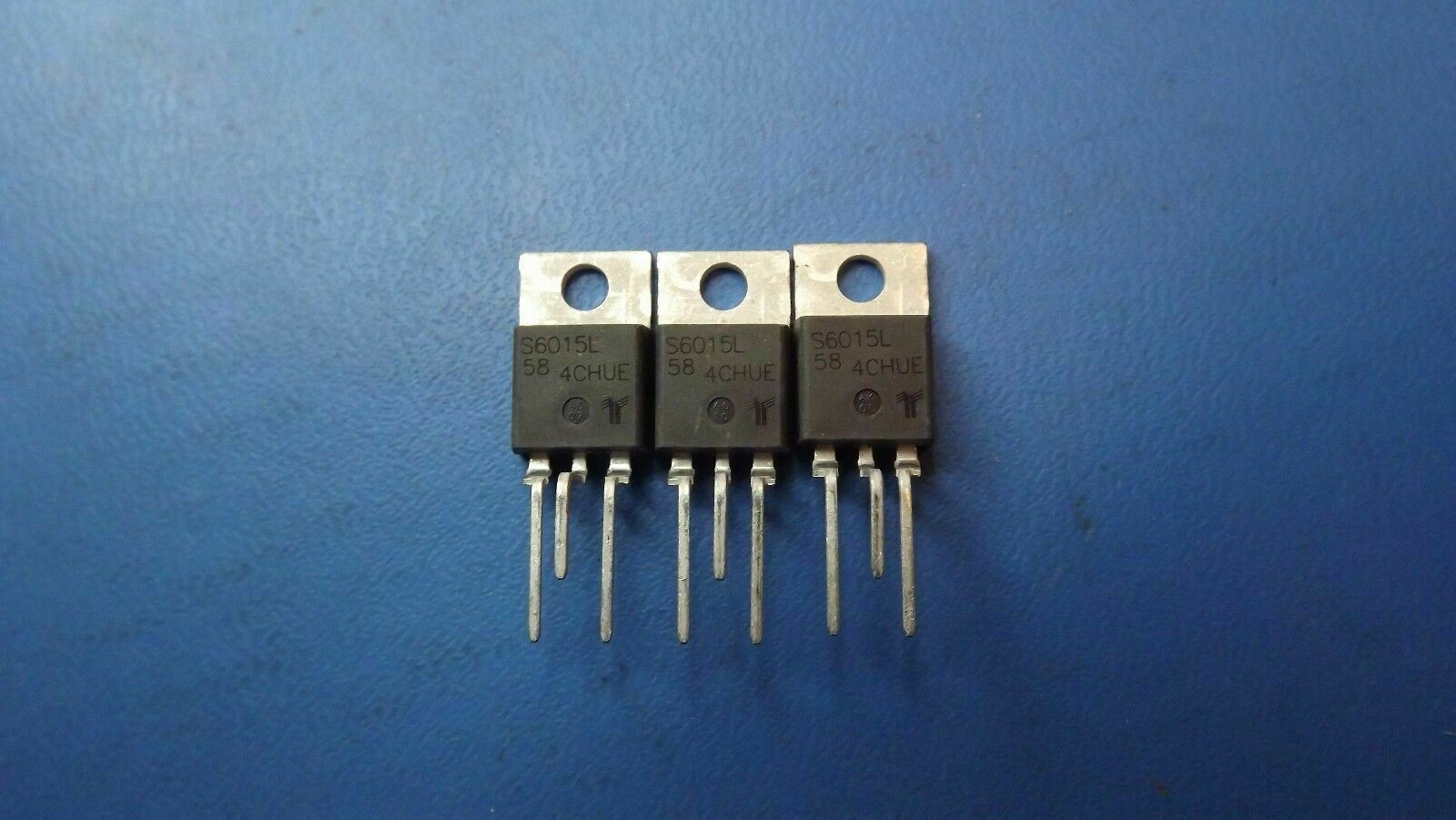

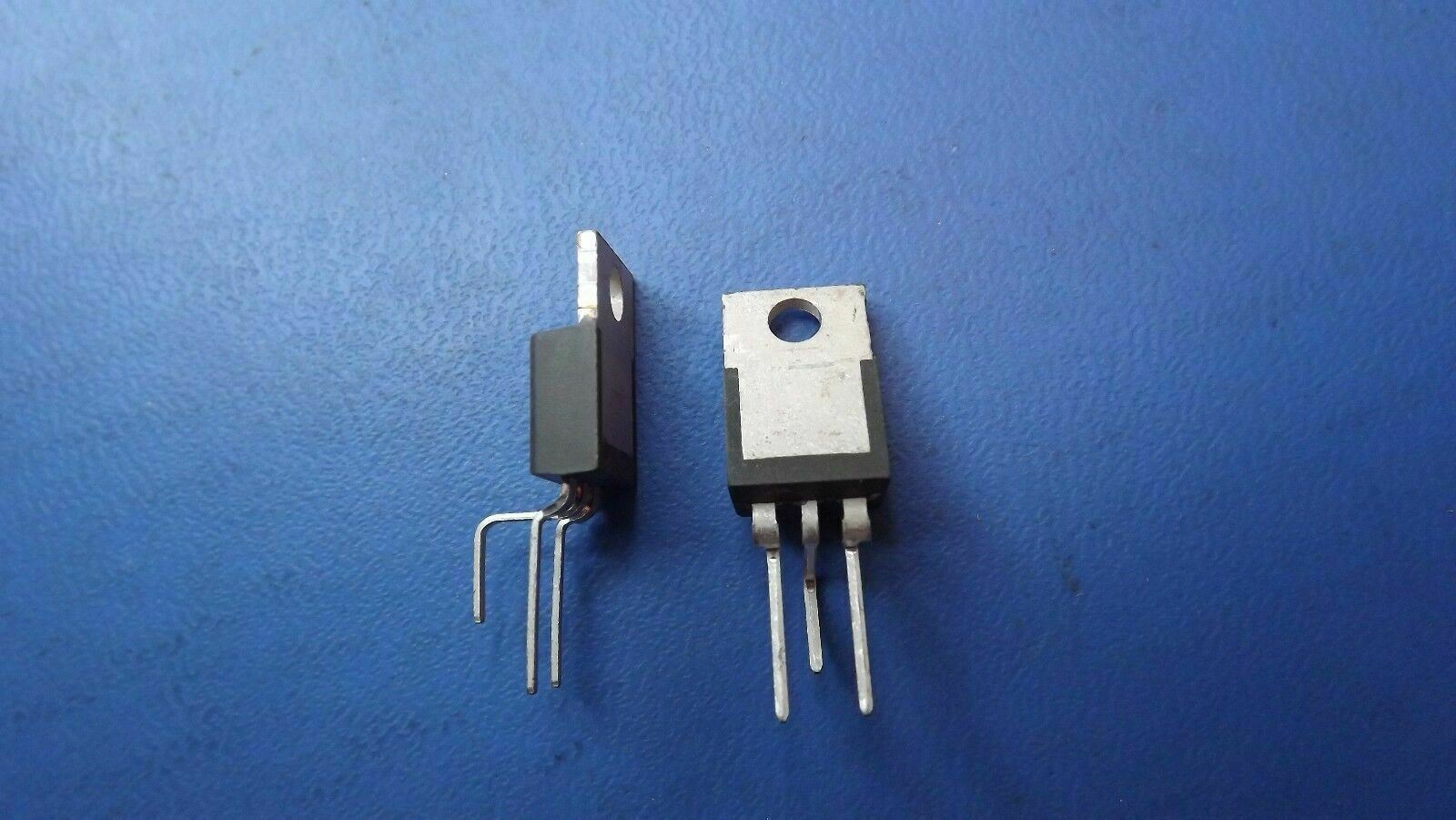

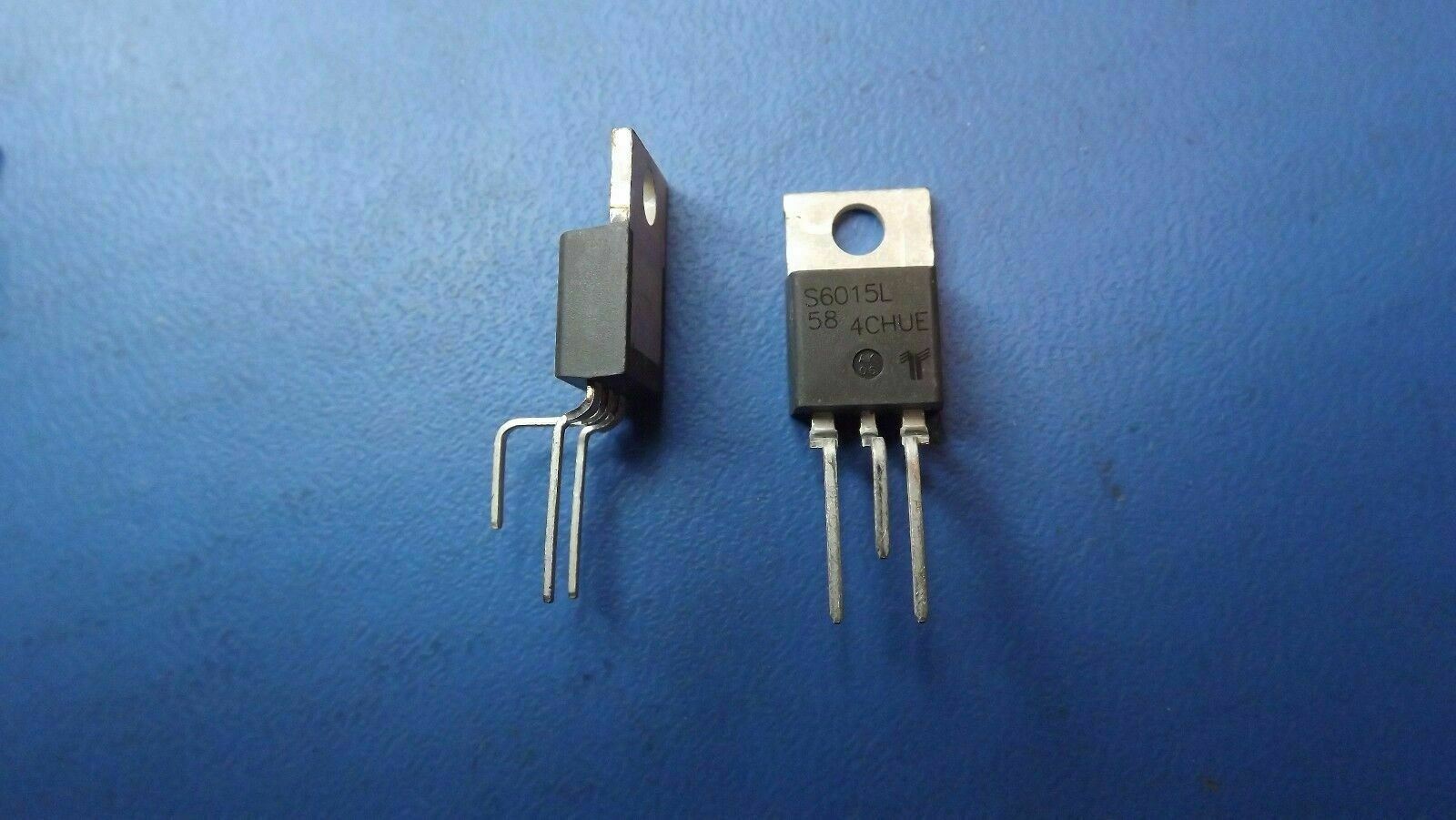

THIS LISTING IS FOR (10PCS) OF S6015L58TP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | TO-220, 3 PIN |
| Status | Transferred |
| Trigger Device Type | SCR |
| Case Connection | ISOLATED |
| Circuit Commutated Turn-off Time-Nom | 35.0 µs |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-state Voltage-Min | 220.0 V/us |
| DC Gate Trigger Current-Max | 30.0 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 40.0 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 10.0 µA |
| Repetitive Peak Off-state Voltage | 600.0 V |
| Repetitive Peak Reverse Voltage | 600.0 V |
| RMS On-state Current-Max | 15.0 A |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Additional Feature | UL RECOGNIZED |
