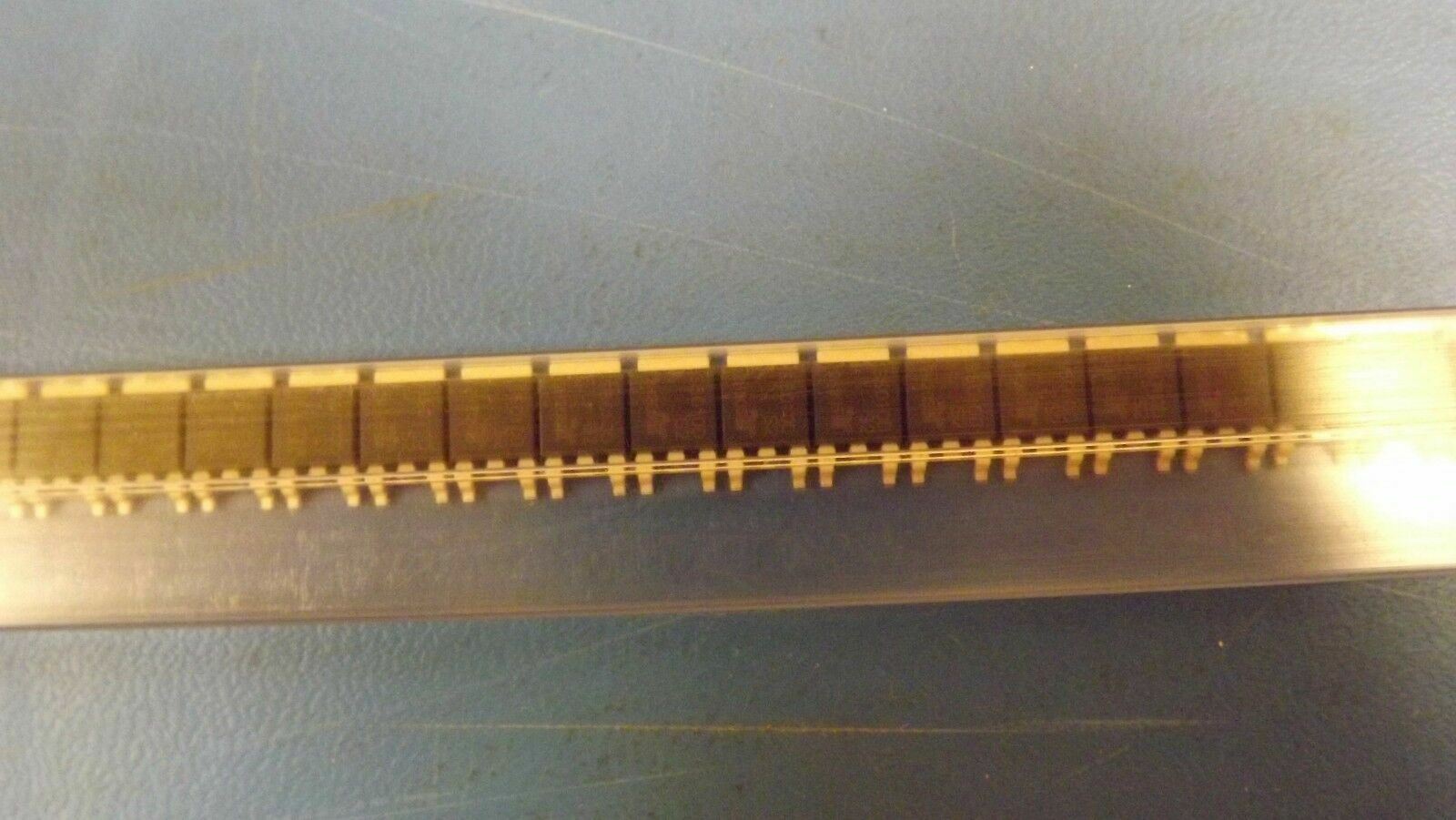

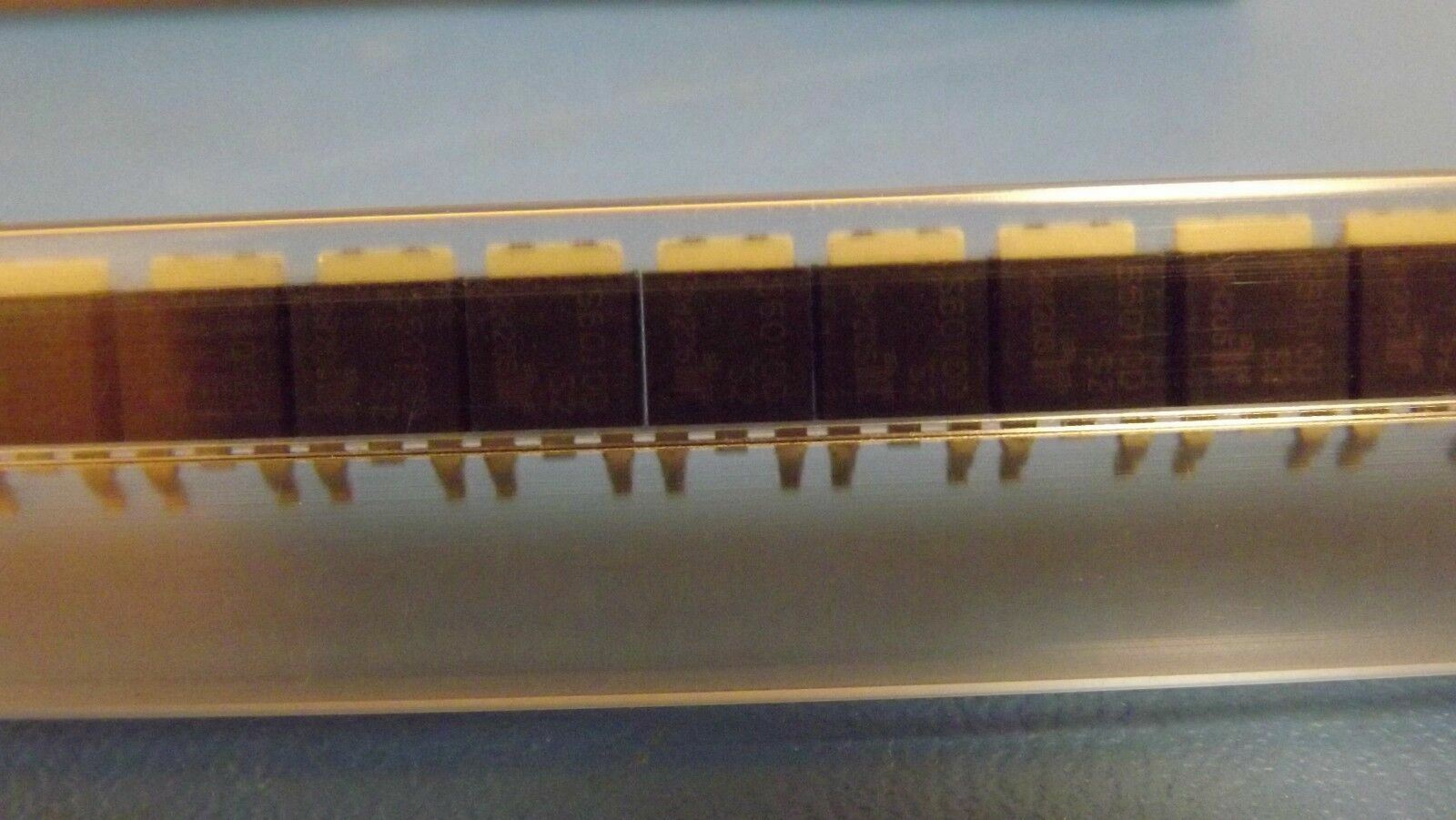

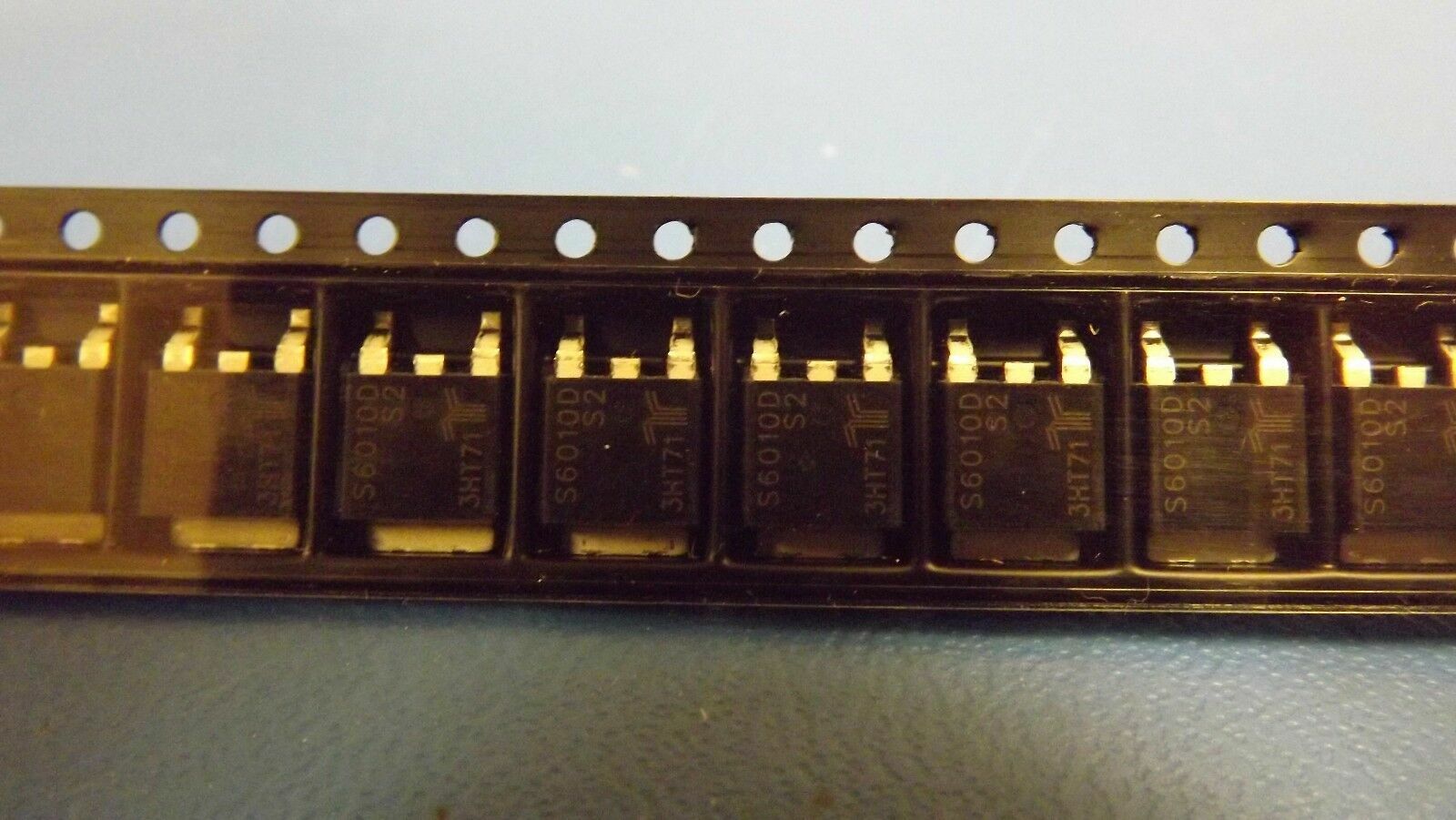

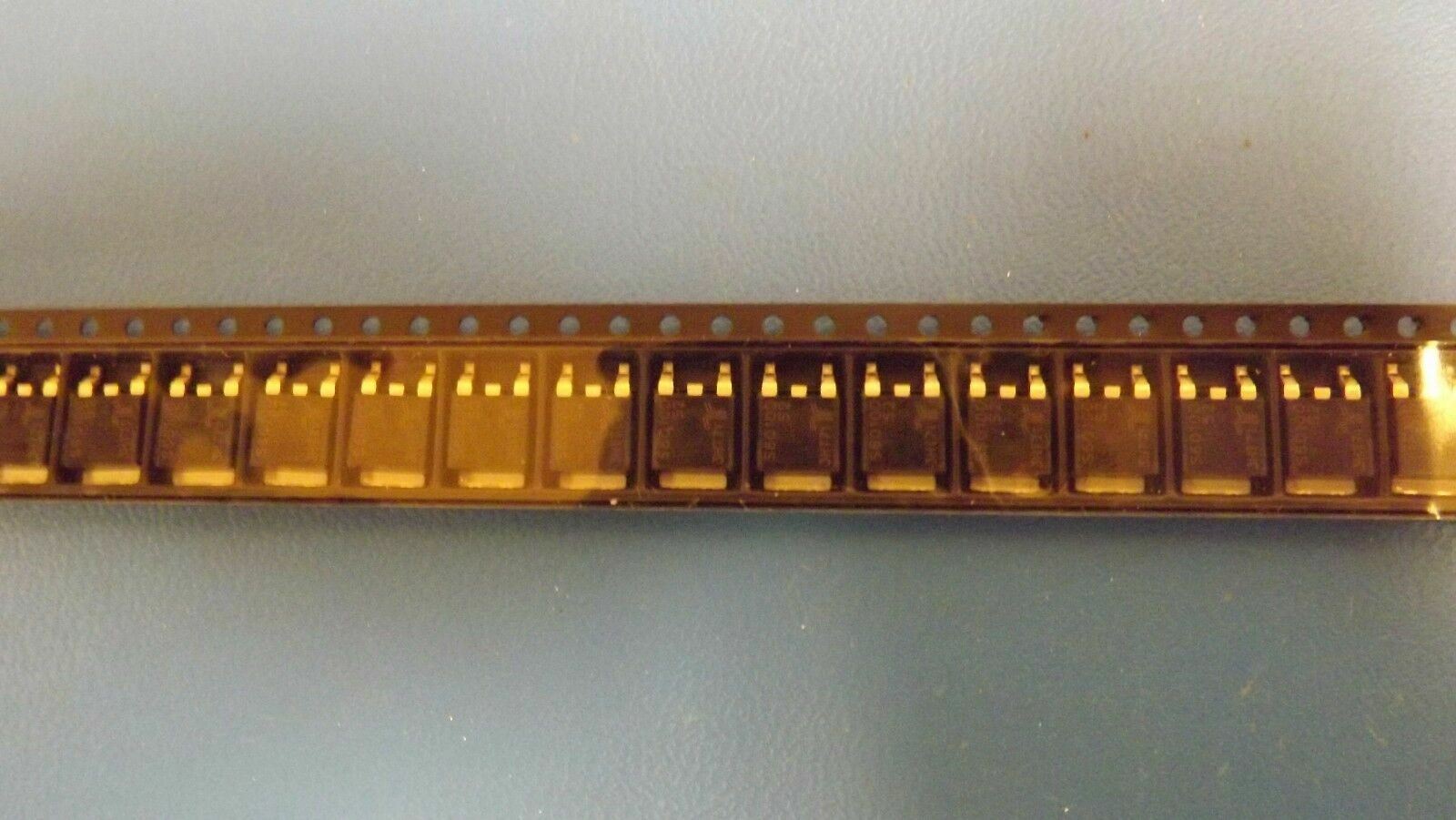

(10PCS) S6010DS2RP S6010DS2TP S6010DS2 SCR SENS GATE 600V 10A TO-252

  • $12.50
    Unit price per
Tax included.

Only 500 left!

THIS LISTING IS FOR (10PCS) OF S6010DS2RP BY LITTELFUSE

**WE CURRENTLY HAVE 25,000 IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE
SEND OFFERS OR INQUIRIES.**

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, PLASTIC, DPAK-3
EU RoHS Compliant Yes
Status Active
Trigger Device Type SCR
Case Connection ANODE
Configuration SINGLE
Critical Rate of Rise of Off-state Voltage-Min 225 V/us
DC Gate Trigger Current-Max 0.2000 mA
DC Gate Trigger Voltage-Max 0.8000 V
Holding Current-Max 6 mA
JEDEC-95 Code TO-252AA
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Leakage Current-Max 0.2500 mA
Non-Repetitive Pk On-state Cur 100 A
Number of Elements 1
Number of Terminals 2
On-State Current-Max 6400 mA
Operating Temperature-Min -40 Cel
Operating Temperature-Max 100 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 600 V
Repetitive Peak Reverse Voltage 600 V
RMS On-state Current-Max 10 A
Sub Category Silicon Controlled Rectifiers
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 40
