(10pcs) R4008-9 Regal Electronics Connector D-Sub 9 Pin Female - Solder Cup Rohs
Tax included.
THIS IS FOR (10pcs) OF R4008-9 BY Regal Electronics

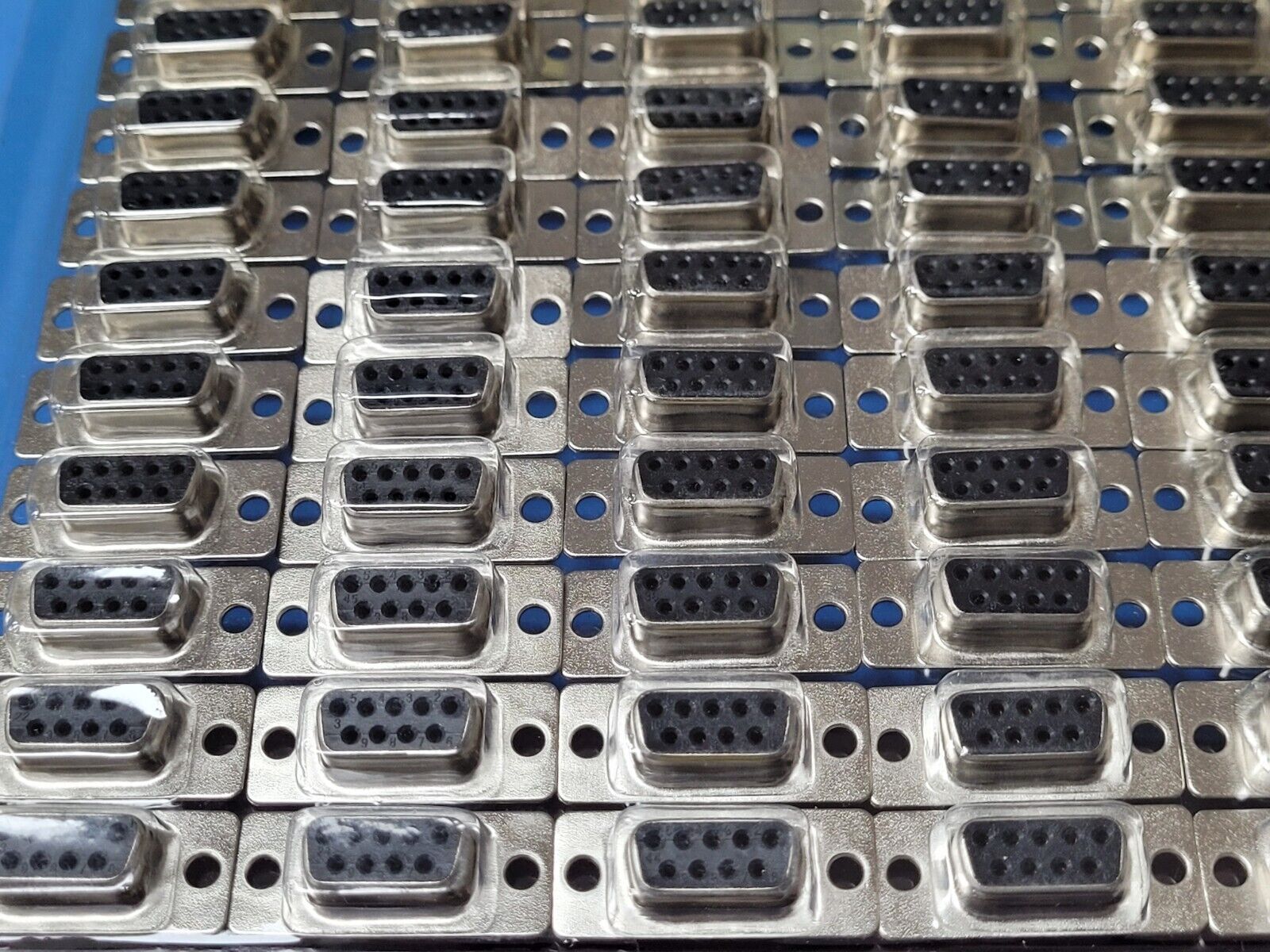

Connector D-Sub 9 Pin Female - Solder Cup Rohs
Part #: R4008-9
Part Category: Connectors
Manufacturer: Regal Electronics, Inc.
Description: D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug
EU RoHS Compliant Yes
Status Contact Mfr
Body Breadth 0.494 inch
Body Depth 0.161 inch
Body Length 1.213 inch
Body/Shell Style PLUG
Contact Design PREASSEM CONN
Contact Finish - Mating AU ON NI
Contact Finish - Termination GOLD OVER NICKEL
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern STAGGERED
Contact Resistance 15.0 mohm
Contact Style RND PIN-SKT
Insulation Resistance 1.0E9 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Option 1 HOLE .112-.124
Mounting Option 2 LOCKING
Mounting Type PANEL
Number of Rows Loaded 2
Operating Temperature-Min -55.0 Cel
Option GENERAL PURPOSE
Rated Current (Signal) 5.0 A
Reference Standard UL
Reliability COMMERCIAL
Shell Finish TIN
Shell Material STEEL
Sub Category D Type Connectors
Terminal Length 0.132 inch
Total Number of Contacts 9
Additional Feature ROHS COMPLIANT
