(10PCS) PZT3906 FSC Small Signal Bipolar Transistor, 0.2A, 40V, PNP
Tax included.

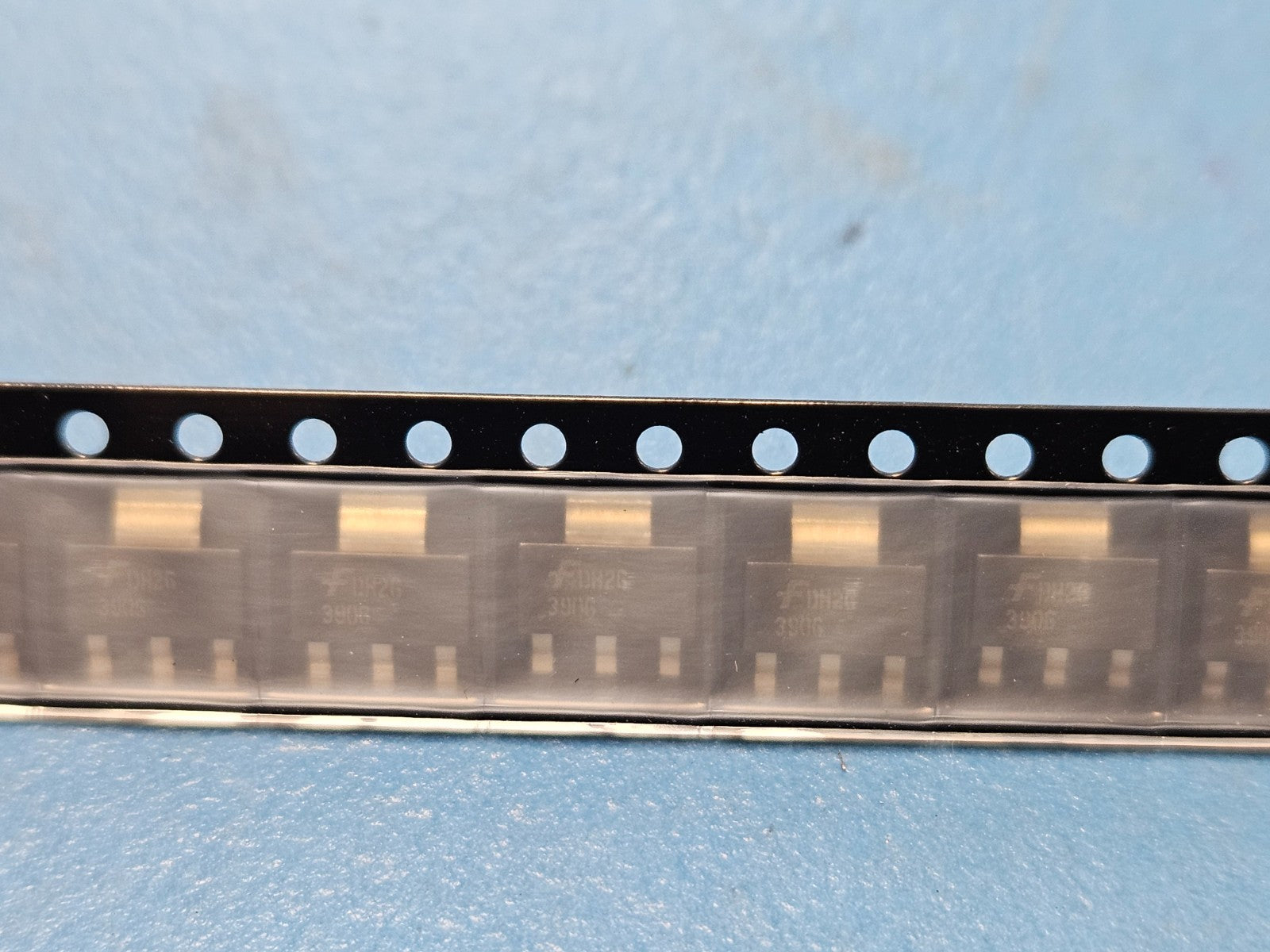

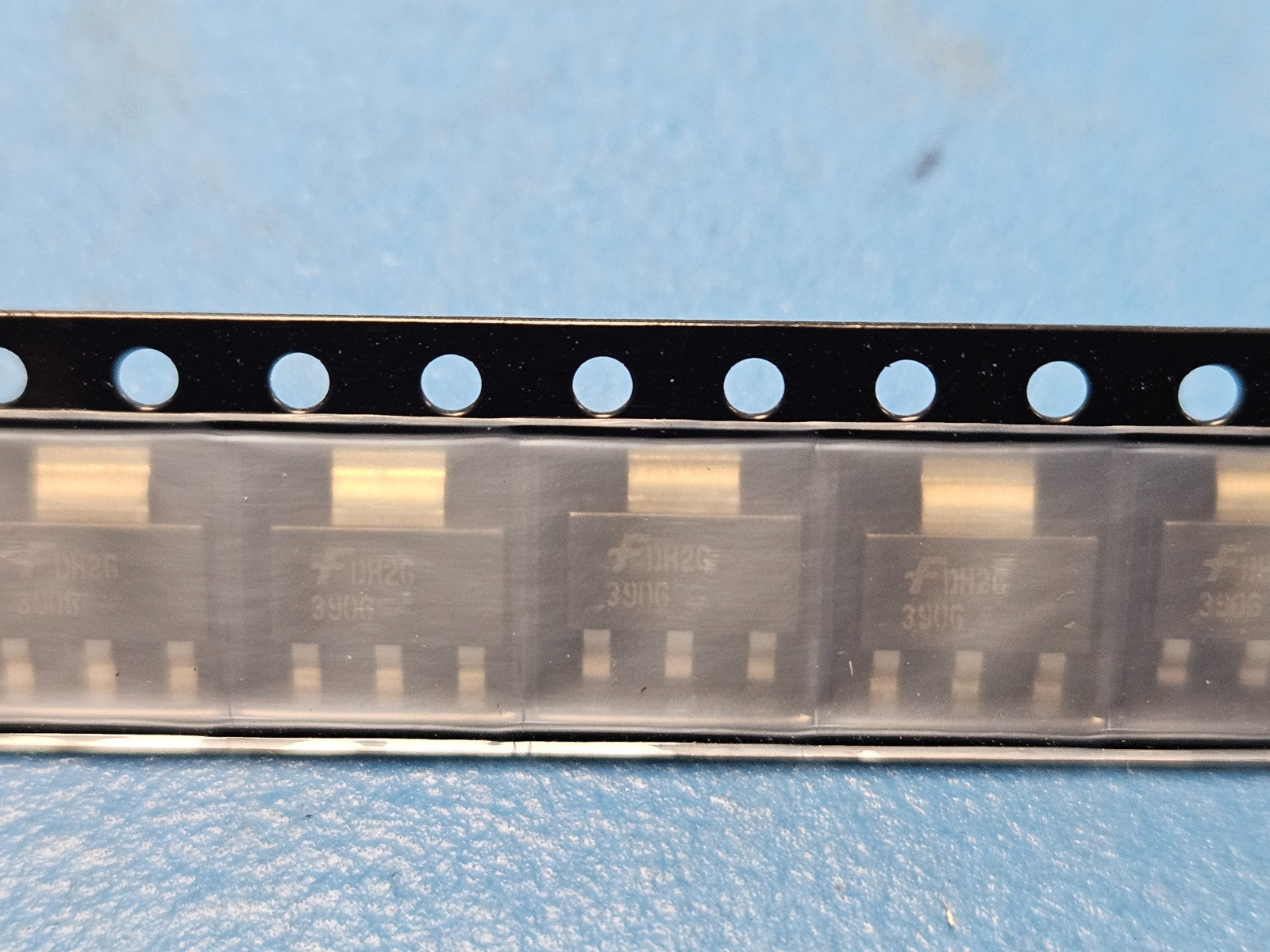

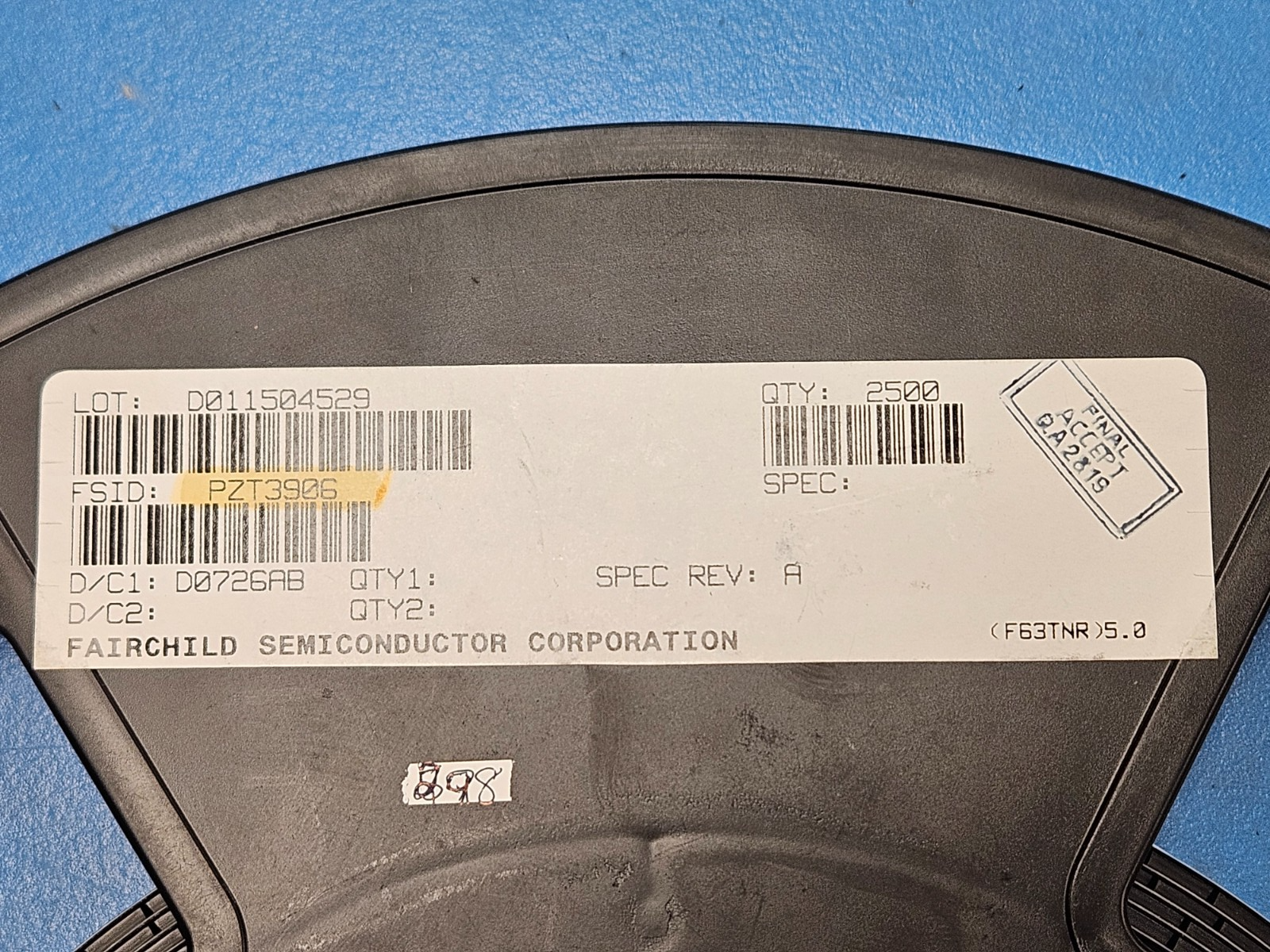

This listing is for (10PCS) of PZT3906 by Fairchild Semiconductor
Status Transferred
Case Connection COLLECTOR
Collector Current-Max (IC) (A) 0.2000000000000000
Collector-emitter Voltage-Max (V) 40.0000000000000000
Configuration SINGLE
DC Current Gain-Min (hFE) 30.0000000000000000
JESD-30 Code R-PDSO-G4
J-STD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 4
Operating Temperature-Max (Cel) 150
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type PNP
Power Dissipation-Max (W) 1.500000000000000
DLA Qualification Not Qualified
Surface Mount YES
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) (MHz) 250.0000000000000000
Turn-off Time-Max (toff) (ns) 300.0000000000000000
Turn-on Time-Max (ton) (ns) 70.0000000000000000
