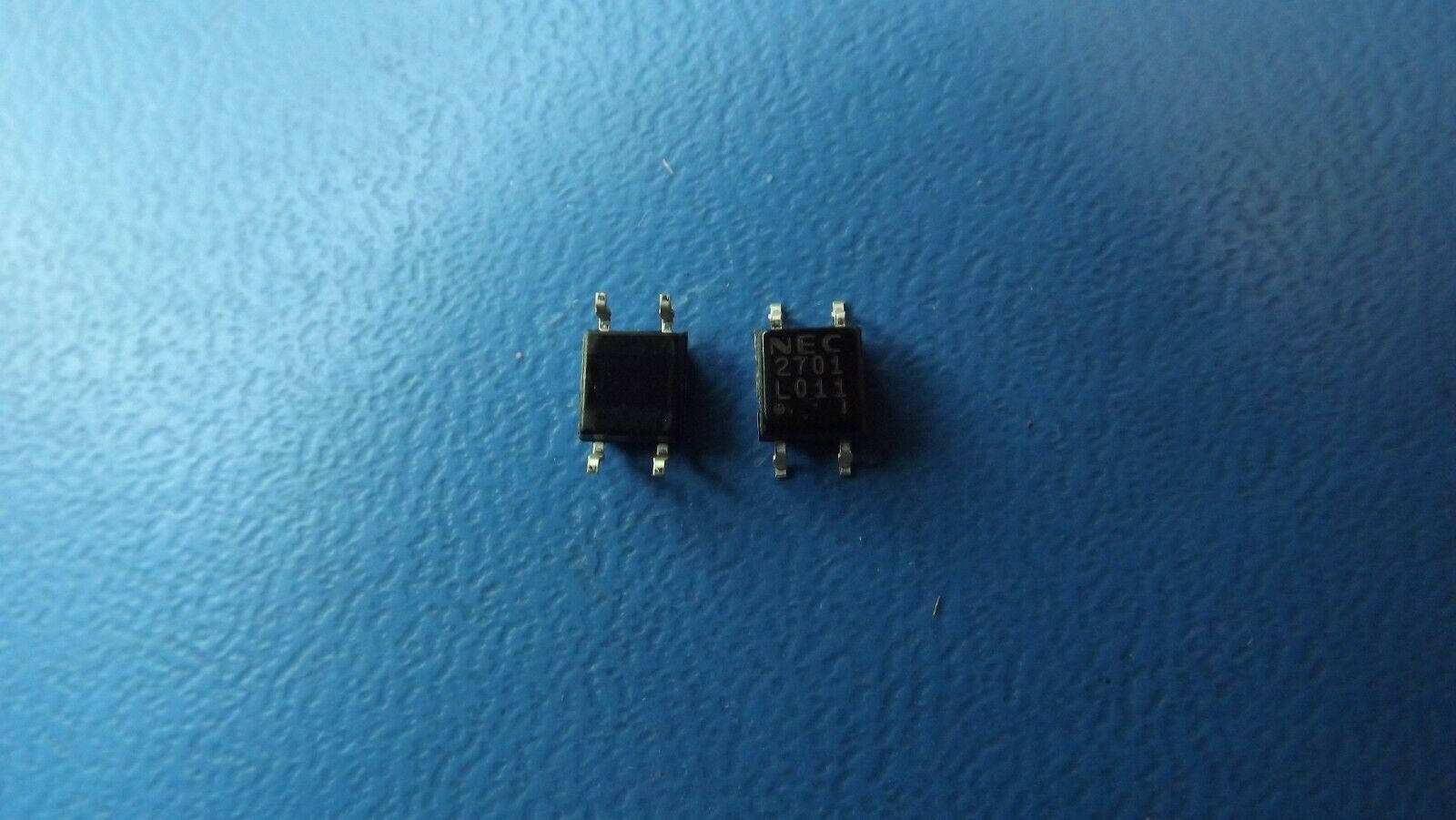

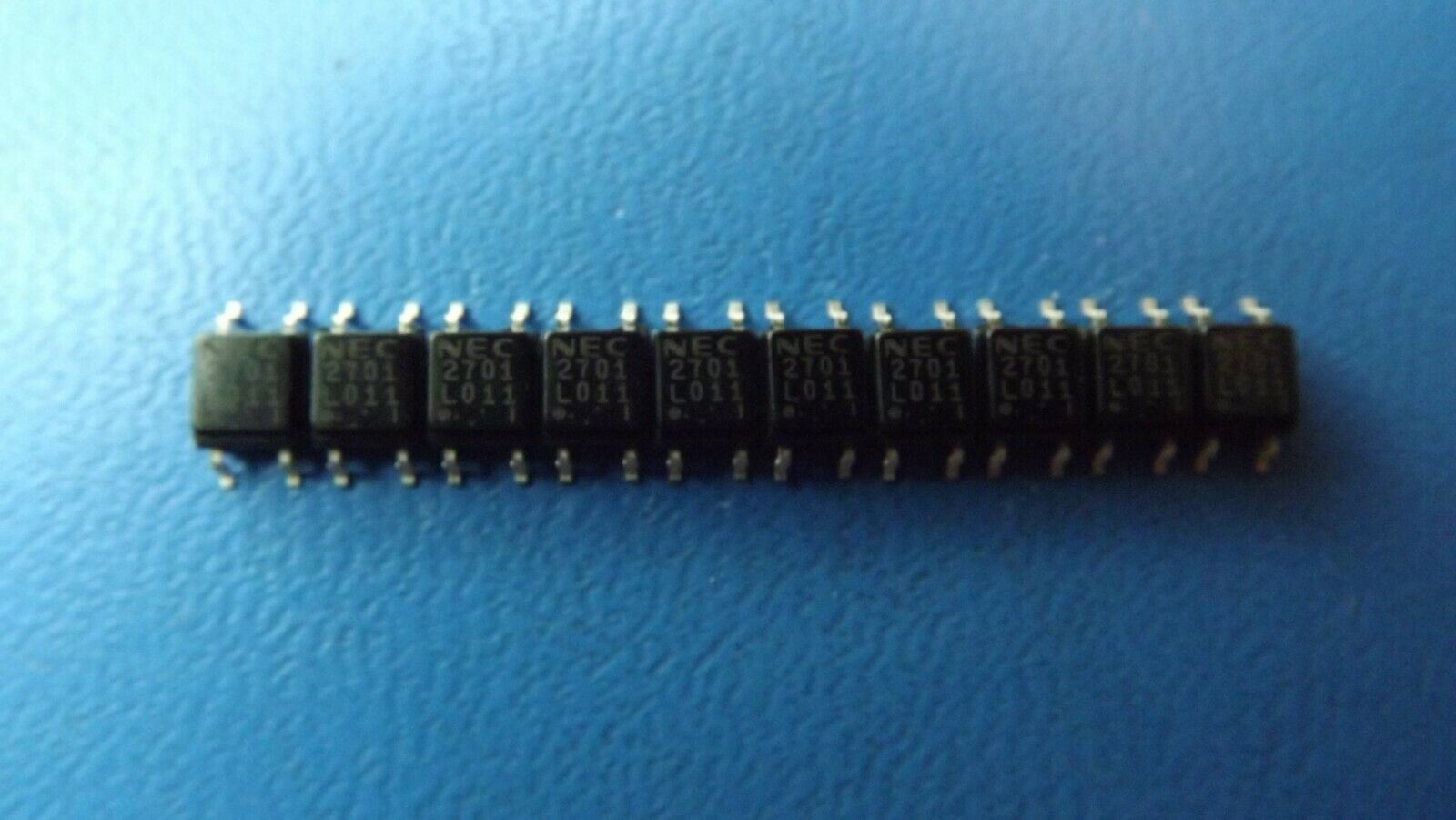

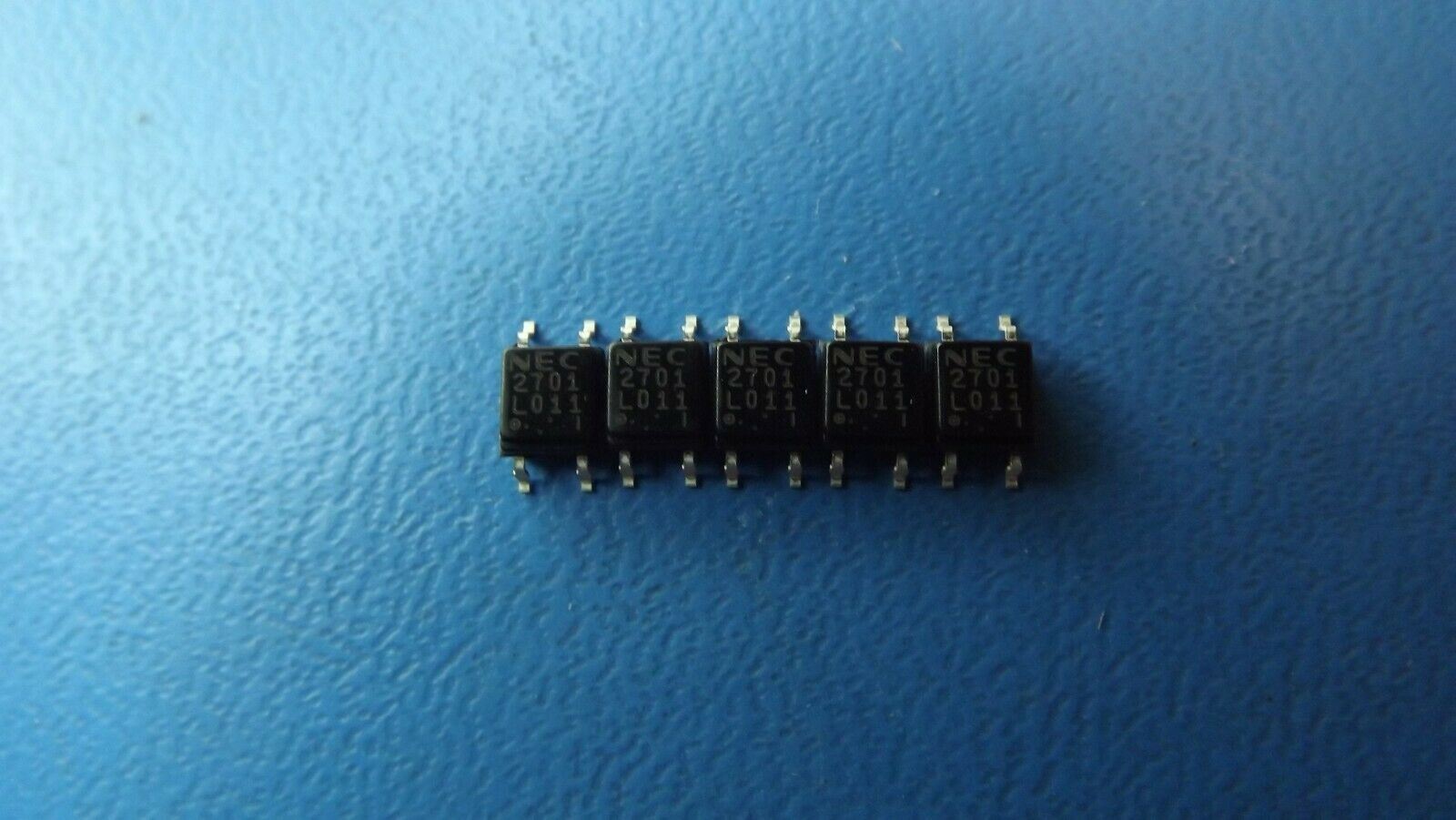

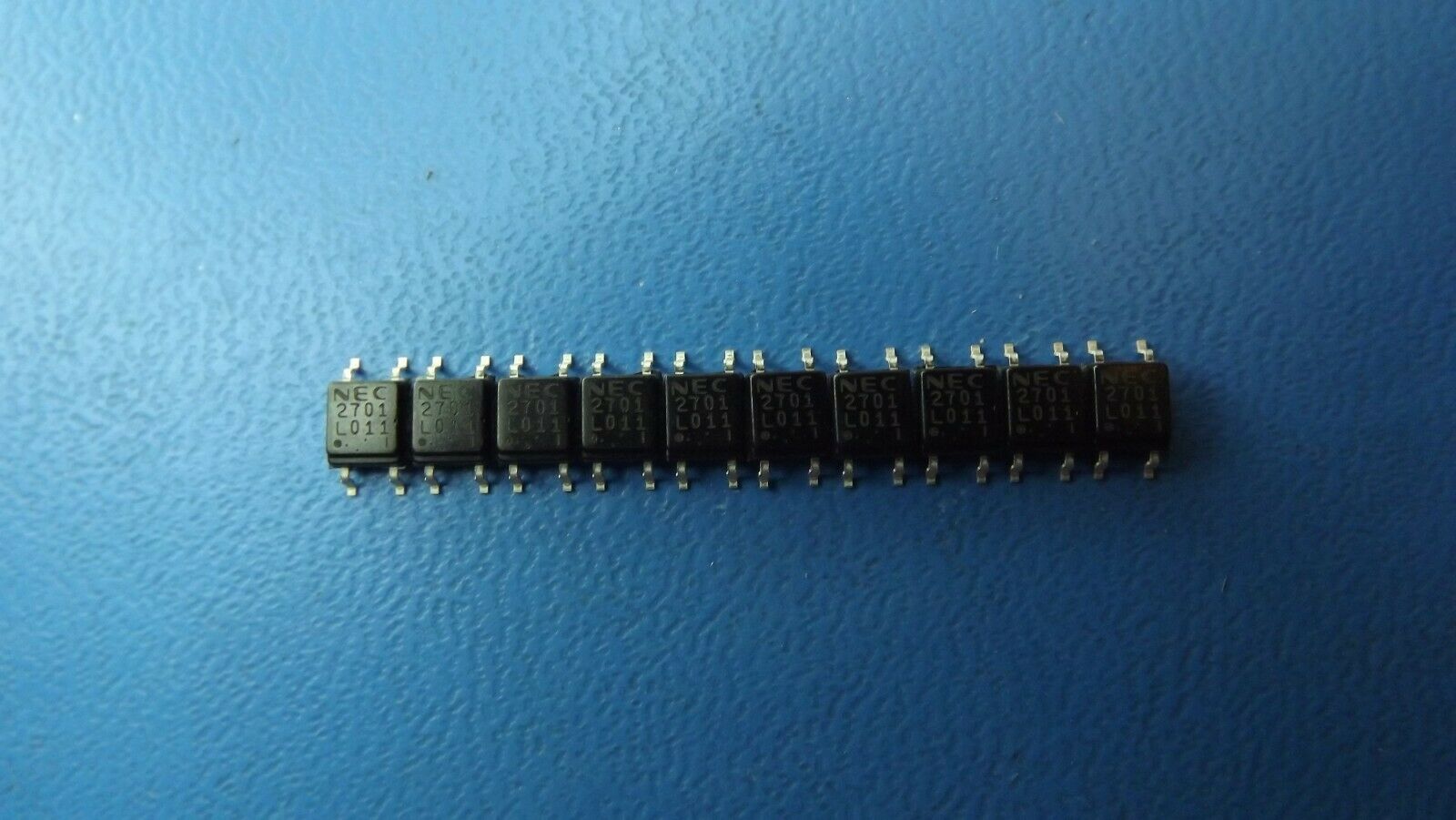

(10PCS) PS2701-1-A Transistor Output Optocouplers Hi-Iso Photo 1-Ch 4-pin SOP
Tax included.
THIS LISTING IS FOR (10PCS) OF PS2701-1-A BY NEC
Manufacturer:Renesas Electronics
Product Category:Transistor Output Optocouplers
Package / Case:SOP-4
Output Type:NPN Phototransistor
Number of Channels:1 Channel
If - Forward Current:5 mA
Maximum Collector Emitter Voltage:40 V
Maximum Collector Current:80 mA
Isolation Voltage:3750 Vrms
Maximum Collector Emitter Saturation Voltage:300 V
Vf - Forward Voltage:1.1 V
Vr - Reverse Voltage:5 V
Pd - Power Dissipation:80 mW, 150 mW
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 100 C
Series:OPTOCOUPLER
Configuration:1 Channel
Brand:Renesas Electronics
Current Transfer Ratio:100 %
Product Type:Transistor Output Optocouplers
Subcategory:Optocouplers
