(10PCS) PMEG2010EH Diode Schottky 20V 1A 2-Pin SOD-123F
Tax included.

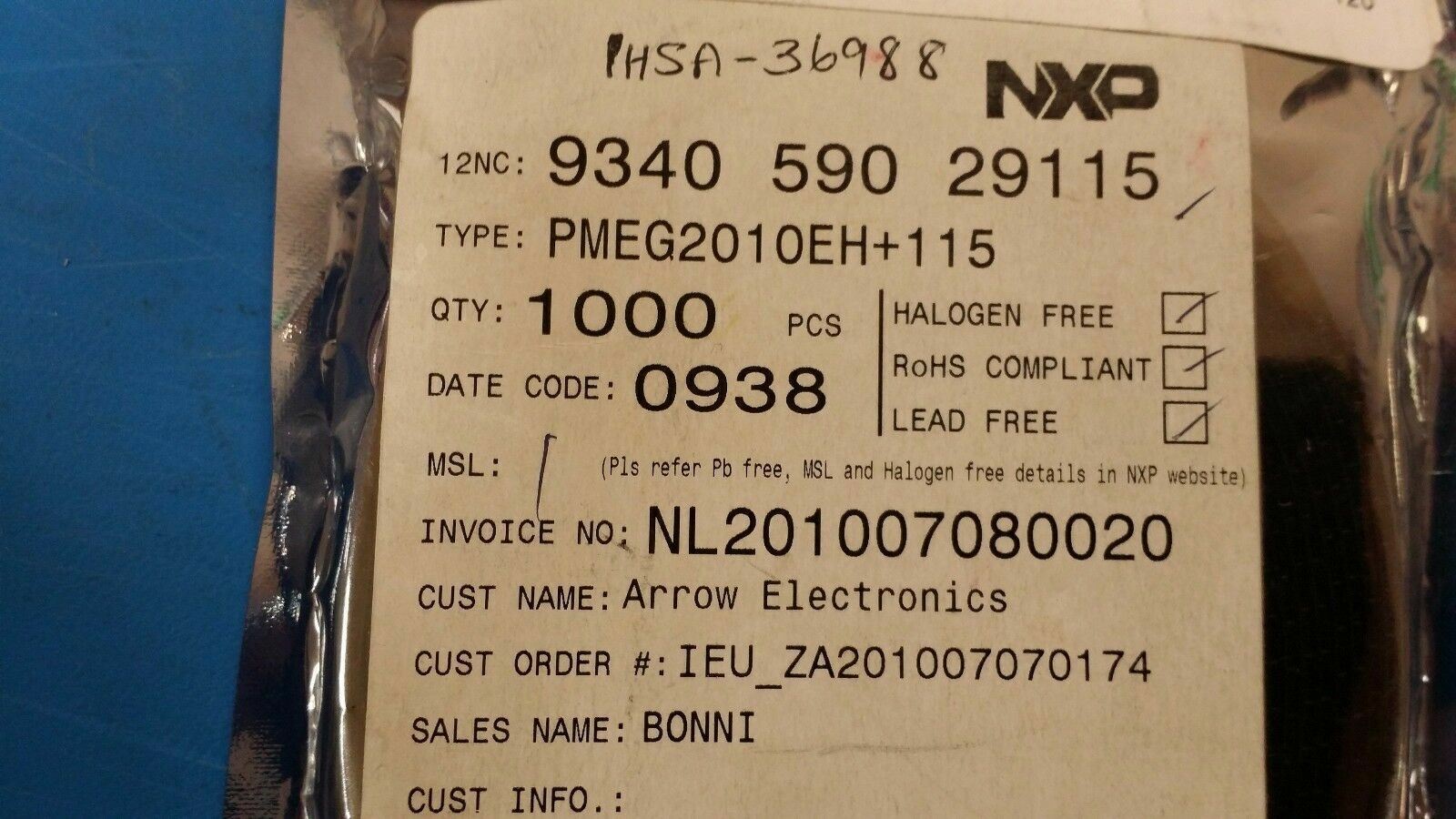

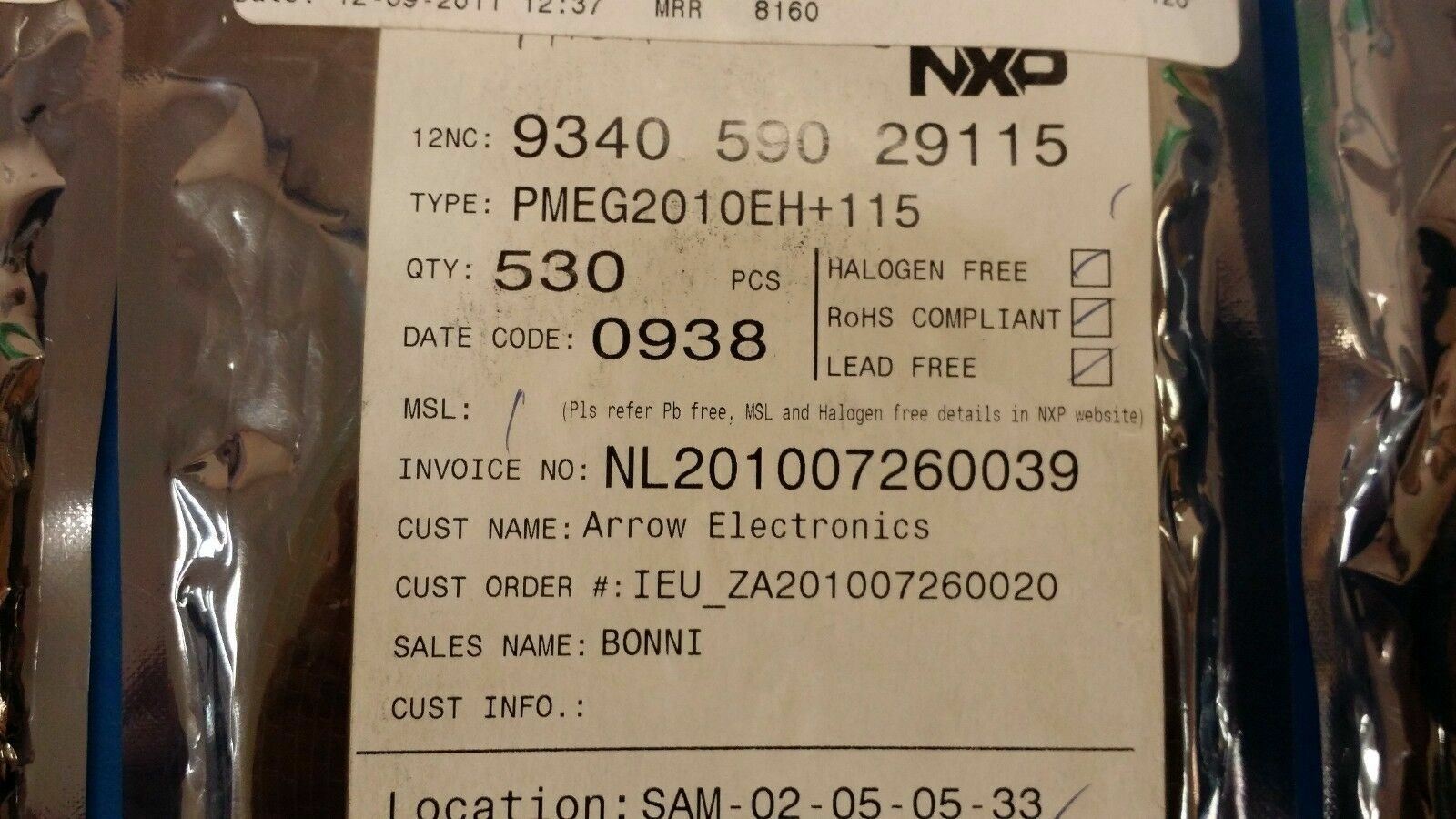

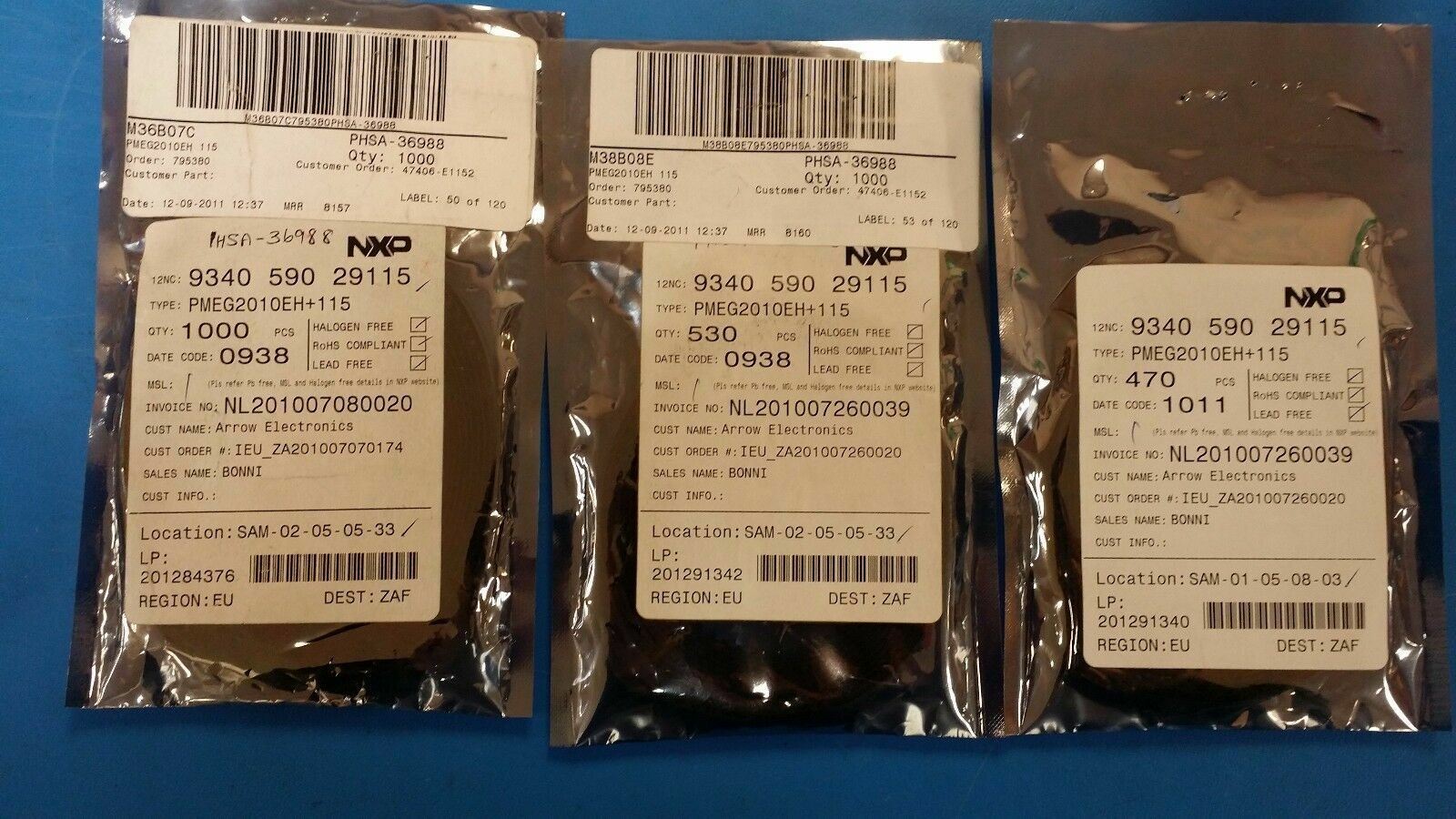

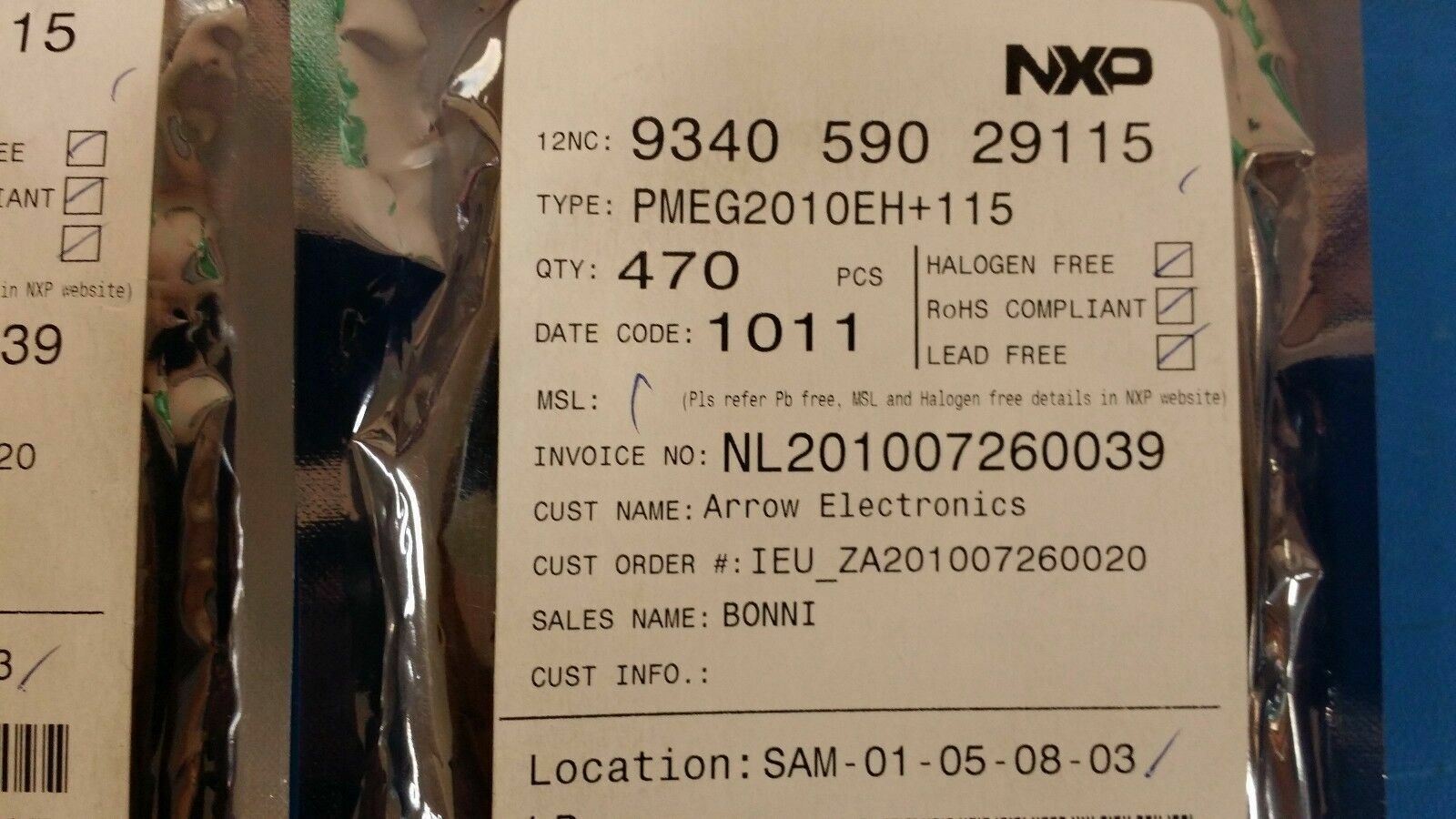

THIS LISTING IS FOR (10PCS) OF PMEG2010EH BY NXP.
SPECIFICATIONS
| Mfr Package Description | PLASTIC, SMD, 2 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Diode Type | RECTIFIER DIODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 0.1300 V |
| JESD-30 Code | R-PDSO-F2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 9 A |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 Cel |
| Output Current-Max | 1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Dissipation-Max | 0.8300 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 20 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Finish | Tin (Sn) |
| Terminal Form | FLAT |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
