(10PCS) P6SMB75CA LITTELFUSE TVS DIODE 600W 75VBR 5% BI DO214AA

  • $5.00
    Unit price per
Tax included.

Only 20 left!

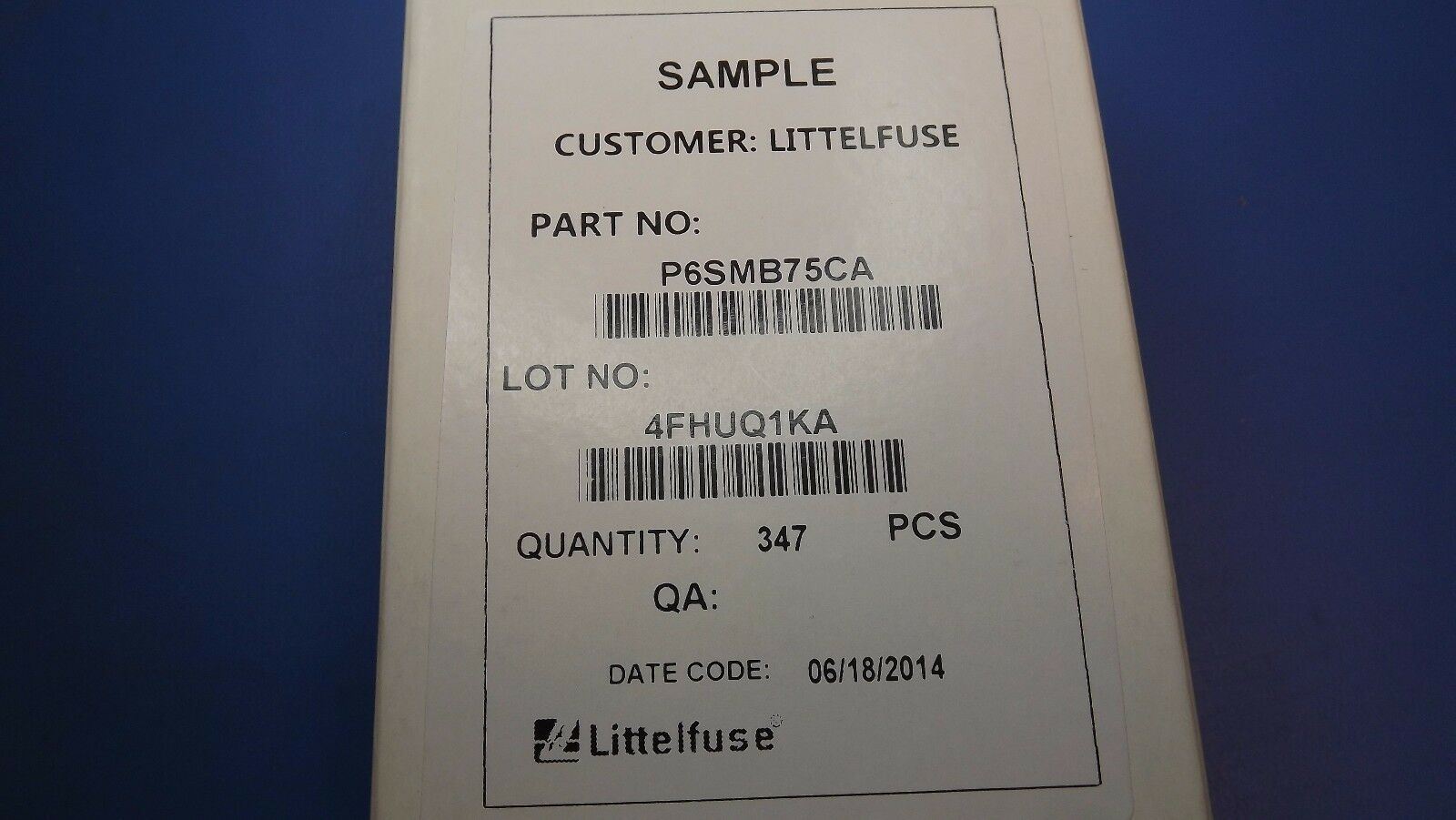

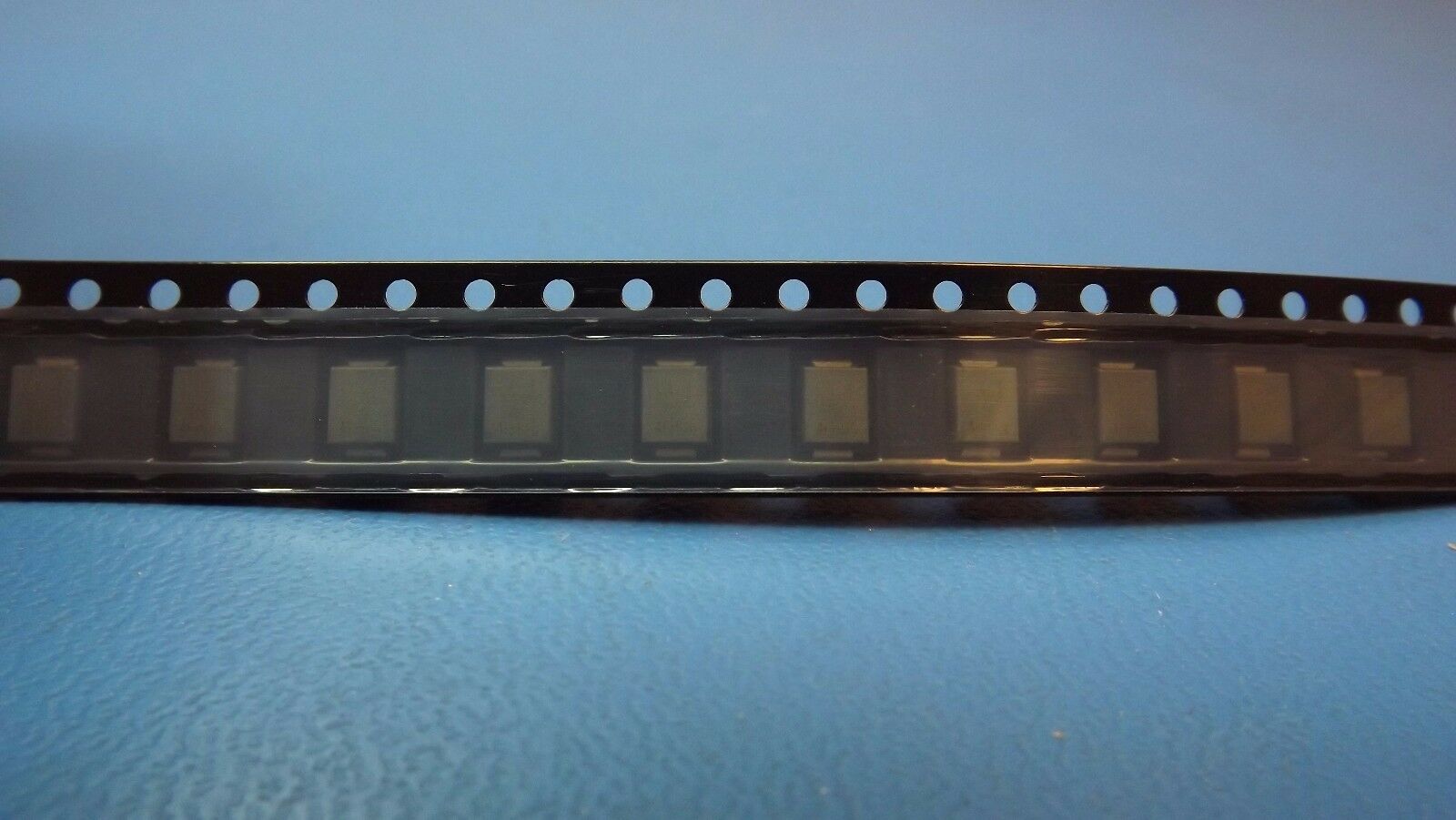

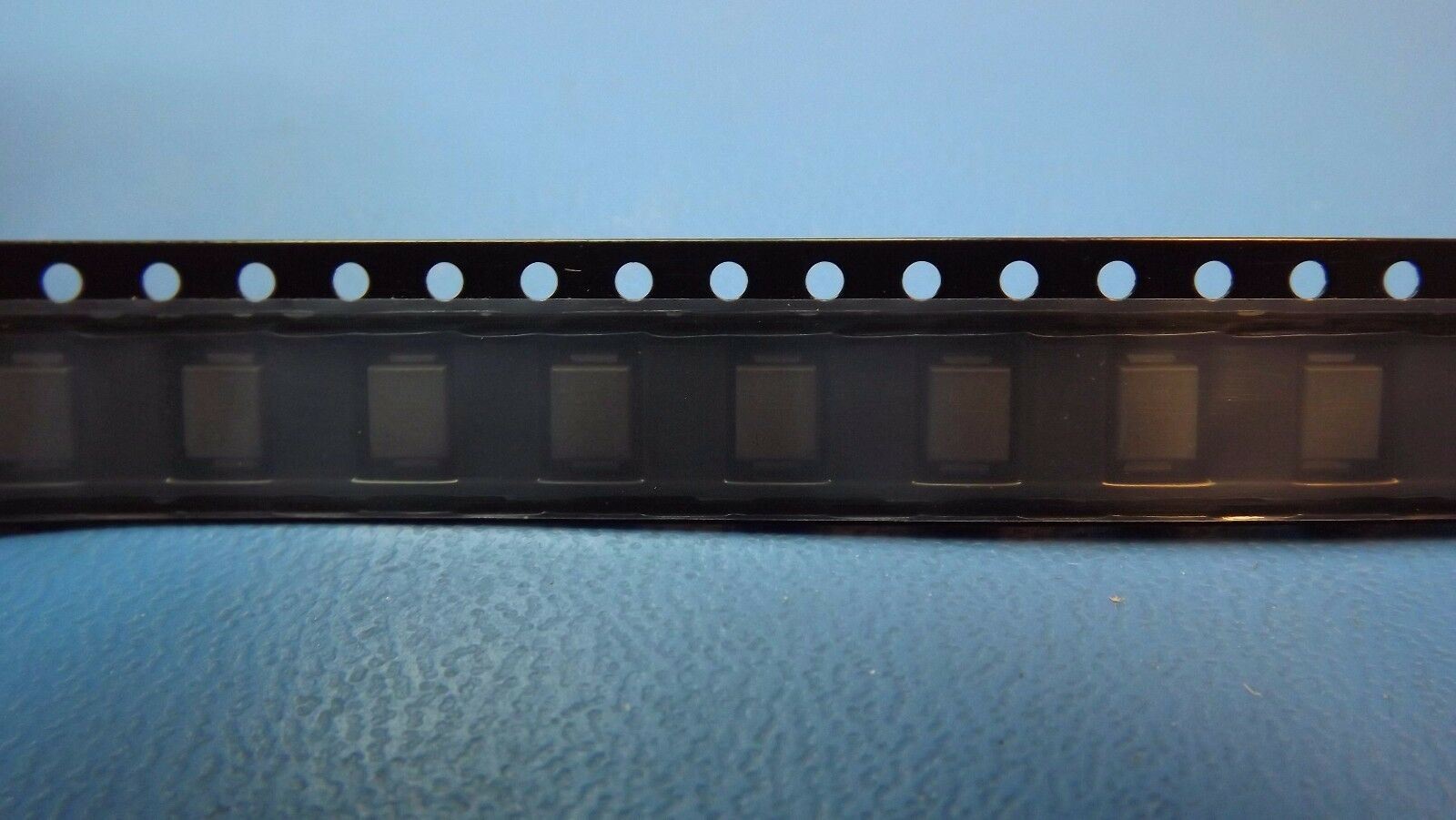

THIS LISTING IS FOR (10PCS) OF P6SMB75CA BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 75.05 V
Breakdown Voltage-Min 71.3 V
Breakdown Voltage-Max 78.8 V
Clamping Voltage-Max 103.0 V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-J2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600.0 W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 5.0 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 64.1 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form J BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
