(10PCS) P4SMA13A LITTELFUSE TVS DIODE 11.1V 18.2V DO214AC

  • $9.90
    Unit price per
Tax included.

Only 1 left!

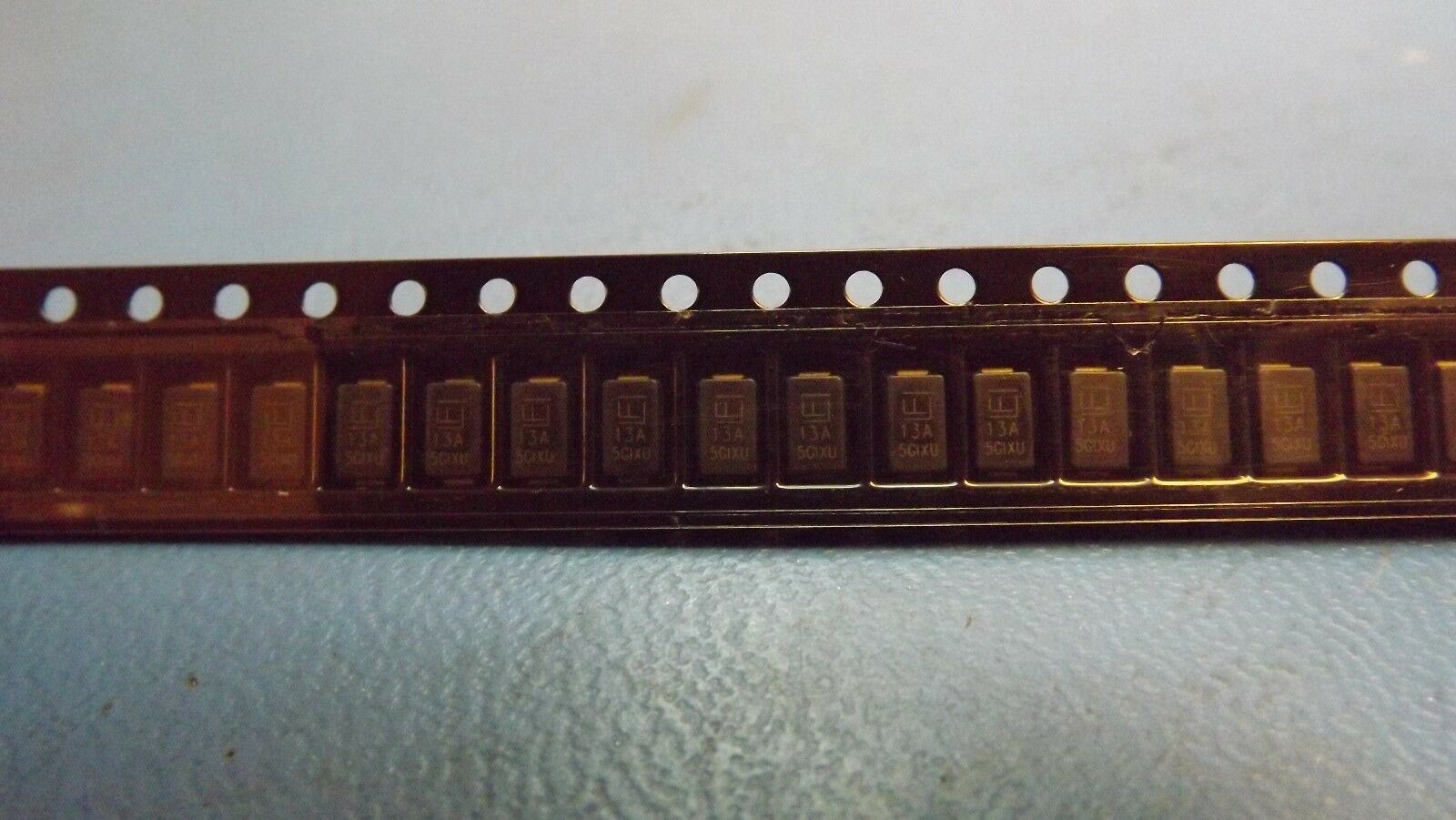

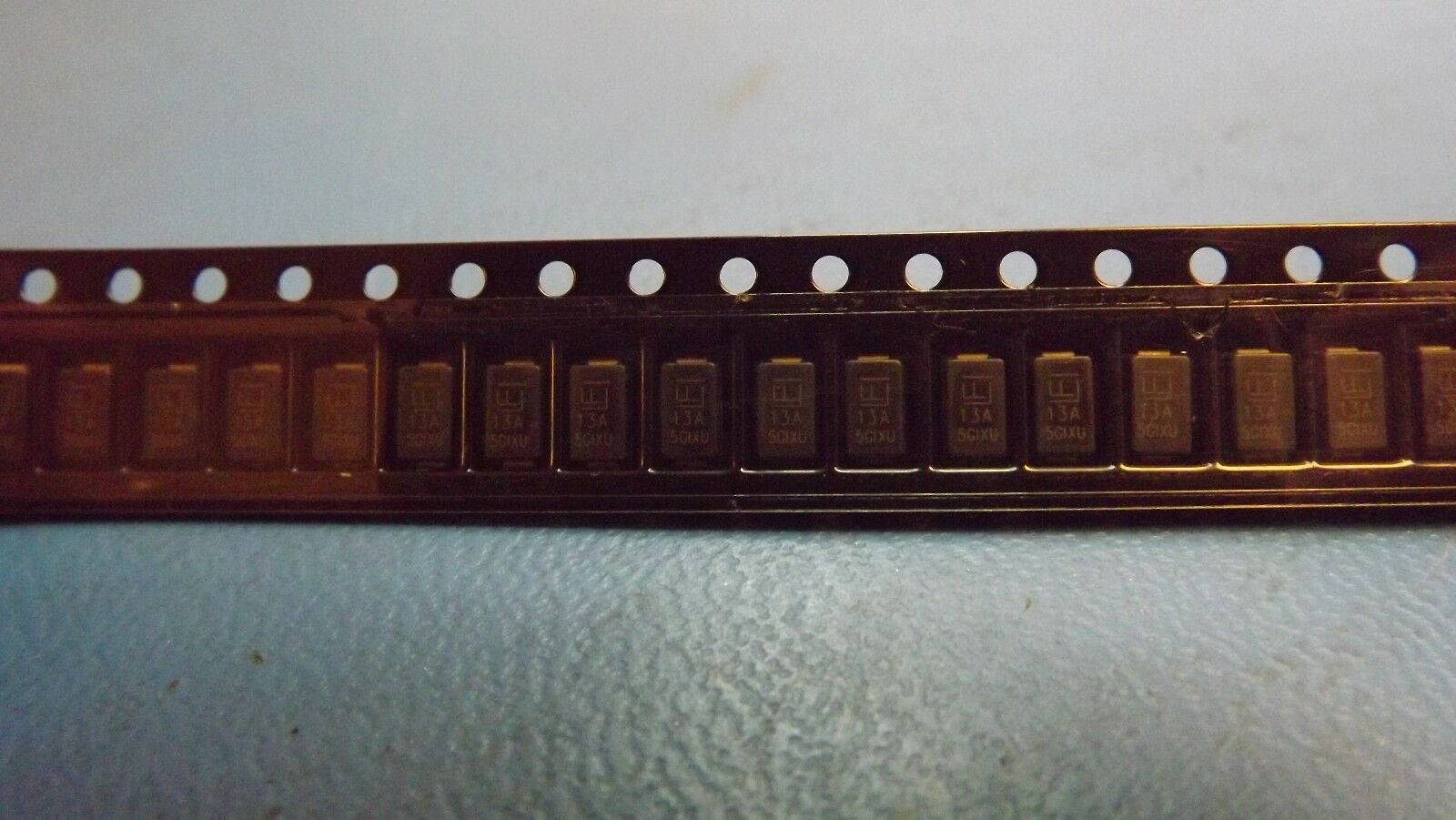

THIS LISTING IS FOR (10PCS) OF P4SMA13A BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description PLASTIC, SMA, 2 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 13.0  V
Breakdown Voltage-Min 12.4  V
Breakdown Voltage-Max 13.7  V
Clamping Voltage-Max 18.2  V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 400.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -65.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 3.3  W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 11.1  V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature UL RECOGNIZED
