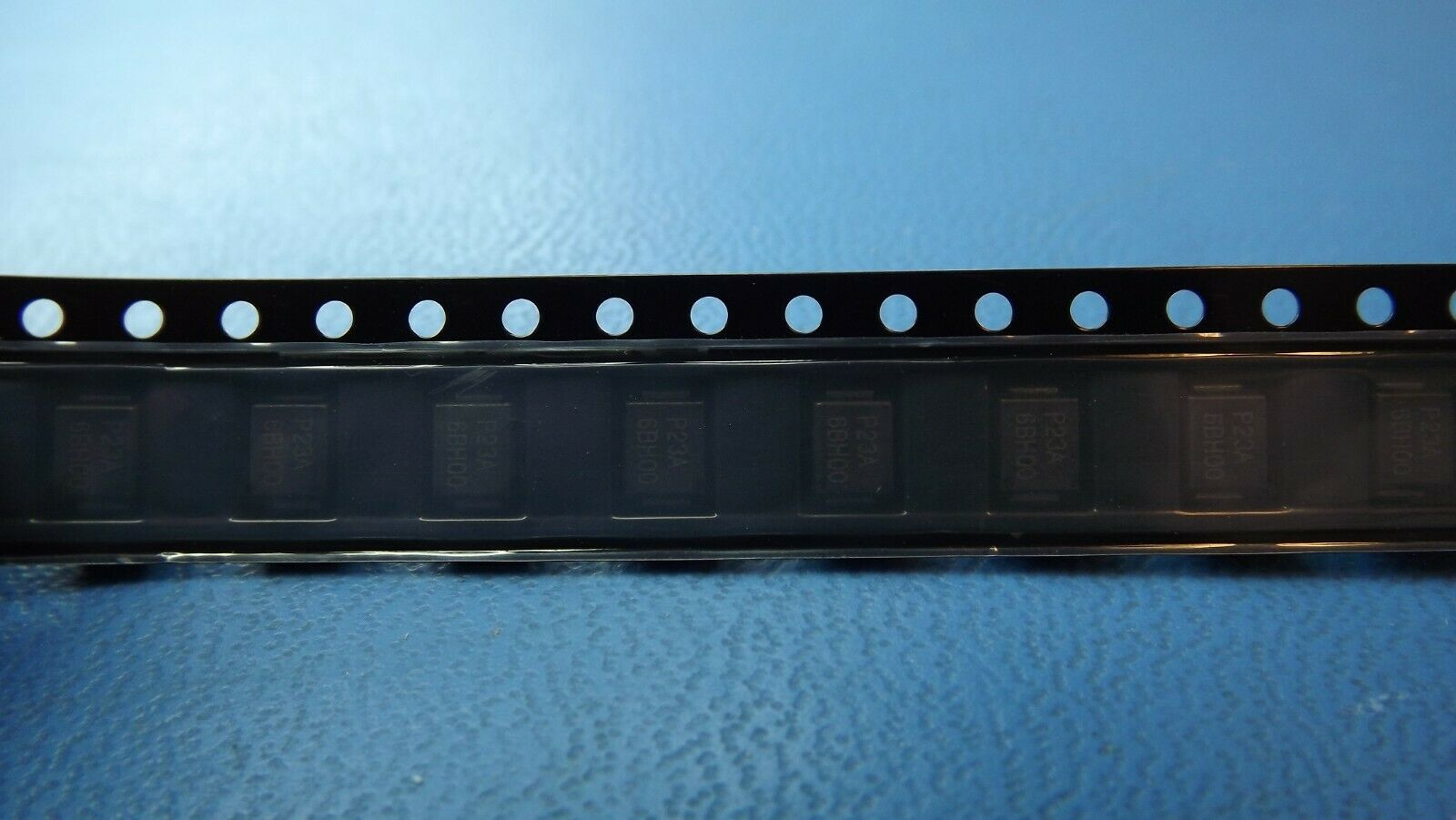

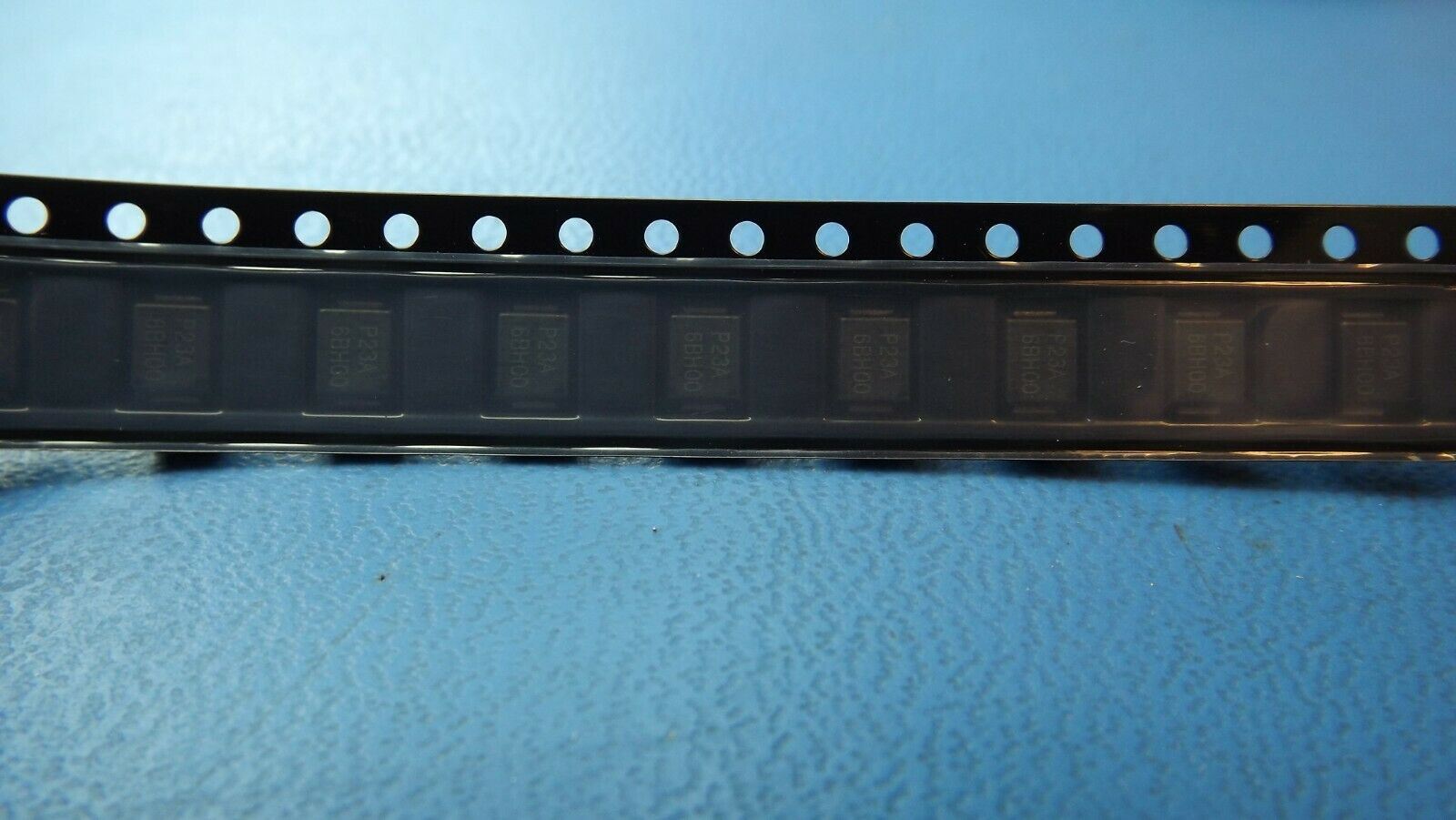

(10PCS) P2300SALRP LITTELFUSE THYRISTOR 190V 150A DO214AA

  • $7.50
    Unit price per
Tax included.

Only 12 left!

THIS LISTING IS FOR (10PCS) OF P2300SALRP BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
EU RoHS Compliant Yes
Status Active
Trigger Device Type SILICON SURGE PROTECTOR
Breakover Voltage-Max 260.0  V
Configuration SINGLE
DC Off-state Voltage-Max 190.0  V
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-Repetitive Pk On-state Cur 20.0  A
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Reverse Voltage 190.0  V
Sub Category Silicon Surge Protectors
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature UL RECOGNIZED
