(10PCS) MTP75N03HDL MOT FET, Transistor, 75A, 25V,1-Element, N-Channel, TO-220AB
Tax included.

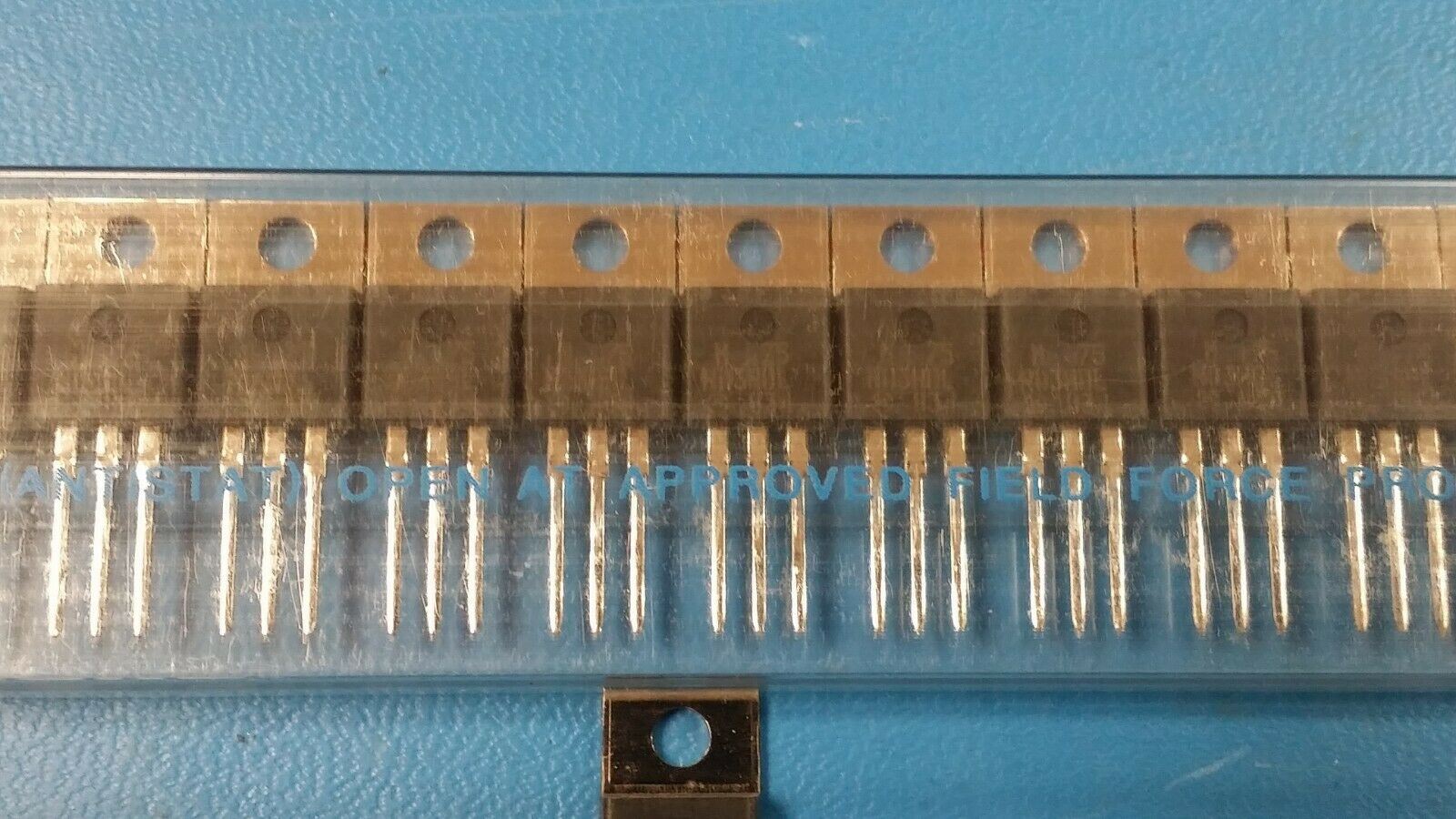

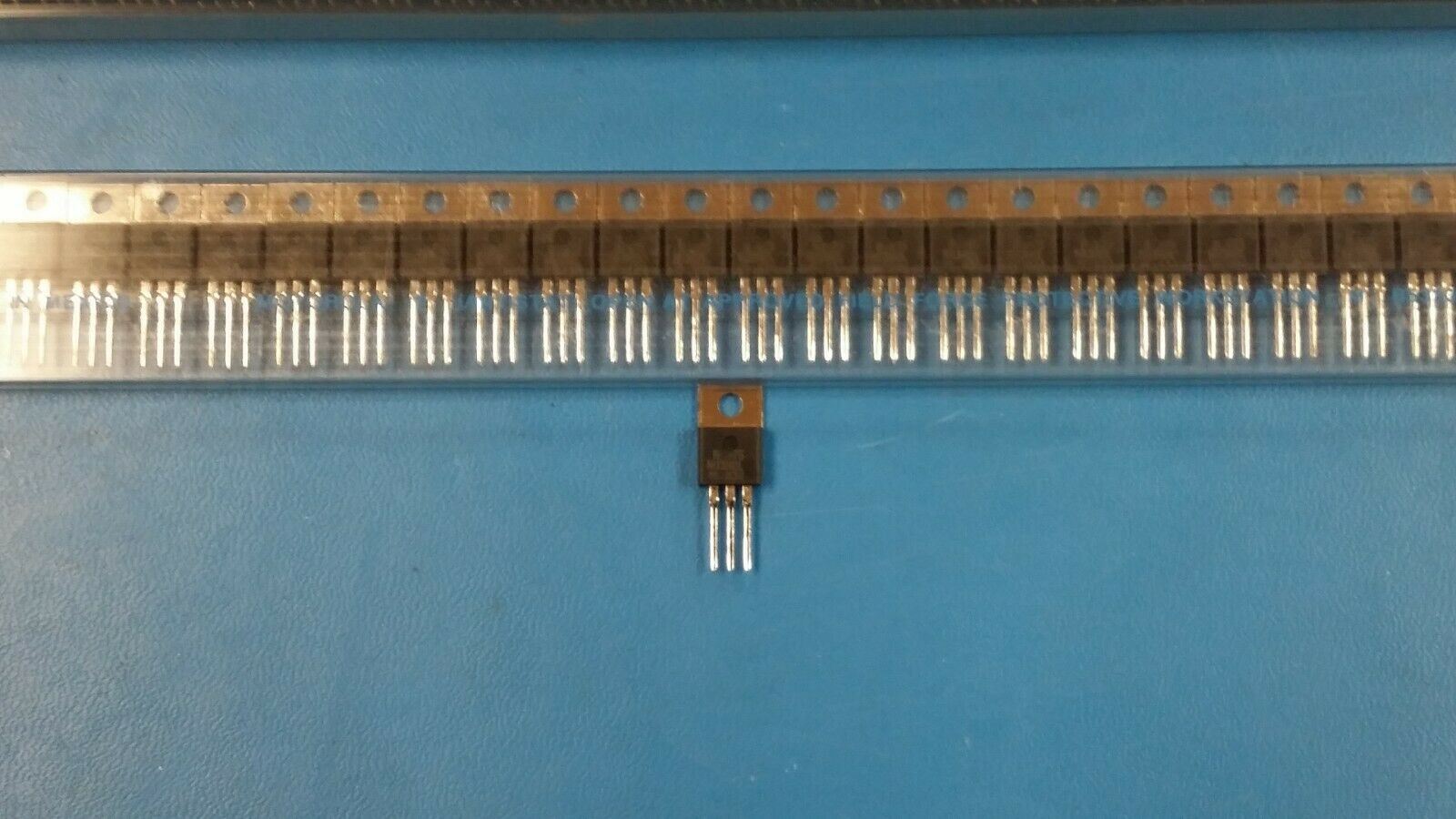

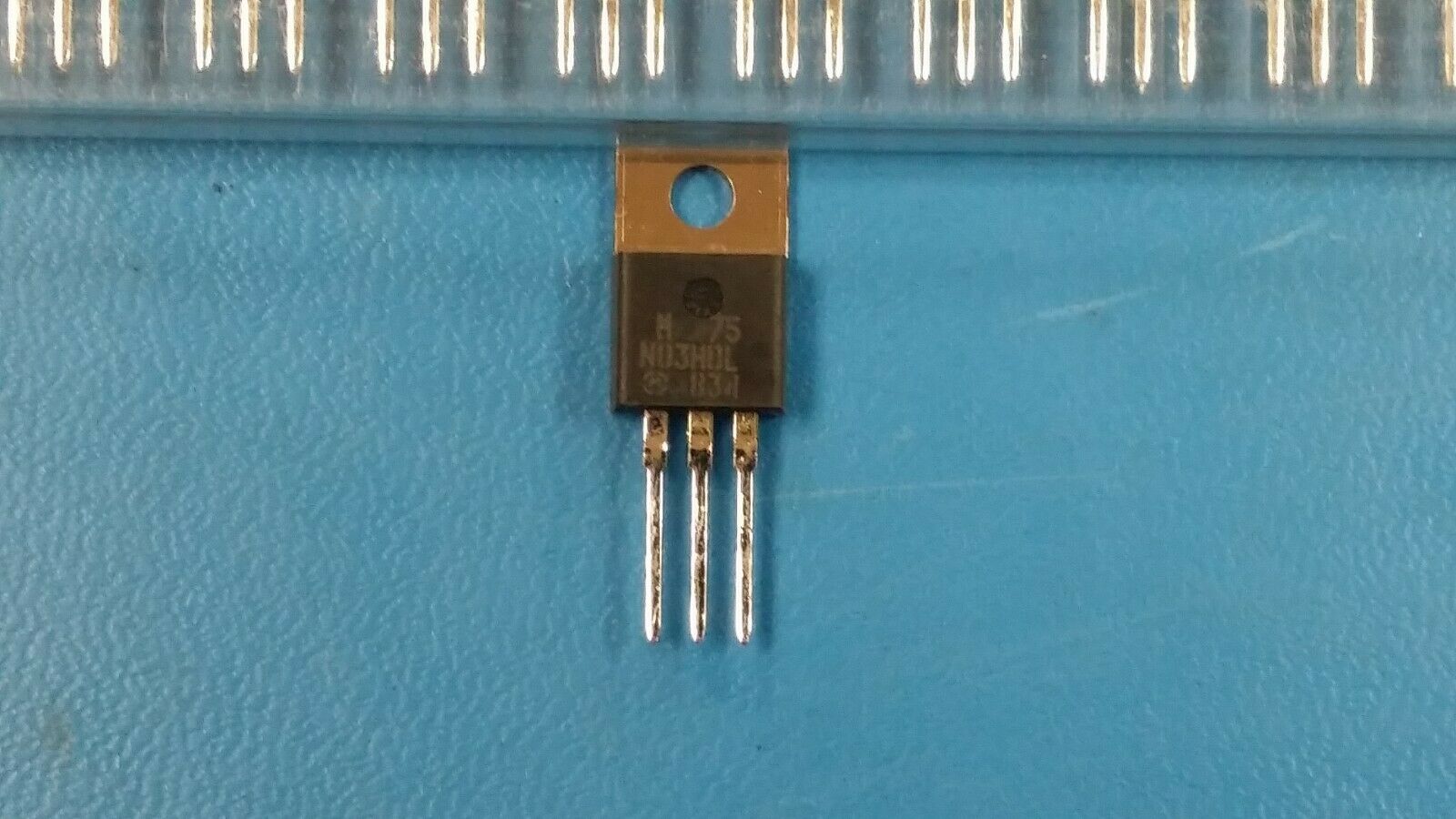

THIS LISTING IS FOR (10 PCS) OF MTP75N03HDL BY MOT
FET, Transistor, 75A, 25V,1-Element, N-Channel, TO-220AB
Part #: MTP75N03HDL
Part Category: Transistors
Manufacturer: Motorola Solutions, Inc.
Description: Power Field-Effect Transistor, 75A I(D), 25V, 0.009ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
Status Transferred
Avalanche Energy Rating (Eas) 280.0 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 75.0 A
Drain Current-Max (ID) 75.0 A
Drain-source On Resistance-Max 0.009 ohm
DS Breakdown Voltage-Min 25.0 V
Feedback Cap-Max (Crss) 430.0 pF
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 175.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type N-CHANNEL
Power Dissipation Ambient-Max 150.0 W
Power Dissipation-Max (Abs) 125.0 W
Pulsed Drain Current-Max (IDM) 225.0 A
Qualification Status Not Qualified
Sub Category FET General Purpose Power
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON
Turn-off Time-Max (toff) 420.0 ns
Turn-on Time-Max (ton) 1034.0 ns
