(10PCS) MIC5200-5.0BS Micrel Fixed Positive LDO Regulator, 5V, BIPolar,
Tax included.

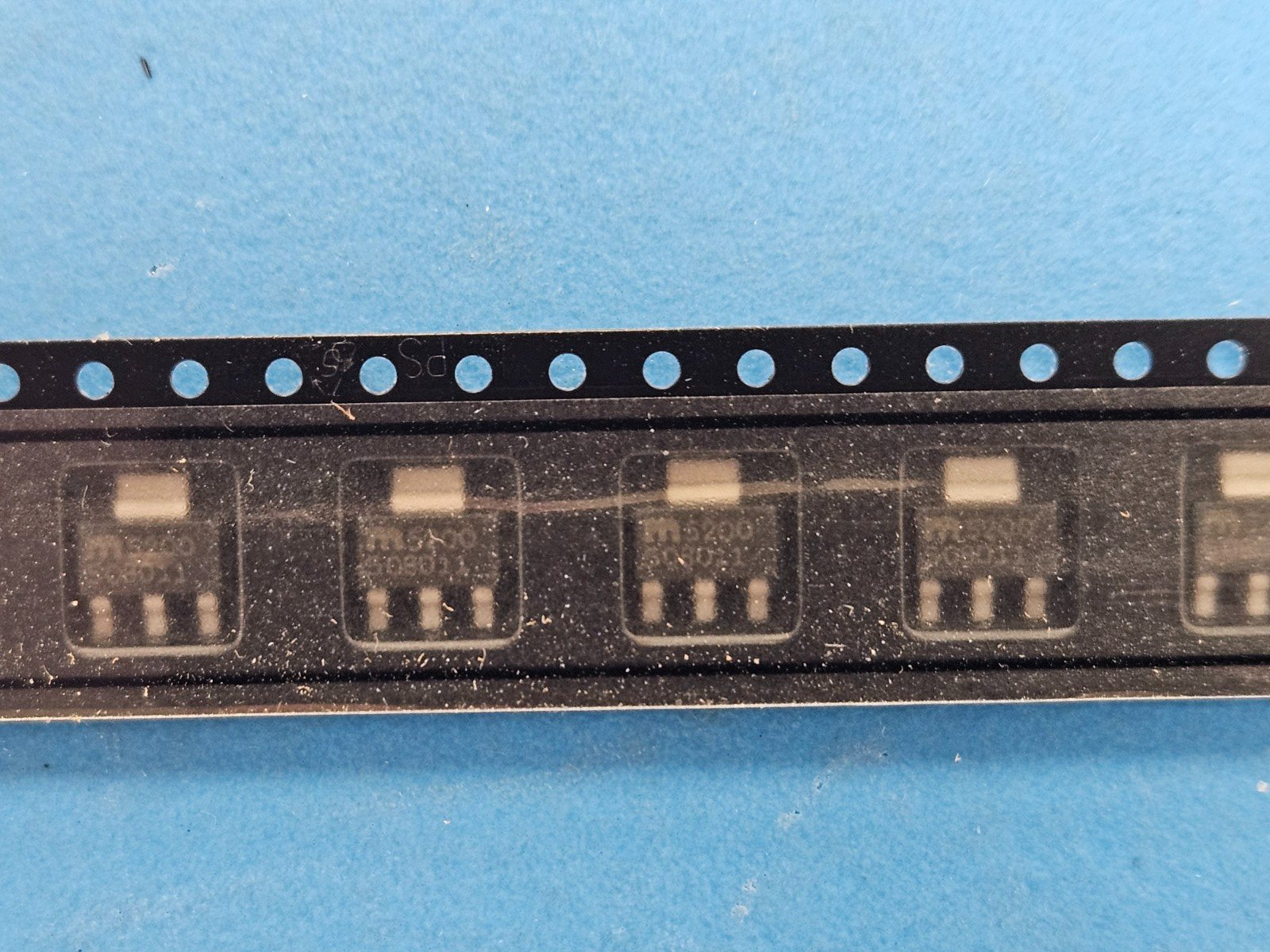

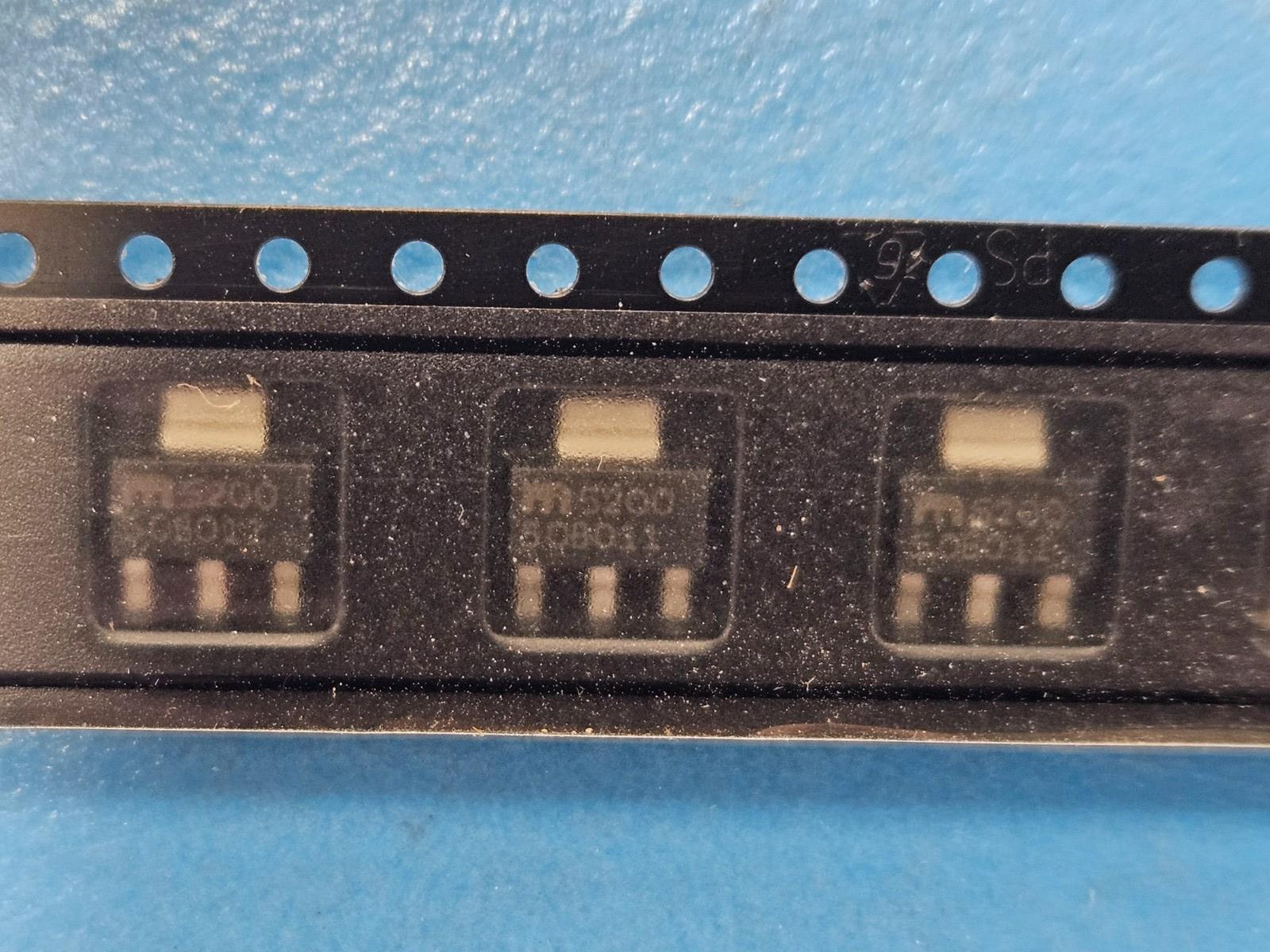

This listing is for (10PCS) of MIC5200-5.0BS by Micrel
Status Discontinued
Adjustability FIXED
Dropout Voltage1-Max (V) 0.3500
Dropout Voltage1-Nom (V) 0.230000000000000
Input Voltage Absolute-Max (V) 60.000000000000000
Input Voltage-Max (V) 26.0000
Input Voltage-Min (V) 2.5000
JESD-30 Code R-PDSO-G4
J-STD-609 Code e0
Length (mm) 6.5000
Line Regulation-Max (V) 0.020000000000000
Load Regulation-Max (V) 0.015000000000000
Moisture Sensitivity Level 2
Number of Functions 1
Number of Outputs 1
Number of Terminals 4
Operating Temperature TJ-Max (Cel) 125
Operating Temperature TJ-Min (Cel) -40
Output Current1-Max (A) 0.1000
Output Voltage1-Max (V) 5.1000
Output Voltage1-Min (V) 4.9000
Output Voltage1-Nom (V) 5.0000
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOT-223
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
DLA Qualification Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max (mm) 1.8000
Surface Mount YES
Technology BIPOLAR
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch (mm) 2.310
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max (%) 2.000000
Width (mm) 3.5050
