(10PCS) MIC4426ZM MICRE IC DRIVER MOSFET 1.5A DUAL 8SOIC
Tax included.

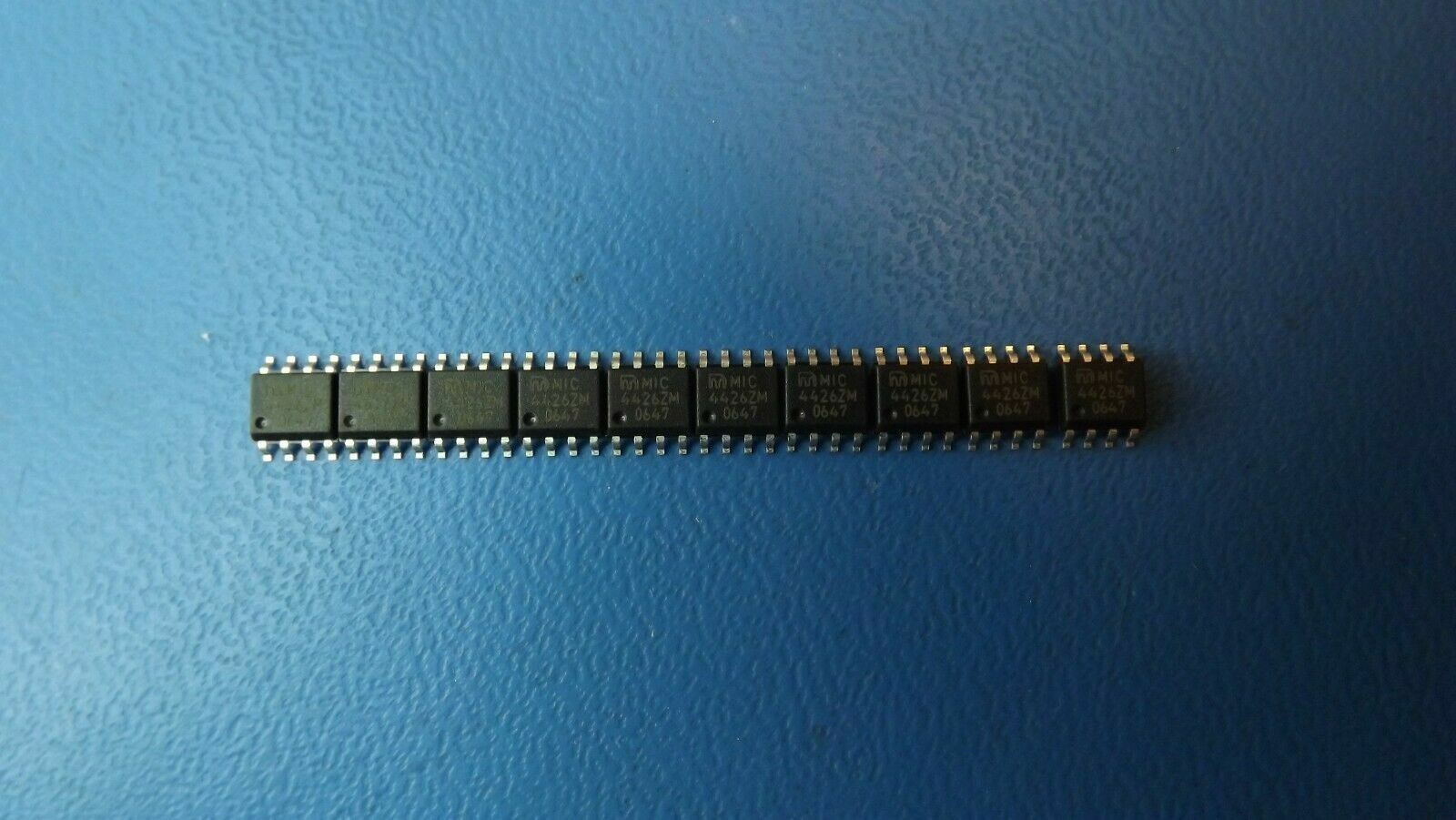

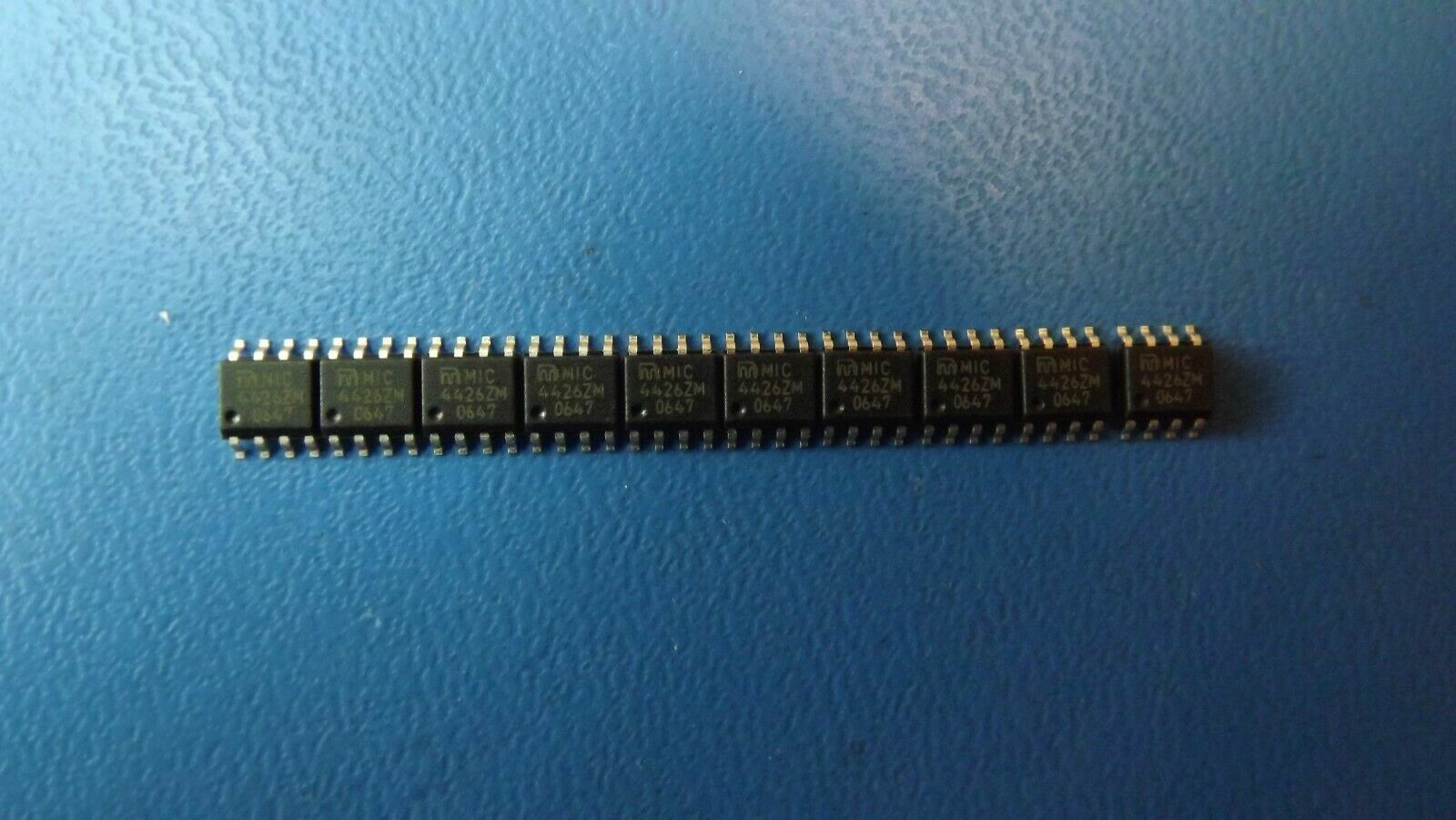

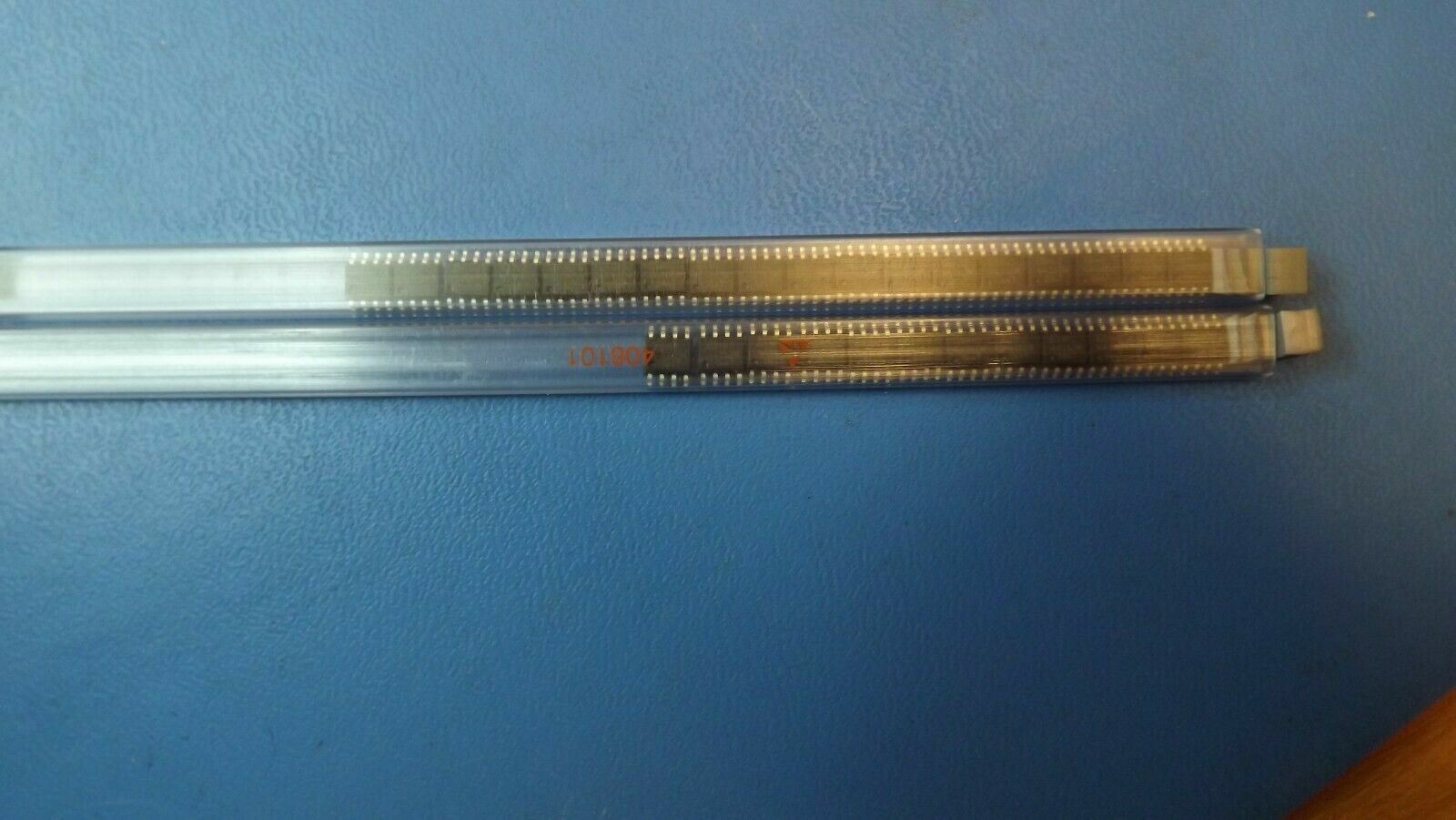

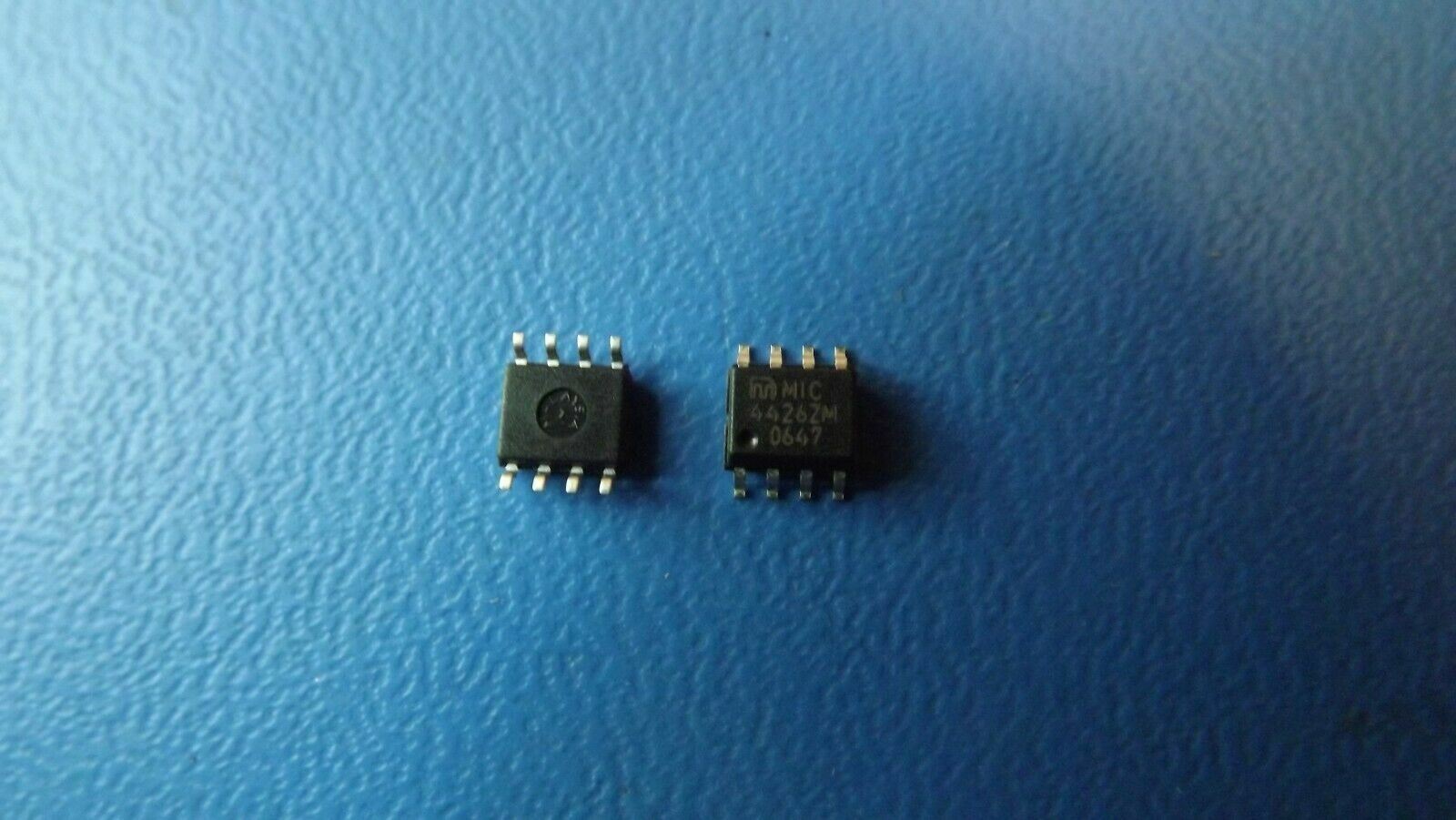

THIS LISTING IS FOR (10PCS) OF MIC4426ZM BY MICREL
SPECIFICATIONS
| Mfr Package Description | LEAD FREE, SOIC-8 |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| High Side Driver | NO |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e4 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Peak Current Limit-Nom | 1.5 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.879 mm |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Max | 18.0 V |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Turn-off Time | 0.06 µs |
| Turn-on Time | 0.04 µs |
| Length | 4.9 mm |
| Width | 3.9 mm |
