(10PCS) M74HC86M1TR XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS SOIC-14
Tax included.

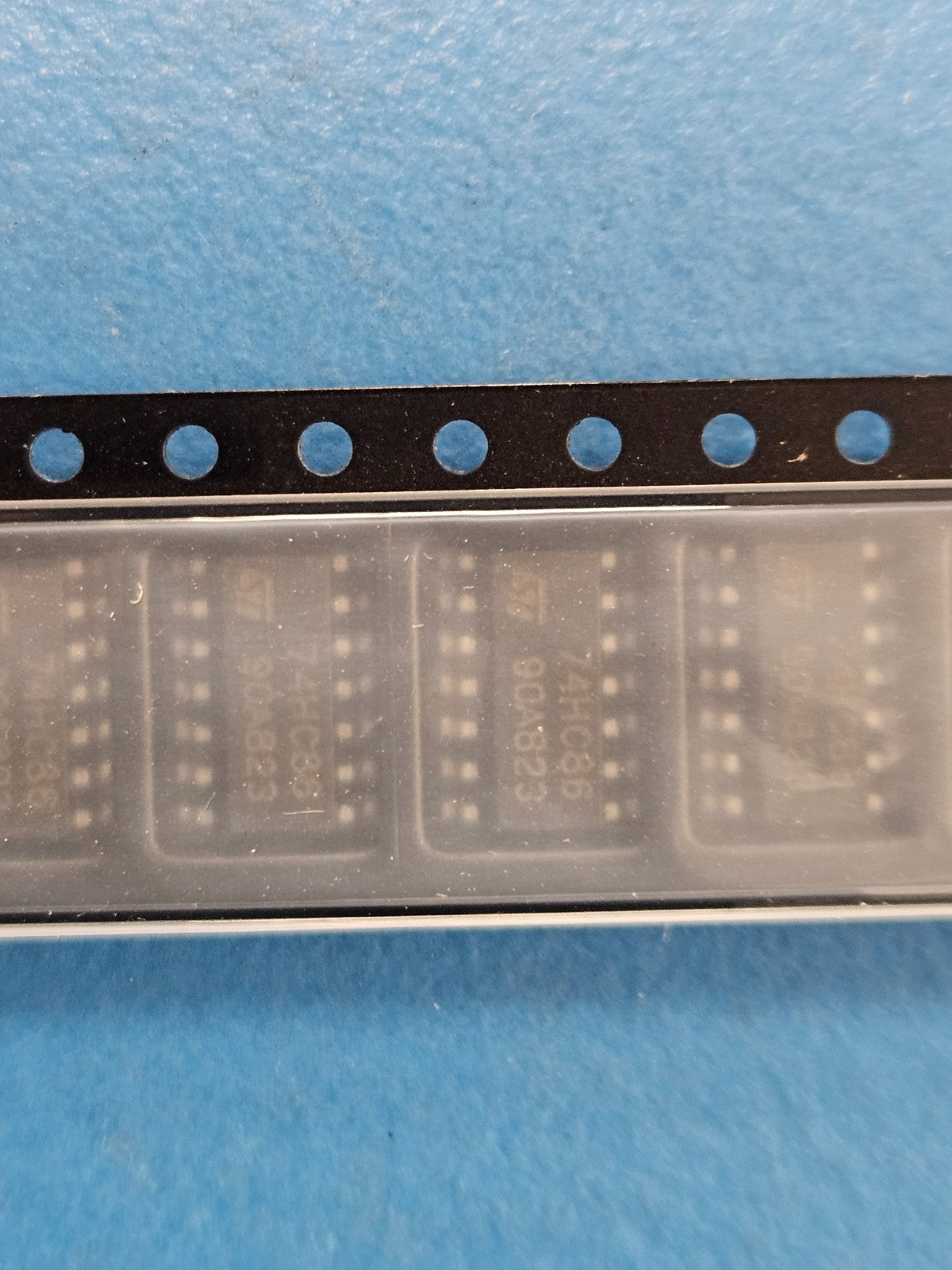

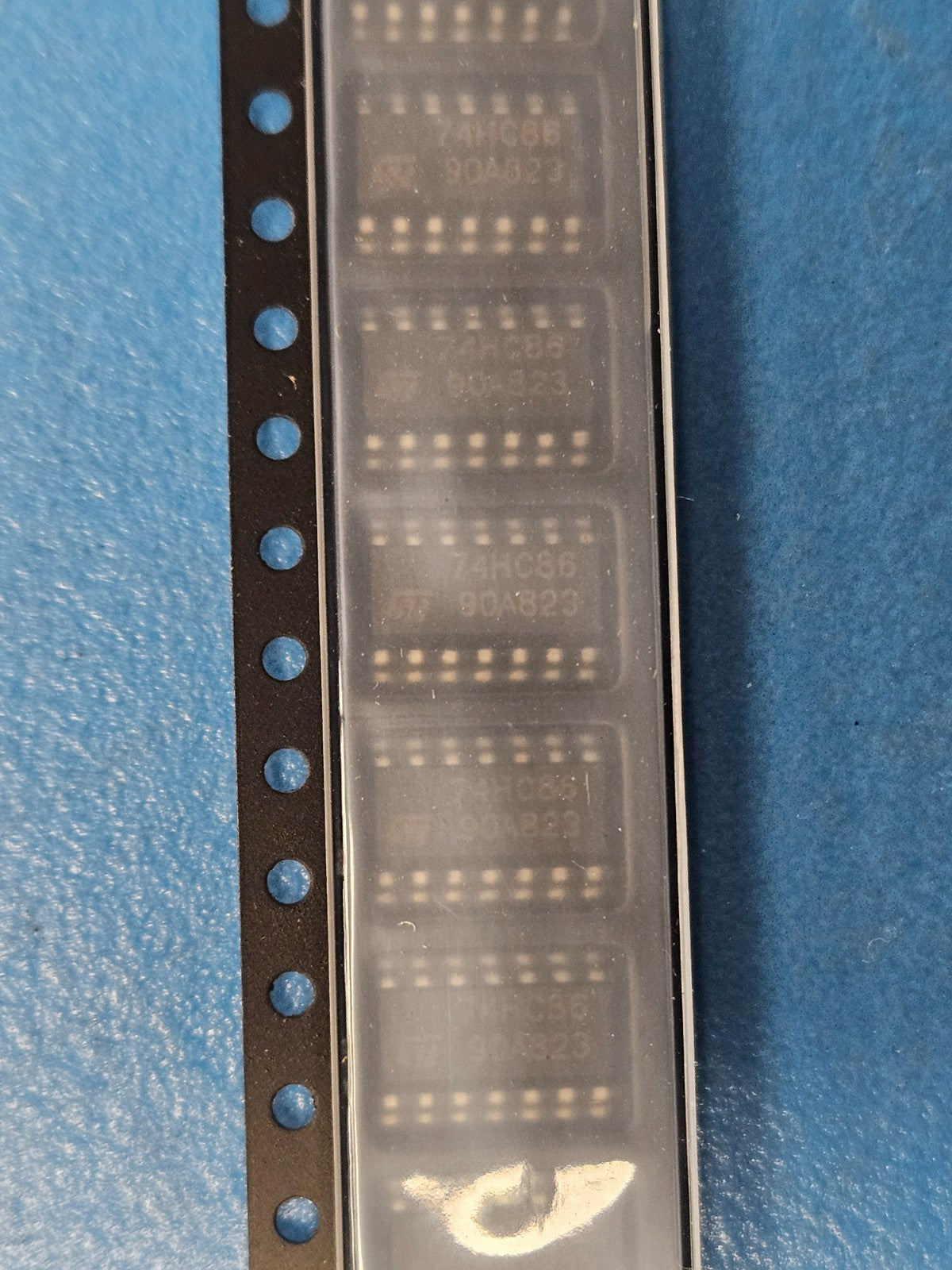

This listing is for (10PCS) of M74HC86M1TR by ST Microelectronics
Mfr Package Description SOP-14
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Discontinued
Logic IC Type XOR GATE
Sub Category Gates
Family HC/UH
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.004 Amp
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Prop. Delay@Nom-Sup 33.0 ns
Propagation Delay (tpd) 165.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 4.5
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 6.0 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
