(10PCS) L0103MERP LITTELFUSE TRIAC SENSING GATE 600V 1A TO92

  • $5.00
    Unit price per
Tax included.

Only 798 left!

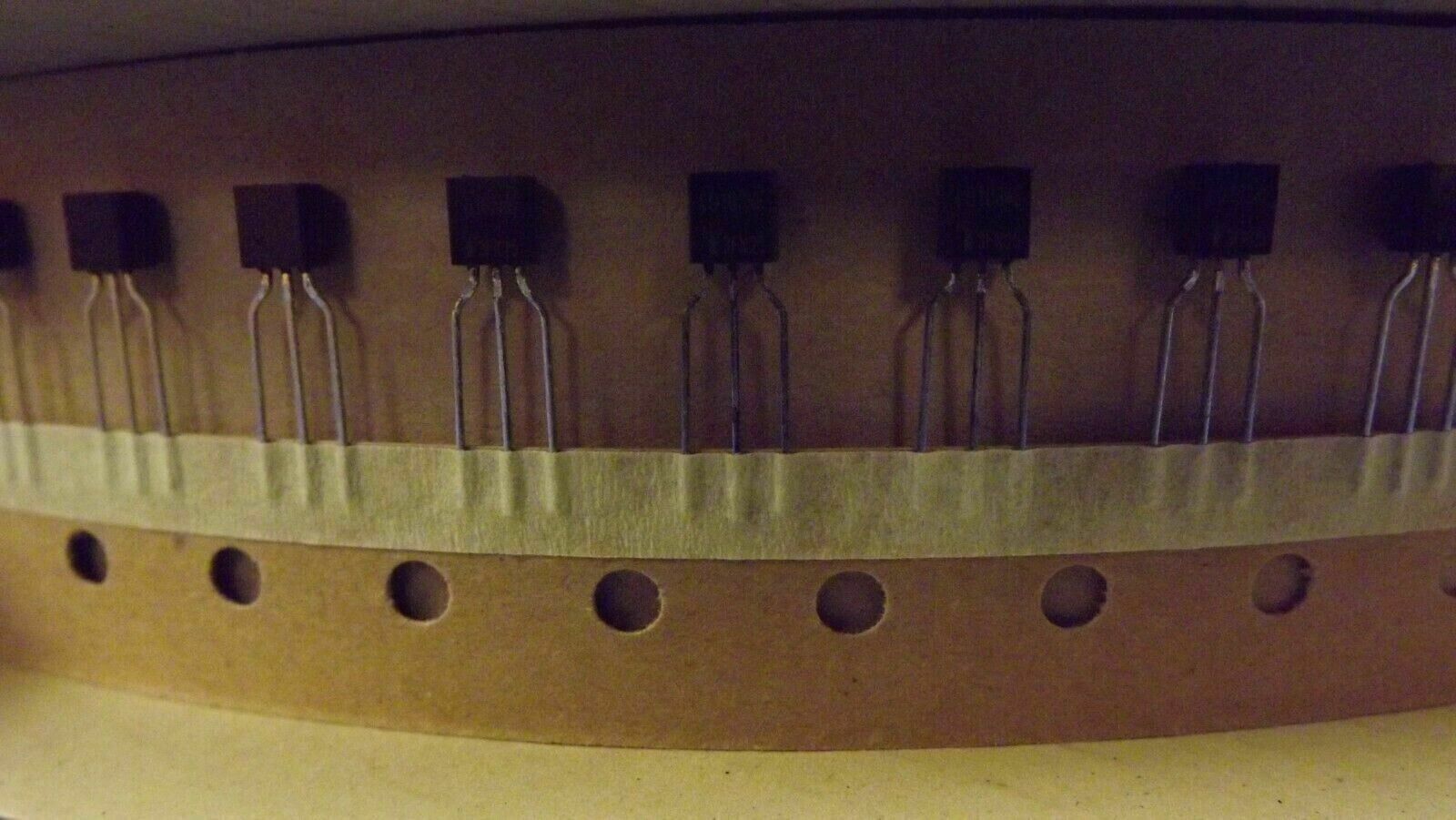

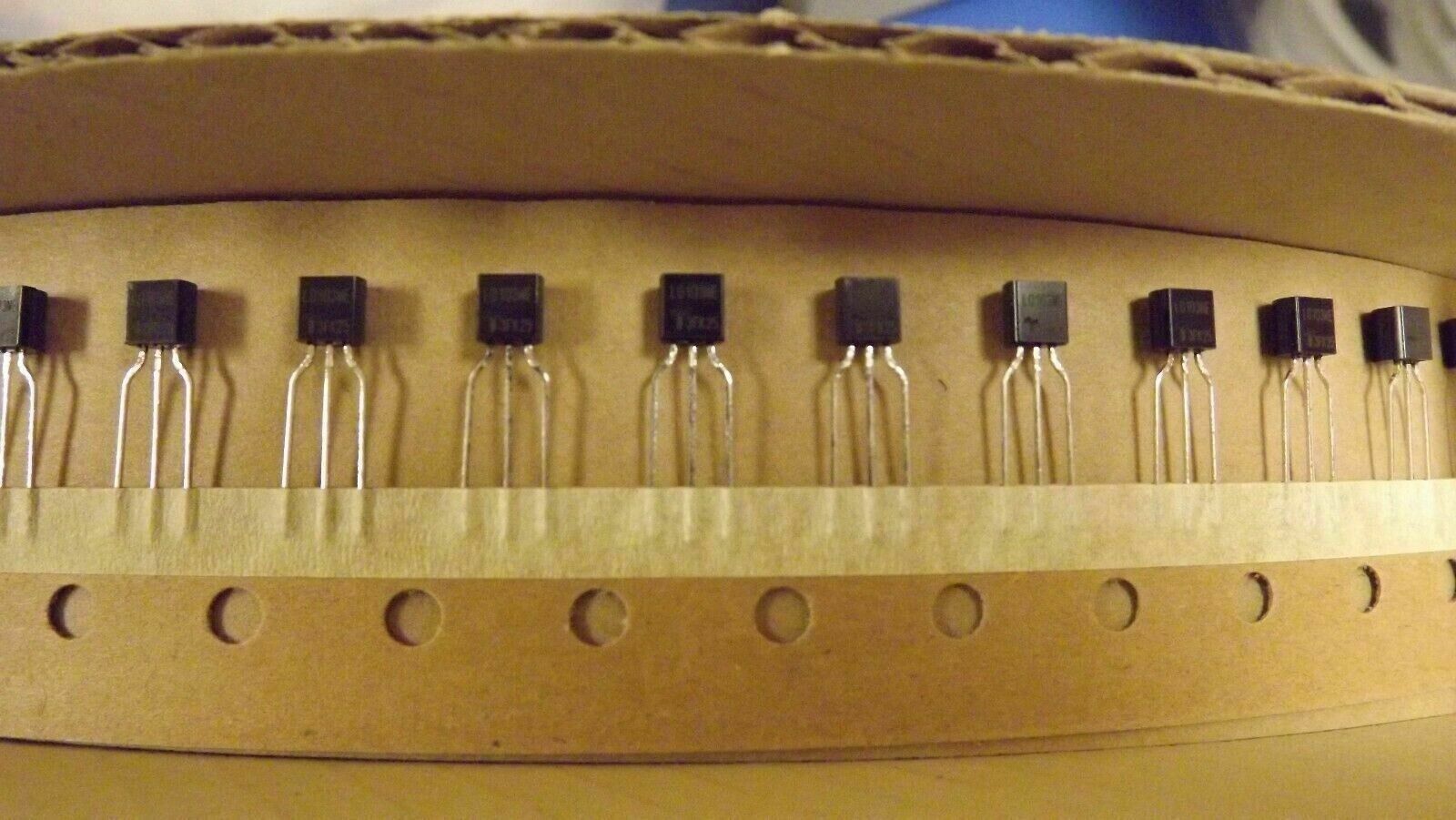

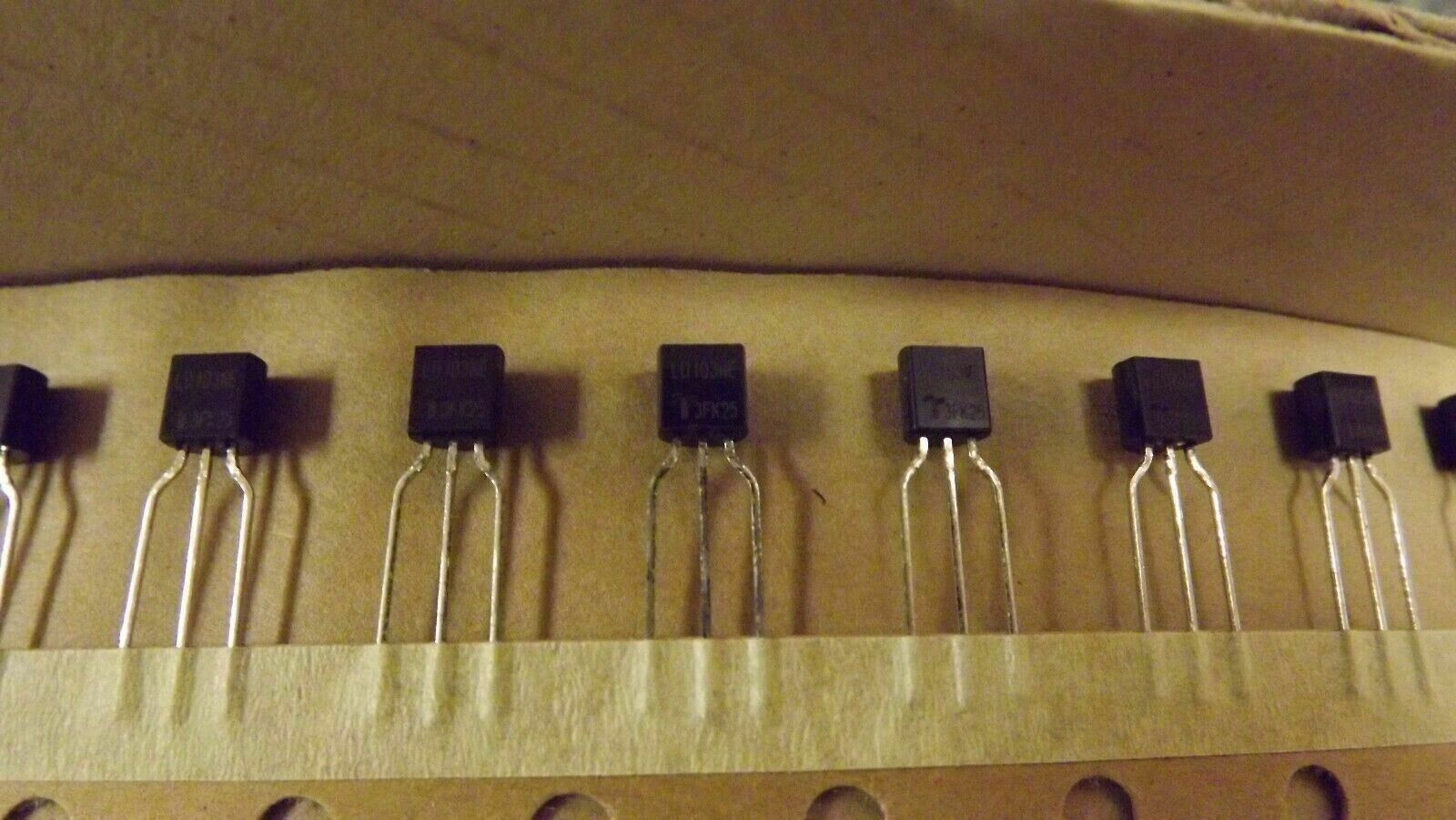

THIS LISTING IS FOR (10PCS) OF L0103MERP BY LITTELFUSE

**WE CURRENTLY HAVE 8000PCS IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-3
EU RoHS Compliant Yes
Status Active
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Configuration SINGLE
Critical Rate of Rise of Commutation Voltage-Min 0.5000 V/us
Critical Rate of Rise of Off-state Voltage-Min 10 V/us
DC Gate Trigger Current-Max 5 mA
DC Gate Trigger Voltage-Max 1.3 V
Holding Current-Max 7 mA
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T3
JESD-609 Code e3
Leakage Current-Max 0.5000 mA
Number of Elements 1
Number of Terminals 3
Operating Temperature-Min -40 Cel
Operating Temperature-Max 125 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 600 V
RMS On-state Current-Max 1 A
Sub Category TRIACs
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature HIGH RELIABILITY
