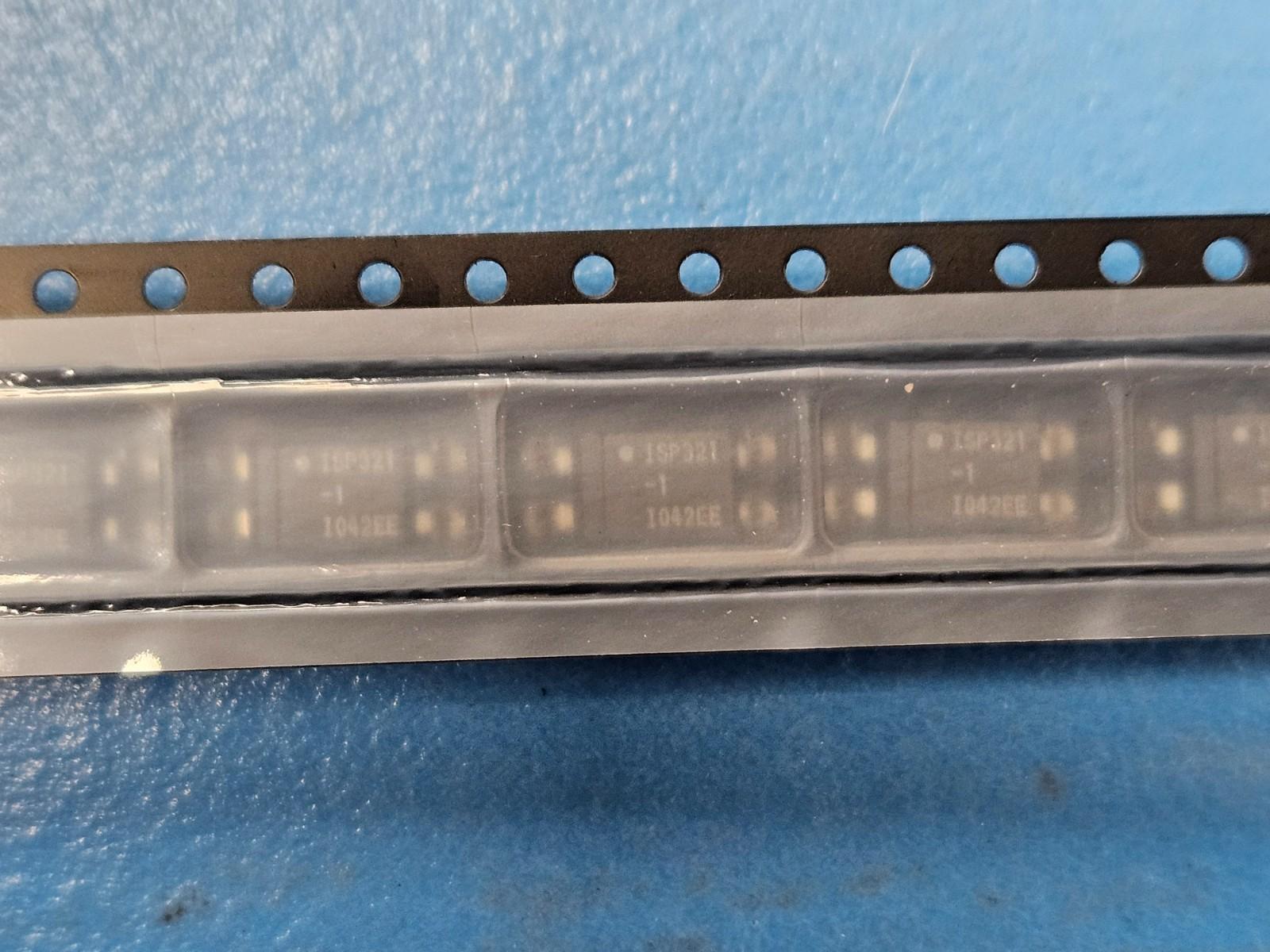

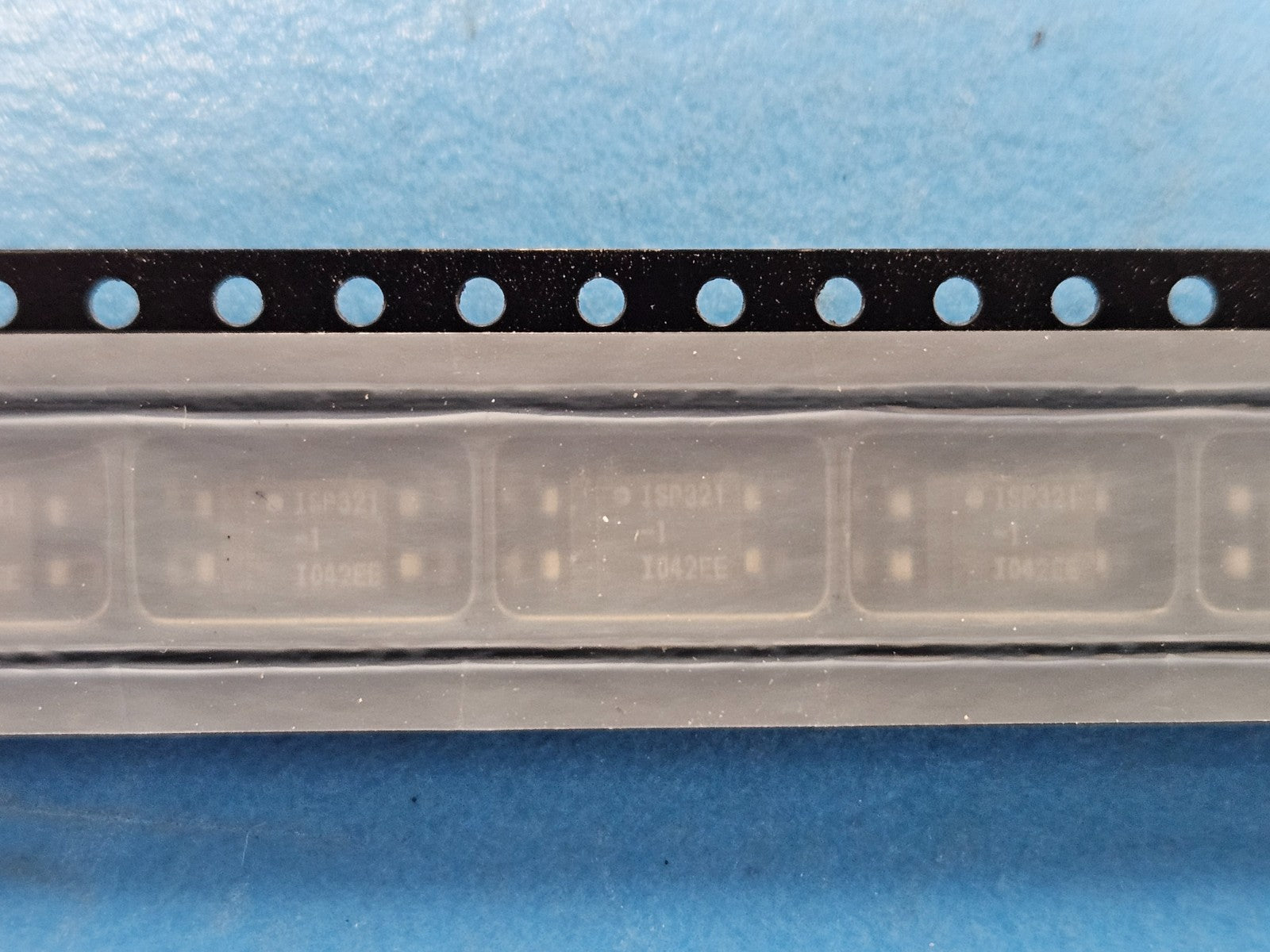

(10PCS) ISP321-1 Isocom Transistor Output Optocoupler, 1-Element, 5300V 4pin SMT
Tax included.
This listing is for (1PC) of ISP321-1SM by Isocom
Status Active
Additional Feature UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min (V) 80.0000000000000000
Configuration SINGLE
Current Transfer Ratio-Min (%) 50.000000000000000000
Current Transfer Ratio-Nom (%) 50.0000000000000000
Dark Current-Max (nA) 100.0000000000000000
Forward Current-Max (A) 0.050000000000000
Forward Voltage-Max (V) 1.300000000000000
Isolation Voltage-Max (V) 5300
J-STD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Elements 1
Operating Temperature-Max (Cel) 100
Operating Temperature-Min (Cel) -30
Optoelectronic Device Type TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max (W) 0.150000000000000
Terminal Finish TIN
