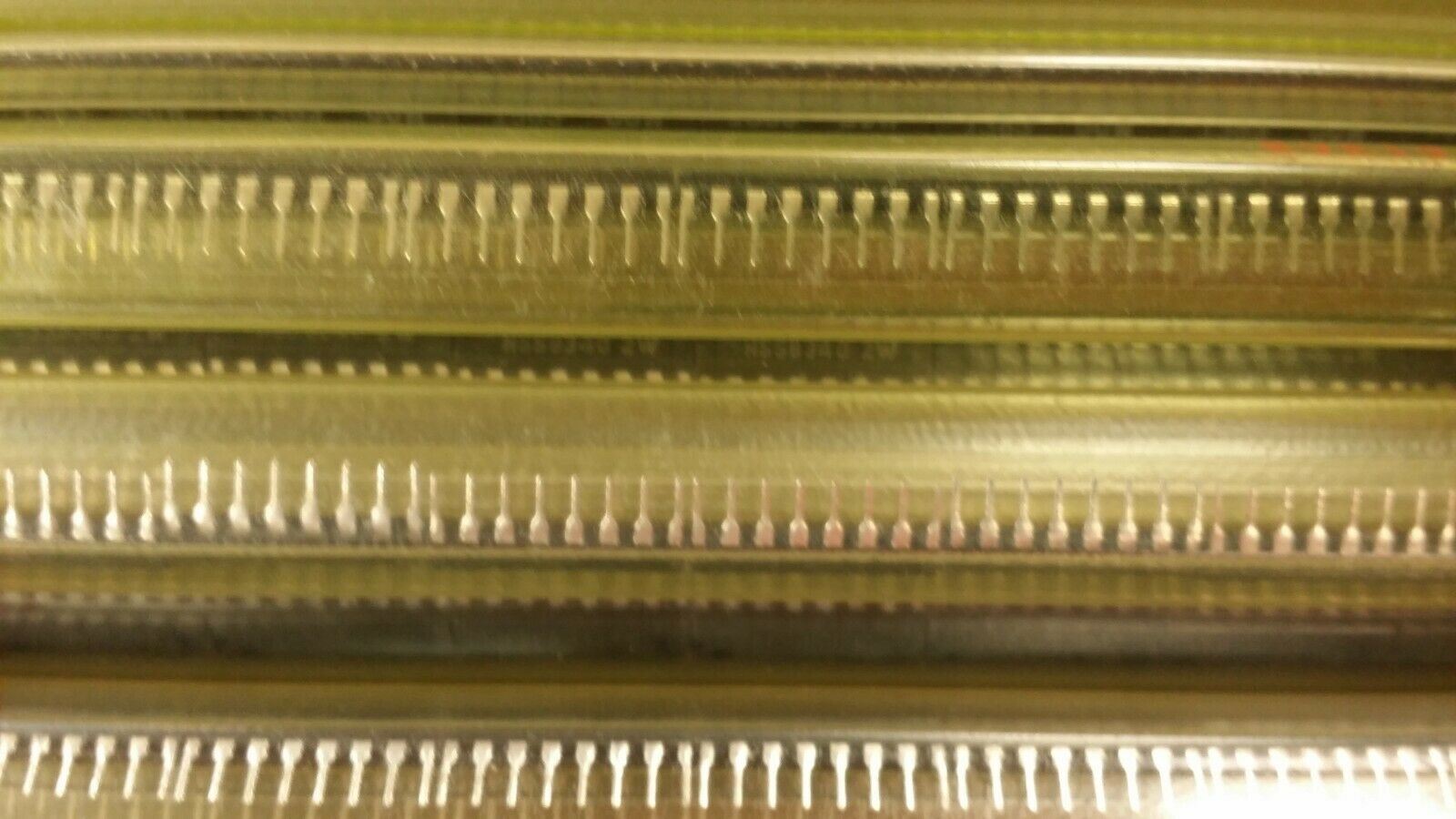

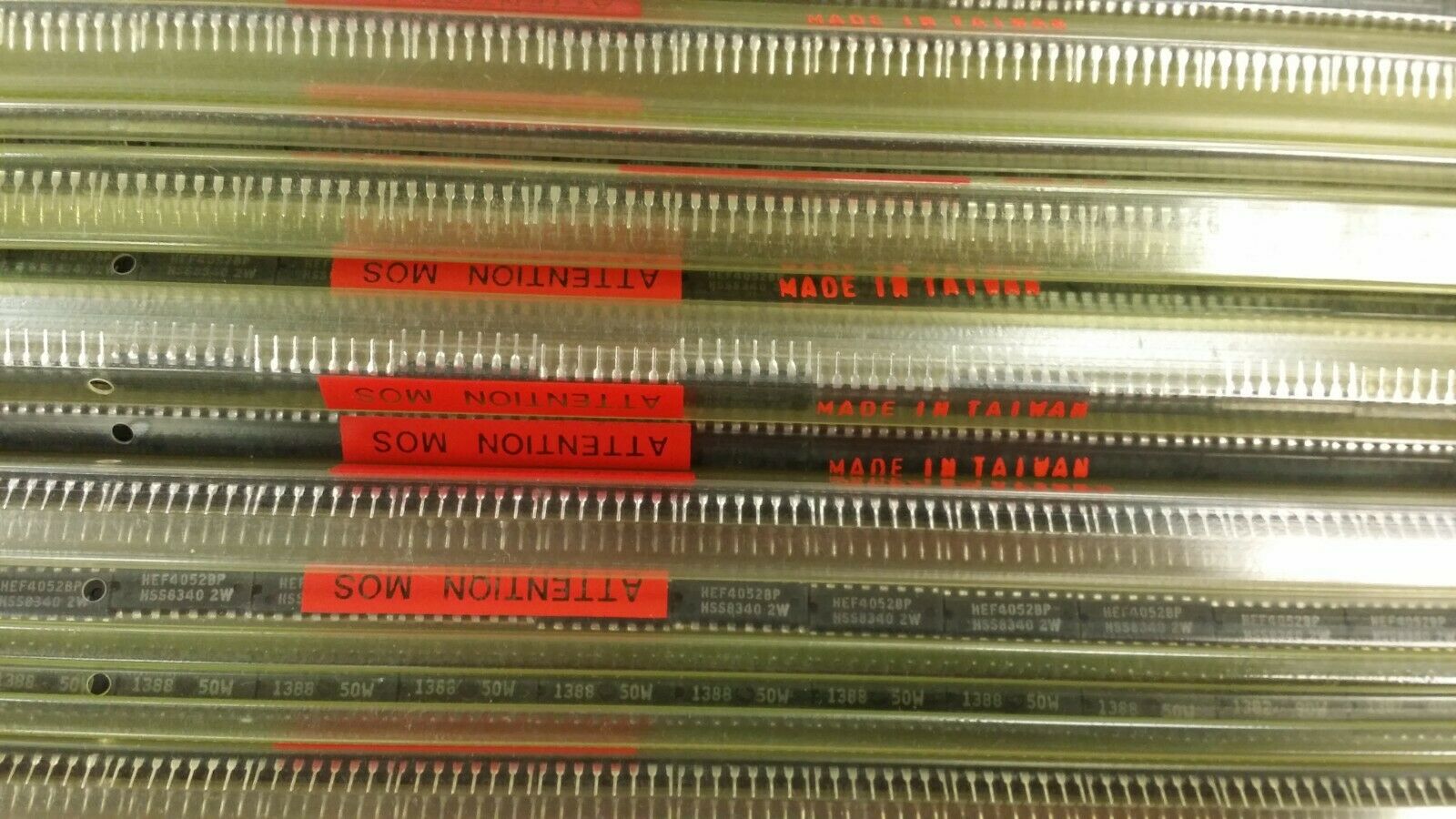

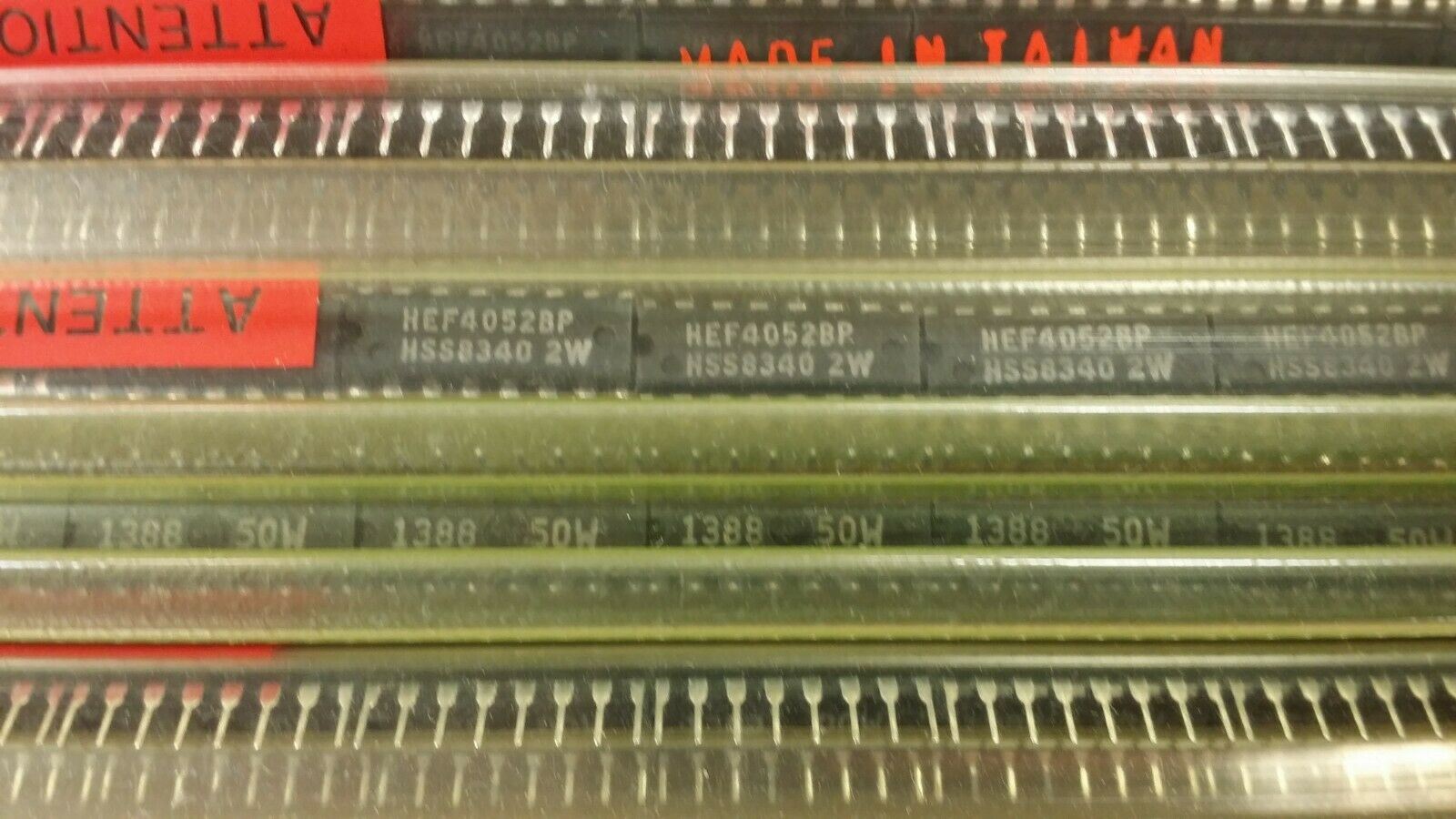

(10pcs) HEF4052BP Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDIP16
(10pcs) HEF4052BP Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDIP16
(10pcs) HEF4052BP Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDIP16

(10pcs) HEF4052BP Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDIP16

Tax included.
Only 202 left!

This listing is for (10PCS) of HEF4052BP

Mfr Package Description    0.300 INCH, PLASTIC, SOT38-4, DIP-16
REACH Compliant    Yes
EU RoHS Compliant    Yes
China RoHS Compliant    Yes
Status    Discontinued
Analog IC - Other Type    DIFFERENTIAL MULTIPLEXER
JESD-30 Code    R-PDIP-T16
JESD-609 Code    e4
Number of Channels    4
Number of Functions    2
Number of Terminals    16
Off-state Isolation-Nom    50.0  dB
On-state Resistance Match-Nom    25.0  ohm
On-state Resistance-Max (Ron)    2500.0  ohm
Operating Temperature-Min    -40.0  Cel
Operating Temperature-Max    125.0  Cel
Package Body Material    PLASTIC/EPOXY
Package Code    DIP
Package Equivalence Code    DIP16,.3
Package Shape    RECTANGULAR
Package Style    IN-LINE
Qualification Status    Not Qualified
Seated Height-Max    4.2  mm
Signal Current-Max    0.01  A
Sub Category    Multiplexer or Switches
Supply Current-Max (Isup)    0.6  mA
Supply Voltage-Nom (Vsup)    5.0  V
Supply Voltage-Min (Vsup)    3.0  V
Supply Voltage-Max (Vsup)    15.0  V
Surface Mount    NO
Switch-off Time-Max    190.0  ns
Switch-on Time-Max    260.0  ns
Technology    CMOS
Temperature Grade    AUTOMOTIVE
Terminal Finish    NICKEL PALLADIUM GOLD
Terminal Form    THROUGH-HOLE
Terminal Pitch    2.54  mm
Terminal Position    DUAL
Length    19.025  mm
Width    7.62  mm
