(10PCS) GT24C64-2ZLI Giantec EPROM, 8KX8, Serial, CMOS, SOP8
Tax included.

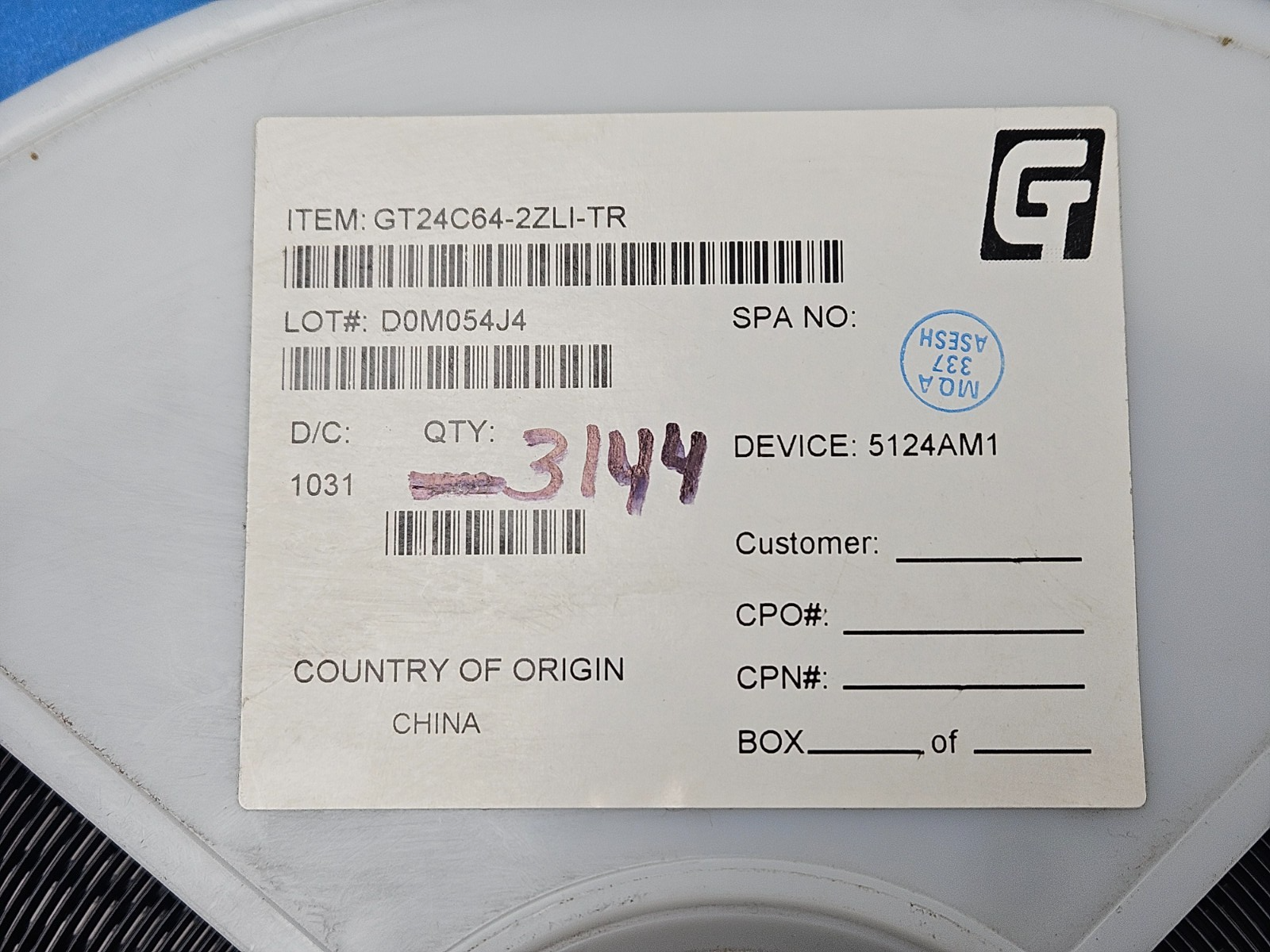

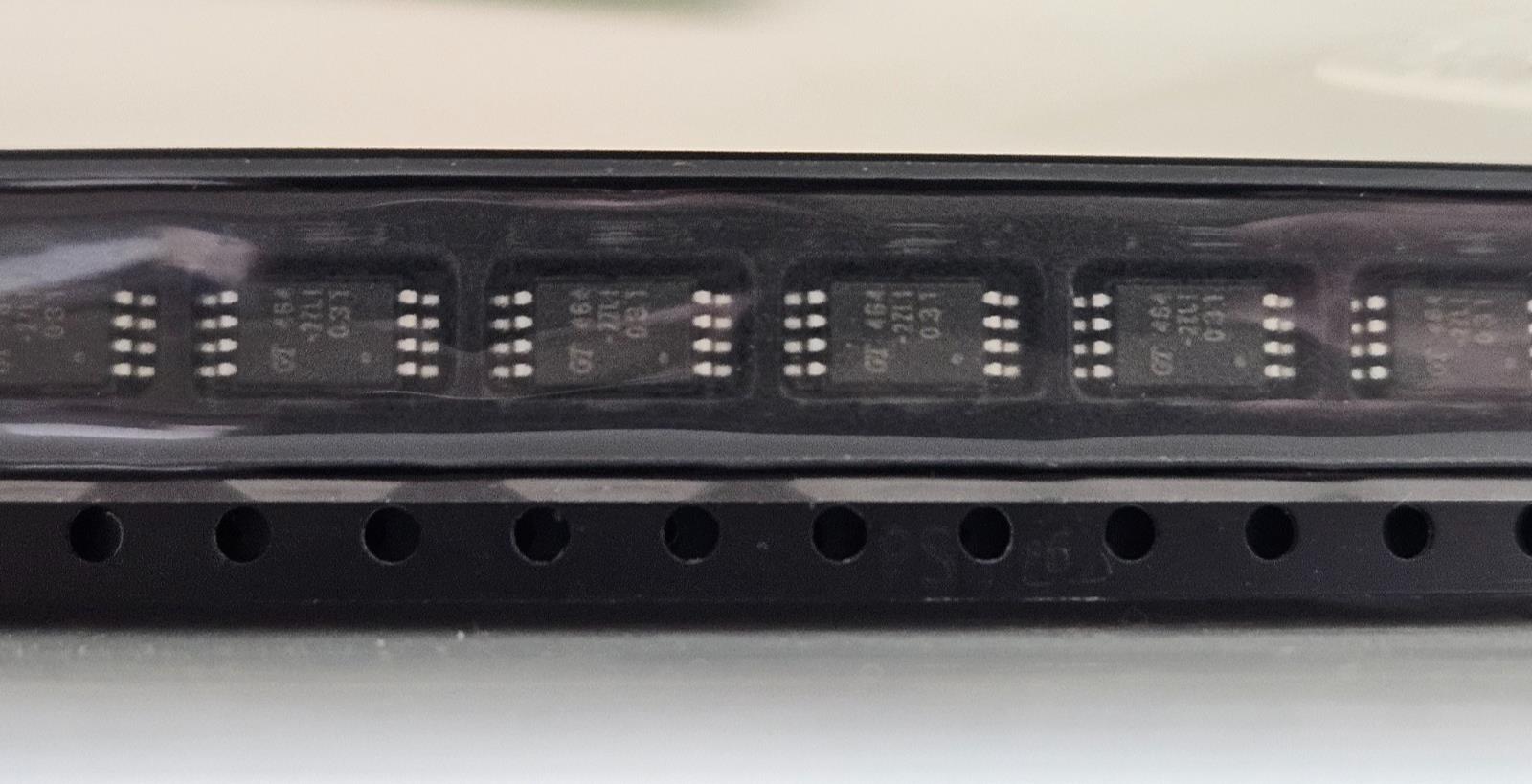

This listing is for (10PCS) of GT24C64-2ZLI by Giantec
Additional Feature IT ALSO OPERATES AT FREQUENCY 0.4 MHZ AT 1.7 TO 2.5V SUPPLY VOLTAGE
Clock Frequency-Max (MHz) 1.00000
Data Retention Time-Min 100
Endurance (Write/Erase Cycles) 1000000.000000000000000
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
J-STD-609 Code e3
Length (mm) 4.4000
Memory Density (bits) 65536.0000000000000000
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words (words) 8192.0000000000000000
Number of Words Code 8K
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) -40.0
Memory Organization 8KX8
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.2000
Serial Bus Type I2C
Standby Current-Max (A) 0.000001000000000
Supply Current-Max (mA) 3.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Width (mm) 3.0000
Write Cycle Time-Max (tWC) (ms) 5.0000000000000000
Write Protection HARDWARE
