(10PCS) GD75232DWR LGS Triple Transmitter Quint Receiver RS-232 20-Pin SOIC
Tax included.

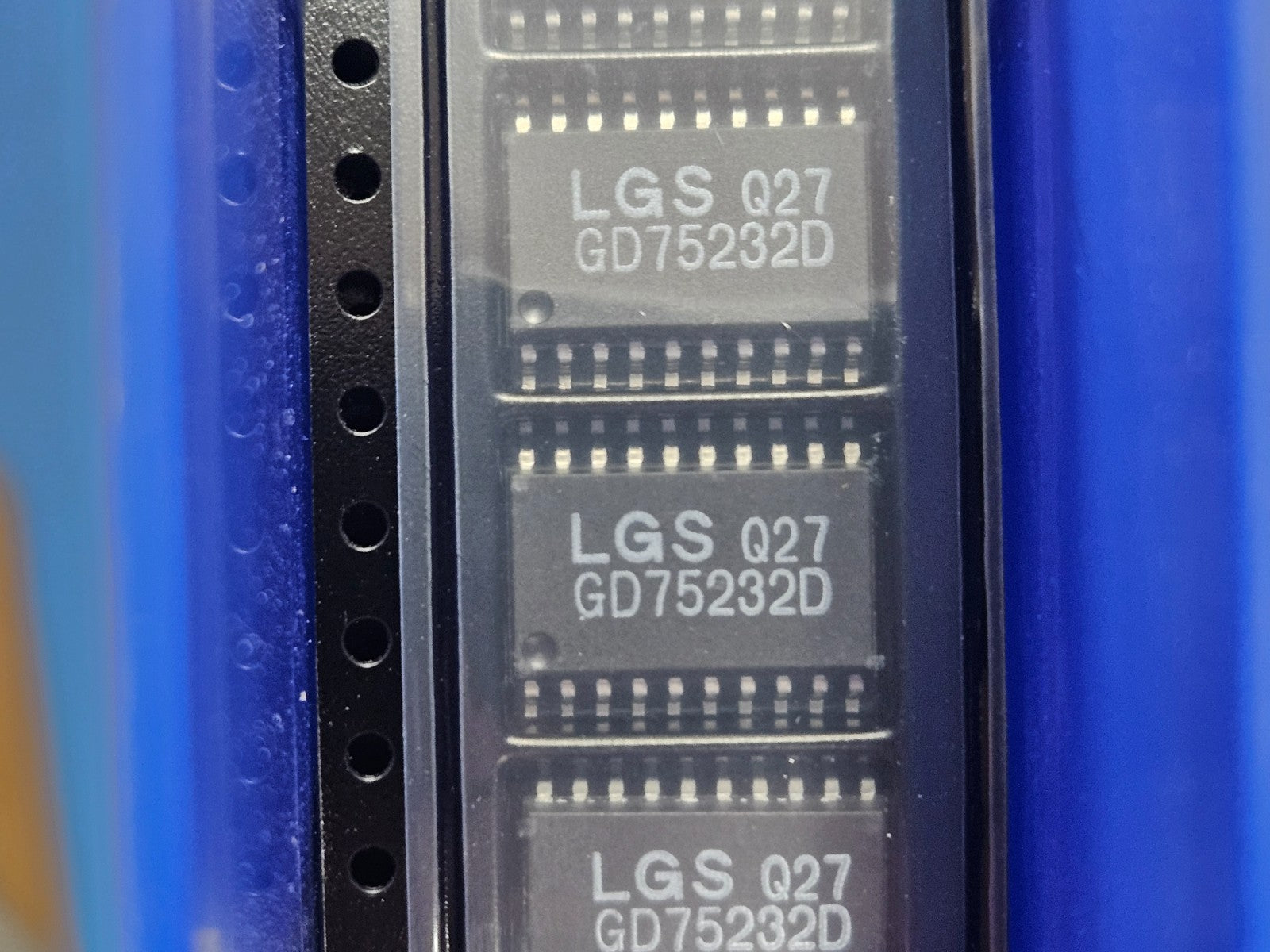

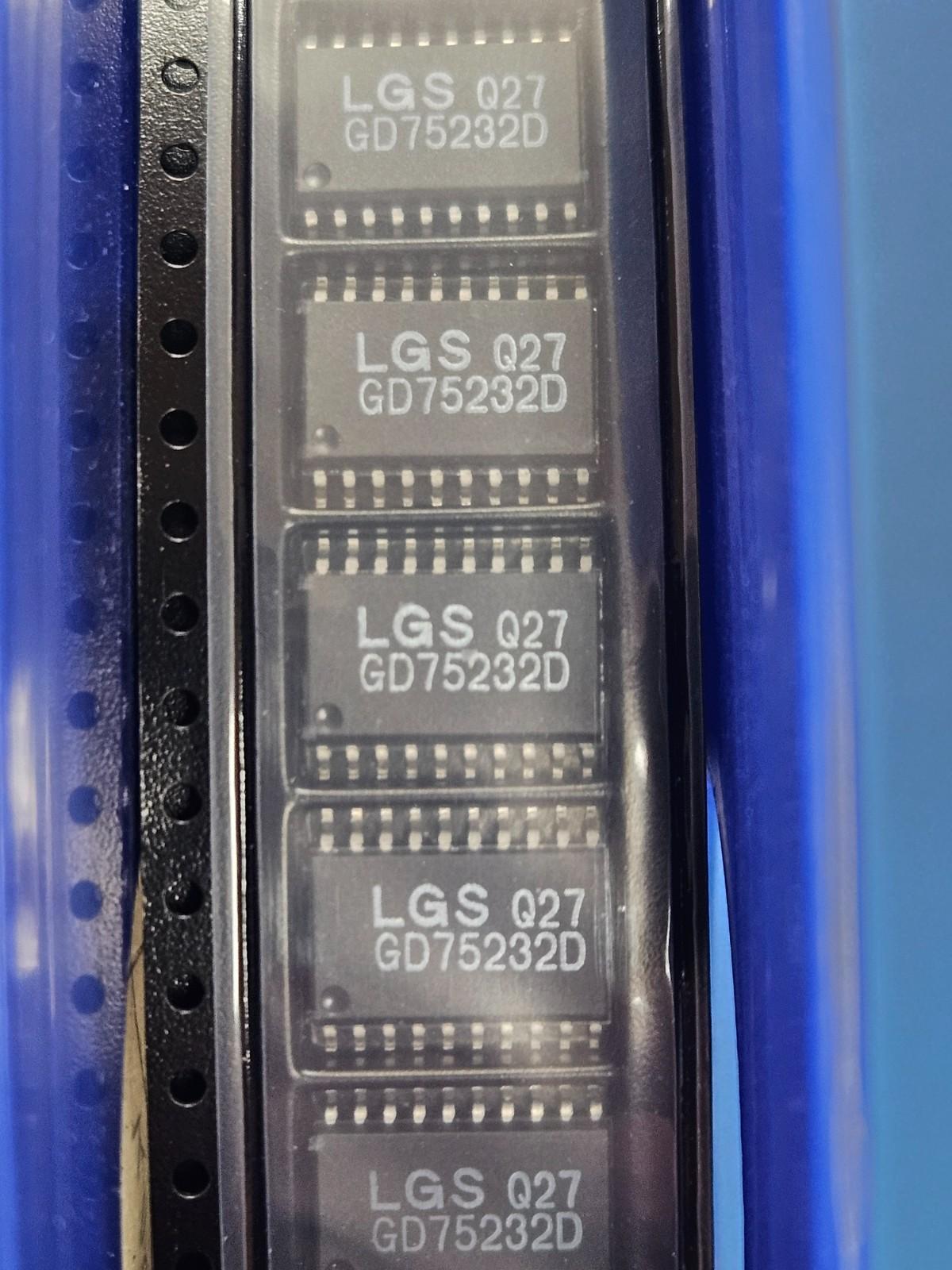

This listing is for (10PCS) of GD75232DW by LGS
Additional Feature EASY INTERFACE BETWEEN UART, SERIAL-PORT CONNECTOR OF IBM PC/AT
Differential Output NO
Driver Number of Bits 3
High Level Input Current-Max (A) 0.000010000000000
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232-F; TIA-232-F; V.28
JESD-30 Code R-PDSO-G20
J-STD-609 Code e4
Length (mm) 12.8000
Moisture Sensitivity Level 1
Number of Functions 3
Number of Terminals 20
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Out Swing-Min (V) 12.000000
Output Characteristics OPEN-COLLECTOR
Output Low Current-Max (mA) 0.010000000000000
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
DLA Qualification Not Qualified
Receive Delay-Max (ns) 150.000000000000000
Receiver Number of Bits 5
Seated Height-Max (mm) 2.6500
Supply Current-Max (mA) 25.00000000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5.0000
Supply Voltage1-Max (V) 15.0000
Supply Voltage1-Min (V) 7.5000
Supply Voltage1-Nom (V) 9.0000
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transmit Delay-Max (ns) 175.0000
Width (mm) 7.5000
