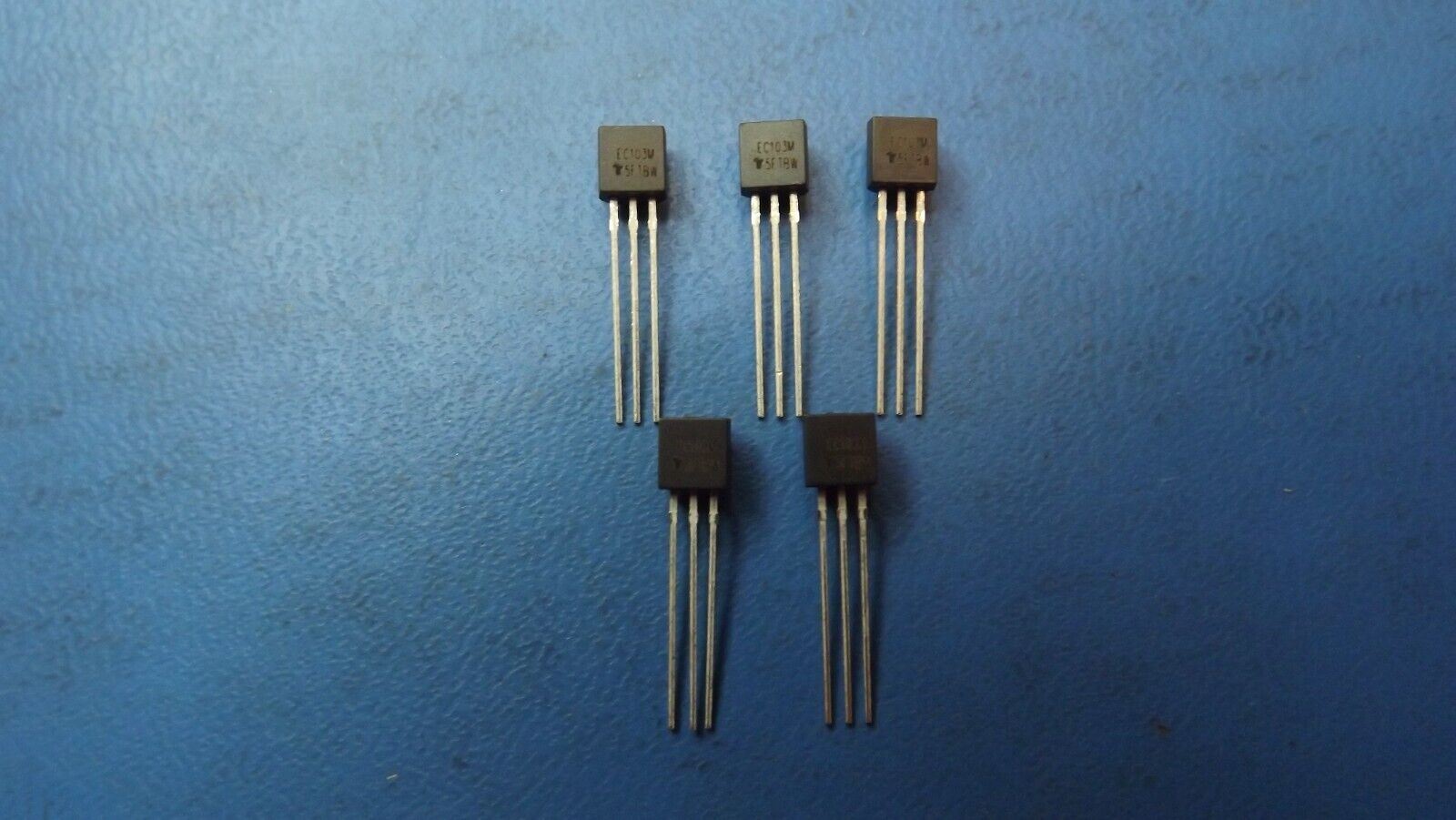

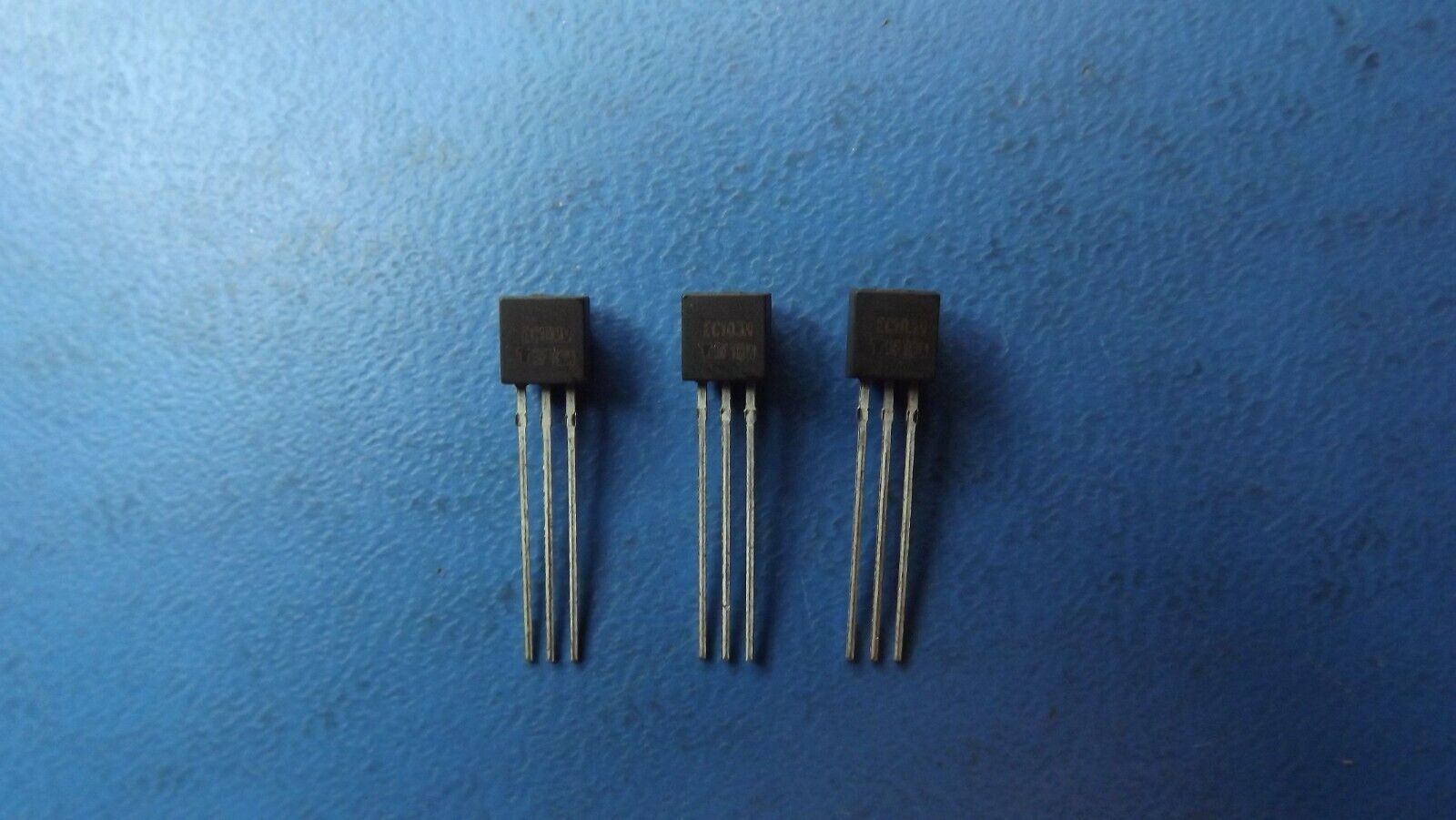

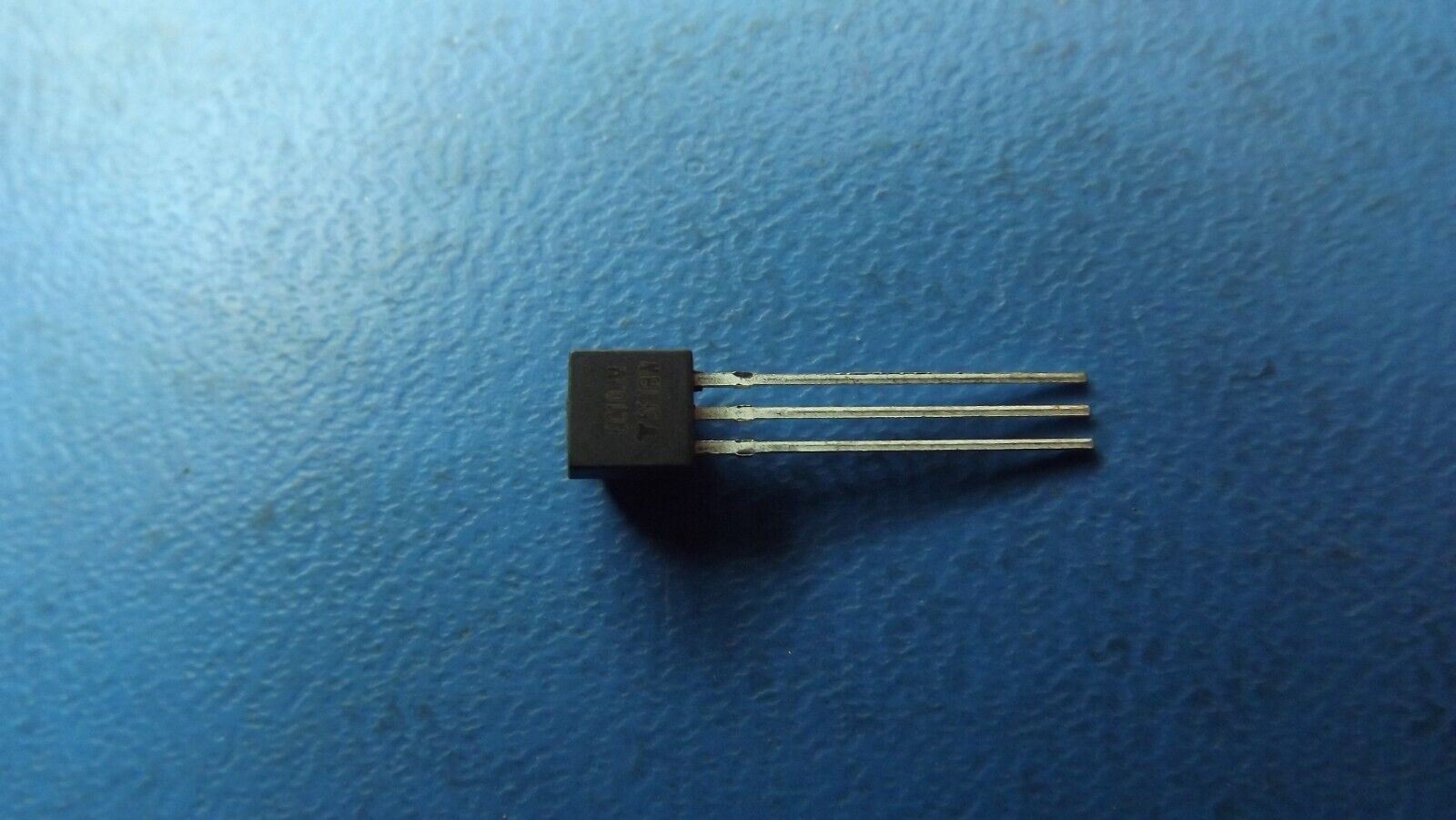

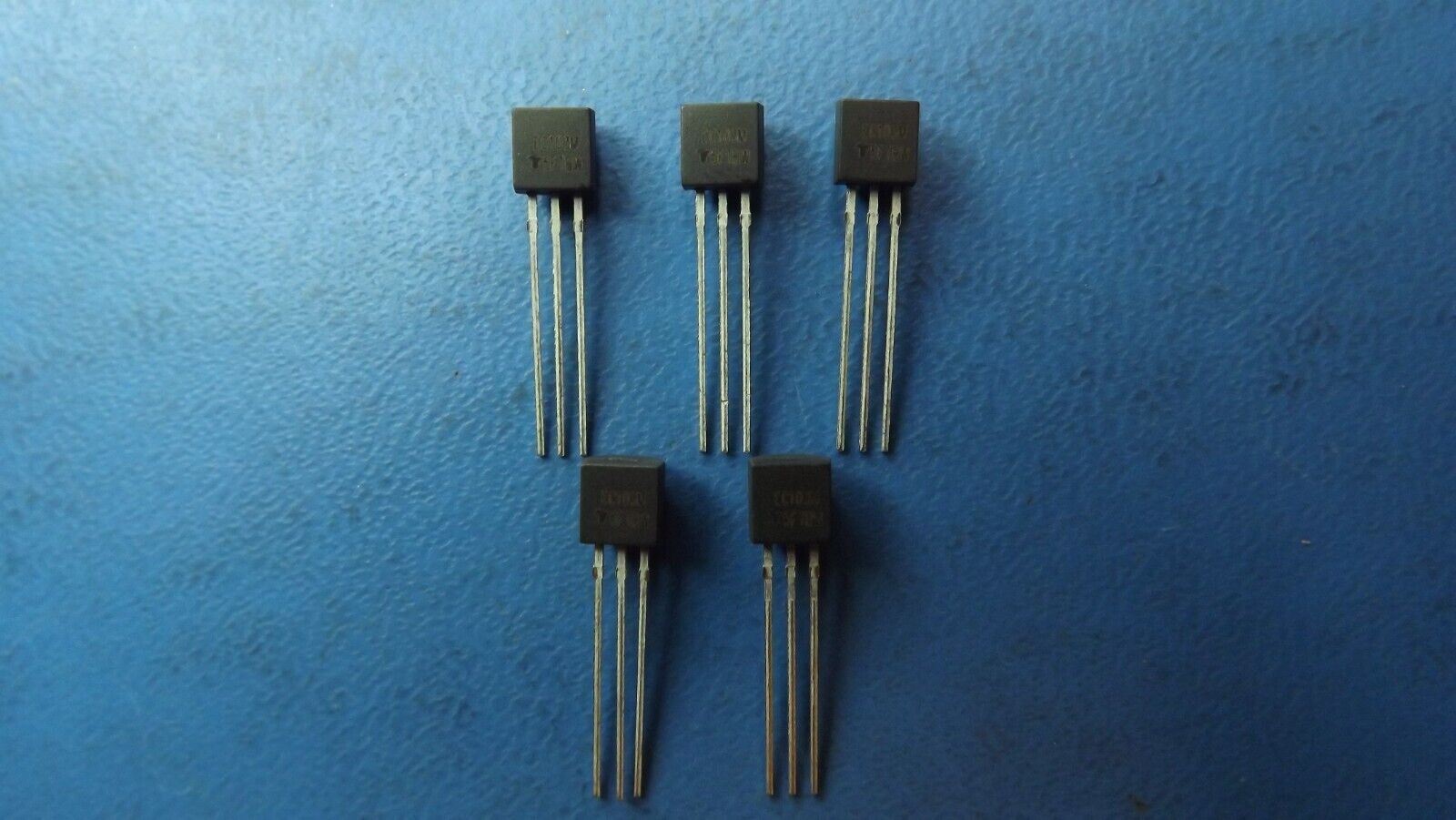

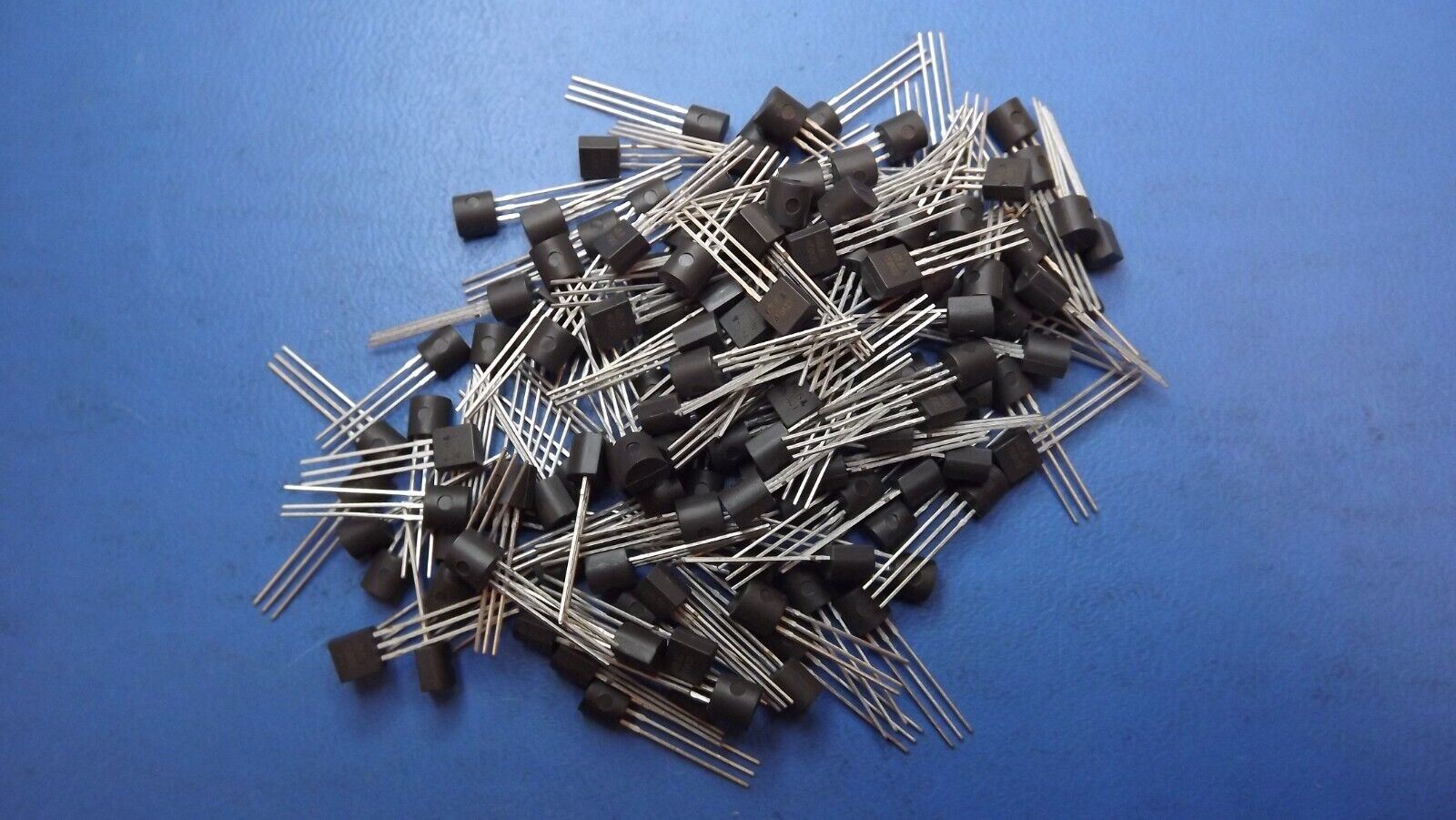

(10PCS) EC103M SCR SENSITIVE GATE 0.8A 600V
Tax included.

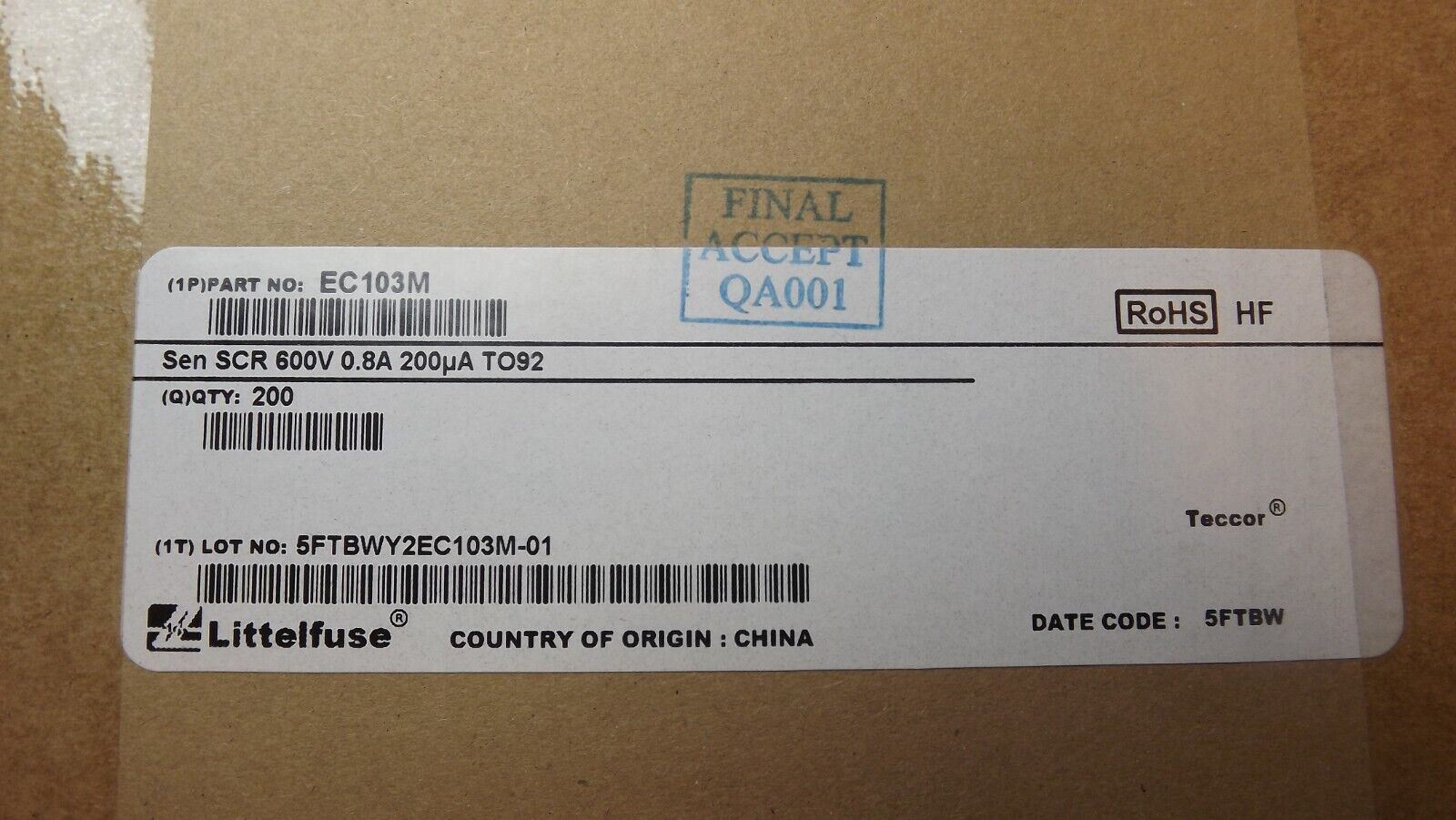

THIS LISTING IS FOR (10PCS) OF EC103M BY LITTELFUSE
Manufacturer: Littelfuse
Product Category: SCRs
RoHS: Details
Series: EC103xx
Breakover Current IBO Max: 20 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 1 uA
On-State RMS Current - It RMS: 800 mA
Vf - Forward Voltage: 1.7 V
Maximum Gate Peak Inverse Voltage: 1.2 V
Gate Trigger Voltage - Vgt: 800 mV
Gate Trigger Current - Igt: 500 uA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 110 C
Mounting Style: Through Hole
Package / Case: TO-92
Packaging: Bulk
Brand: Littelfuse
Current Rating: 800 mA
Height: 4.98 mm
Holding Current Ih Max: 8 mA
Length: 4.73 mm
Non Repetitive On-State Current: 20 A
Product Type: SCRs
