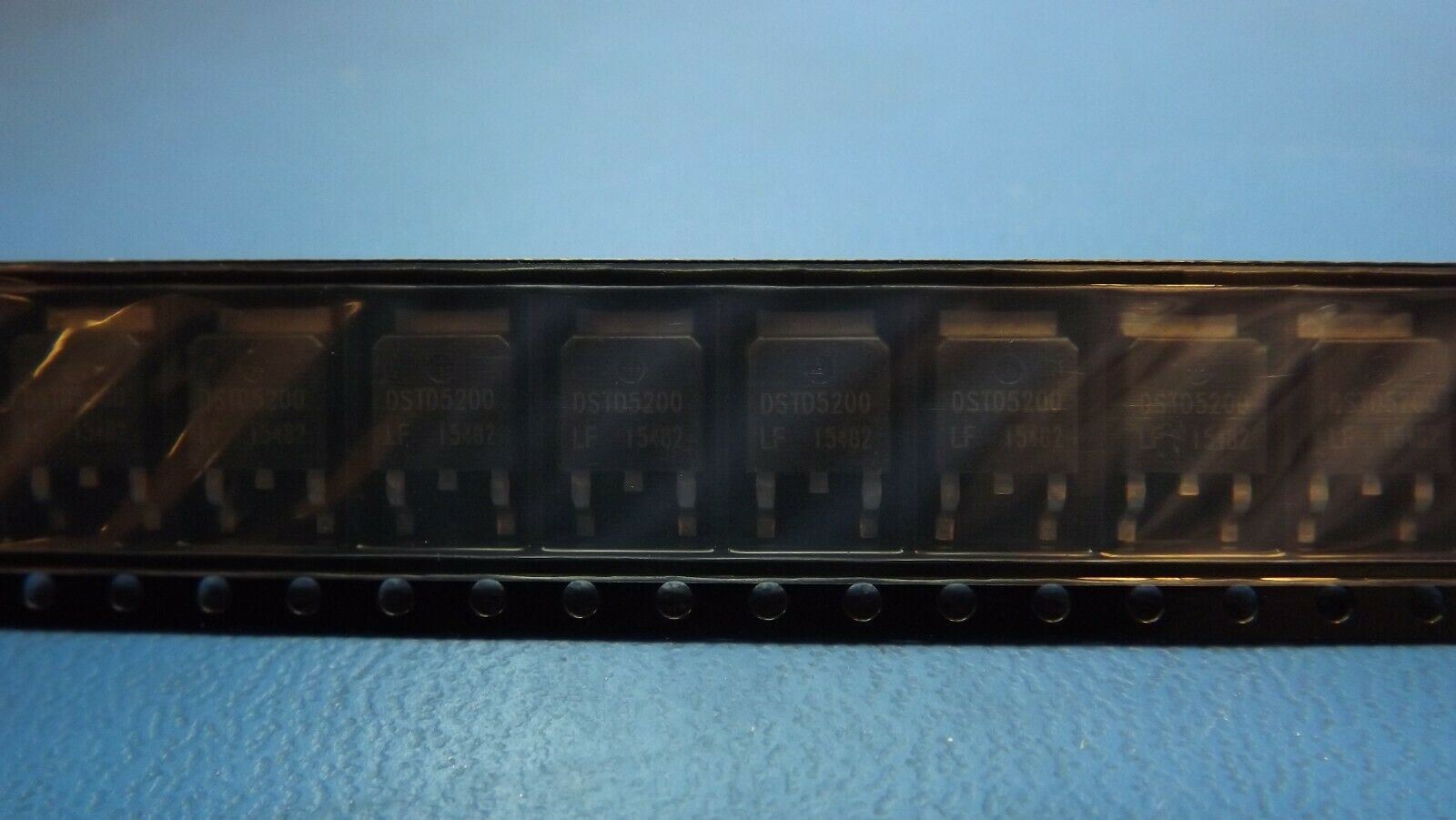

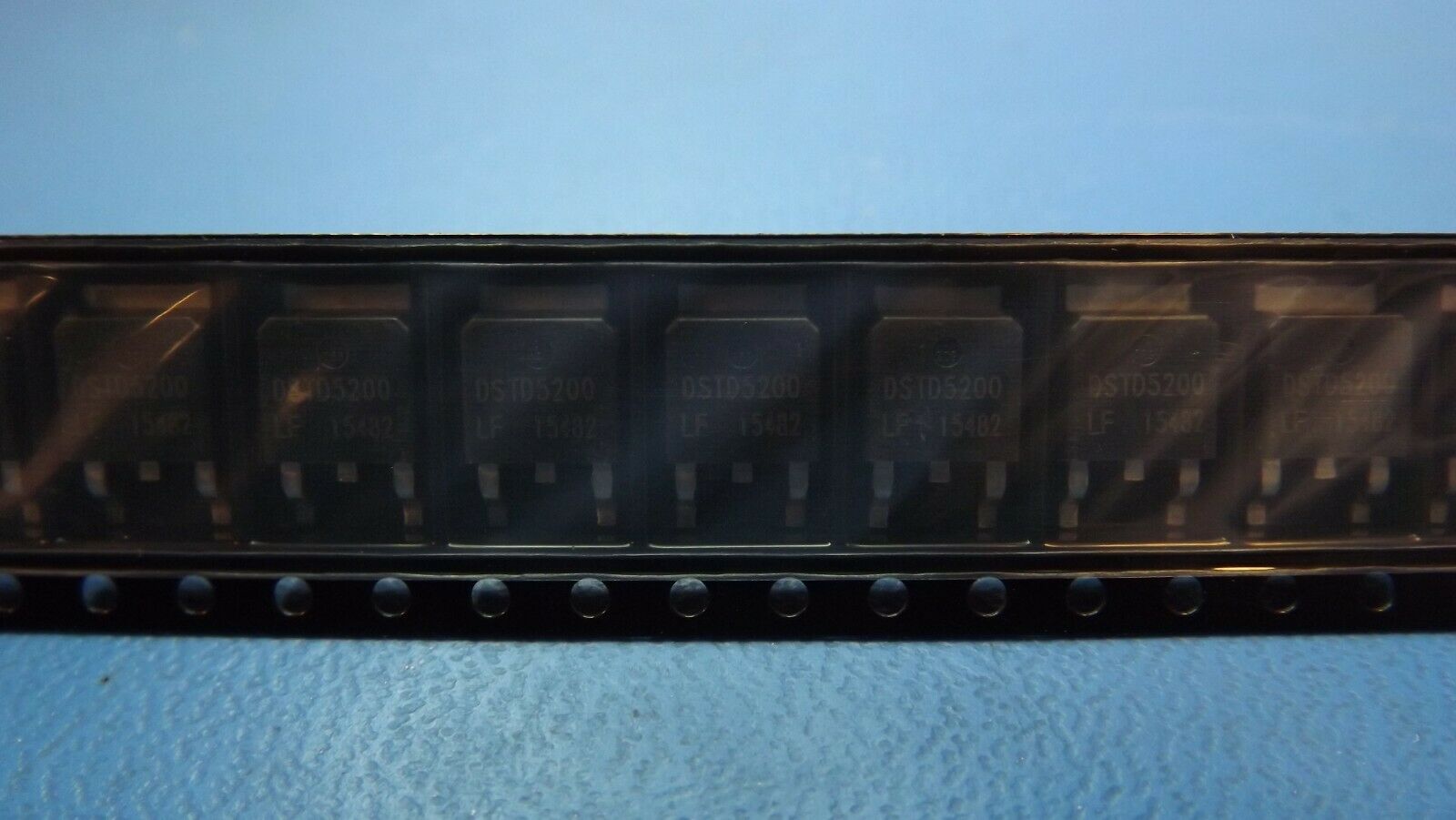

(10PCS) DSTD5200 LITTELFUSE DIODE SCHOTTKY 5A 200V TO-252
Tax included.

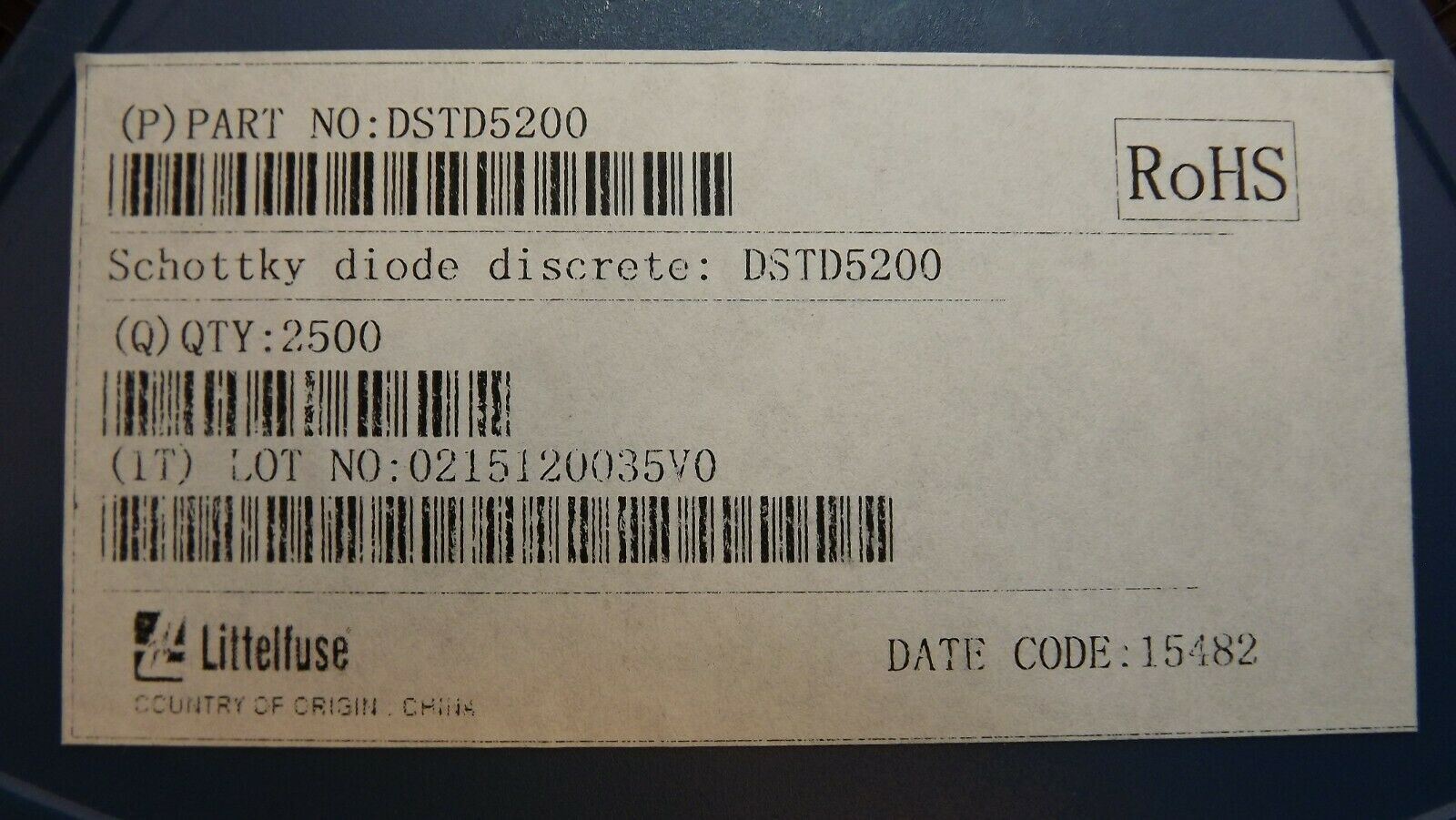

THIS LISTING IS FOR (10PCS) OF DSTD5200 BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | DPAK-3/2 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | RECTIFIER DIODE |
| Application | GENERAL PURPOSE |
| Case Connection | CATHODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 0.9 V |
| JEDEC-95 Code | TO-252 |
| JESD-30 Code | R-PSSO-G2 |
| Non-rep Pk Forward Current-Max | 120.0 A |
| Number of Elements | 1.0 |
| Number of Phases | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Rep Pk Reverse Voltage-Max | 200.0 V |
| Reverse Current-Max | 150.0 µA |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | FREE WHEELING DIODE |
