(10PCS) DM74LS365AM NSC Bus Driver, 1-Func, 6-Bit, True Output, TTL, SOIC16
Tax included.

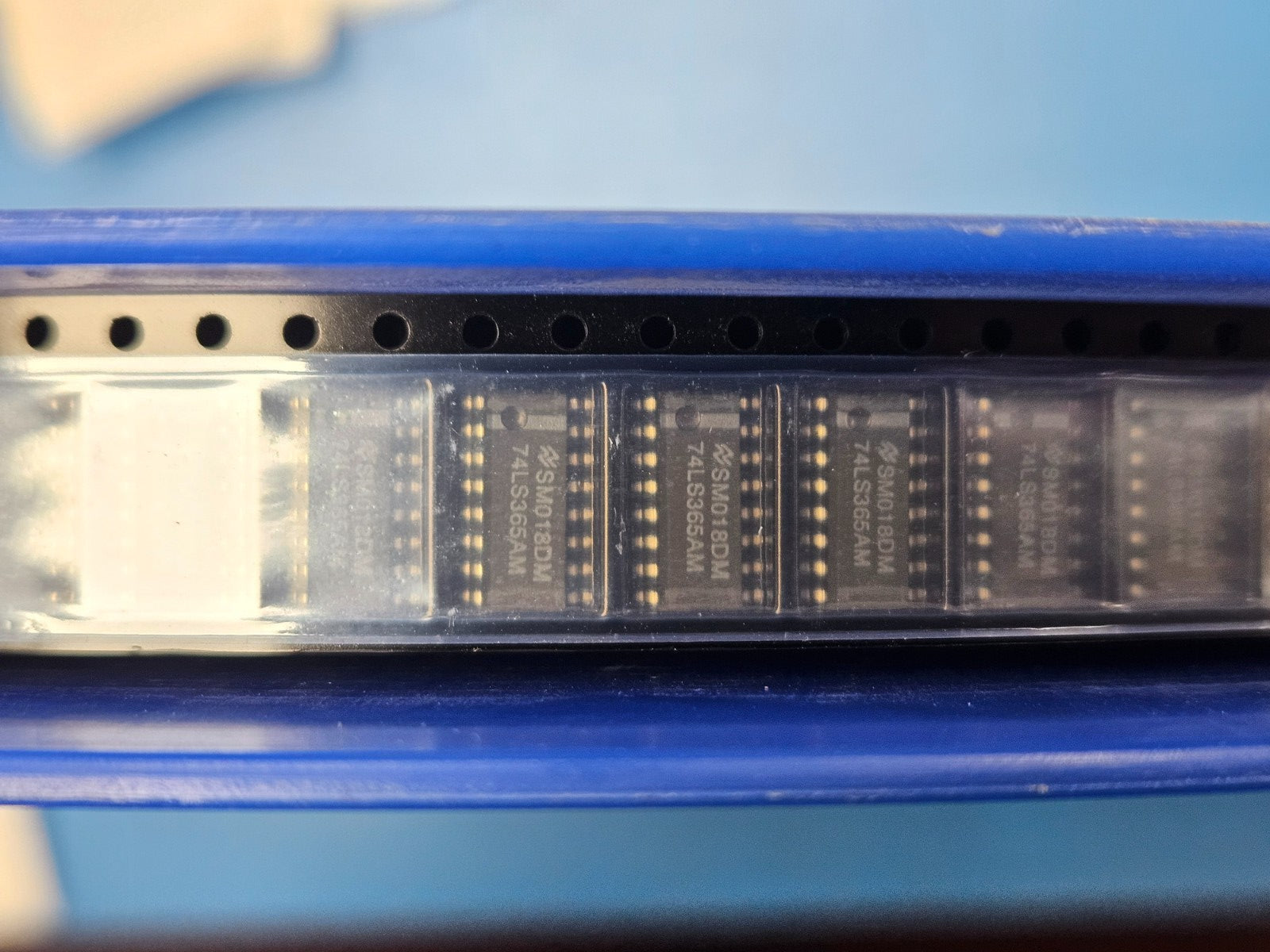

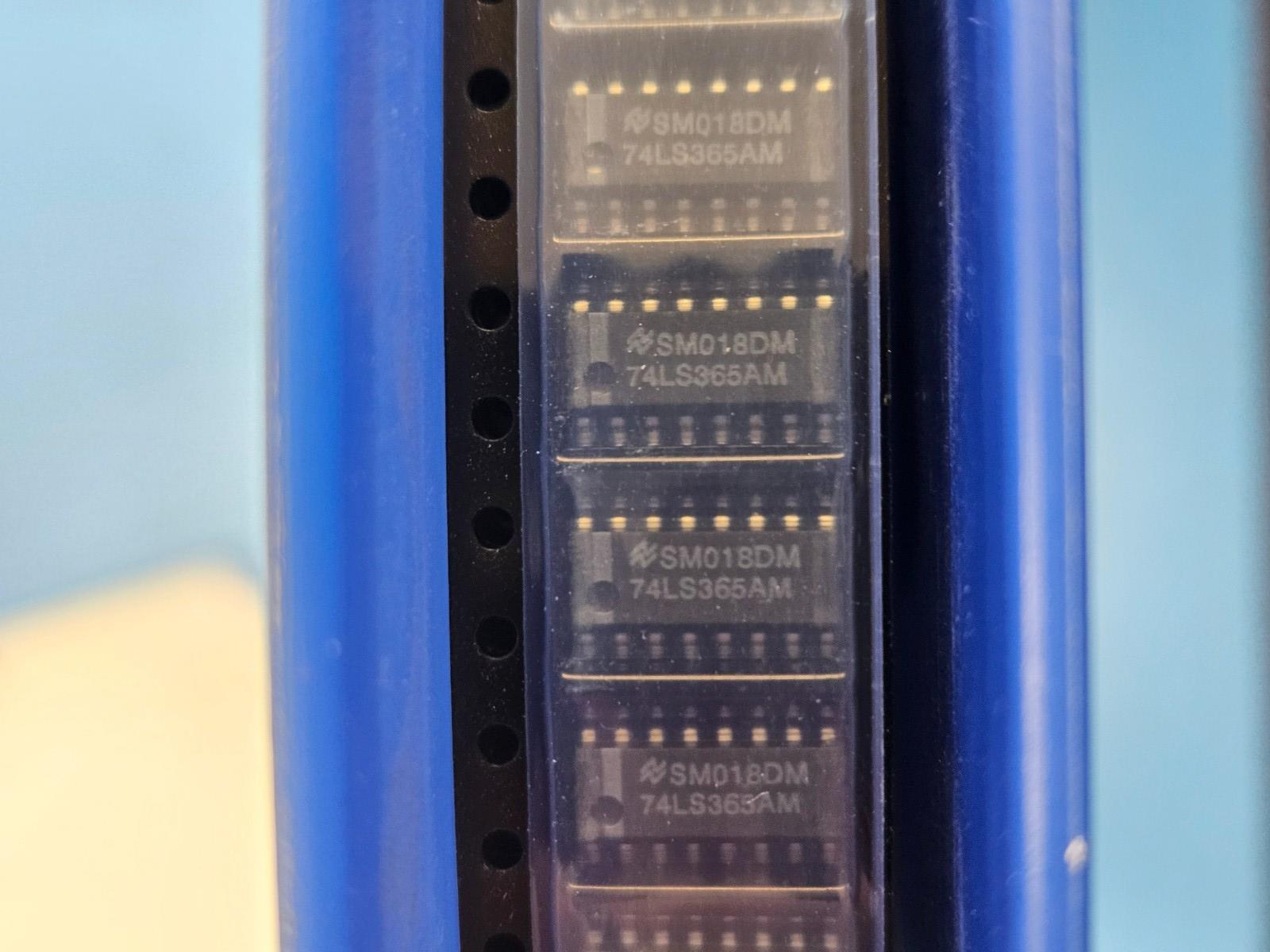

This listing is for (10PCS) of DM74LS365AM by National Semiconductor
Mfr Package Description 0.150 INCH, MS-012, SOIC-16
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family LS
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Max I(ol) 0.024 Amp
Number of Bits 6
Number of Functions 1
Number of Ports 2
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 24.0 mA
Prop. Delay@Nom-Sup 16.0 ns
Propagation Delay (tpd) 25.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
