(10PCS) DM74LS245WM FSC Bus Transceiver Oct 3-STATE NON-INVERT 5.25V 20-SOIC
Tax included.

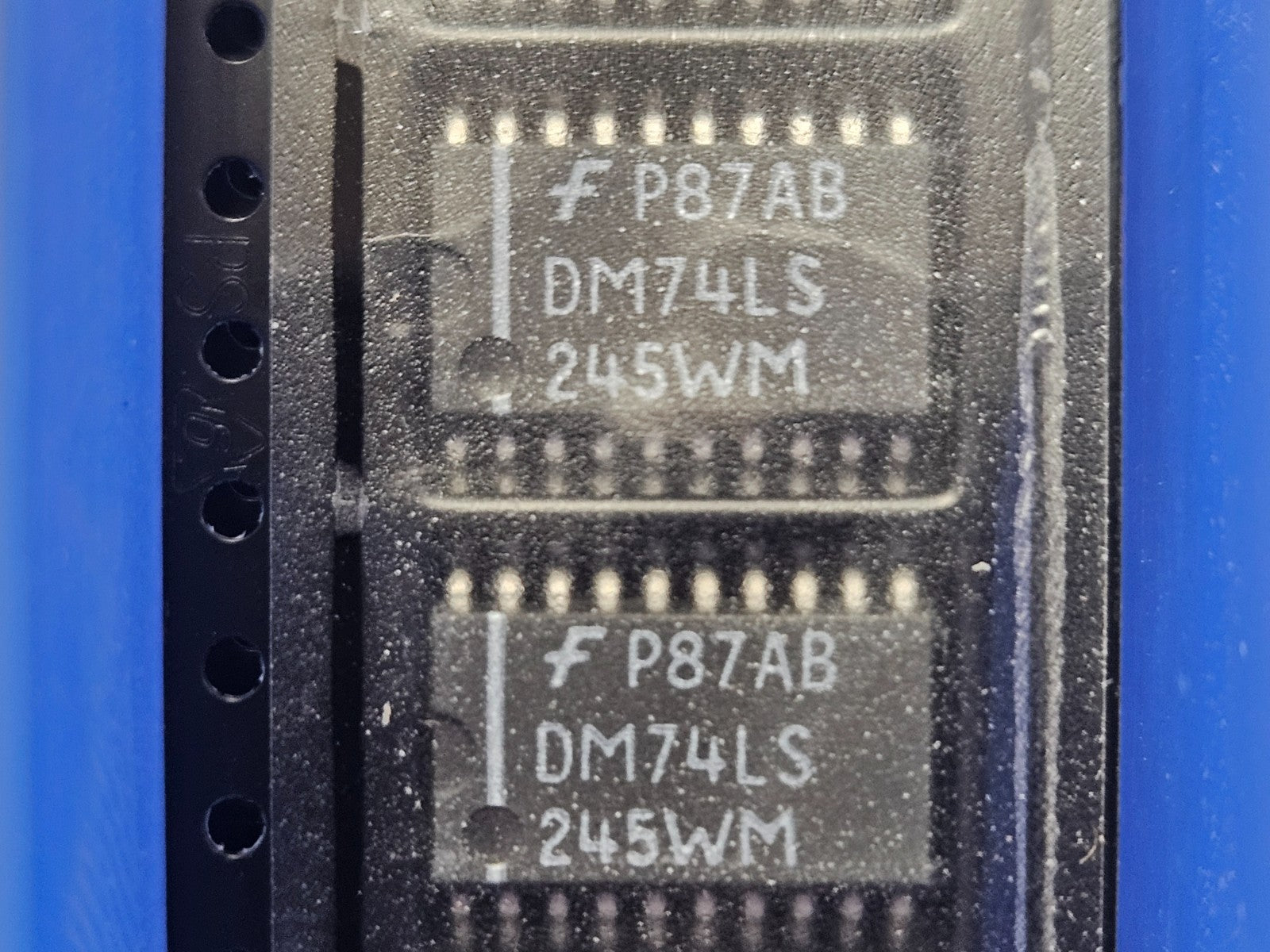

This listing is for (10PCS) of DM74LS245WM by Fairchild Semiconductor
Status Discontinued
Control Type COMMON CONTROL
Direction BIDIRECTIONAL
Family LS
JESD-30 Code R-PDSO-G20
J-STD-609 Code e0
Length (mm) 12.8000
Logic IC Type BUS TRANSCEIVER
Output Low Current-Max (mA) 24.000000000000000
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay-Max@Nom-Sup (ns) 12.000000000000000000
Propagation Delay (ns) 12.0000
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.6500
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 7.5000
