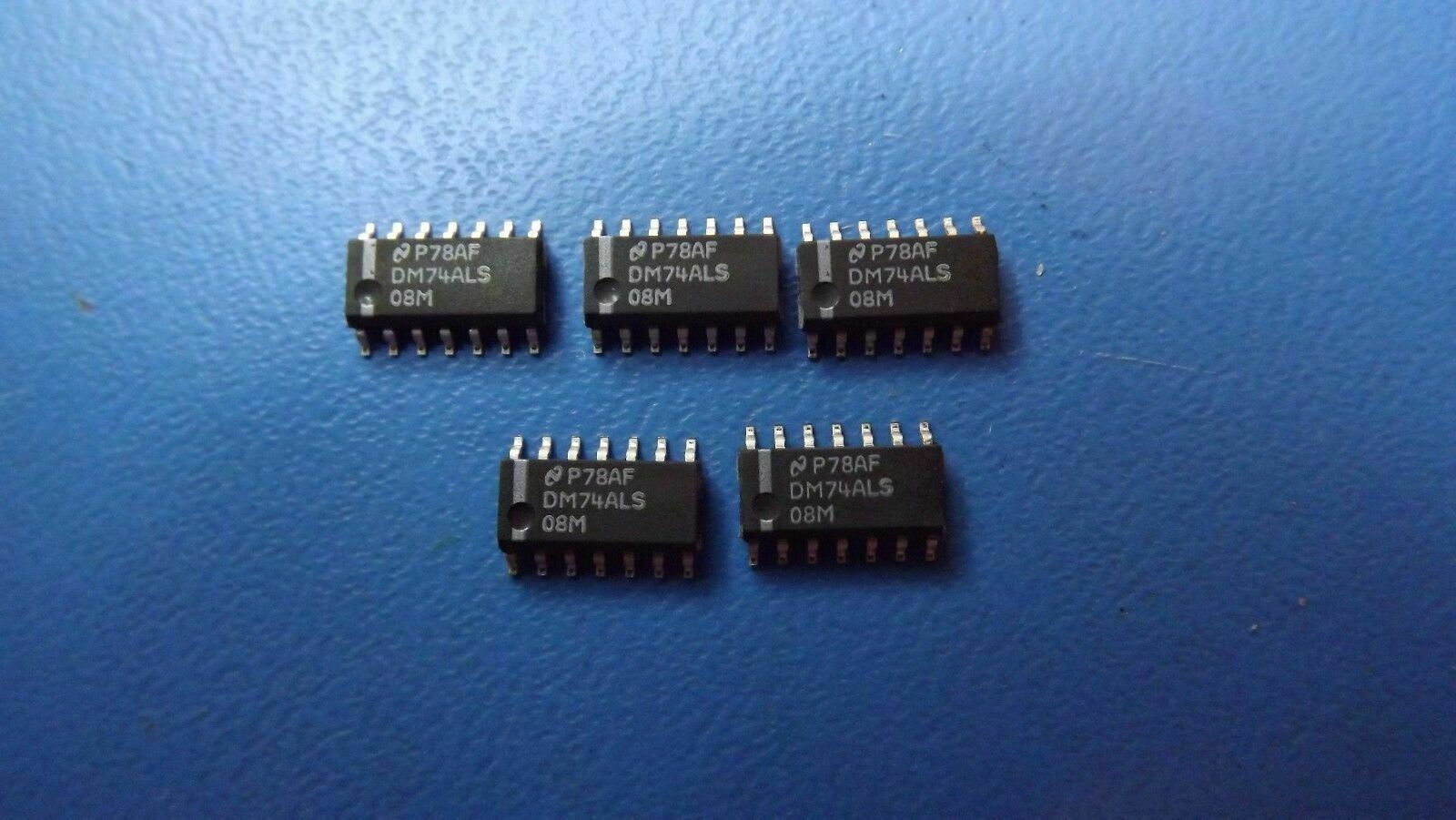

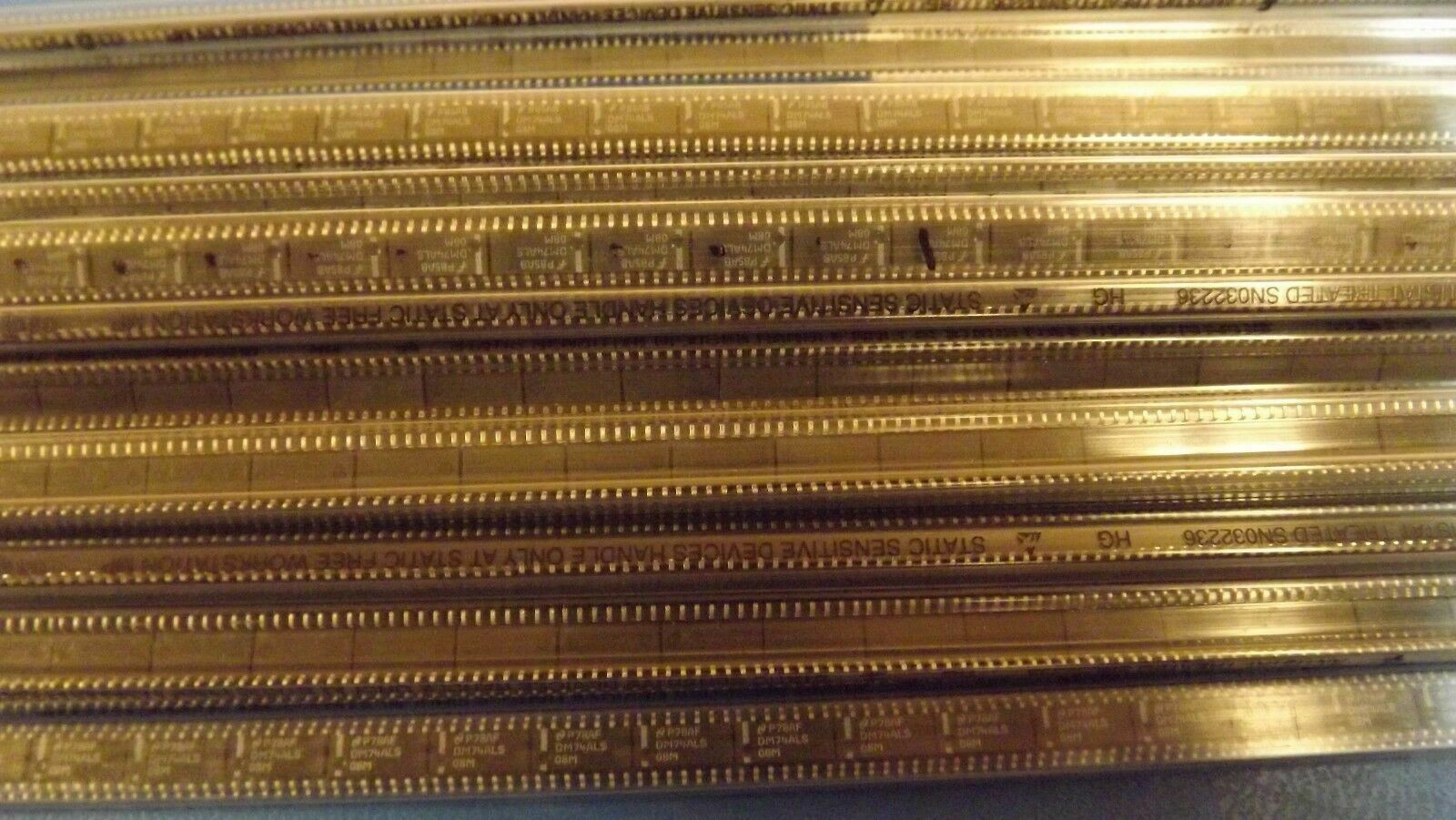

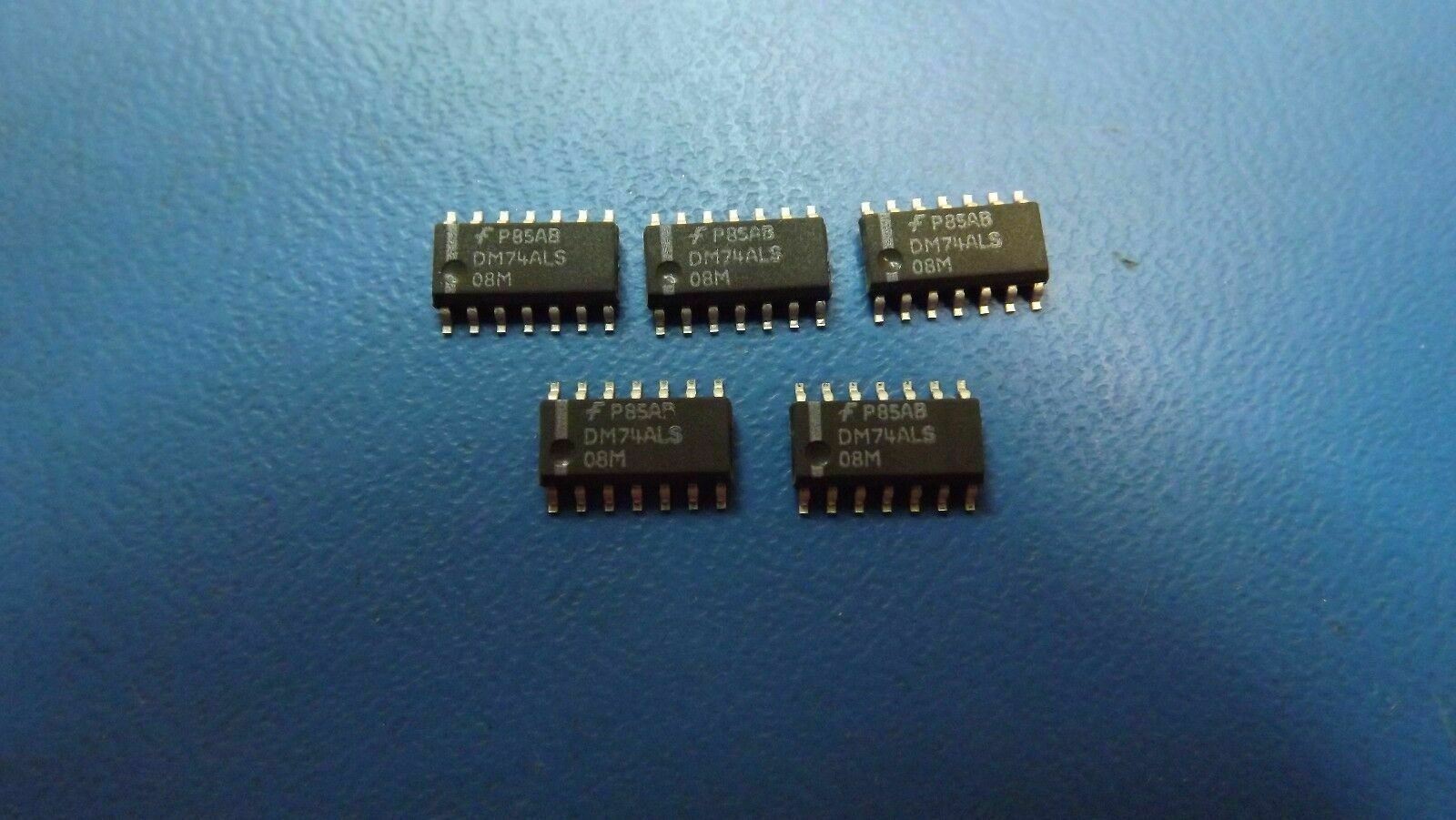

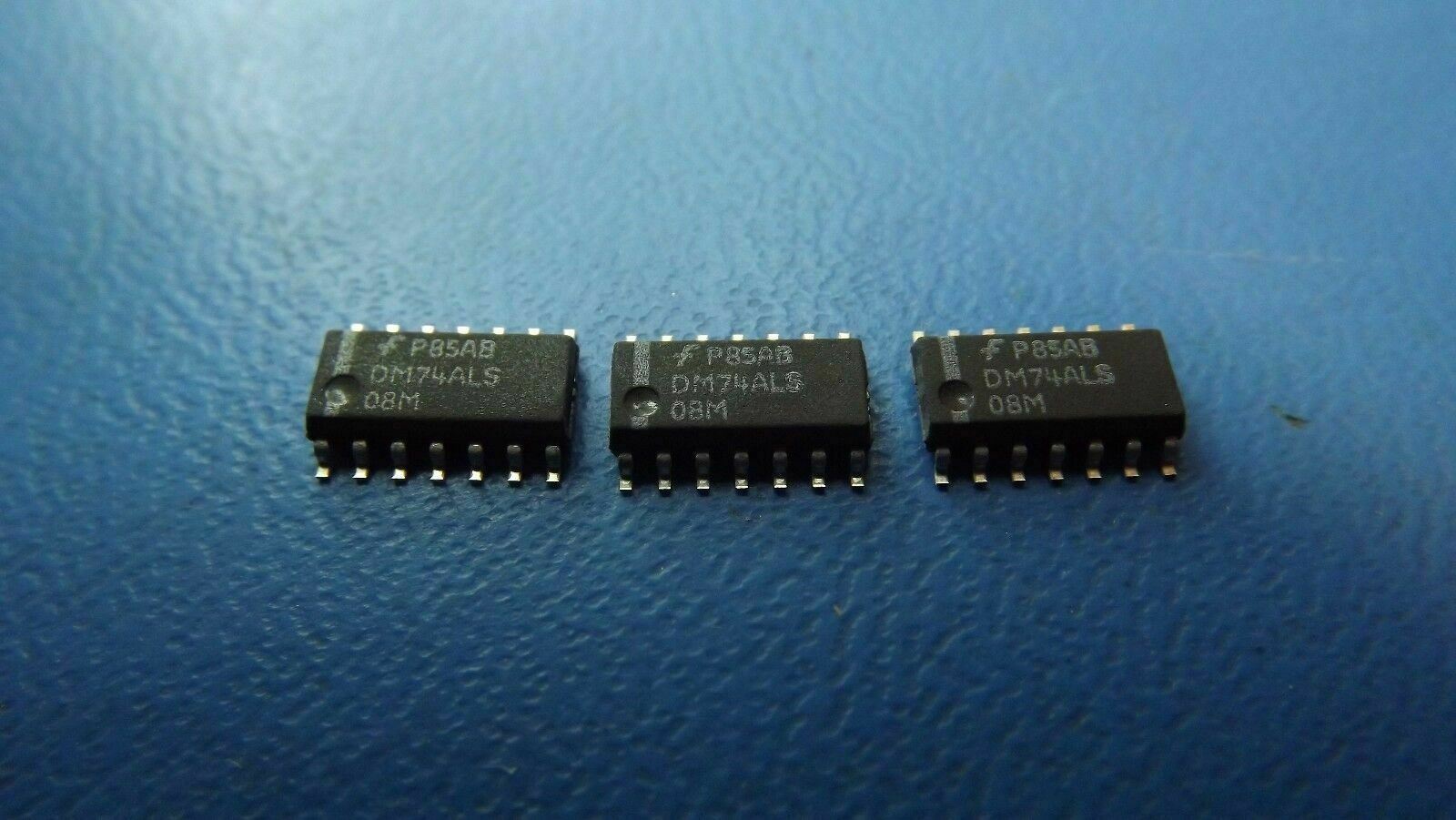

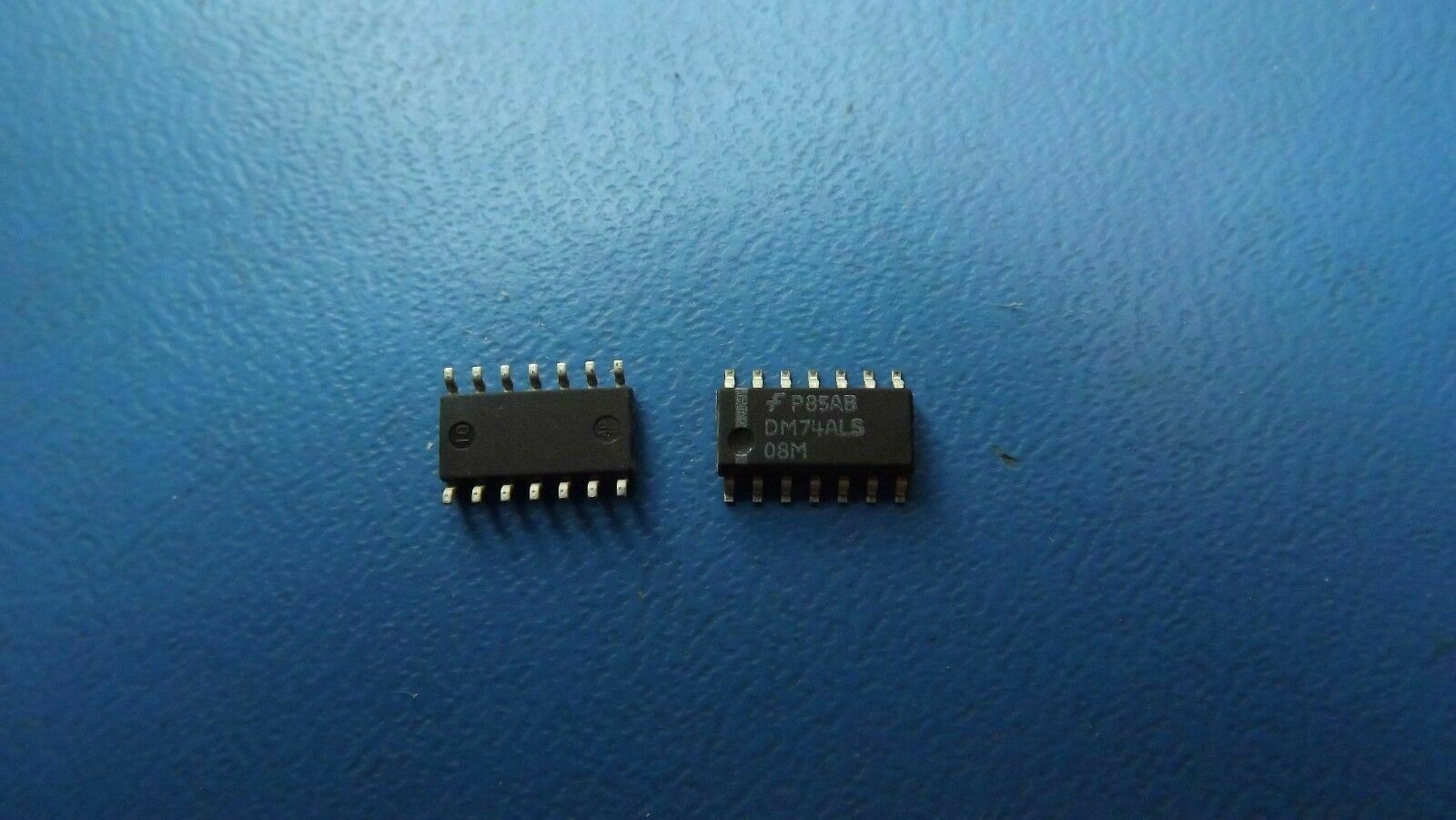

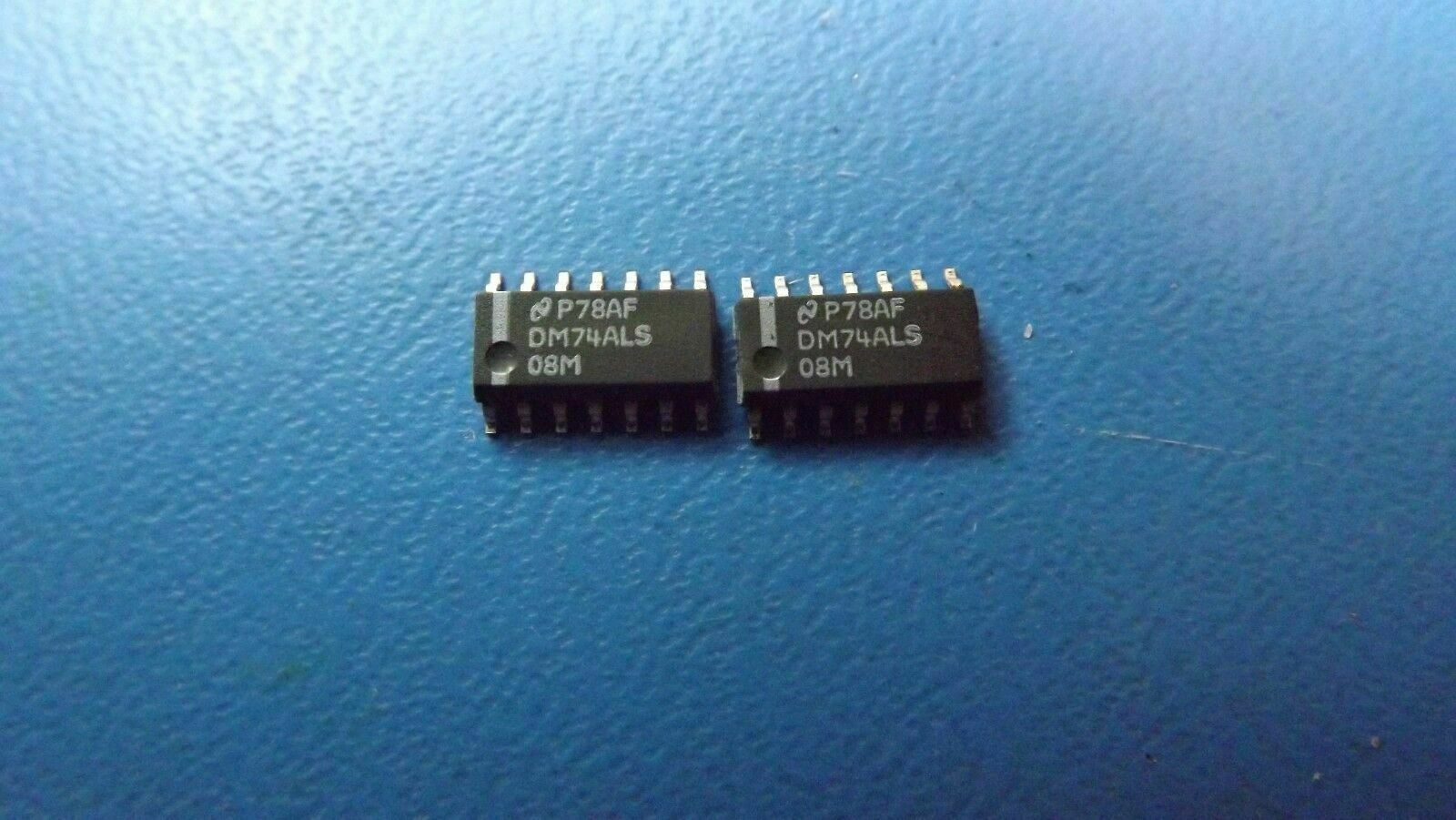

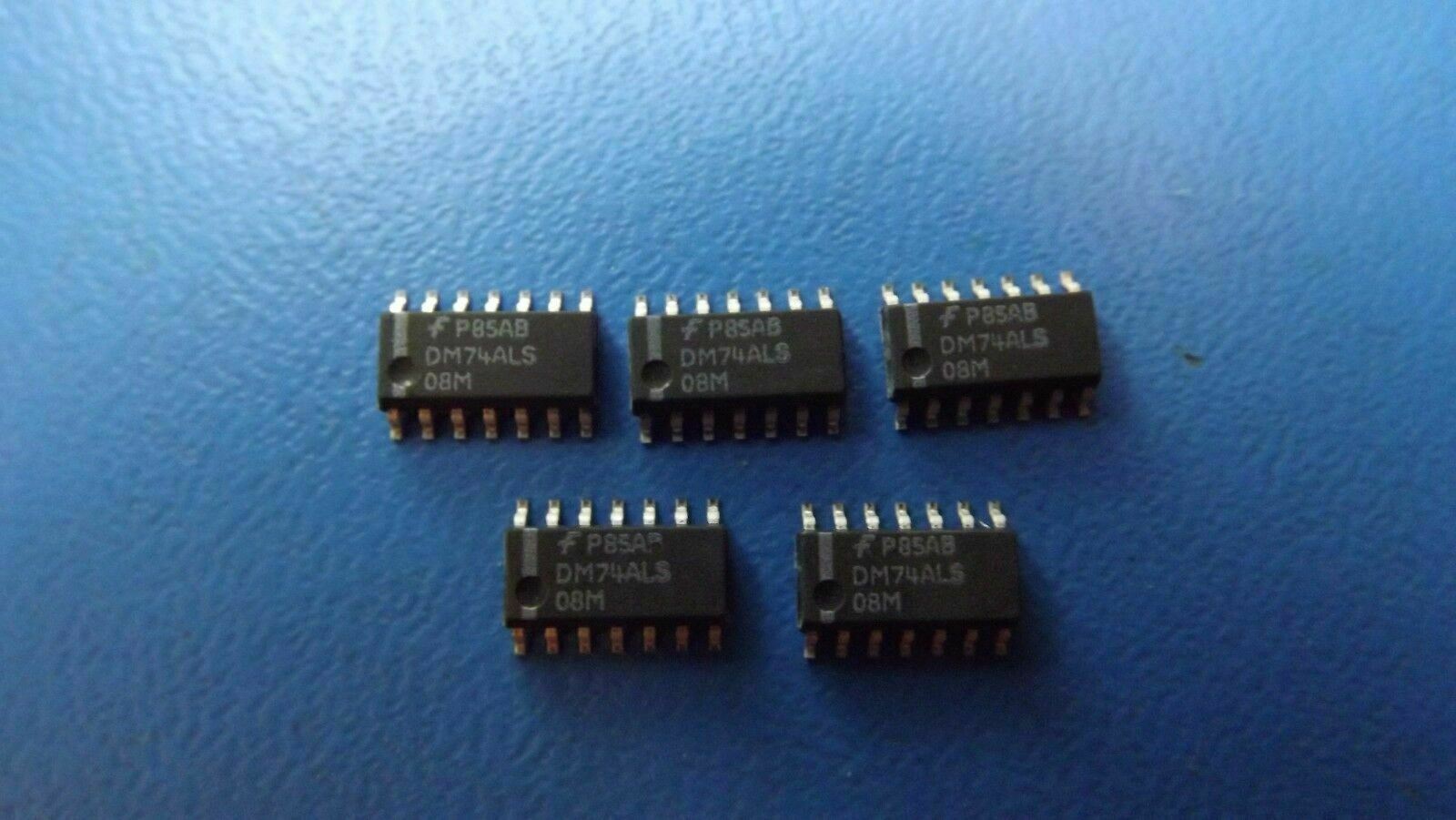

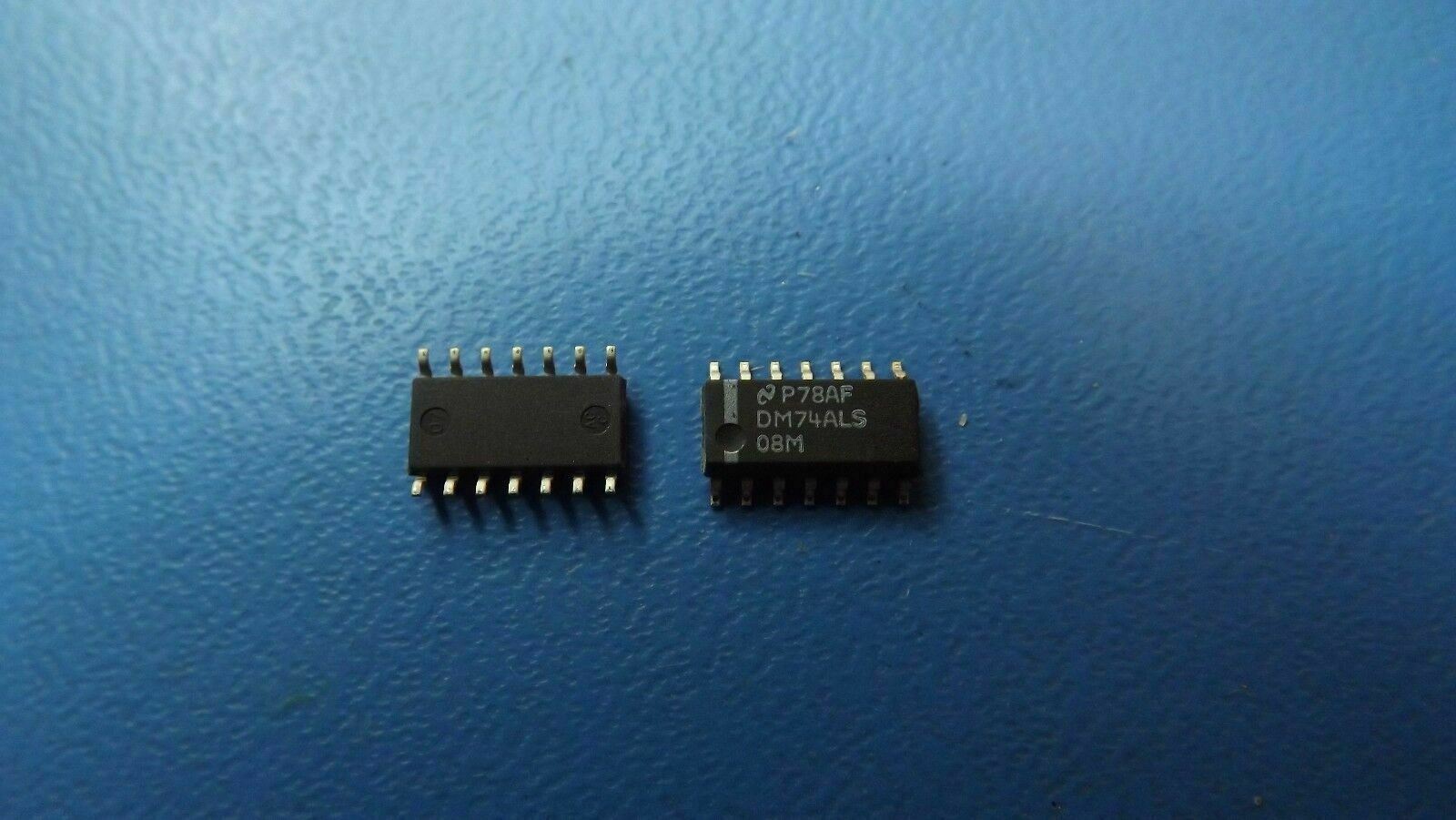

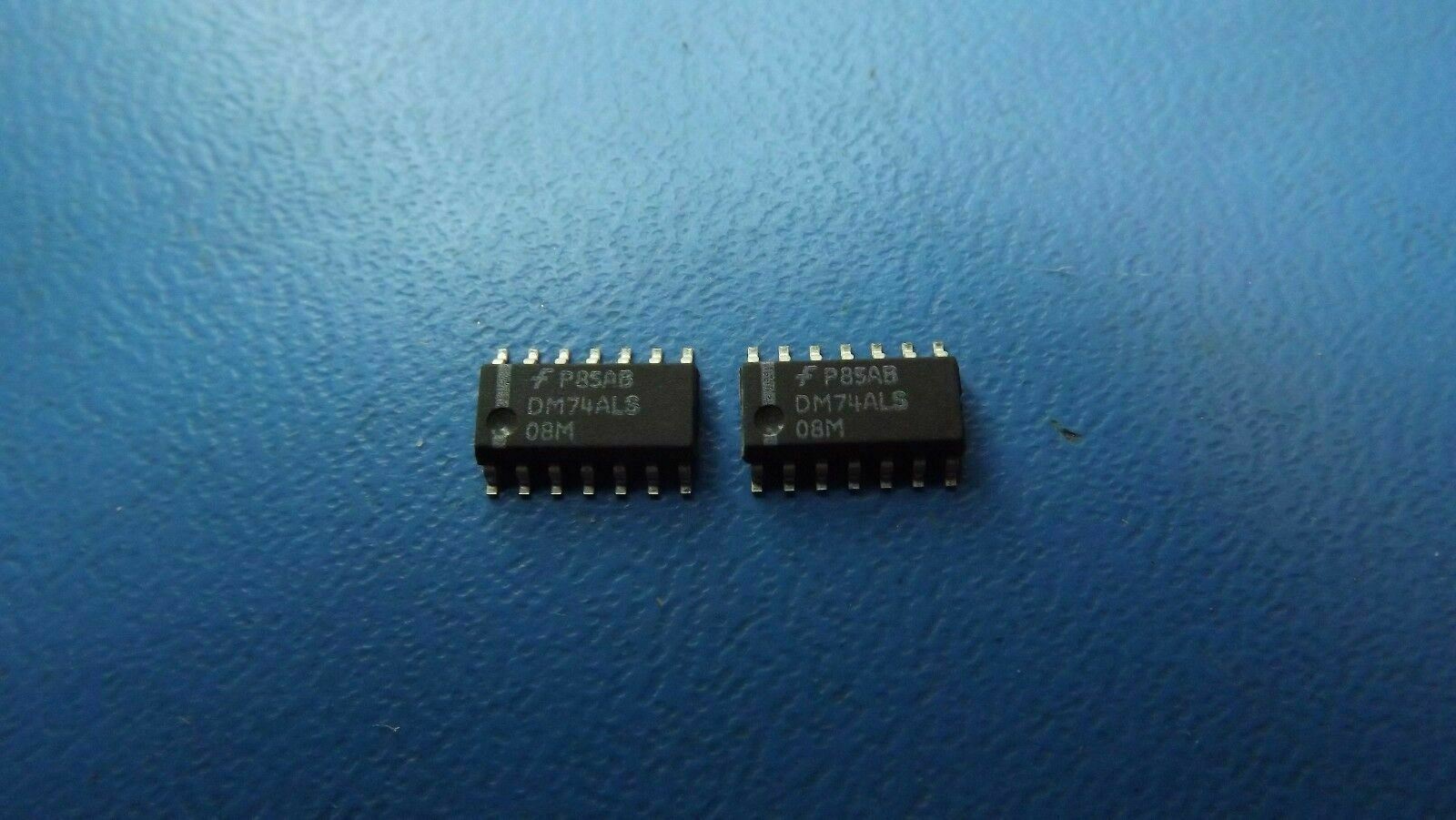

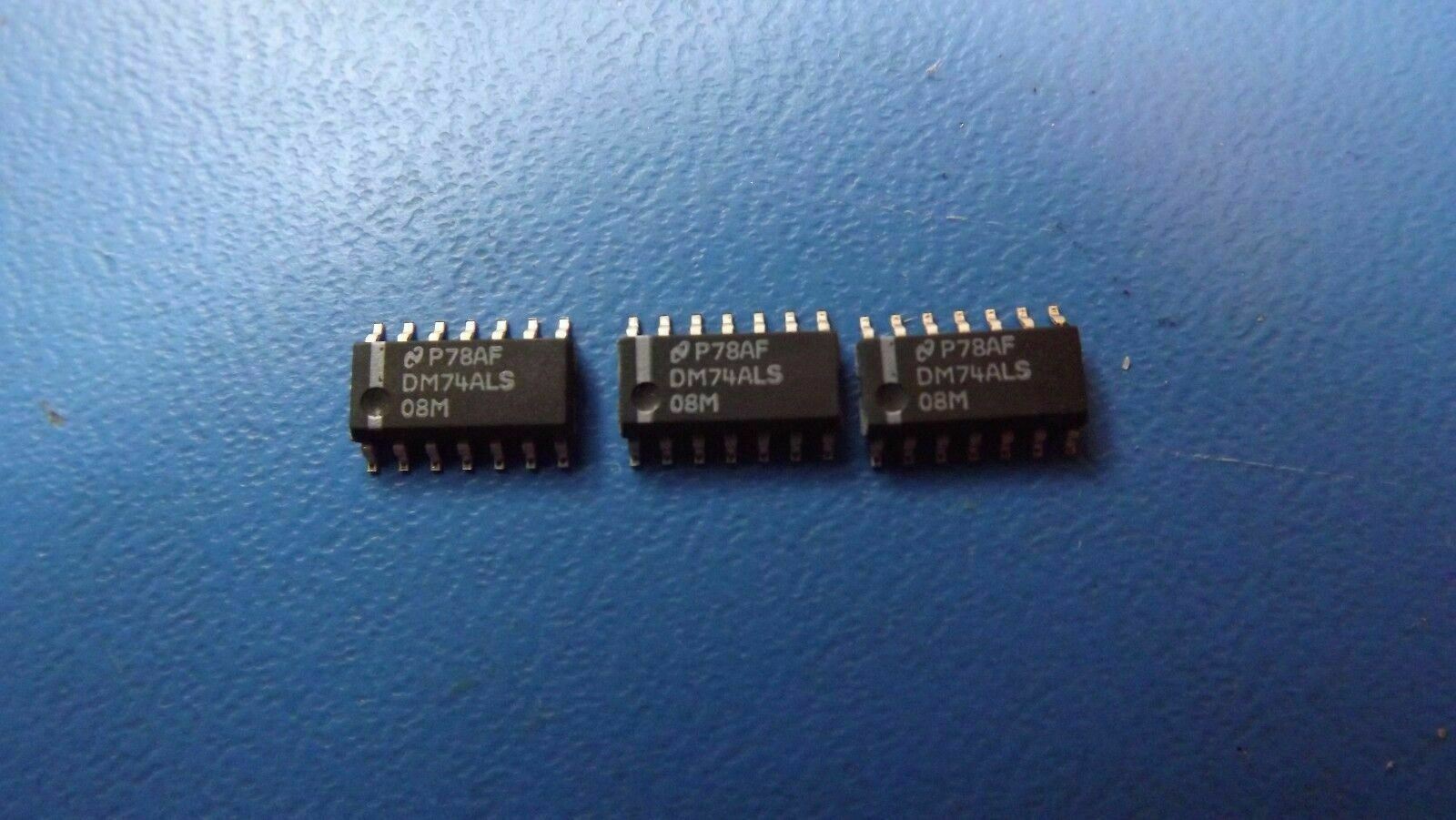

(10PCS) DM74ALS08M FSC NSC IC GATE AND 4CH 2-INP 14-SOIC
Tax included.
THIS LISTING IS FOR (10PCS) OF DM74ALS08M BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | 0.150 INCH, MS-012, SOIC-14 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Logic IC Type | AND GATE |
| Sub Category | Gates |
| Family | ALS |
| JESD-30 Code | R-PDSO-G14 |
| JESD-609 Code | e3 |
| Max I(ol) | 0.008 Amp |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 4 |
| Number of Inputs | 2.0 |
| Number of Terminals | 14 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP14,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 5 |
| Power Supply Current-Max (ICC) | 4.0 mA |
| Prop. Delay@Nom-Sup | 14.0 ns |
| Propagation Delay (tpd) | 14.0 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 1.75 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 8.65 mm |
| Width | 3.9 mm |
