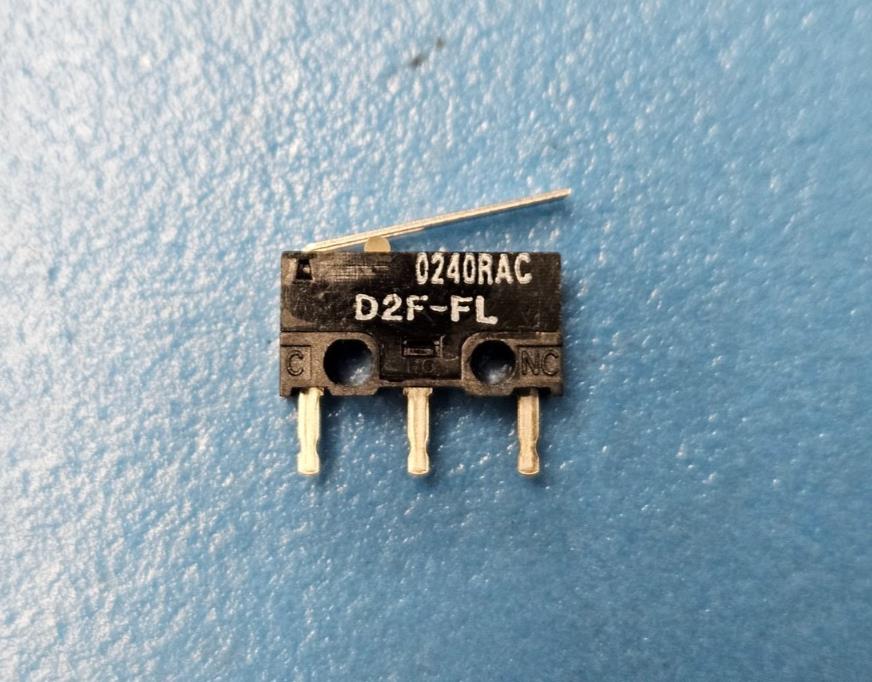

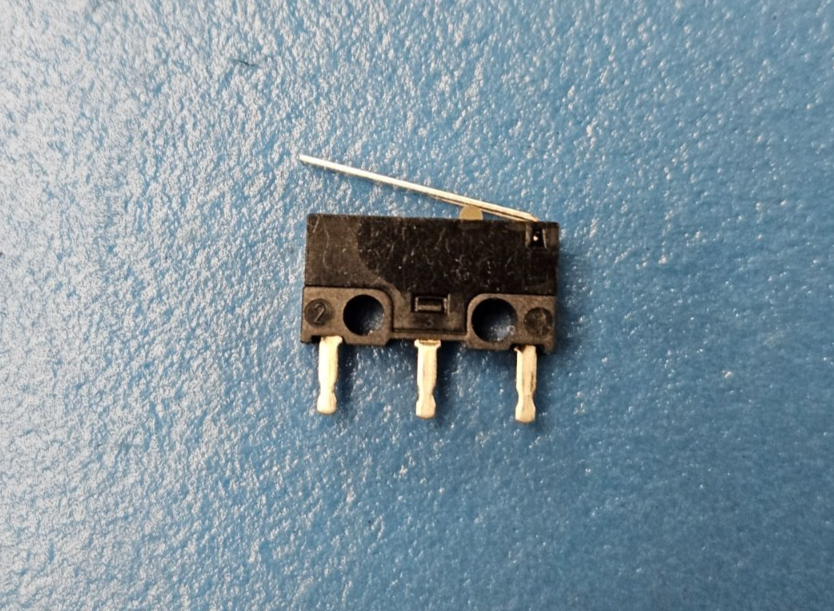

(10PCS) D2F-FL OMRON Snap Acting/Limit Switch, SPDT, Momentary 0.5A, 30VDC
Tax included.
This listing is for (10PCS) of D2F-FL by OMRON
Status Active
Actuator Travel (mm) .55
Actuator Type HINGE LEVER
Body Breadth (mm) 5.8000
Body Height (mm) 6.5000
Body Length or Diameter (mm) 12.8000
Contact AC Max Rating R Load 1A@125VAC
Contact Current(AC)-Max (A) 1.00000000
Contact Current(DC)-Max (A) 0.50000000
Contact DC Max Rating R Load .5A@30VDC
Contact Voltage(AC)-Max (V) 125.00000000
Contact Voltage(DC)-Max (V) 30.00000000
Electrical Life (Cycle(s)) 30000
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Force-Max (N) 0.7400
Operating Temperature-Max (Cel) 65
Operating Temperature-Min (Cel) -25
Sealing IP40
Switch Action MOMENTARY
Switch Function SPDT
Switch Type SNAP ACTING/LIMIT SWITCH
Termination Type SOLDER
