(10PCS) AT93C66B-SSHM-T MICROCHIP TECHNOLOGY IC EEPROM 4KBIT 2MHZ 8SOIC
Tax included.

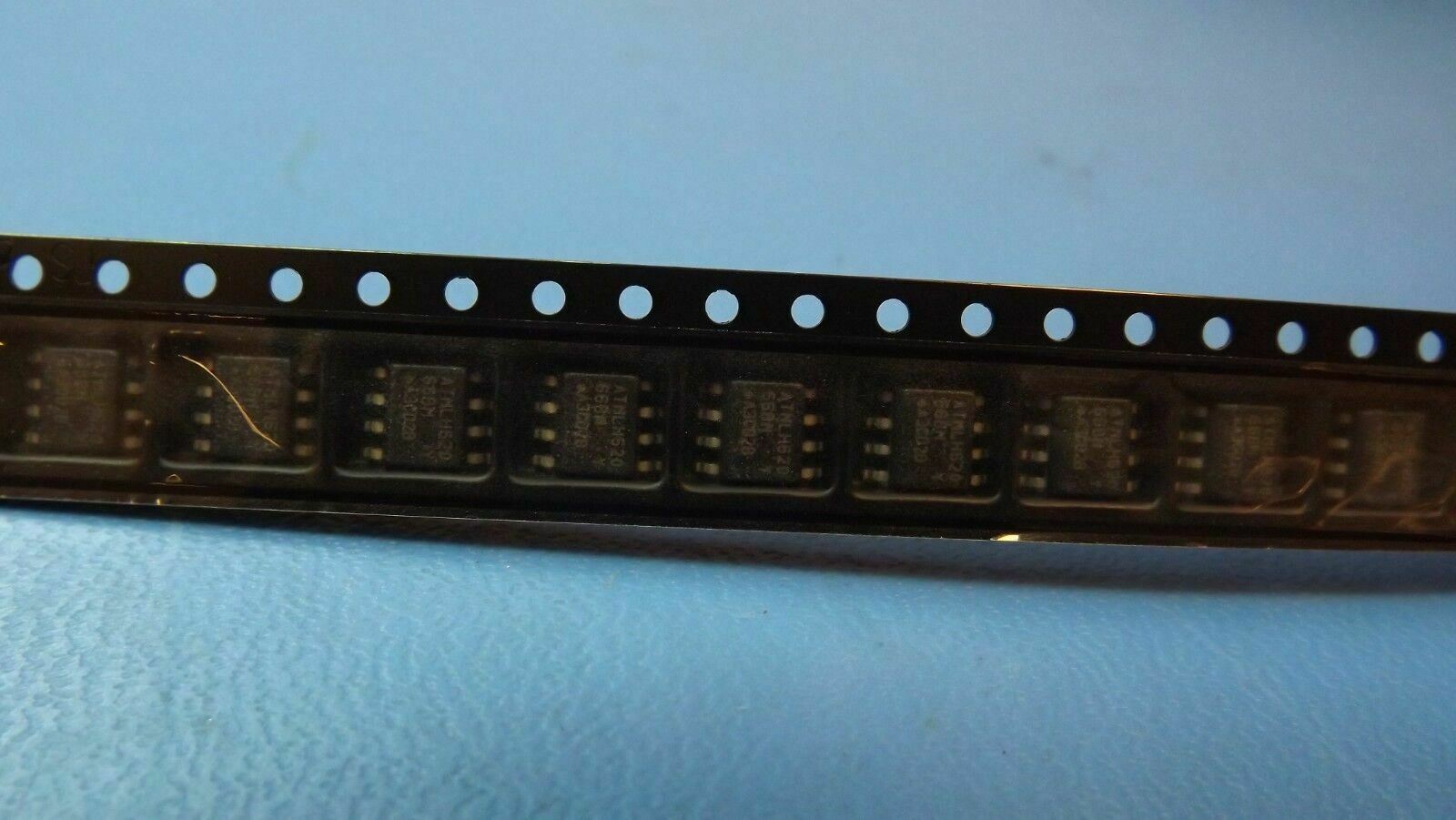

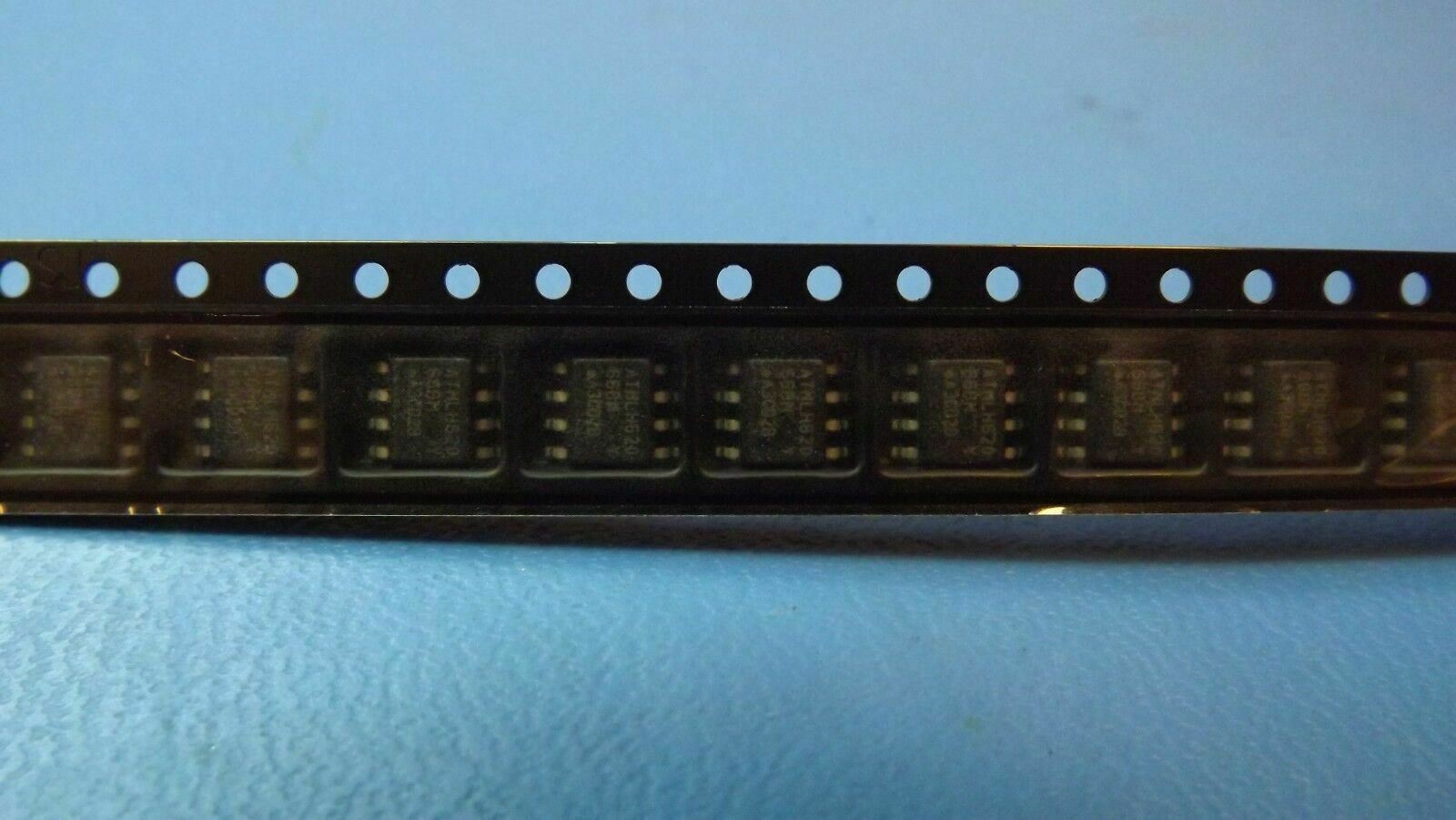

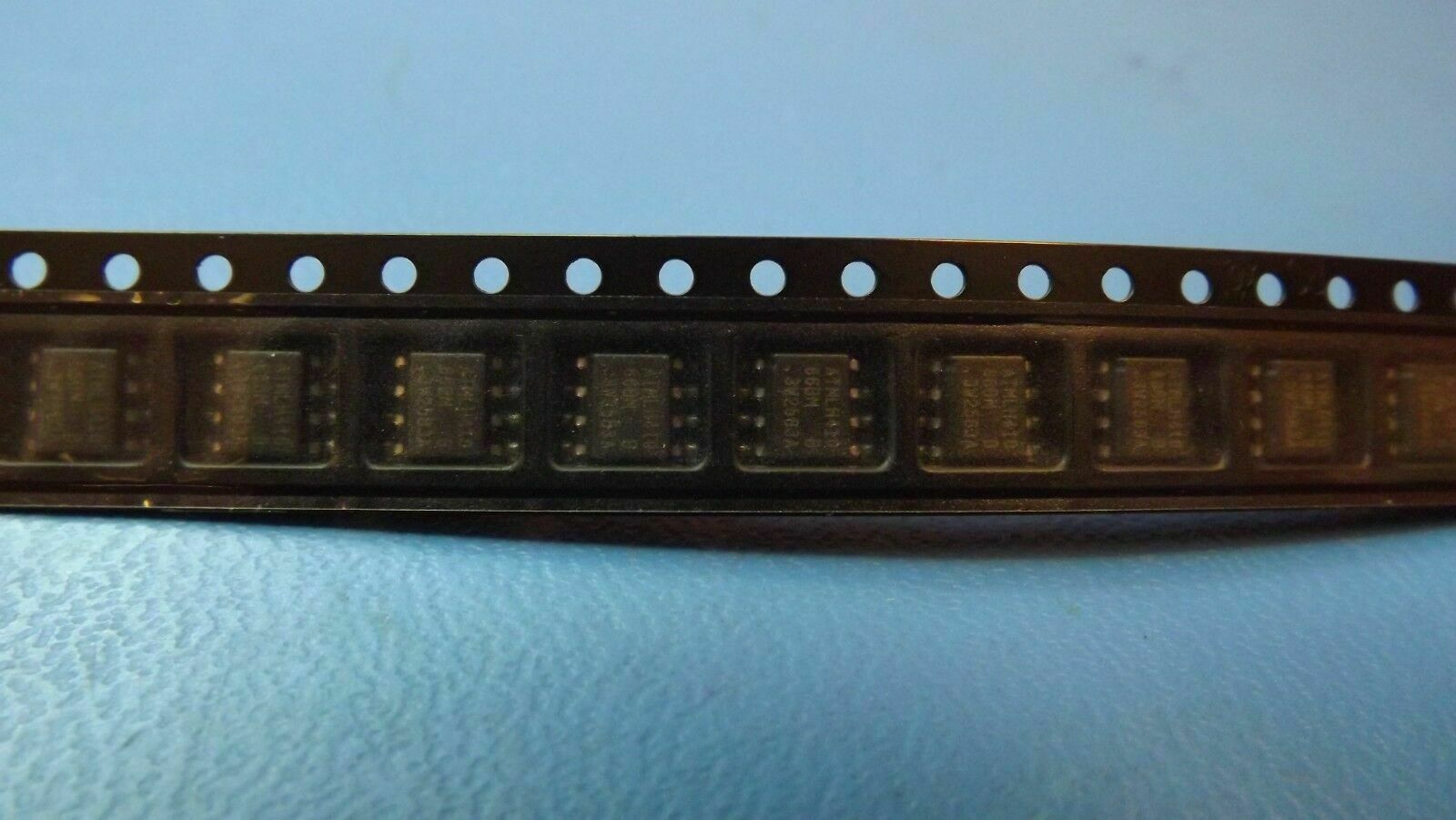

THIS LISTING IS FOR (10PCS) OF AT93C66B-SSHM-T BY ATMEL
SPECIFICATIONS
| Mfr Package Description | 0.150 INCH, GREEN, PLASTIC, MS-012AA, SOIC-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Transferred |
| Sub Category | EEPROMs |
| Clock Frequency-Max (fCLK) | 2.0 MHz |
| Data Retention Time-Min | 100 |
| Endurance | 1000000.0 Write/Erase Cycles |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e4 |
| Memory Density | 4096.0 bit |
| Memory IC Type | EEPROM |
| Memory Width | 16 |
| Alternate Memory Width | 8.0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Number of Words | 256.0 words |
| Number of Words Code | 256 |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 256X16 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Parallel/Serial | SERIAL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 1.8/5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Serial Bus Type | MICROWIRE |
| Standby Current-Max | 1.0E-6 Amp |
| Supply Current-Max | 0.002 Amp |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Write Cycle Time-Max (tWC) | 5.0 ms |
| Write Protection | SOFTWARE |
| Length | 4.926 mm |
| Width | 3.9 mm |
| Additional Feature | ALSO OPERATES WITH 1.7V-5.5V AND 2.5V-5.5V SUPPLY |
