(10pcs) AT25128AN-10SI-2.7 EEPROM Memory IC 128Kbit SPI 20 MHz 8-SOIC
Tax included.

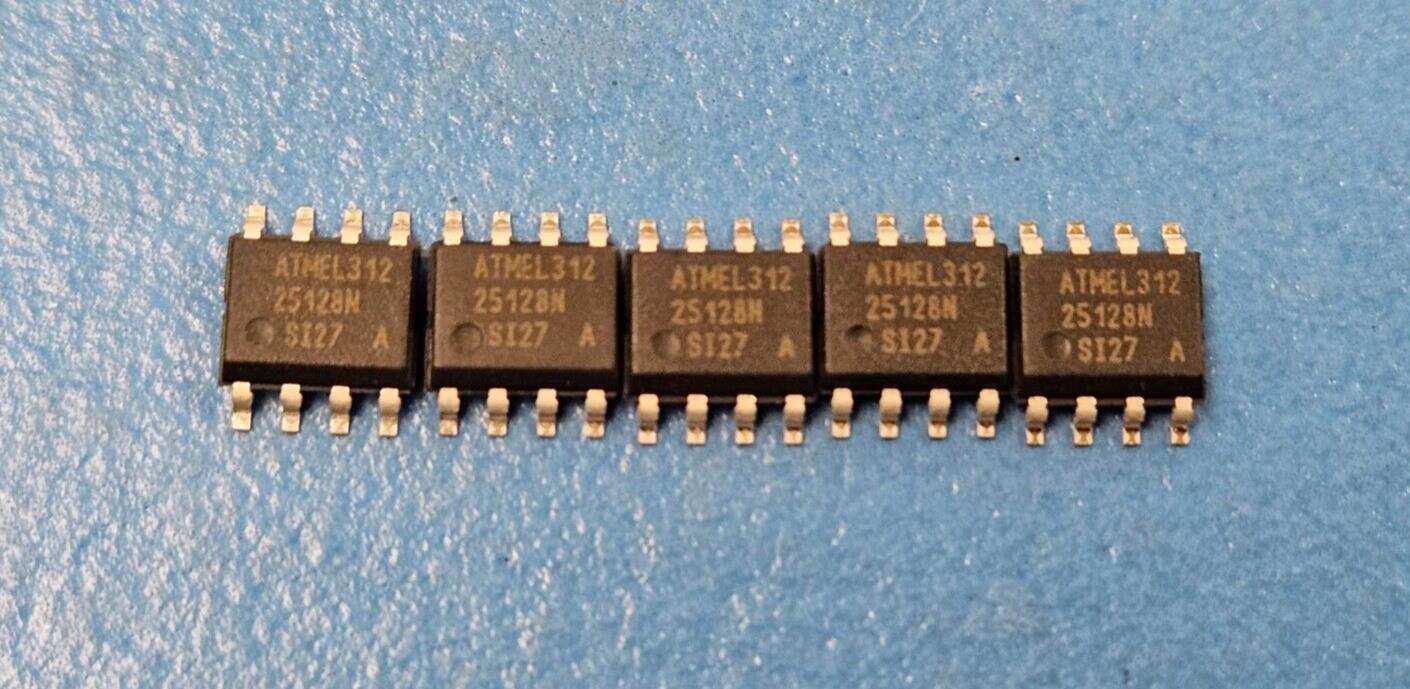

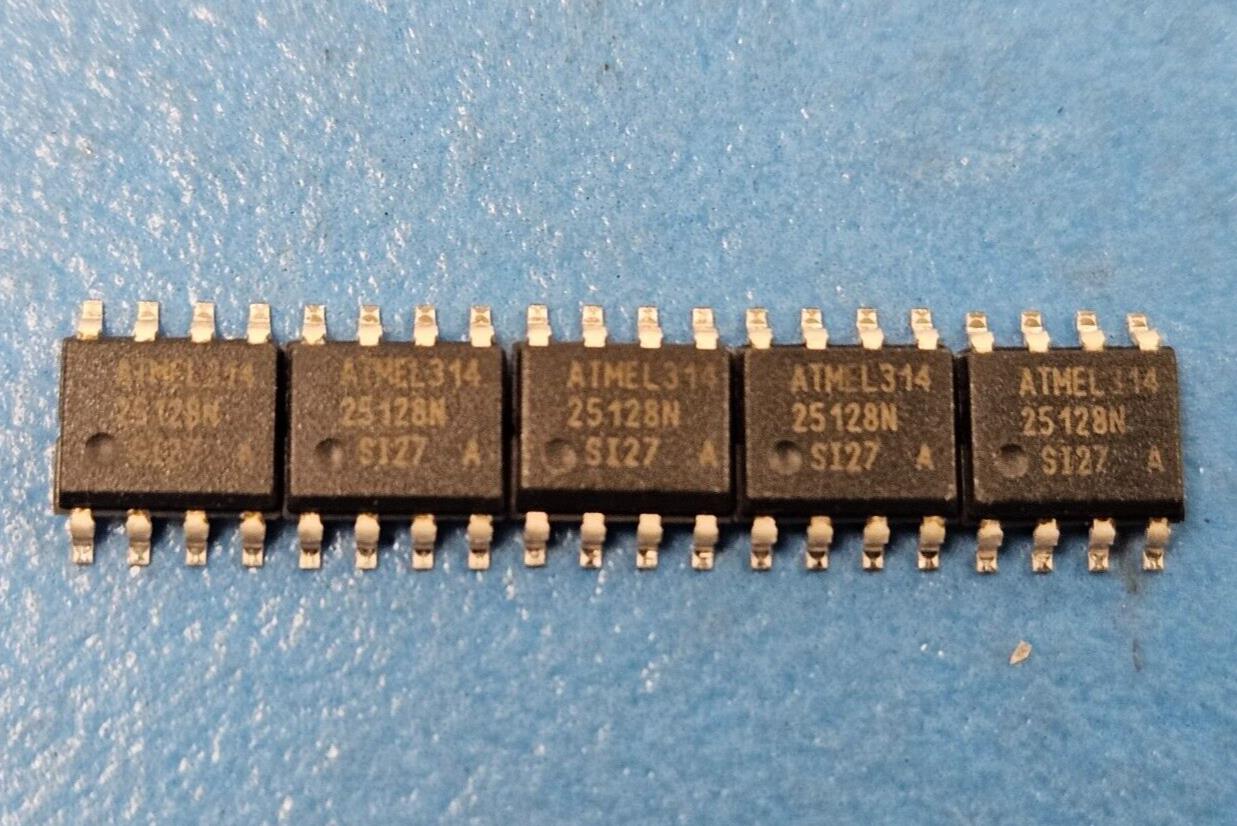

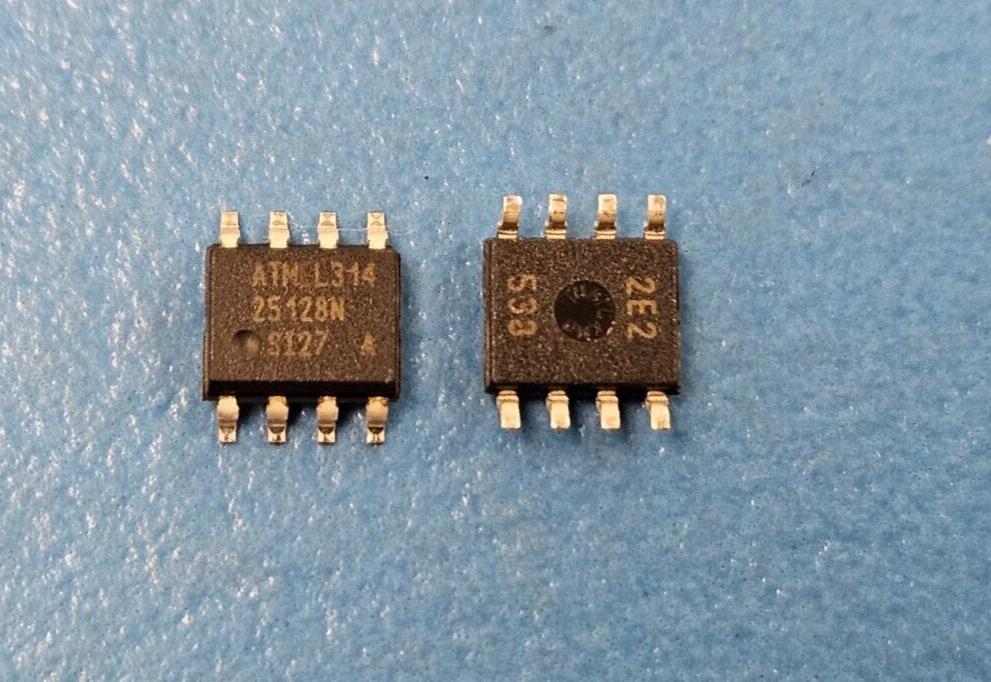

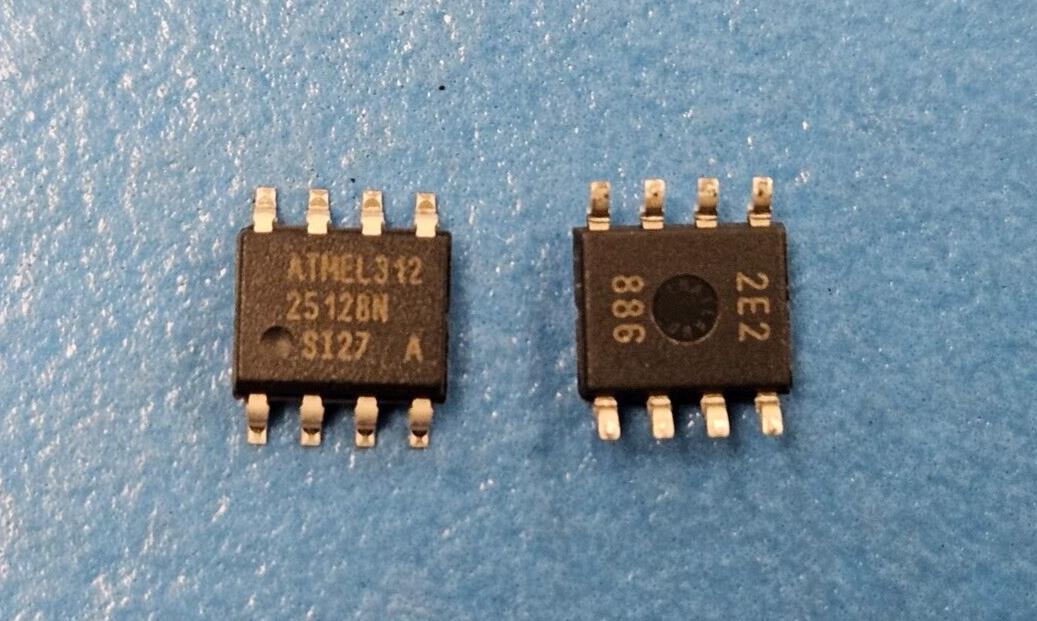

This listing is for (10pcs) of AT25128AN-10SI-2.7 by Atmel
Mfr Package Description 0.150 INCH, PLASTIC, MS-012AA, SOIC-8
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 10.0 MHz
Data Retention Time-Min 100
Endurance 100000.0 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Memory Density 131072.0 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 16384.0 words
Number of Words Code 16K
Operating Mode SYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 16KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Serial Bus Type SPI
Standby Current-Max 3.0E-6 Amp
Supply Current-Max 0.01 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Write Cycle Time-Max (tWC) 5.0 ms
Write Protection HARDWARE/SOFTWARE
Length 4.9 mm
Width 3.9 mm
