(10PCS) AT24C04N-10SU-2.7 ATMEL IC EEPROM 4K I2C 400KHZ 8SOIC
Tax included.

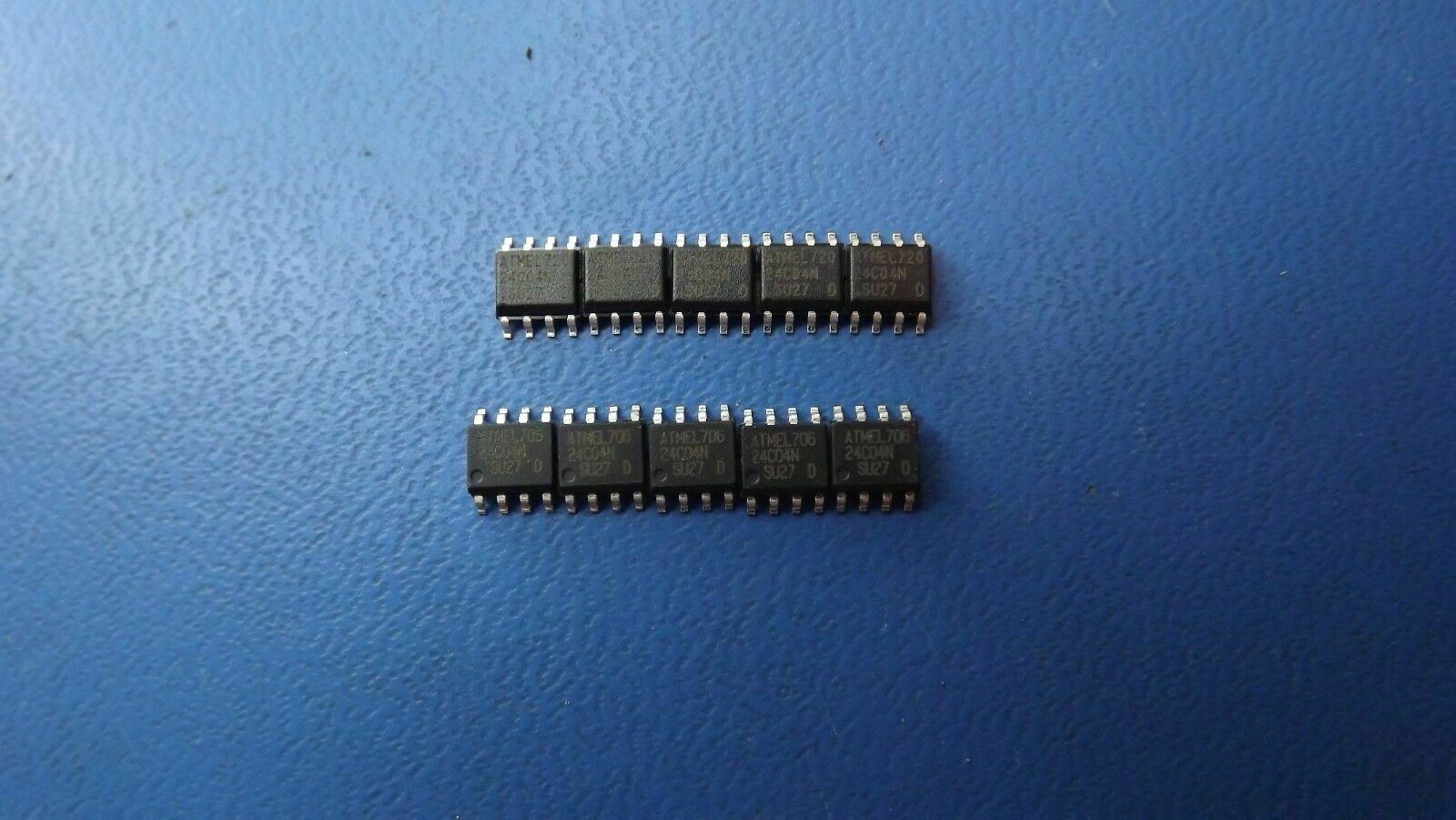

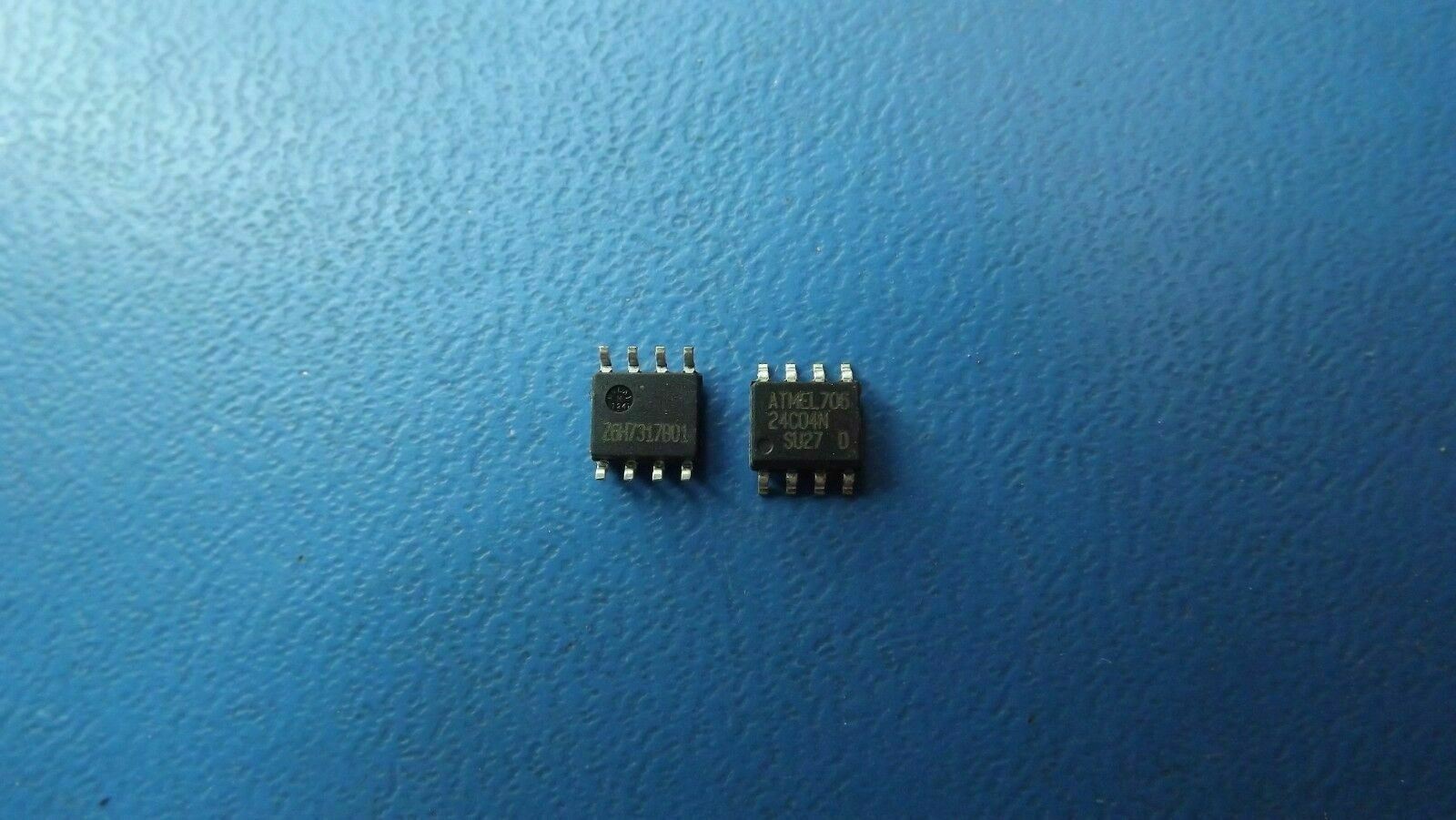

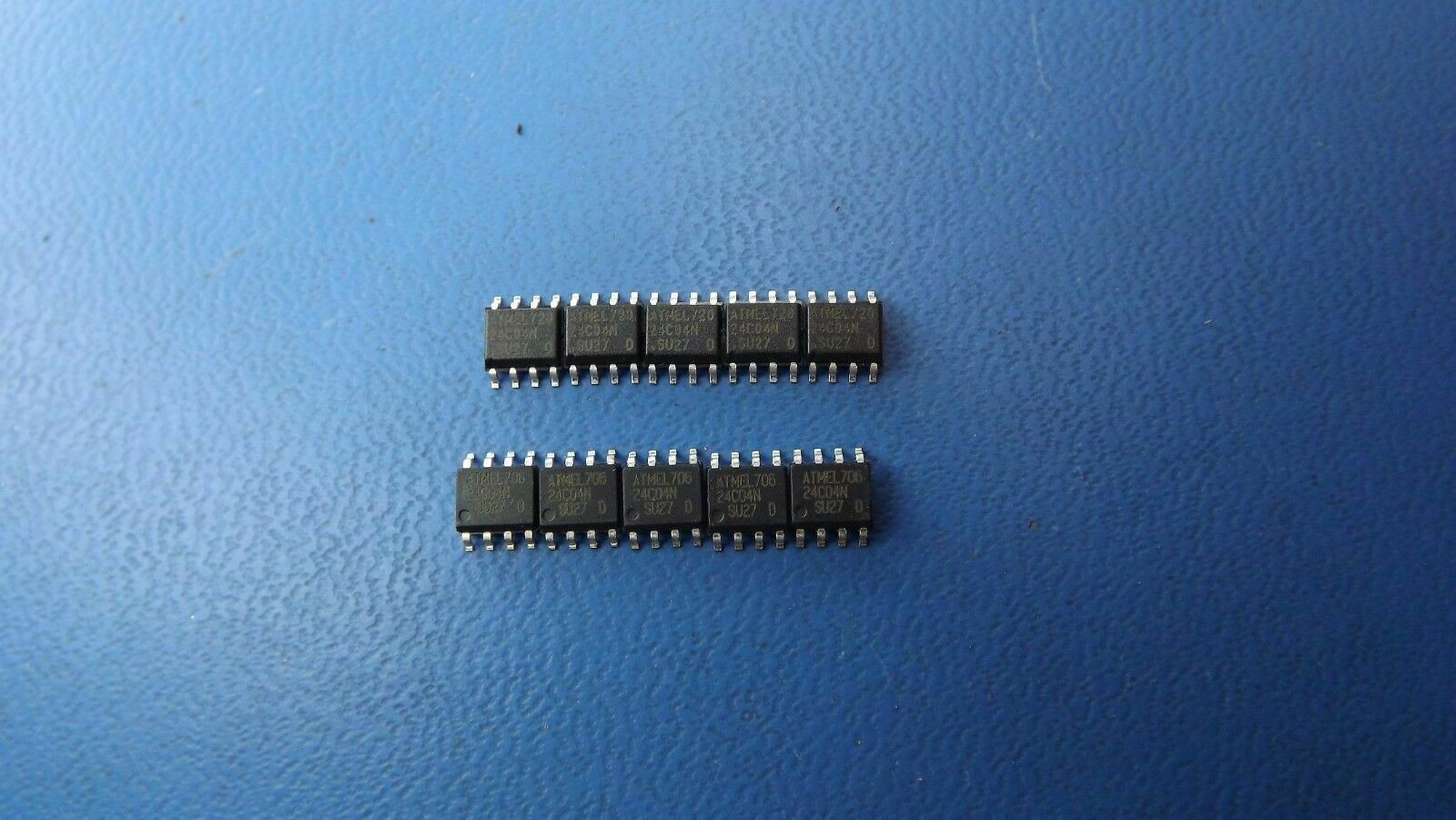

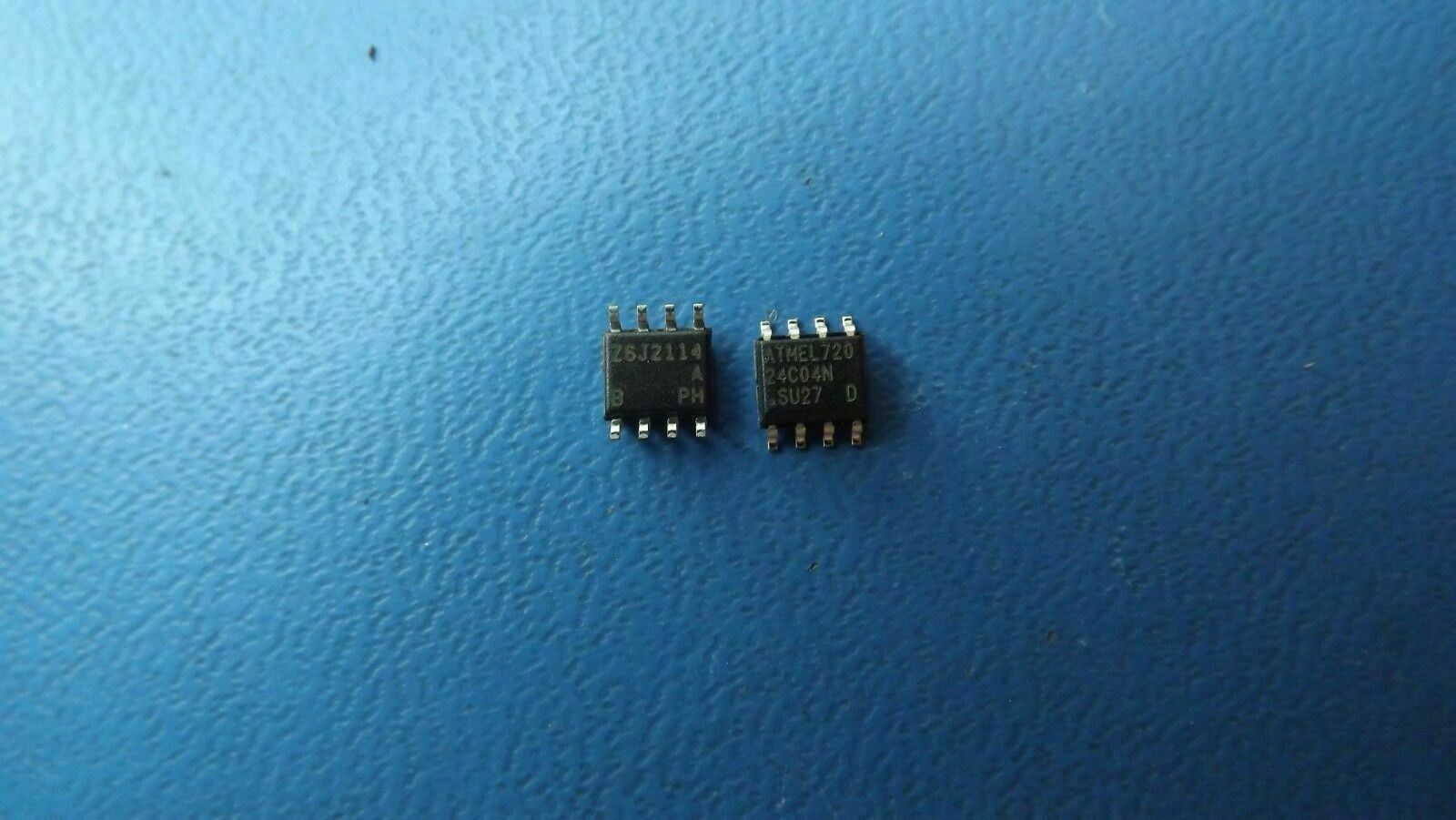

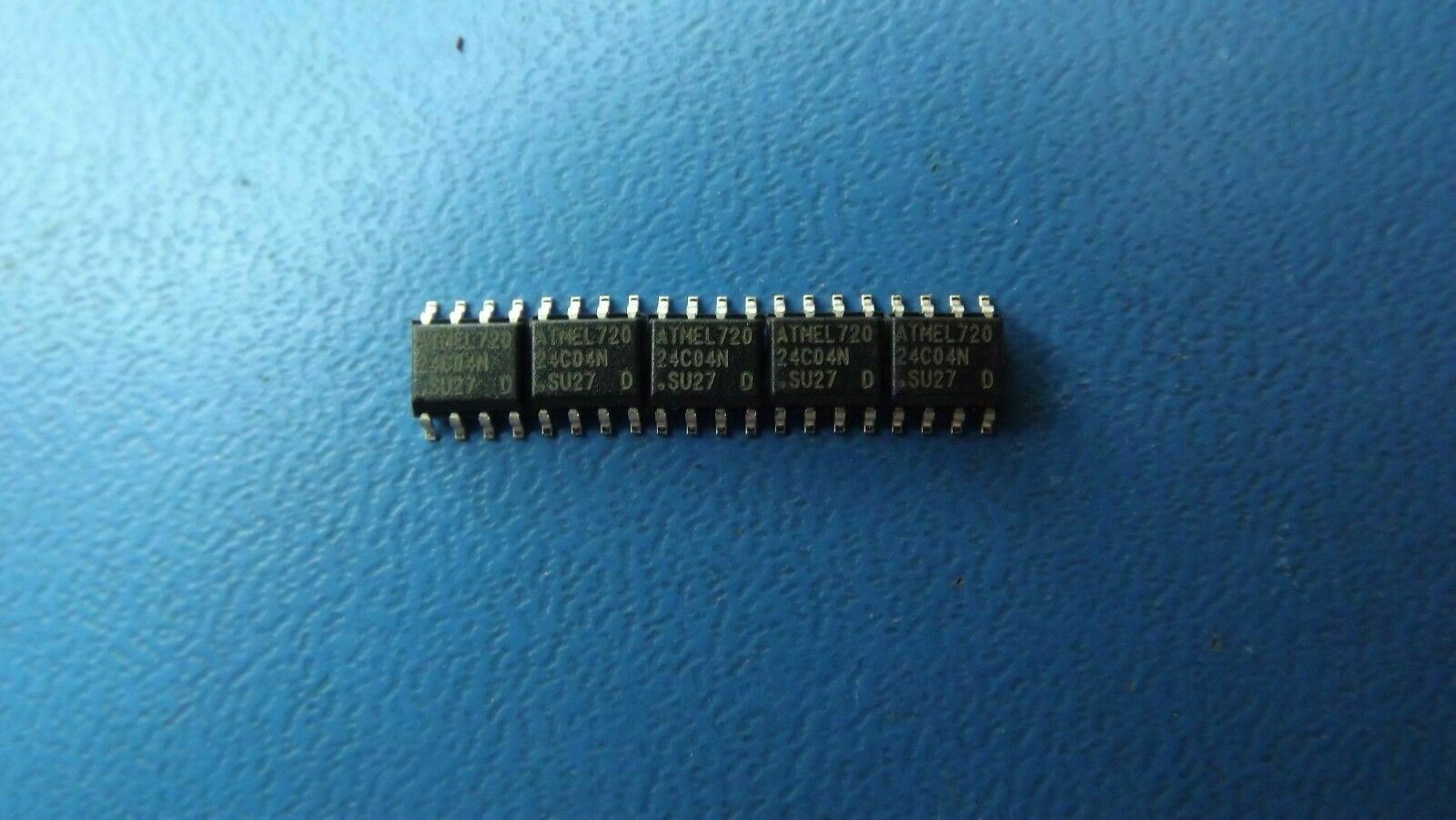

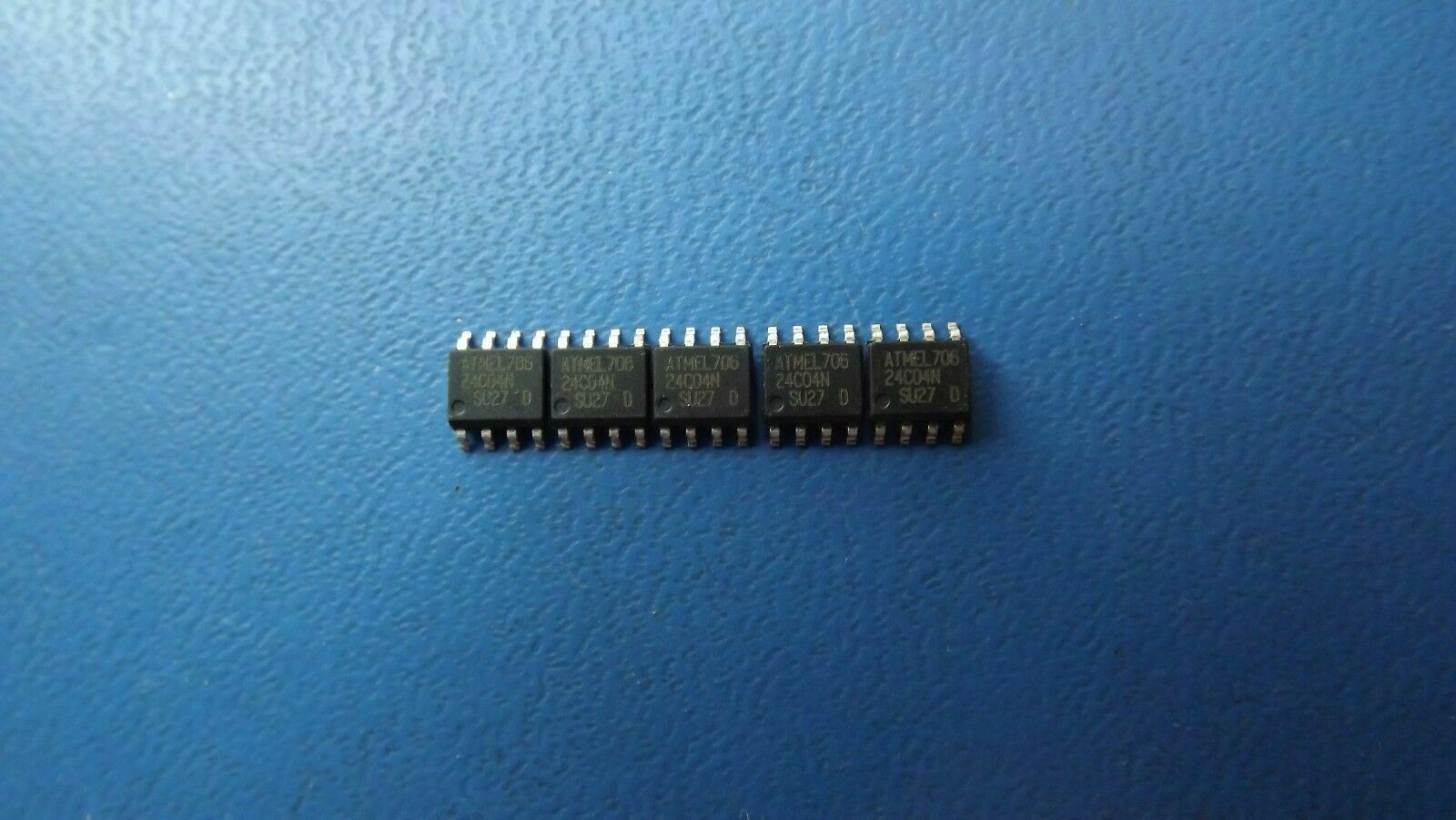

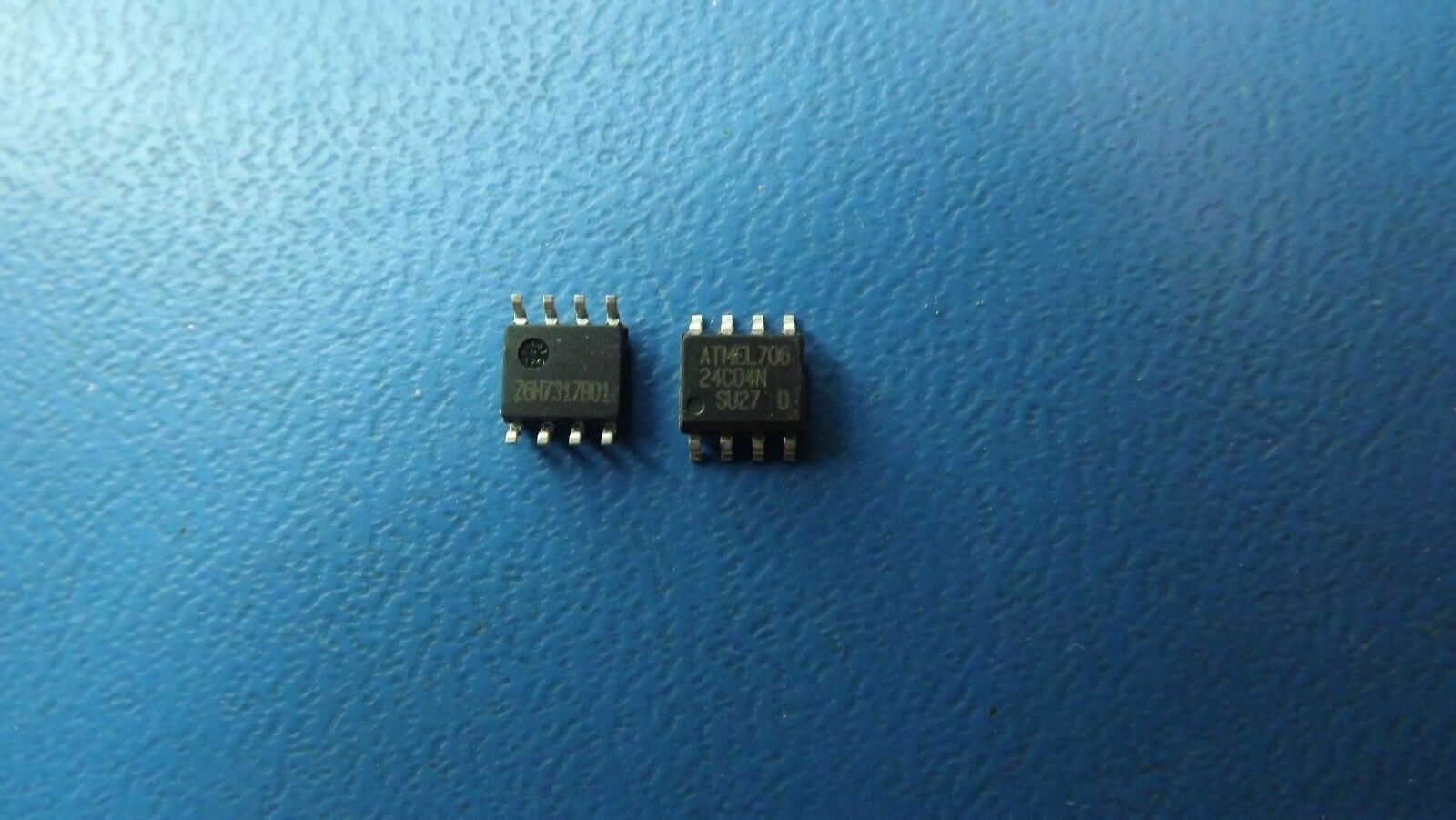

THIS LISTING IS FOR (10PCS) OF AT24C04N-10SU-2.7 BY ATMEL
SPECIFICATIONS
| Mfr Package Description | 0.150 INCH, GREEN, PLASTIC, MS-012AA, SOIC-8 |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Sub Category | EEPROMs |
| Clock Frequency-Max (fCLK) | 0.4 MHz |
| Data Retention Time-Min | 100 |
| Endurance | 1000000.0 Write/Erase Cycles |
| I2C Control Byte | 1010DDMR |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e3 |
| Memory Density | 4096.0 bit |
| Memory IC Type | EEPROM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Number of Words | 512.0 words |
| Number of Words Code | 512 |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 512X8 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Parallel/Serial | SERIAL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3/5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Serial Bus Type | I2C |
| Standby Current-Max | 4.0E-6 Amp |
| Supply Current-Max | 0.003 Amp |
| Supply Voltage-Nom (Vsup) | 3.0 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Write Cycle Time-Max (tWC) | 5.0 ms |
| Write Protection | HARDWARE |
| Length | 4.9 mm |
| Width | 3.9 mm |
| Additional Feature | DATA RETENTION 100 YEARS; 1 MILLION ENDURANCE WRITE CYCLES |
