(10PCS) 74LVC244APW Buffers & Line Drivers 3.3V OCTAL 3-S DRVER,20PIN TSSOP

  • $3.25
    Unit price per
Tax included.

Only 10 left!

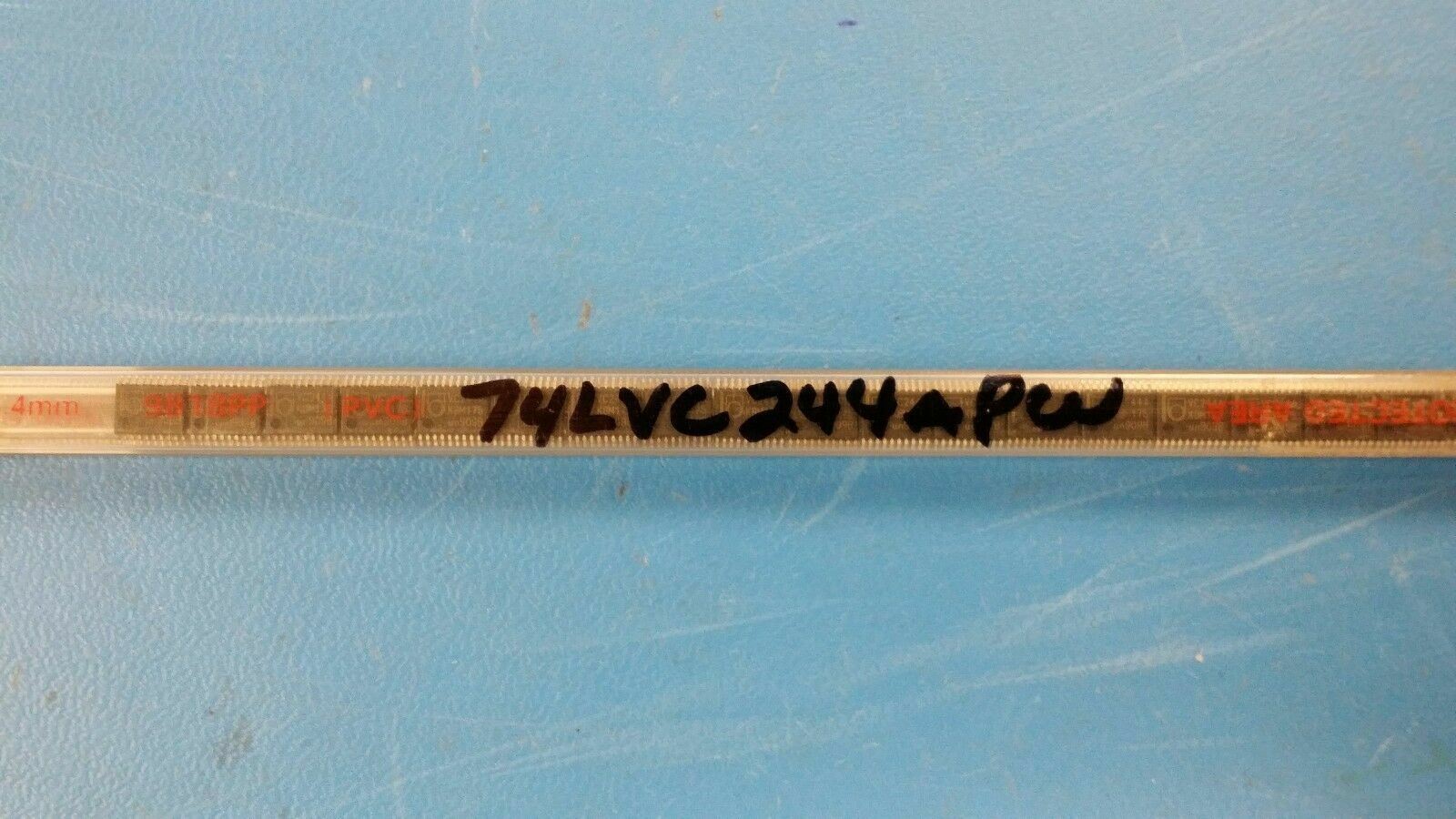

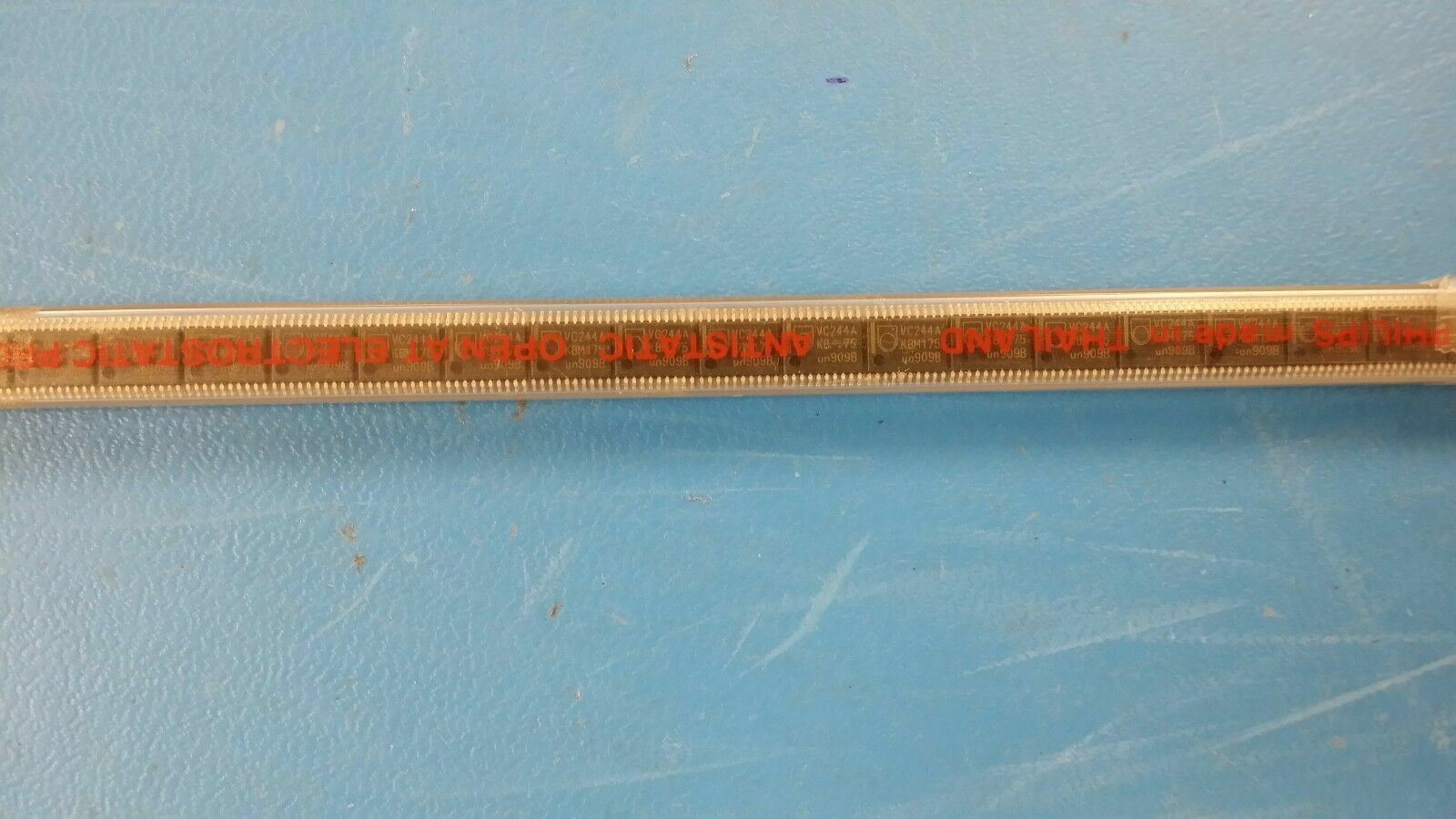

THIS LISTING IS FOR (10PCS) OF 74LVC244APW BY PHILIPS SEMICONDUCTOR.

SPECIFICATIONS

Mfr Package Description 4.40 MM, PLASTIC, MO-153, SOT360-1, TSSOP-20
REACH Compliant No
EU RoHS Compliant No
China RoHS Compliant No
Status Active
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family LVC/LCX/Z
JESD-30 Code N/A
JESD-609 Code N/A
Load Capacitance (CL) 50 pF
Max I(ol) 0.0240 Amp
Moisture Sensitivity Level 1
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40 Cel
Operating Temperature-Max 125 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power Supplies (V) 3.3
Prop. Delay@Nom-Sup 7.5 ns
Propagation Delay (tpd) 9 ns
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Supply Voltage-Nom (Vsup) 2.7
Supply Voltage-Min (Vsup) 1.2 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.6500 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 6.5 mm
Width 4.4 mm
