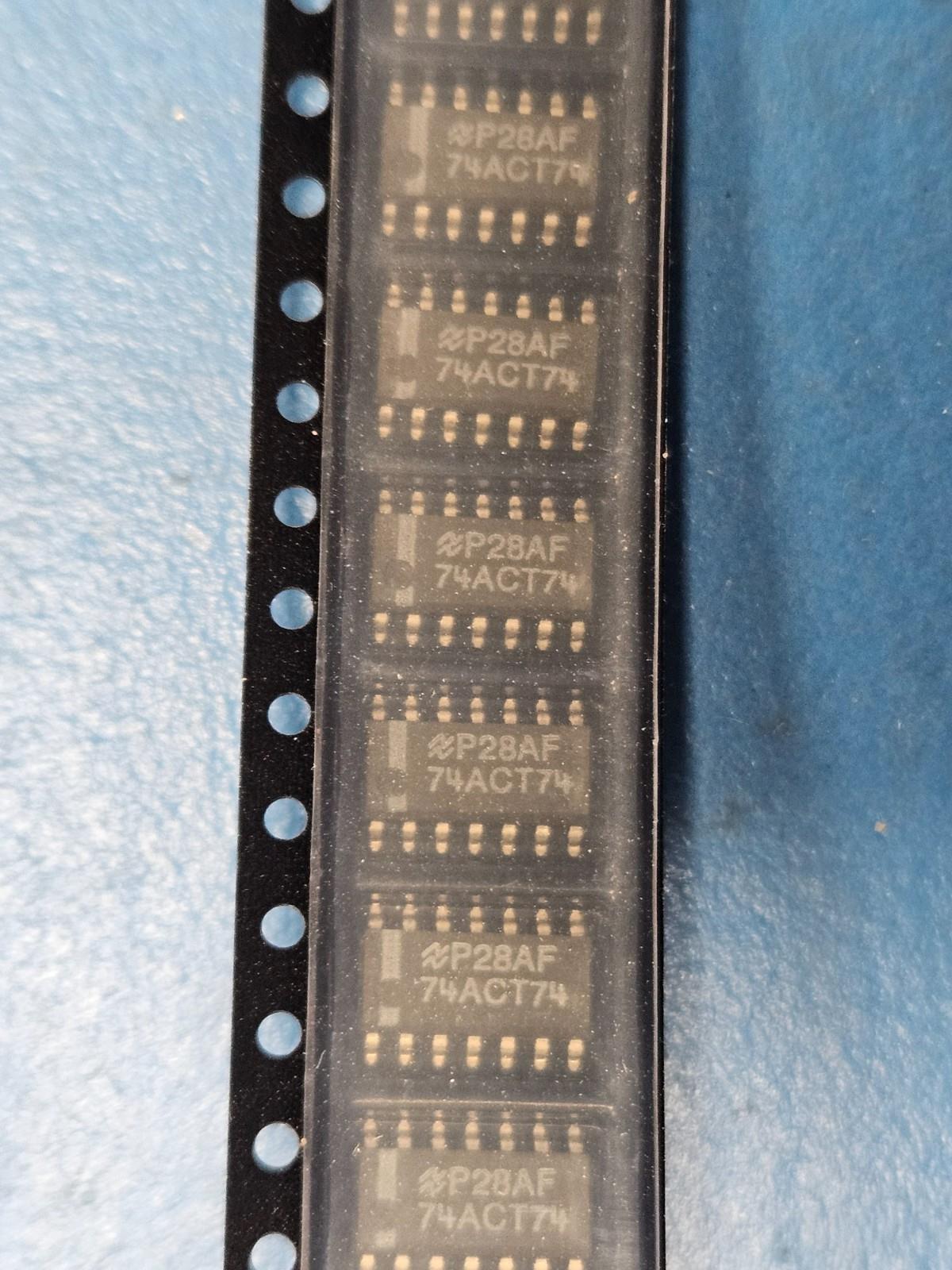

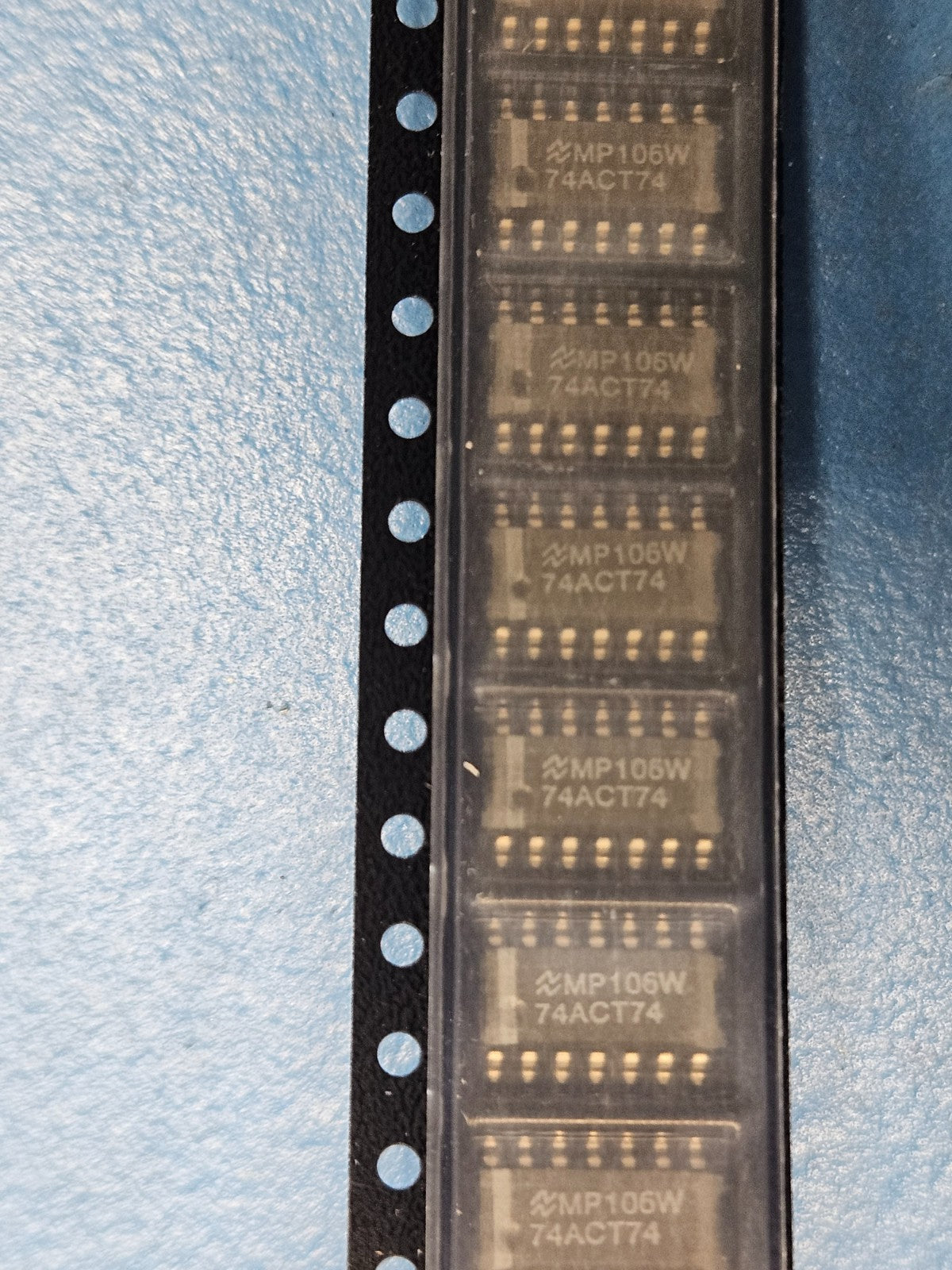

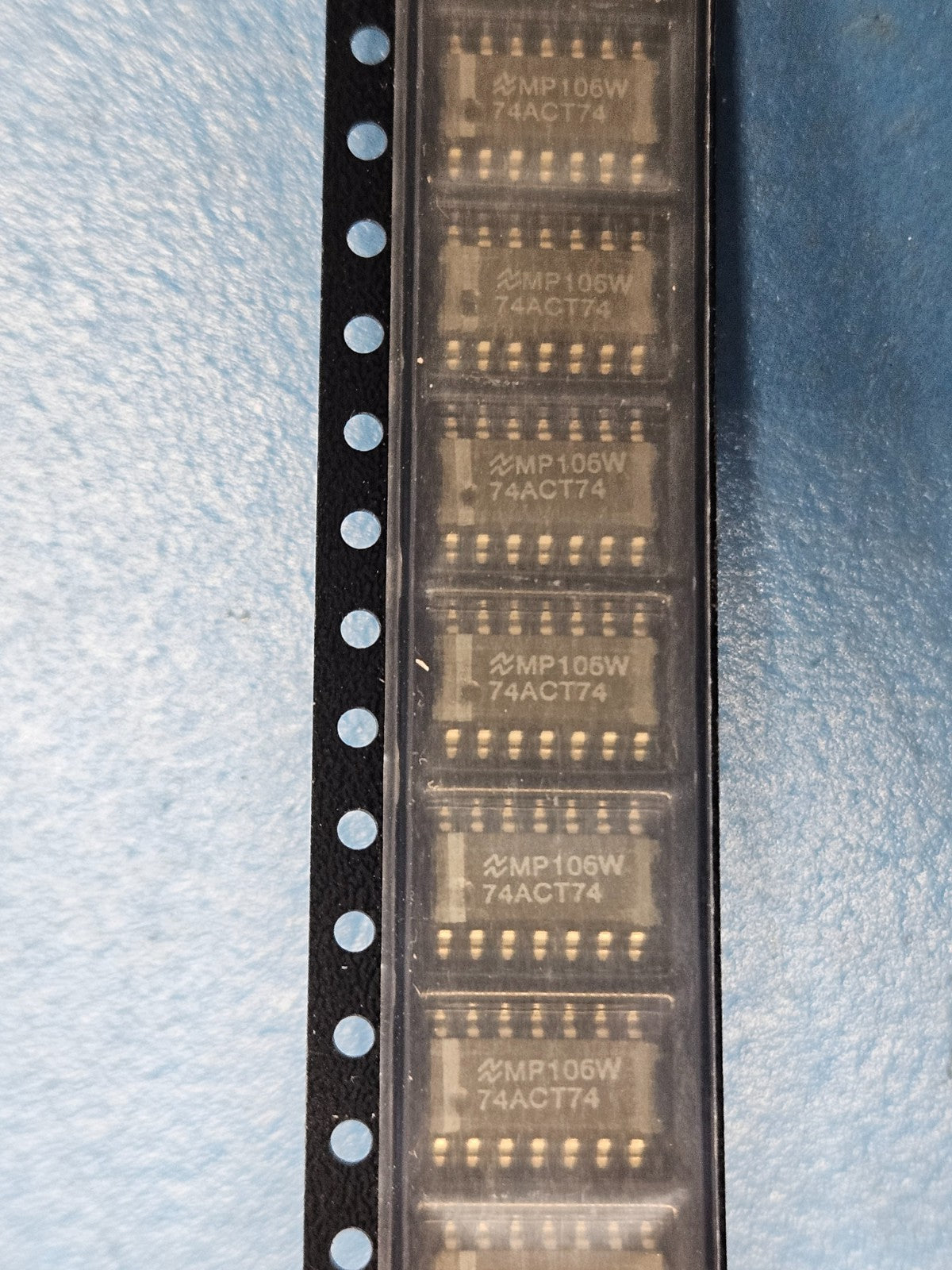

(10PCS) 74ACT74SCX D Flip-Flop, 2-Func, Positive Edge Triggered 1-Bit SOIC14
Tax included.

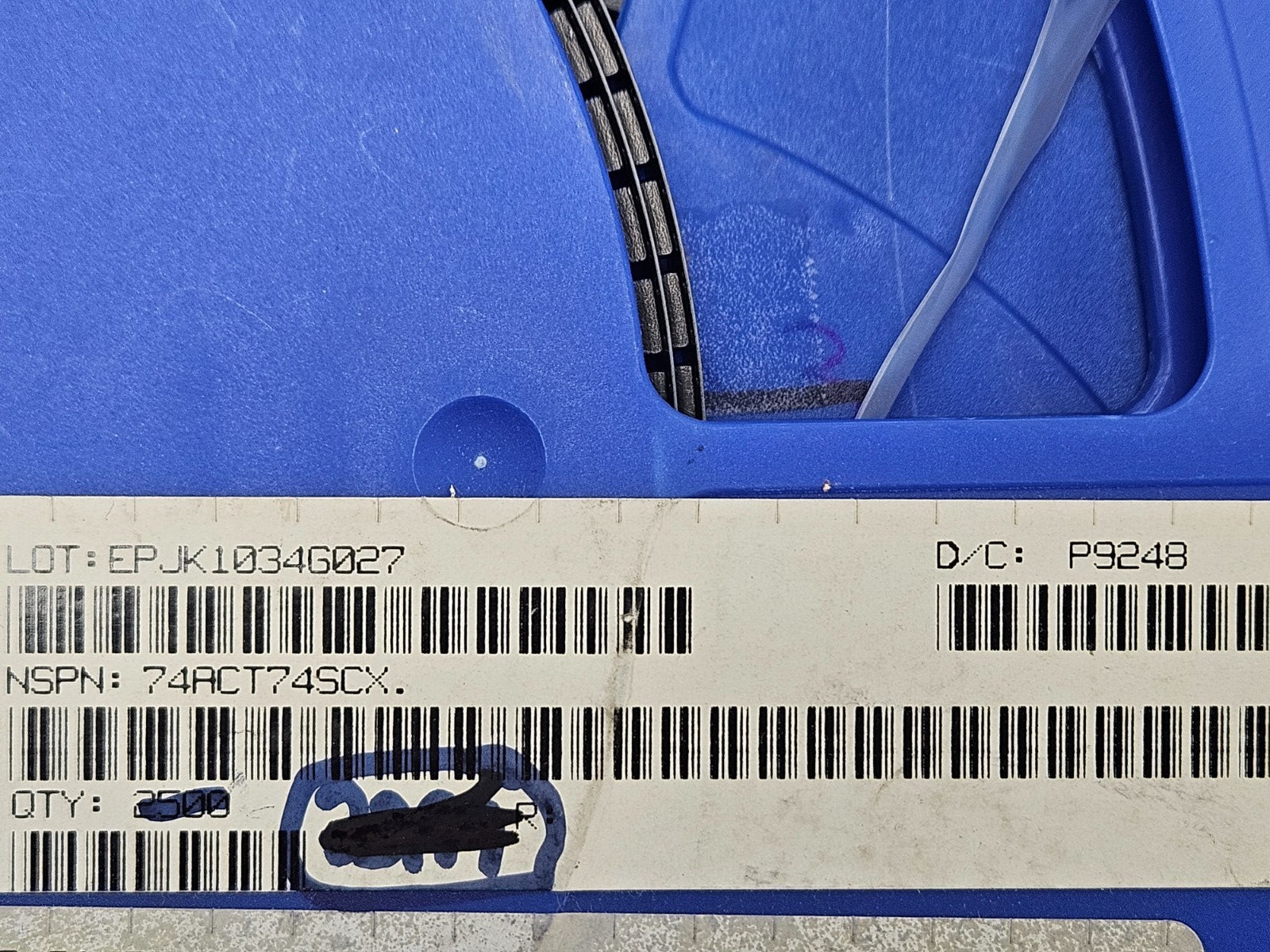

This listing is for (10PCS) of 74ACT74SCX by National Semiconductor
Mfr Package Description SOIC-14
REACH Compliant Yes
Status Transferred
Logic IC Type D FLIP-FLOP
Sub Category FF/Latches
Family ACT
fmax-Min 125.0 MHz
JESD-30 Code R-PDSO-G14
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max Frequency@Nom-Sup 1.25E8 Hz
Max I(ol) 0.024 Amp
Number of Bits 1
Number of Functions 2
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Propagation Delay (tpd) 11.5 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
