(10PCS) 74ACT244PC Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin PDIP
Tax included.

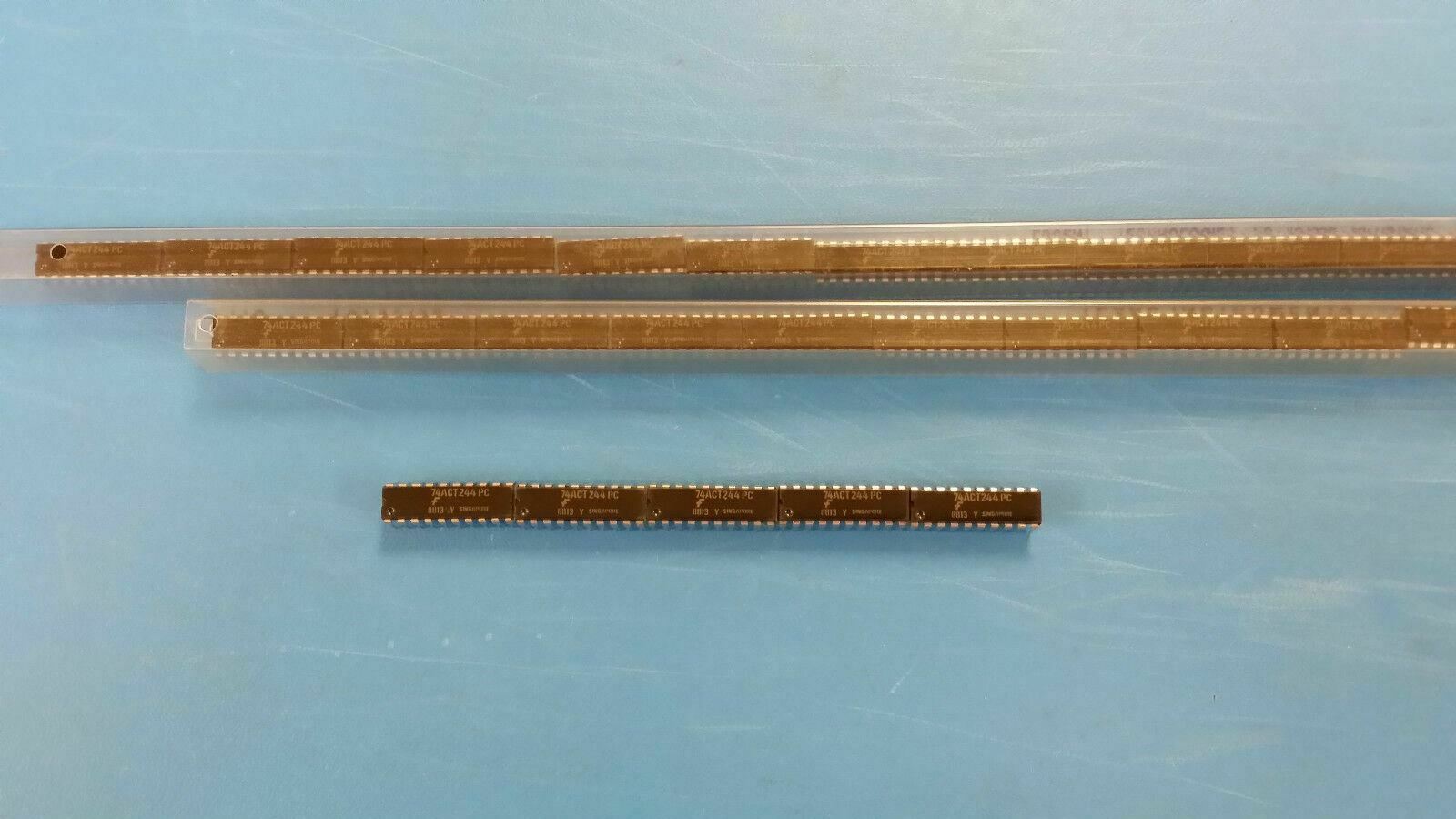

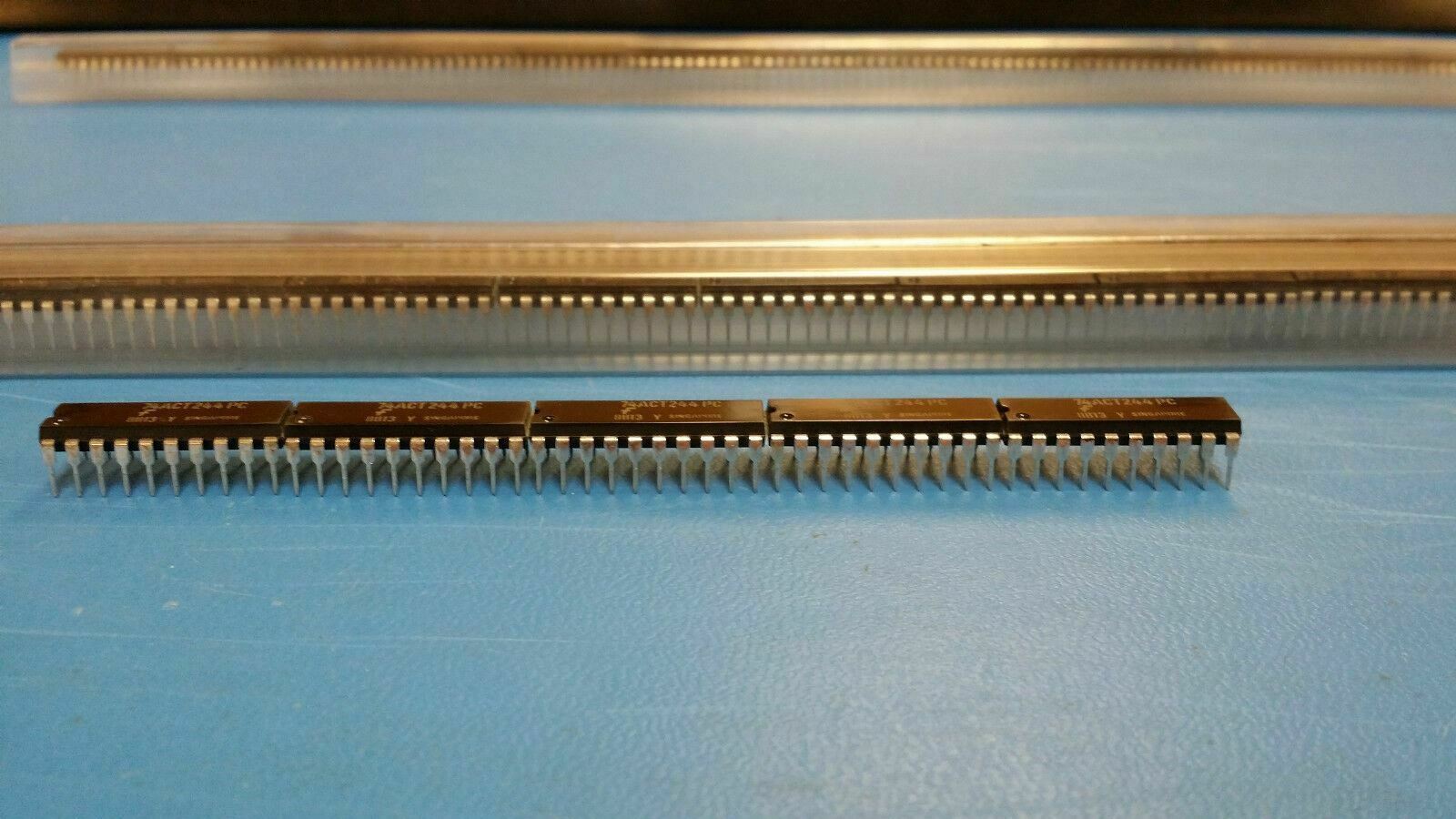

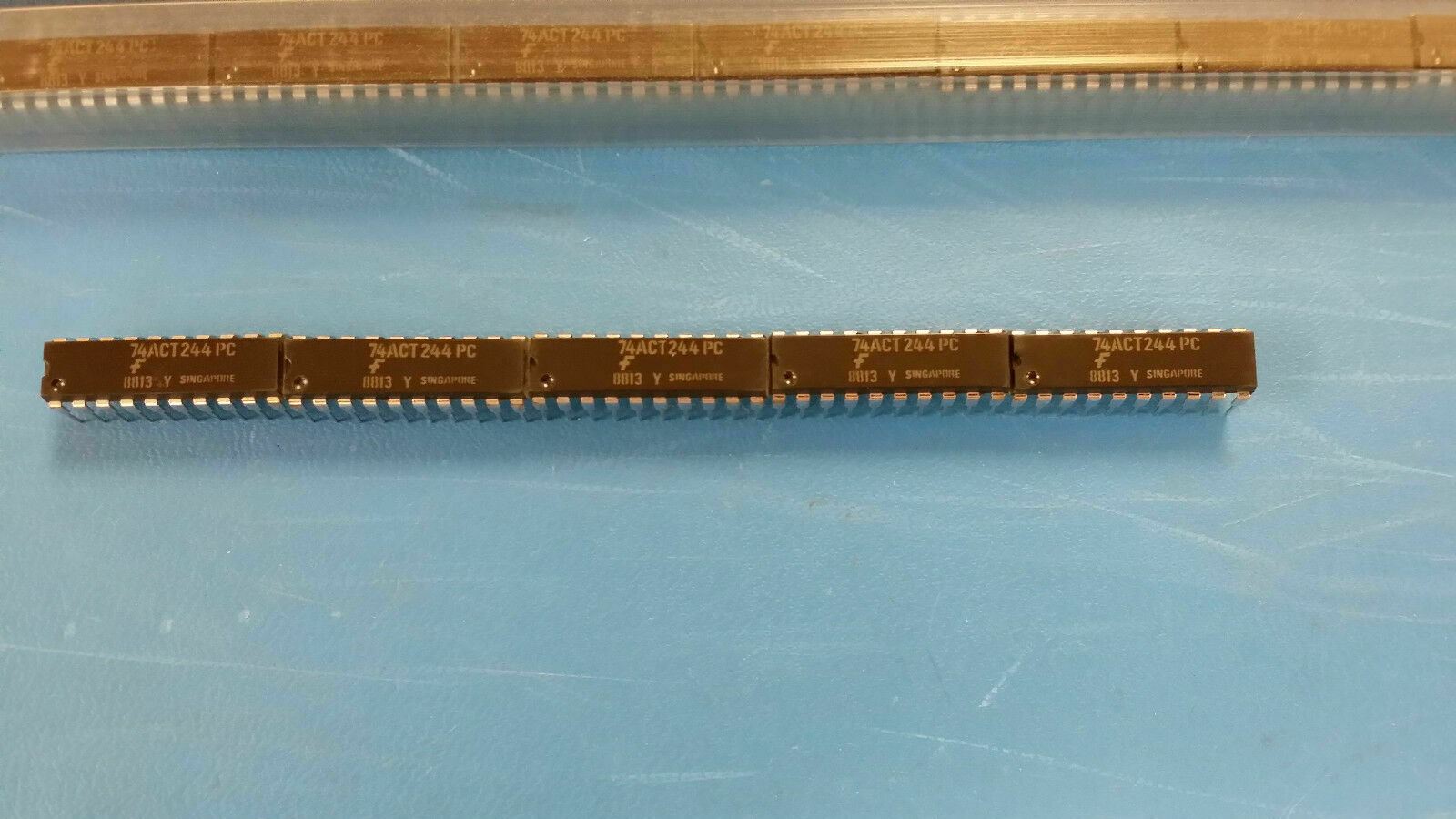

THIS LISTING IS FOR (5PCS) OF 74ACT244PC BY FAIRCHILD SEMICONDUCTOR.
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin PDIP
74ACT244PC Part Details & Parametric
|
|
|
| Logic Family | ACT |
| Logic Function | Buffer/Line Driver |
| Output Type | 3-State |
| Polarity | Non-Inverting |
| Number of Elements per Chip | 2 |
| Absolute Propagation Delay Time (ns) | 10.5 |
| Number of Channels per Chip | 8 |
| Number of Inputs per Chip | 8 |
| Number of Outputs per Chip | 8 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 85 |
| Fabrication Technology | CMOS |
| Minimum Operating Temperature (°C) | -40 |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Low Level Output Current (mA) | 24 |
| Maximum Quiescent Current (uA) | 4 |
| Packaging | Rail |
| Mounting | Through Hole |
| Package Height (mm) | 3.43(Max) |
| Package Length (mm) | 26.92(Max) |
| Package Width (mm) | 7.11(Max) |
| PCB | 20 |
| Standard Package Name | PDIP |
| Supplier Package | PDIP W |
| Pin Count | 20 |
| Lead Shape | Through Hole |
