(5pcs) 74ACT16244DLR 16-Bit Buffers/Line Drivers With 3-State Outputs
Tax included.

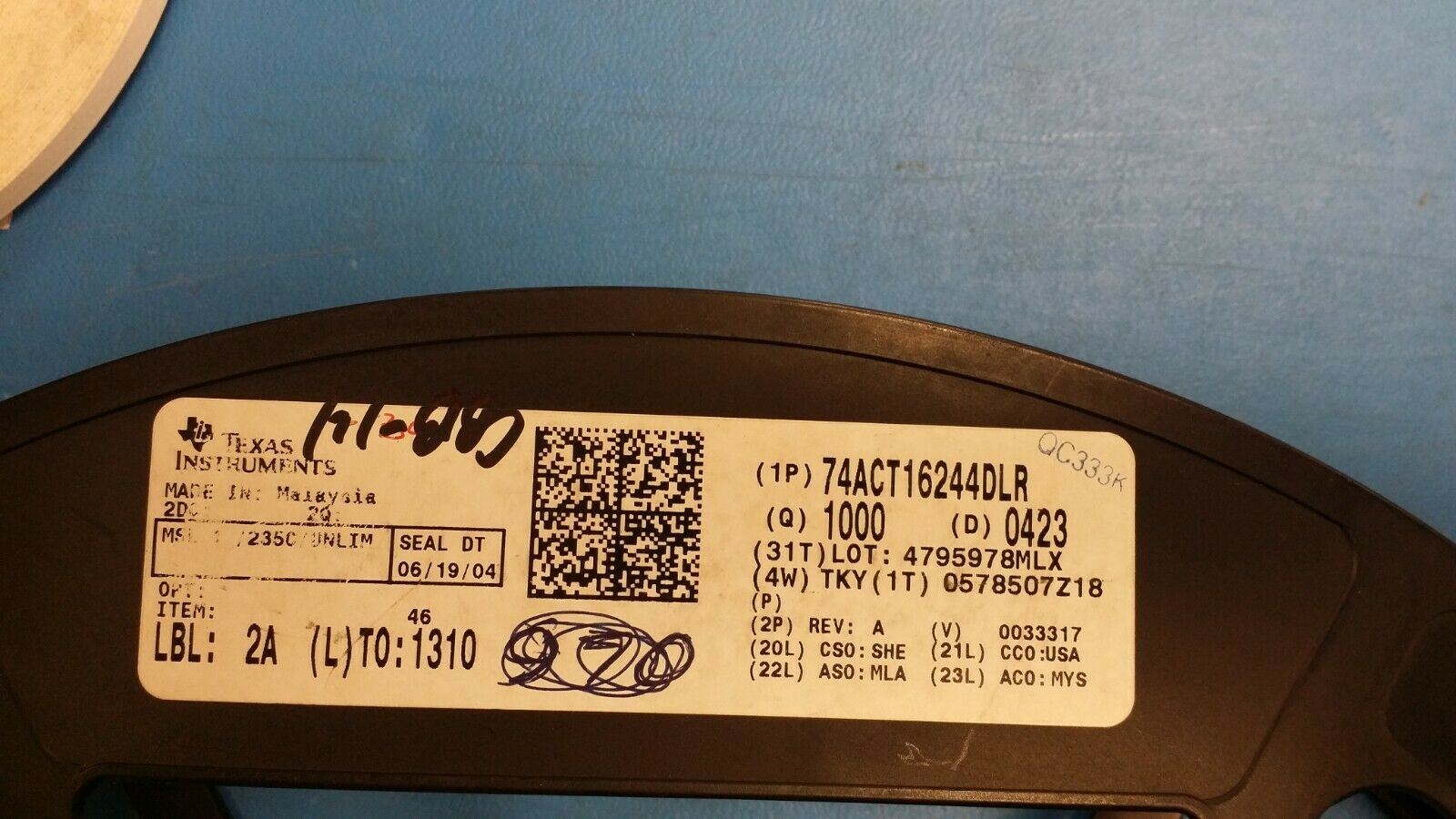

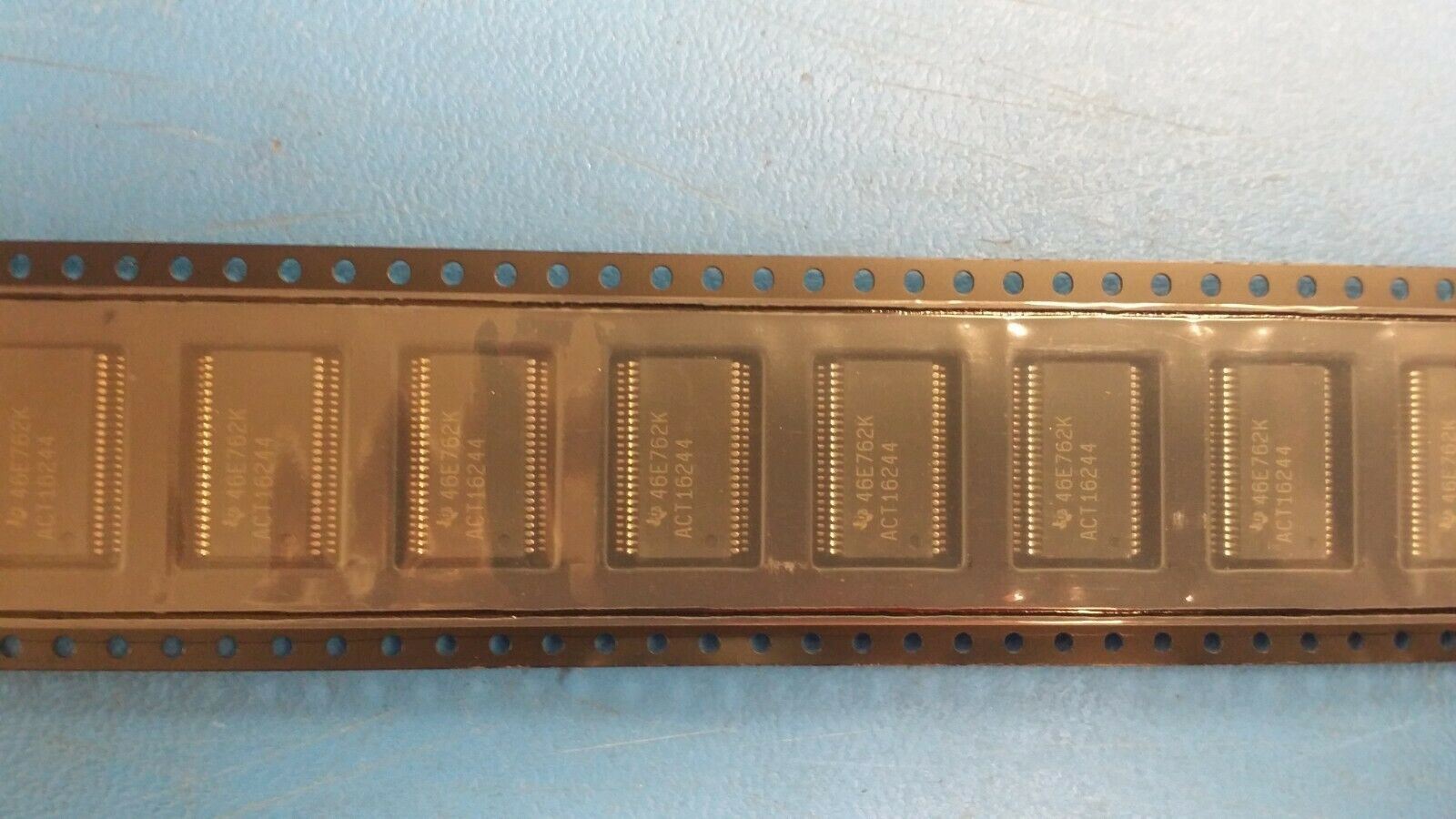

THIS LISTING IS FOR (5PCS) OF 74ACT16244DLR BY TEXAS INSTRUMENTS
Status Active
Direction UNIDIRECTIONAL
Family ACT
JESD-30 Code R-PDSO-G48
J-STD-609 Code e4
Length (mm) 15.8750
Logic IC Type BUS DRIVER
Output Low Current-Max (mA) 24.000000000000000
Moisture Sensitivity Level 1
Number of Functions 16
Number of Ports 2
Number of Terminals 48
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP48,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Supply Current-Max (mA) 0.08000000
Propagation Delay-Max@Nom-Sup (ns) 9.500000000000000000
Propagation Delay (ns) 9.5000
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.7900
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch (mm) 0.635
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 7.4900
