(10PCS) 6A4 Diode Switching Rectifier 400V 6A 2-Pin
Tax included.

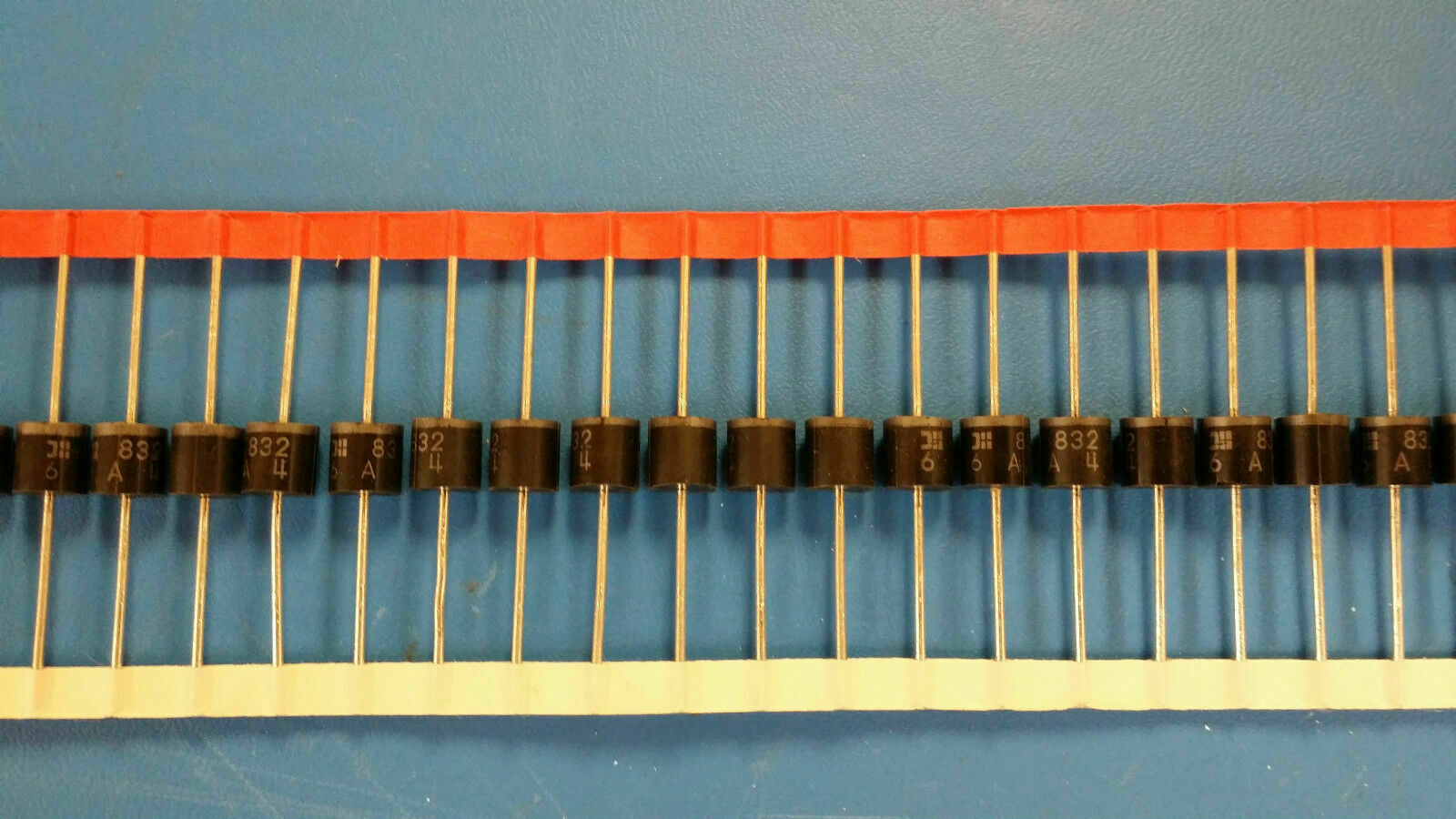

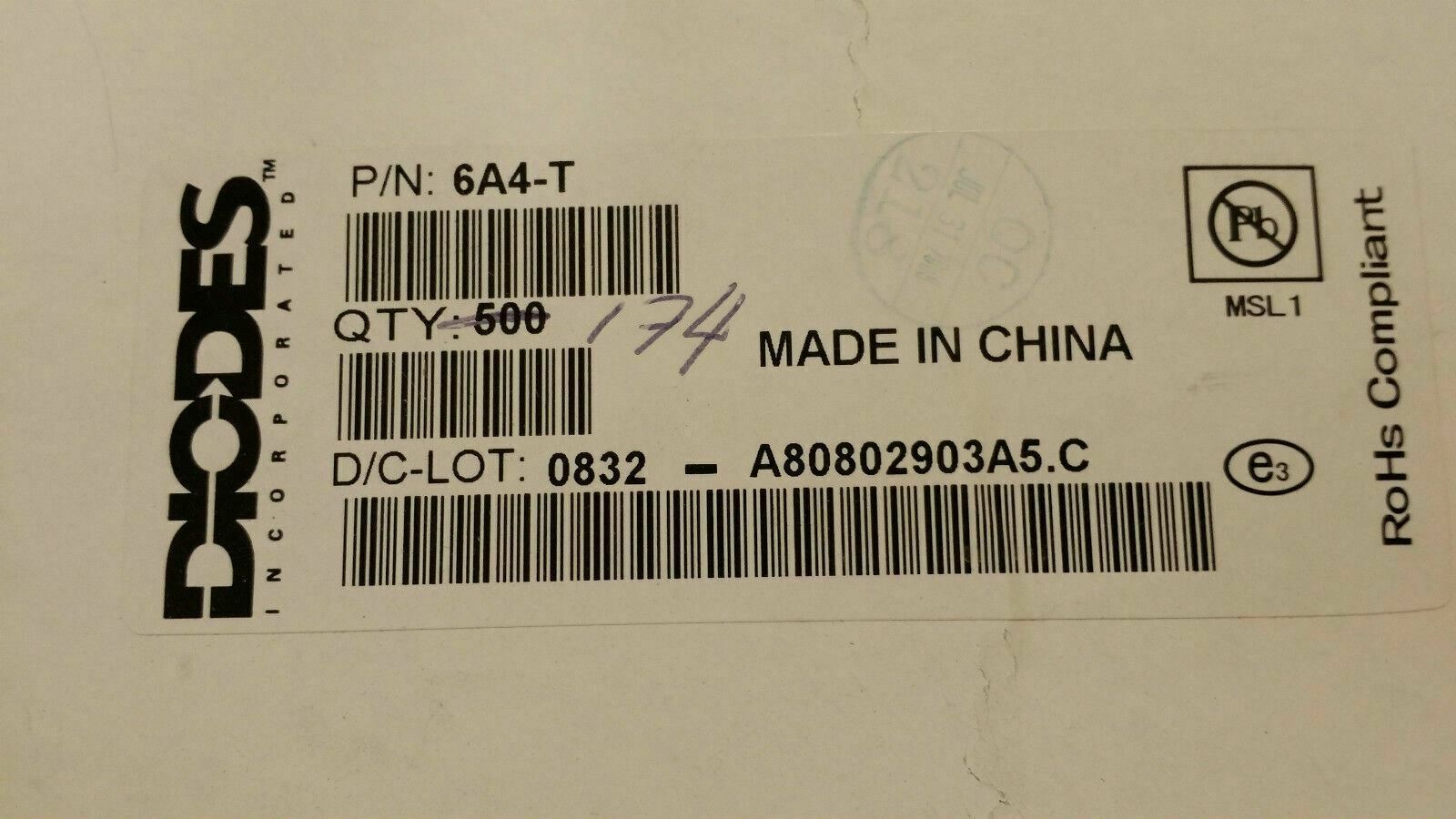

THIS LISTING IS FOR (10PCS) OF 6A4 BY DIODES INC.
Diode Switching 400V 6A 2-Pin Case R-6
6A4 Part Details & Parametric
| EU RoHS |
Compliant
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 175 |
| Type | Switching Diode |
| Peak Reverse Current (uA) | 10 |
| Configuration | Single |
| Packaging | Tape and Reel |
| Peak Reverse Repetitive Voltage (V) | 400 |
| Maximum Continuous Forward Current (A) | 6@Ta=75C |
| Peak Forward Voltage (V) | 0.9 |
| Peak Non-Repetitive Surge Current (A) | 400 |
| Operating Junction Temperature (°C) | -65 to 175 |
| Package Diameter (mm) | 9.1(Max) |
| Mounting | Through Hole |
| Package Length (mm) | 9.1(Max) |
| PCB | 2 |
| Standard Package Name | Case R-6 |
| Supplier Package | Case R-6 |
| Pin Count | 2 |
| Lead Shape | Through Hole |
