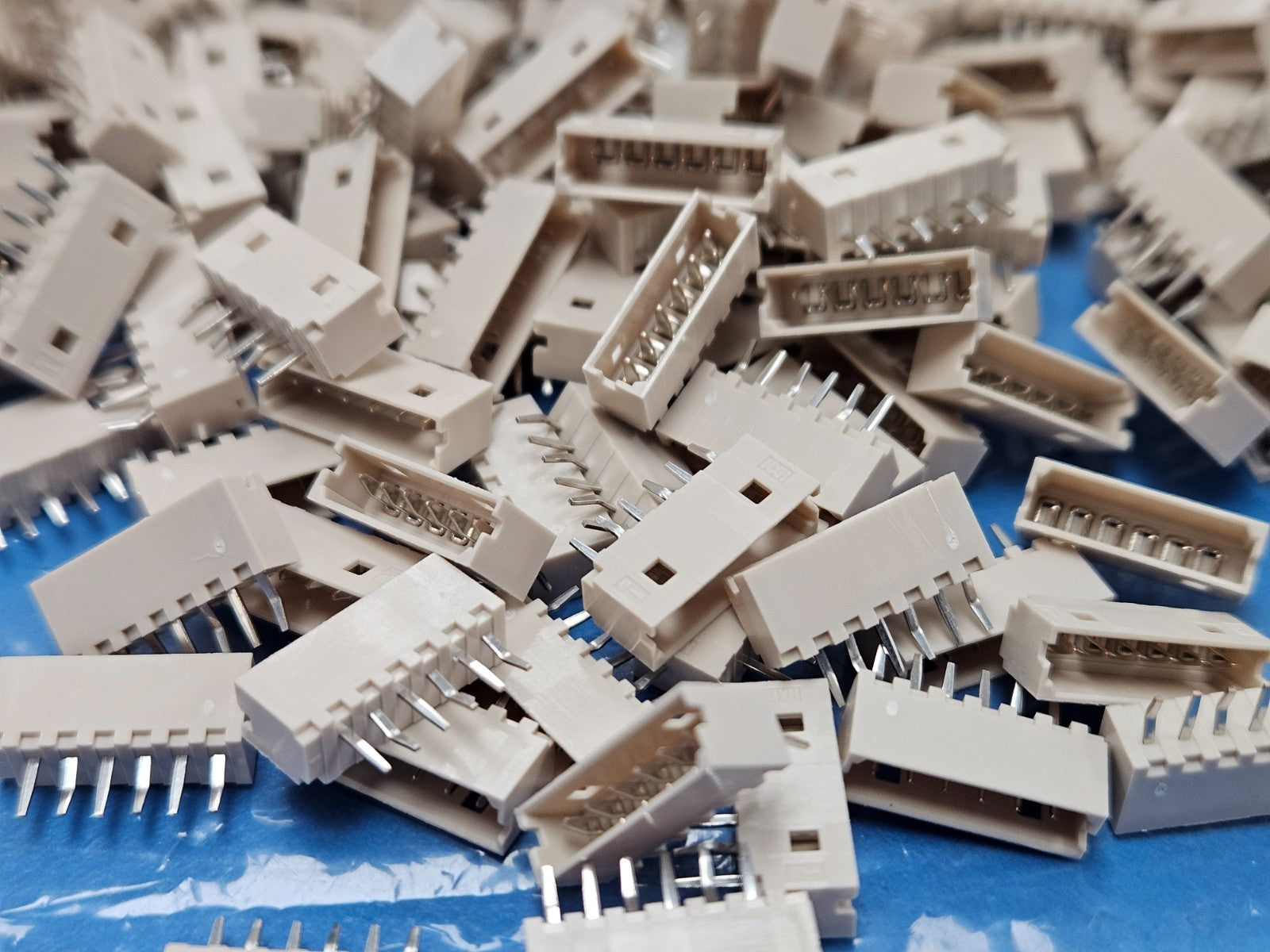

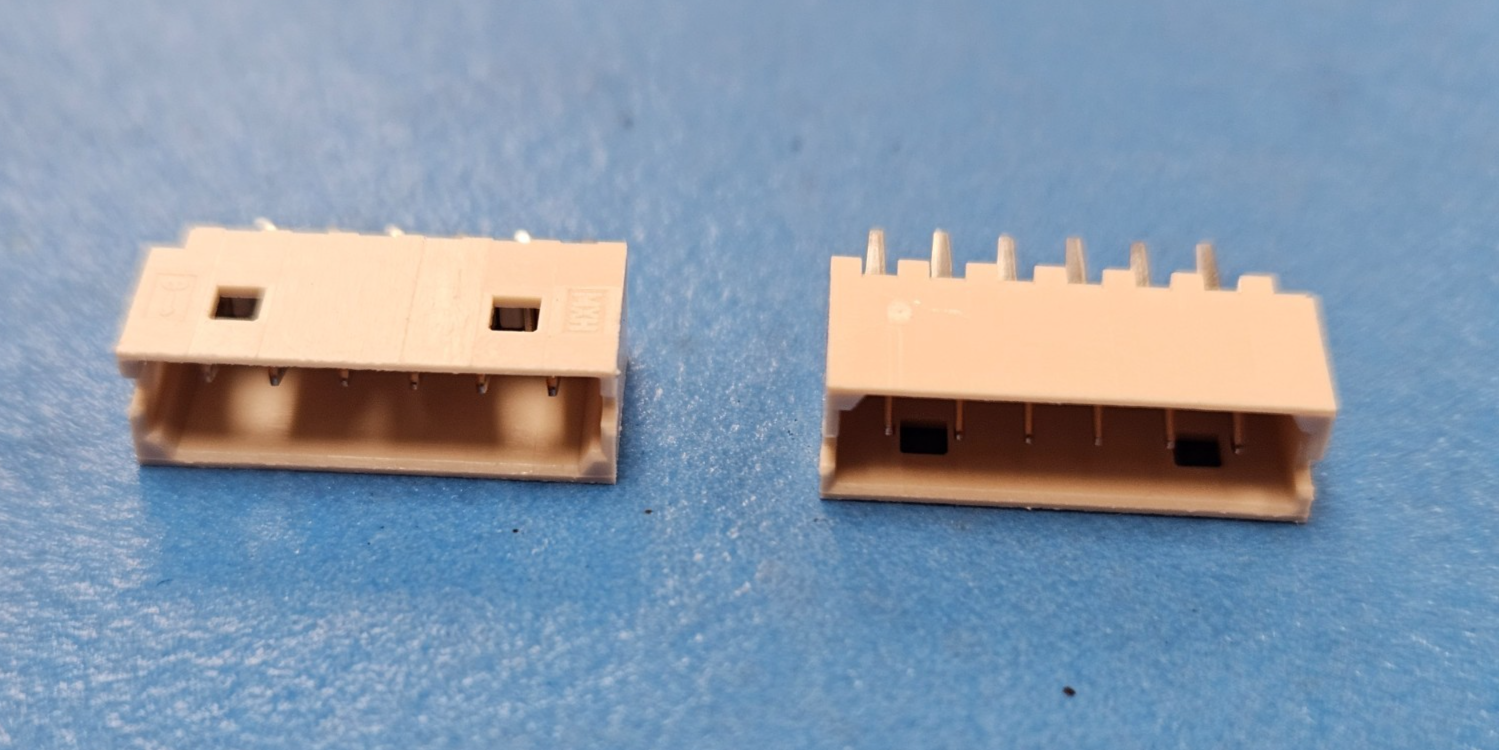

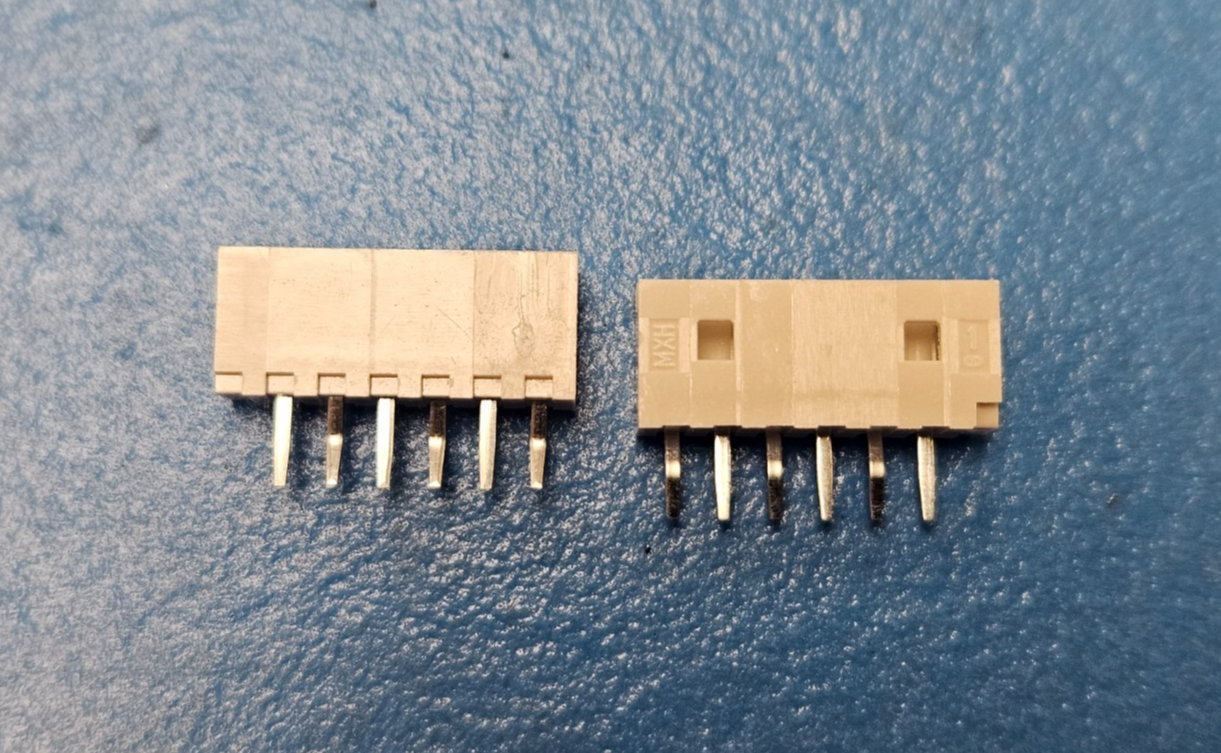

(10PCS) 53014-0610 Molex Board Connector, 6 Contact, 1 Row, Male, Straight
Tax included.

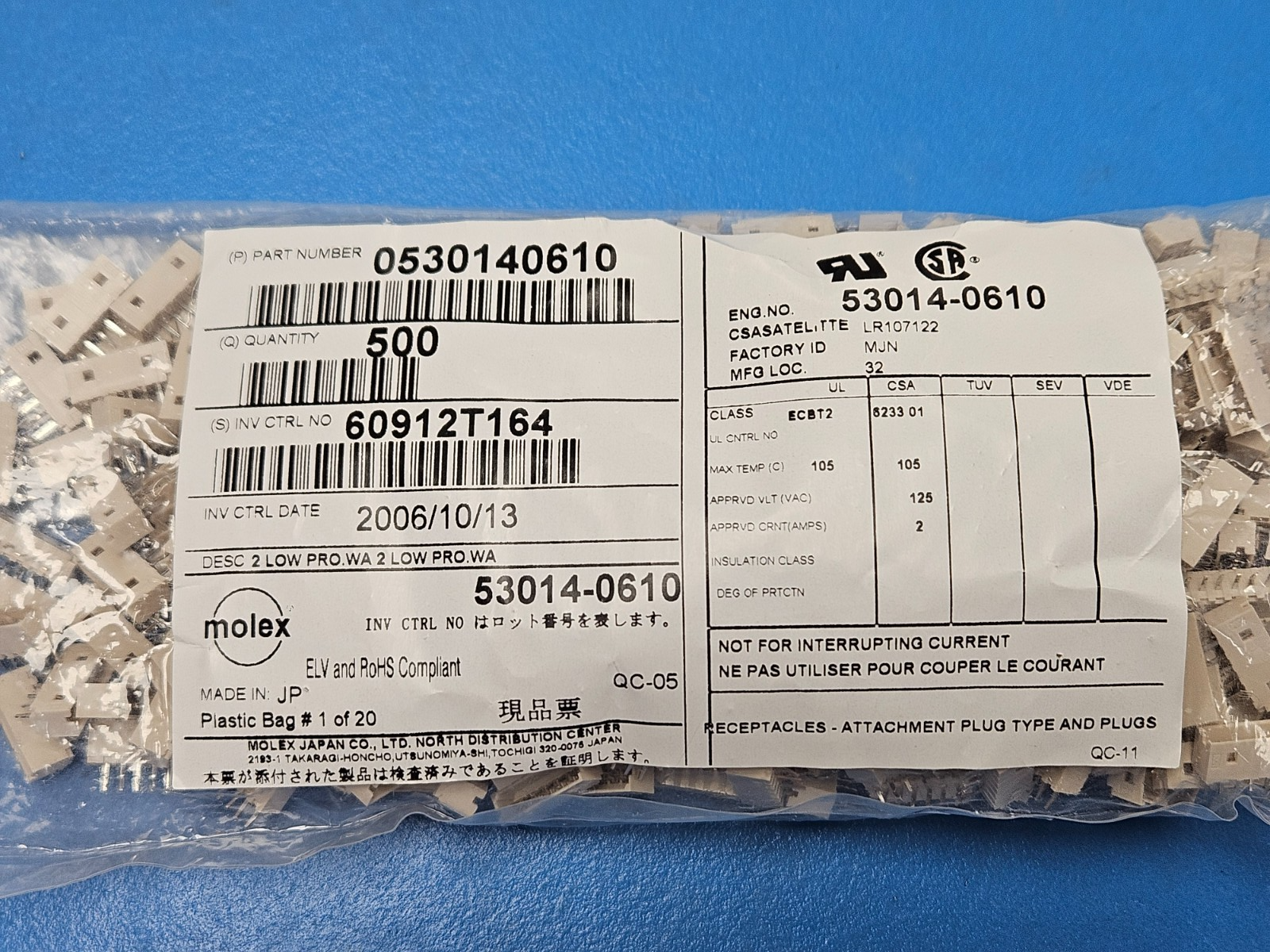

This listing is for (10PCS) of 53014-0610 by Molex
Status Discontinued
Additional Feature NONE
Body Breadth (inch) 0.171000
Body Depth (inch) 0.230000
Body Length (inch) 0.551000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage (V) 500VAC
Durability (Cycles) 30
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Material GLASS FILLED POLYAMIDE
J-STD-609 Code e3
MIL Conformance NO
Mating Contact Pitch (inch) 0.079
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 1
Number of Rows Loaded 1
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 2.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.138000
Terminal Pitch (mm) 2
Termination Type SOLDER
Number of Contacts 6
UL Flammability Code 94V-0
