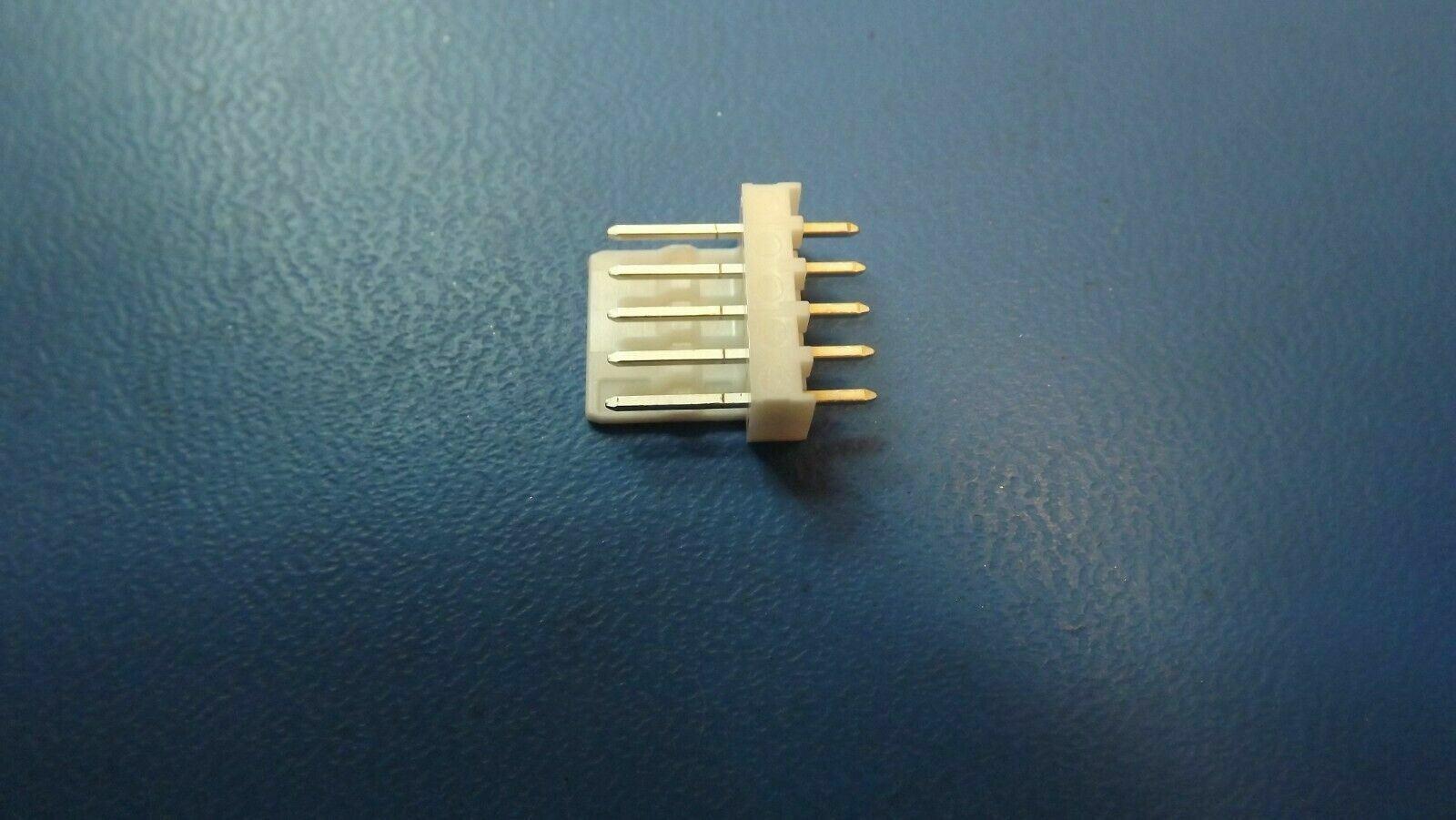

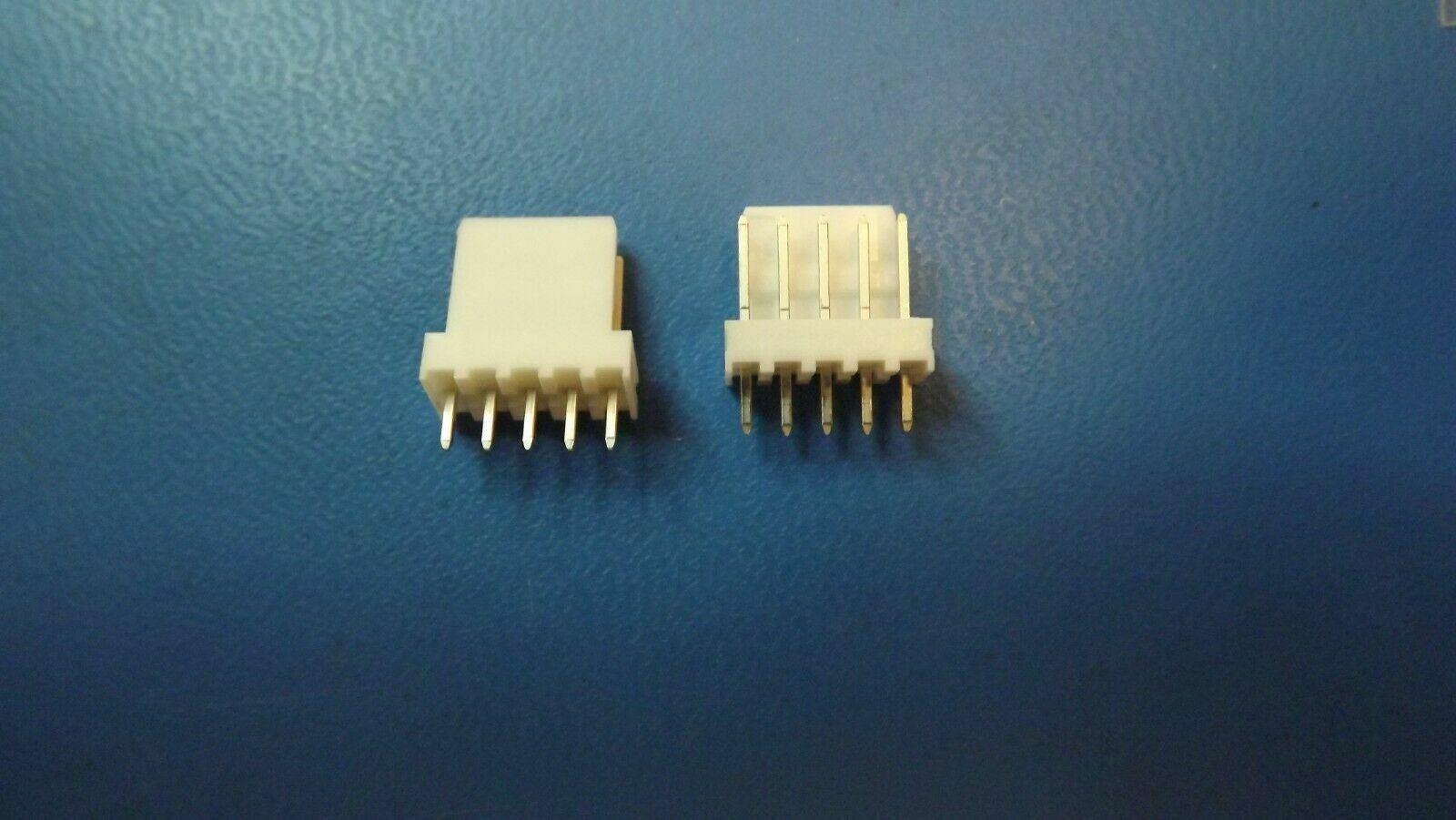

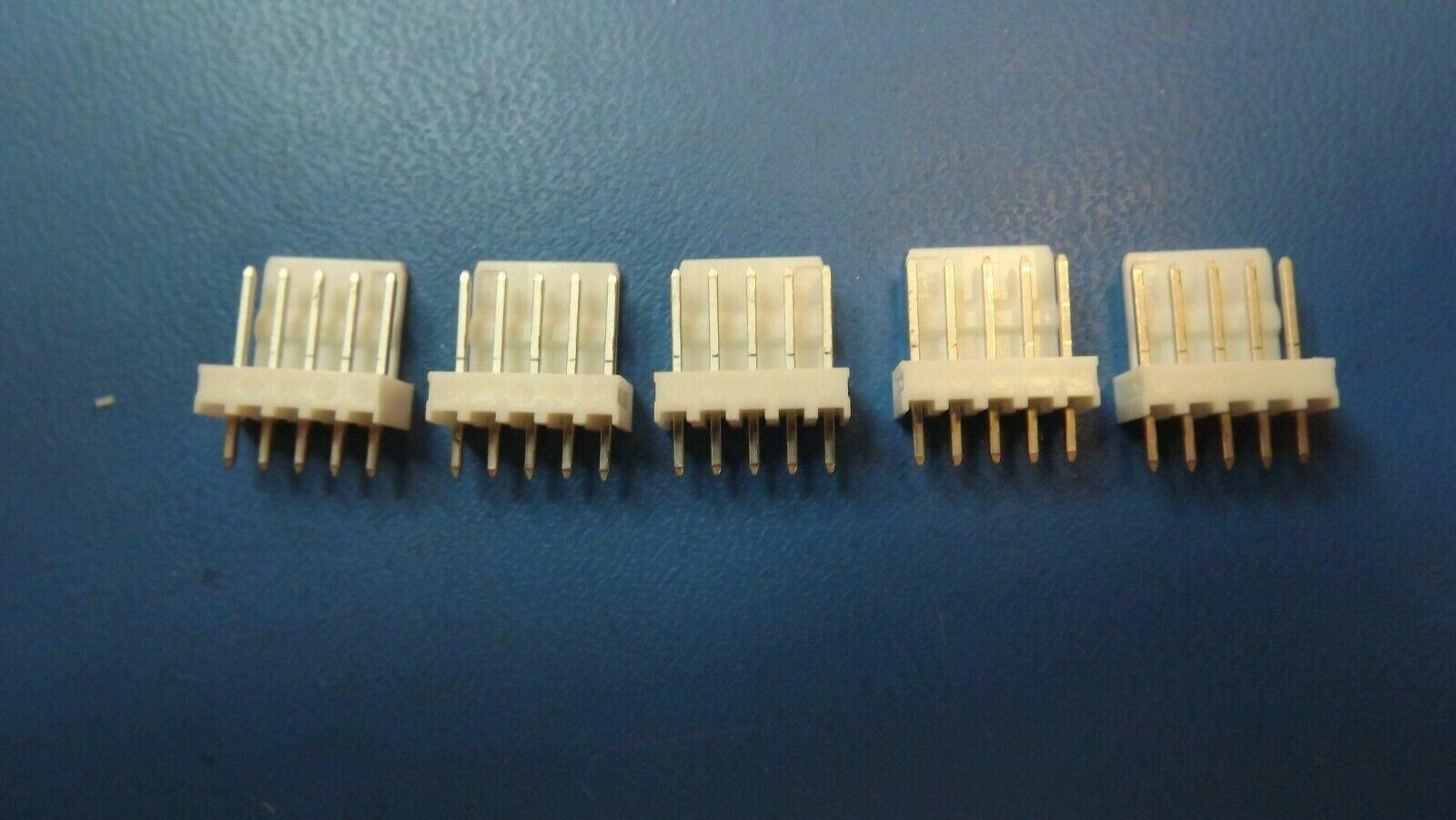

(10PCS) 22-27-2051 MOLEX CONN HEADER 5POS .100 VERT TIN
Tax included.

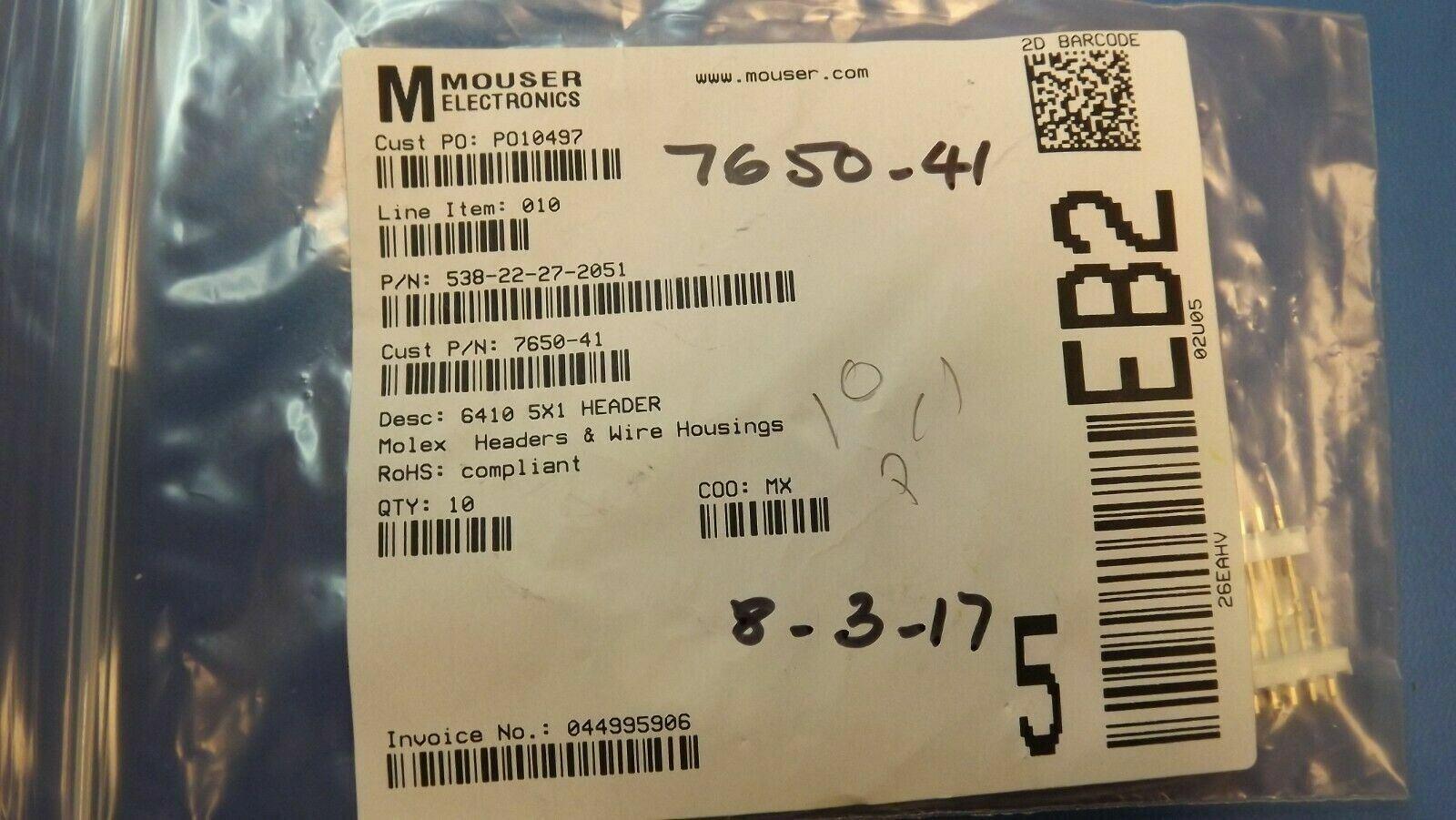

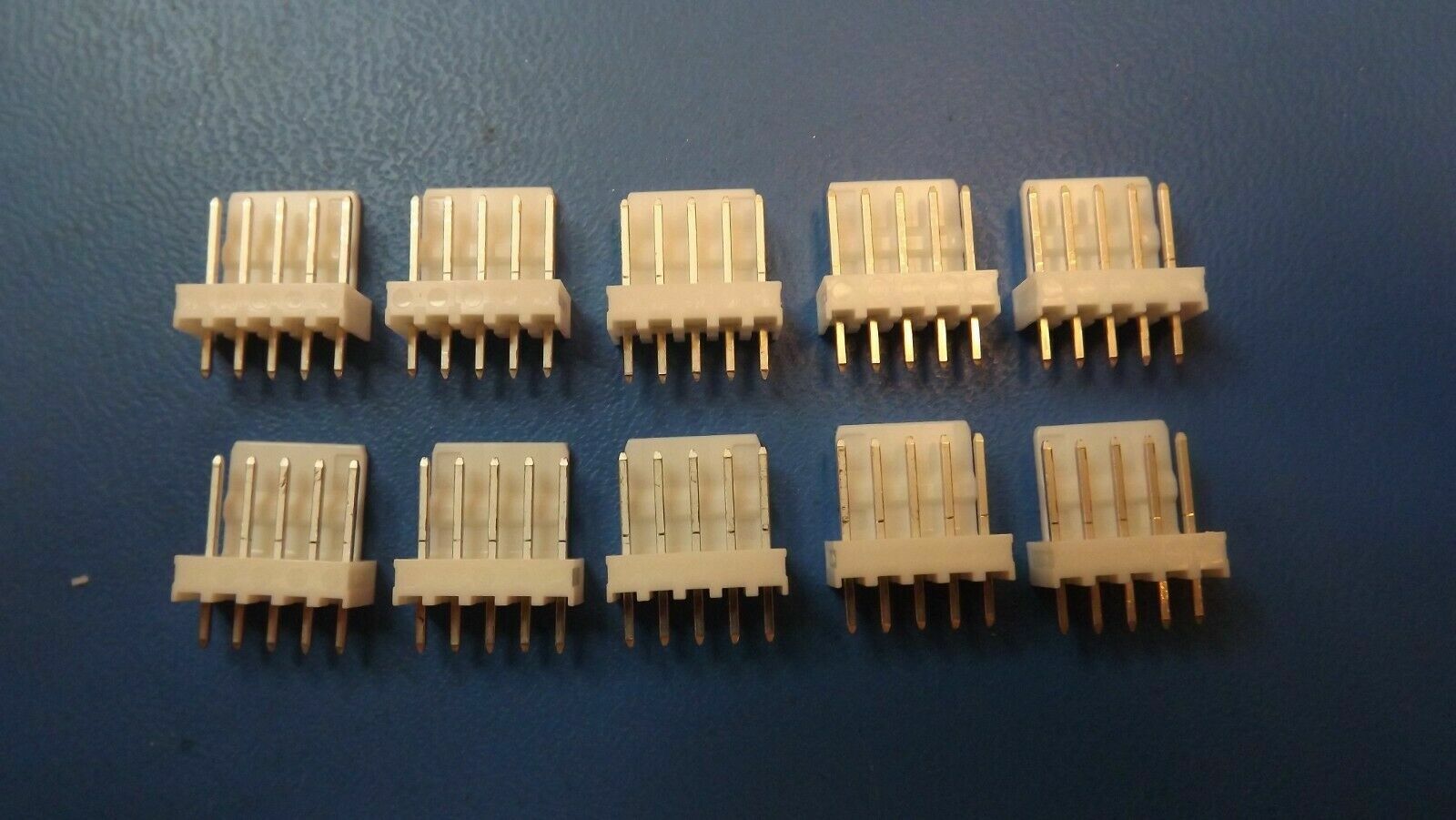

THIS LISTING IS FOR (10PCS) OF 22-27-2051 BY MOLEX
SPECIFICATIONS
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Connector Type | BOARD CONNECTOR |
| Body Breadth | 0.23 inch |
| Body Depth | 0.46 inch |
| Body Length | 0.5 inch |
| Body/Shell Style | RECEPTACLE |
| Contact Finish - Mating | TIN (200) |
| Contact Finish - Termination | Tin (Sn) |
| Contact Gender | MALE |
| Contact Material | BRASS |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 10.0 mohm |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Durability | 25.0 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulation Resistance | 1.0E9 ohm |
| Insulator Color | WHITE |
| Insulator Material | NYLON |
| JESD-609 Code | e3 |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| MIL Conformance | NO |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 1 |
| Number of Rows Loaded | 1 |
| Operating Temperature-Min | 0.0 Cel |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 4.0 A |
| Reference Standard | UL, CSA |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Length | 0.14 inch |
| Terminal Pitch | 2.54 mm |
| Total Number of Contacts | 5 |
| UL Flammability Code | 94V-0 |
| Additional Feature | KK |
