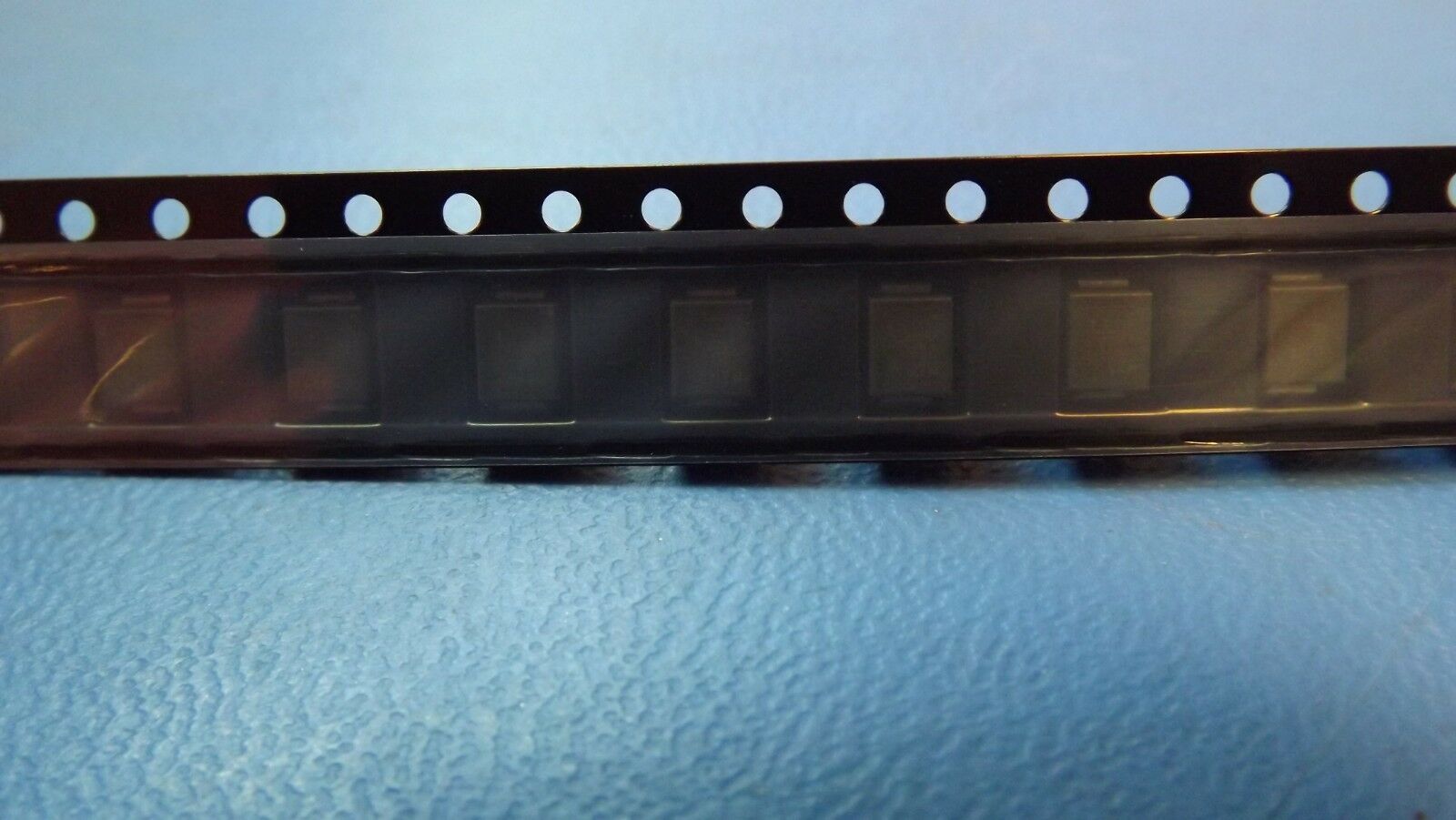

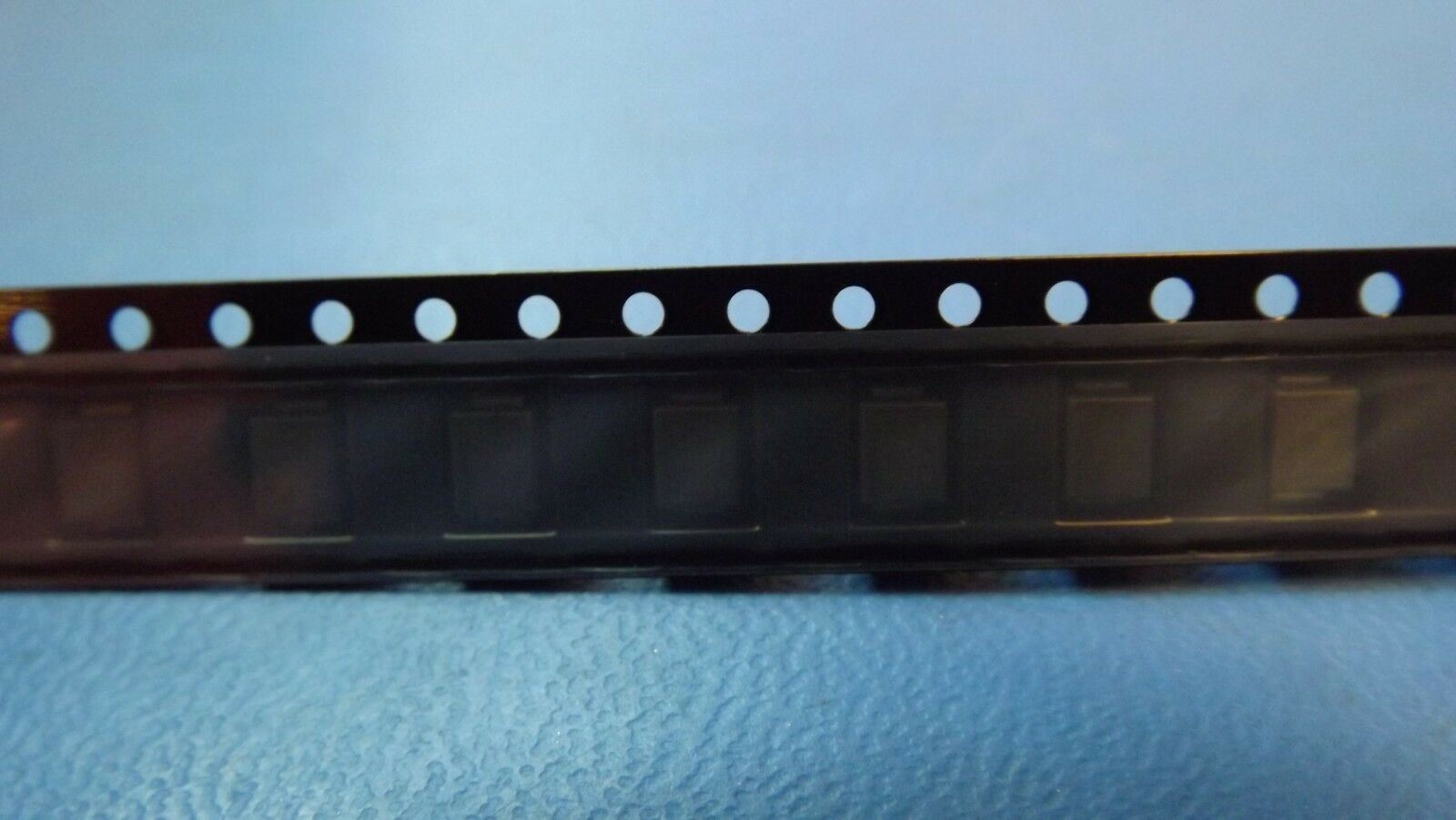

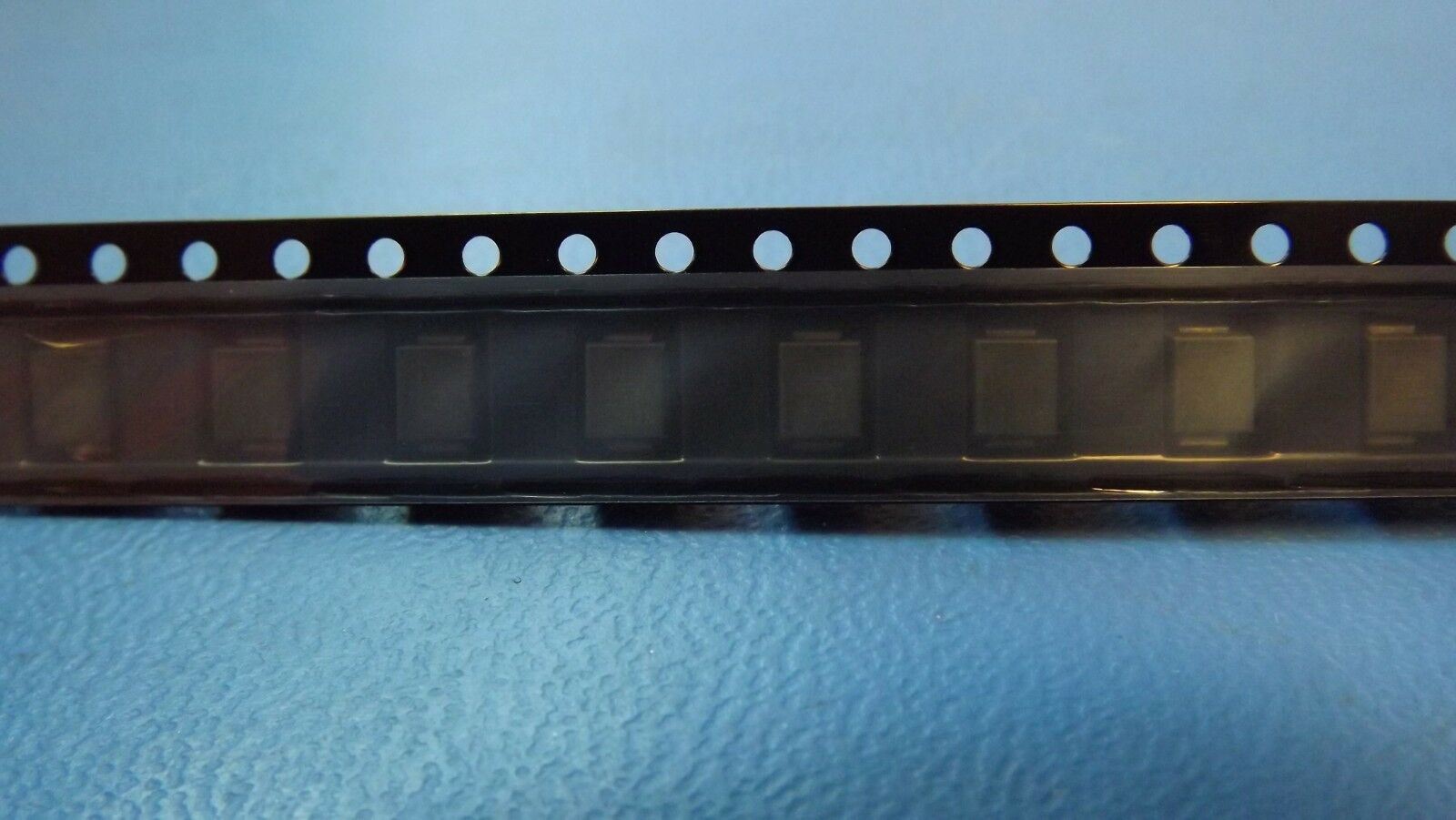

(10PCS) 1KSMB91A LITTELFUSE TVS Diode 1000W UL SMT Uni 5%

  • $7.50
    Unit price per
Tax included.

Only 9 left!


THIS LISTING IS FOR (10PCS) OF 1KSMB91A BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 91.0  V
Breakdown Voltage-Min 86.5  V
Breakdown Voltage-Max 95.5  V
Clamping Voltage-Max 125.0  V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-J2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1000.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5.0  W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 77.8  V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form J BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
