(10PCS) 15KPA200A TVS Diode, 15000W, 200V Unidirectional, 1 Element, 2 PIN
Tax included.

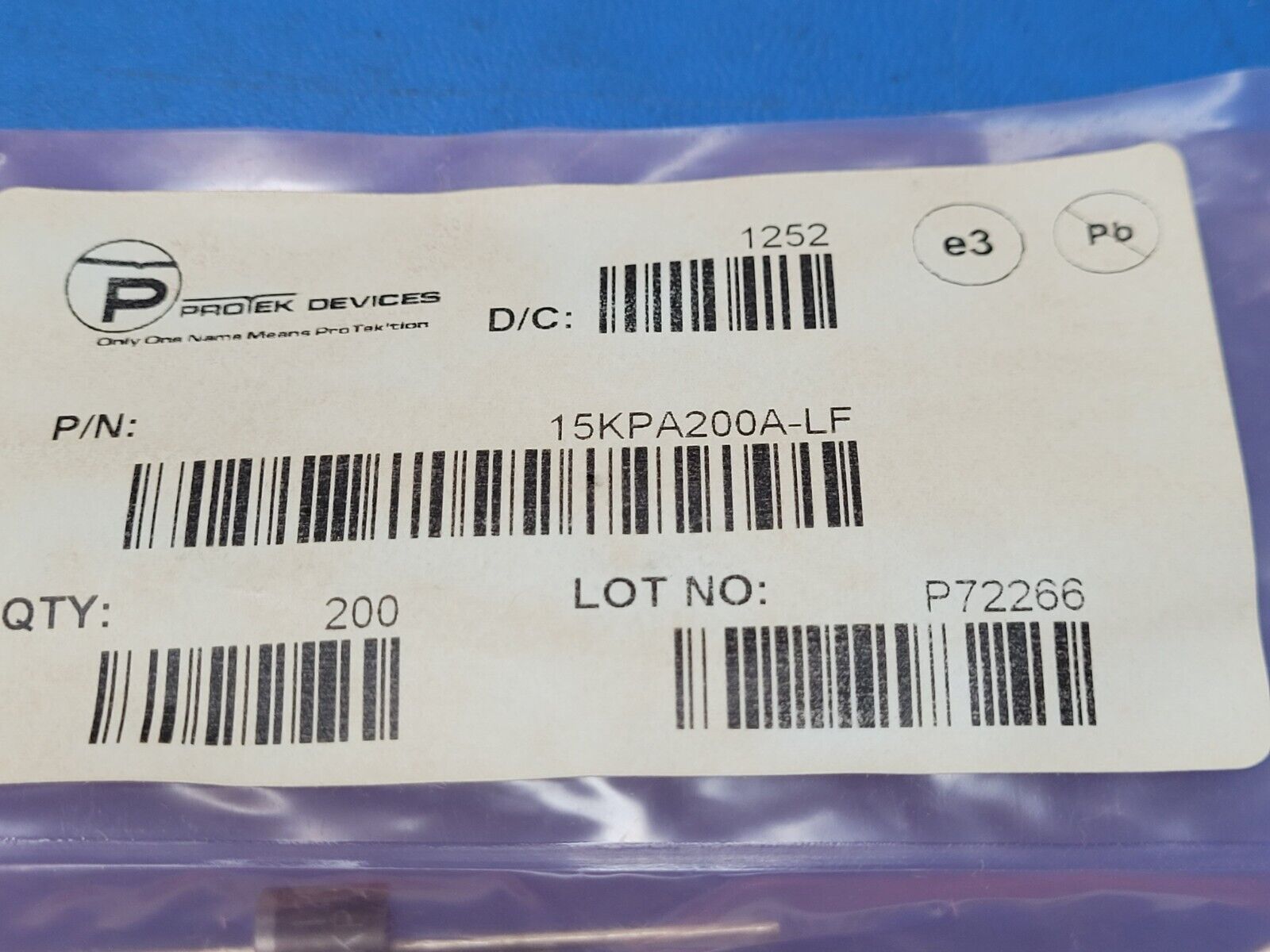

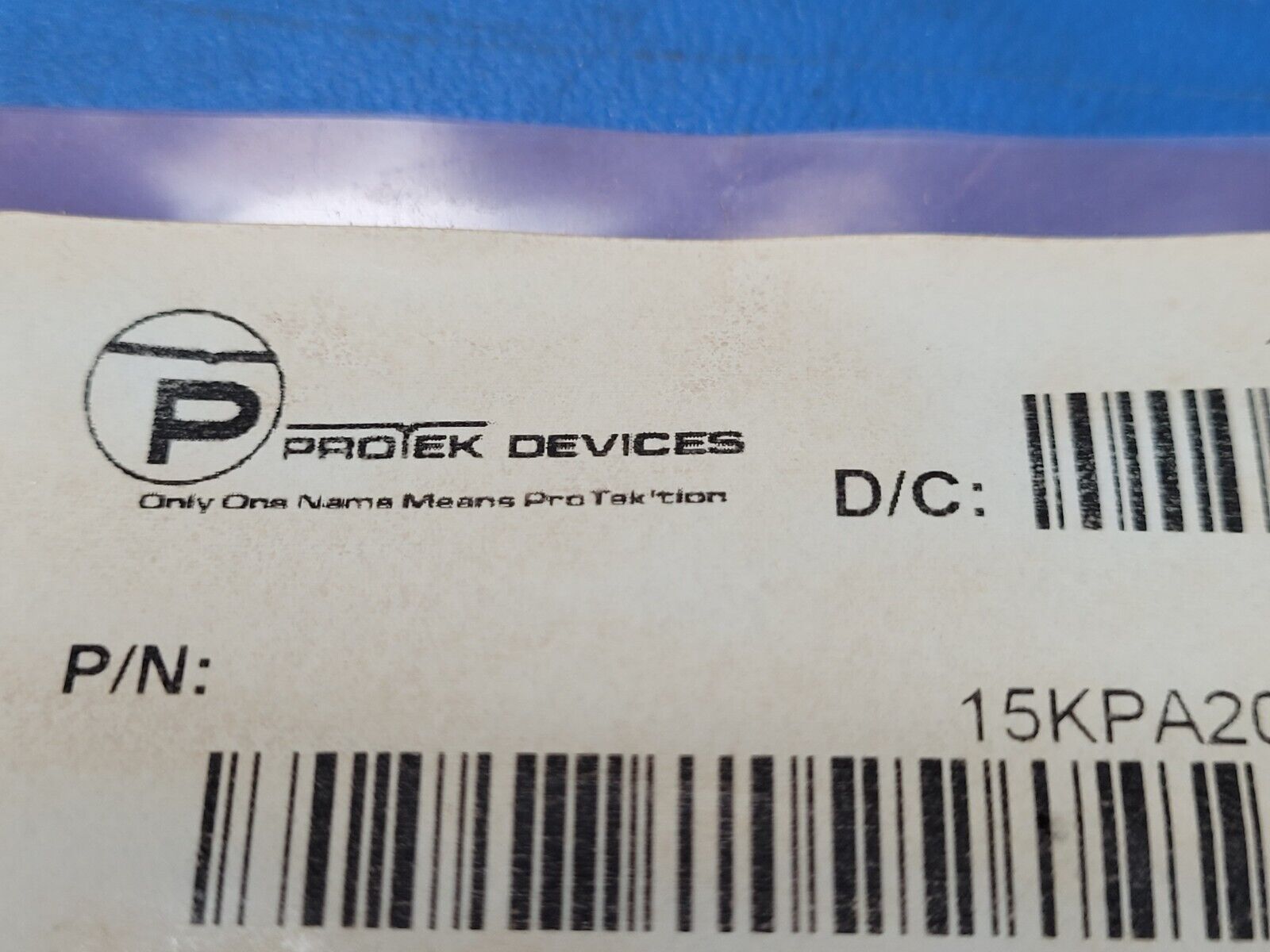

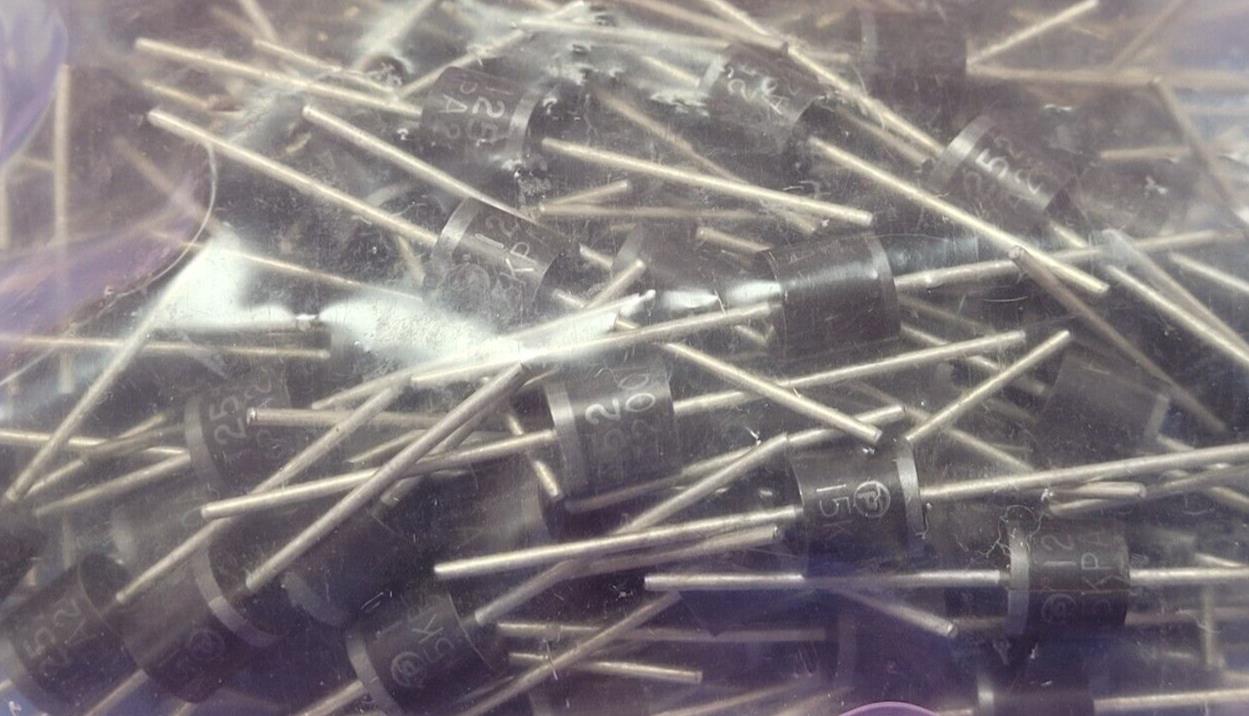

THIS LISTING IS FOR (10PCS) OF 15KPA200A 15KPA200A-LF BY PRO TEK DEVICES
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 222.0 V
Breakdown Voltage-Min 222.0 V
Case Connection ISOLATED
Clamping Voltage-Max 322.0 V
Configuration SINGLE
Diode Element Material SILICON
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Peak Rev Power Dis-Max 15000.0 W
Number of Elements 1.0
Number of Terminals 2
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 270
Polarity UNIDIRECTIONAL
Power Dissipation-Max 8.0 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 200.0 V
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish TIN
Terminal Form WIRE
Terminal Position AXIAL
