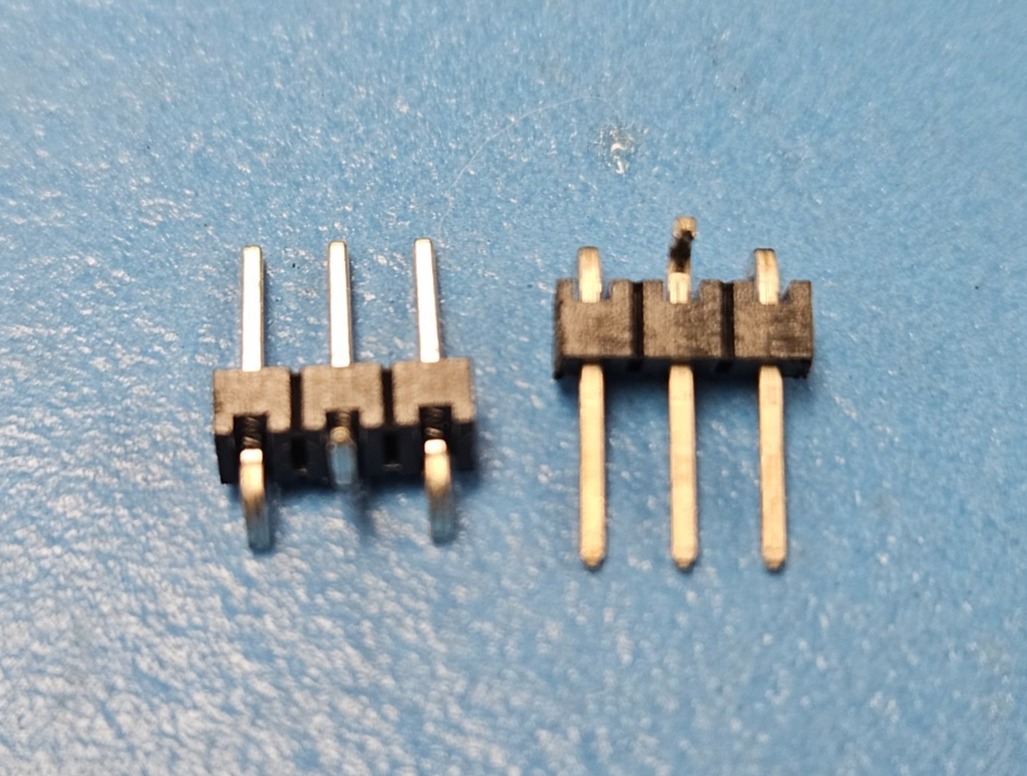

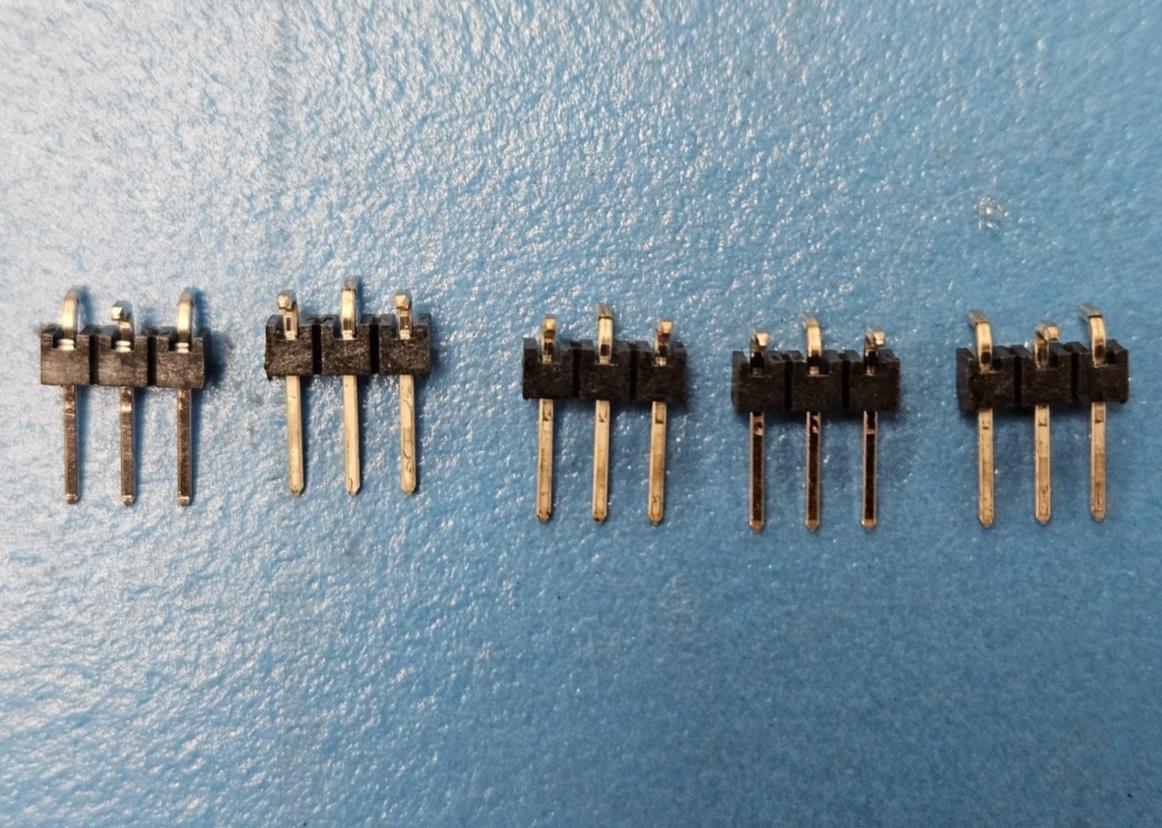

(10PCS) 146132-1 Connector Header Surface Mount 3 position
Tax included.

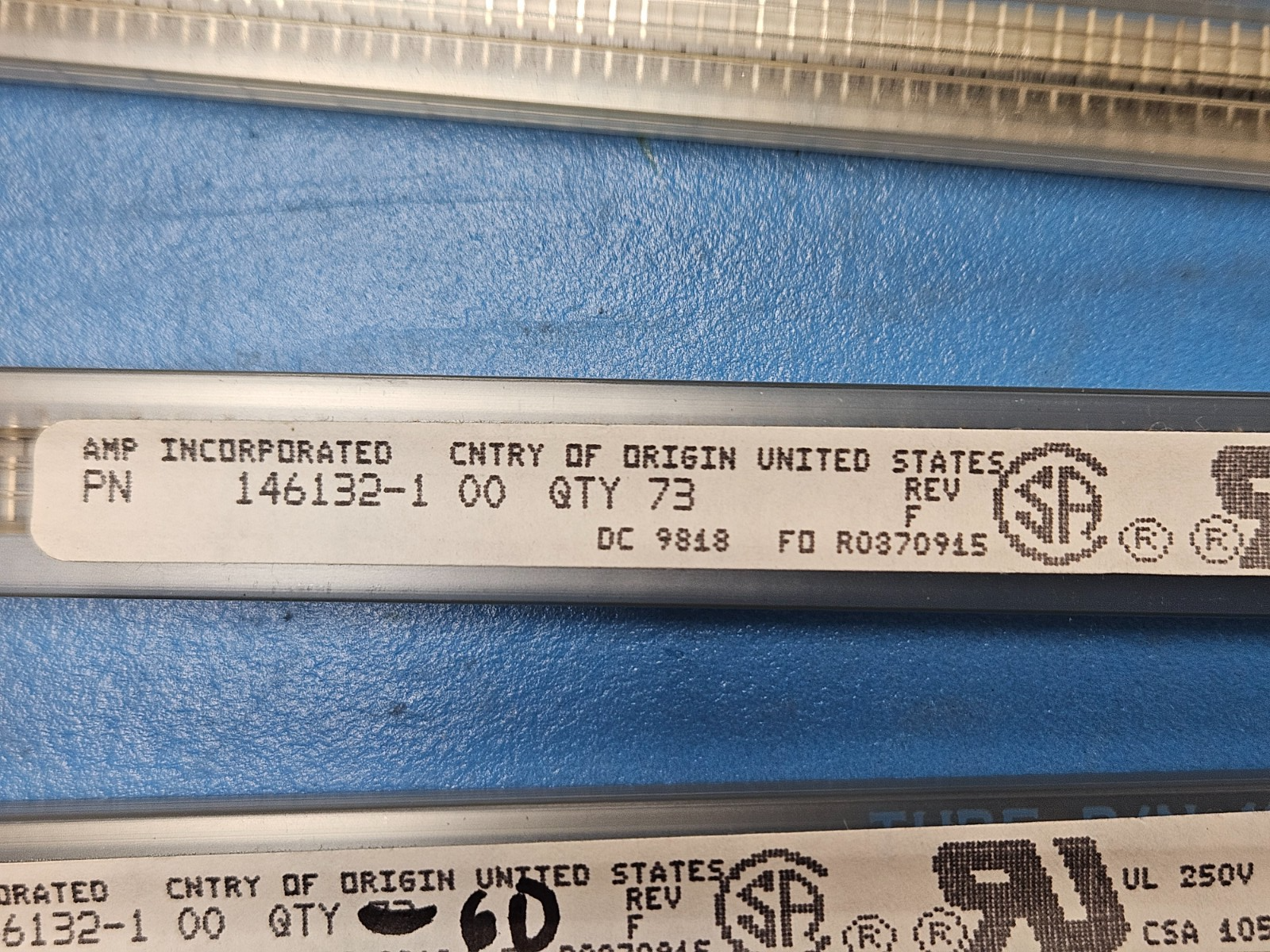

This listing is for (10PCS) of 146132-1 by TE Connectivity
Status Discontinued
Additional Feature AMPMODU
Body Breadth (inch) 0.092000
Body Depth (inch) 0.090000
Body Length (inch) 0.284000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 12.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability (Cycles) 200
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 2.502
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch (inch) 0.1
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 2.667
Panel Mount NO
Plating Thickness (inch) 200u
Rated Current (Signal) (A) 3.0000000000000000
Screening Level / Reference Standard CSA, LR, U
Terminal Length (inch) 0.090000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 3
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .417
