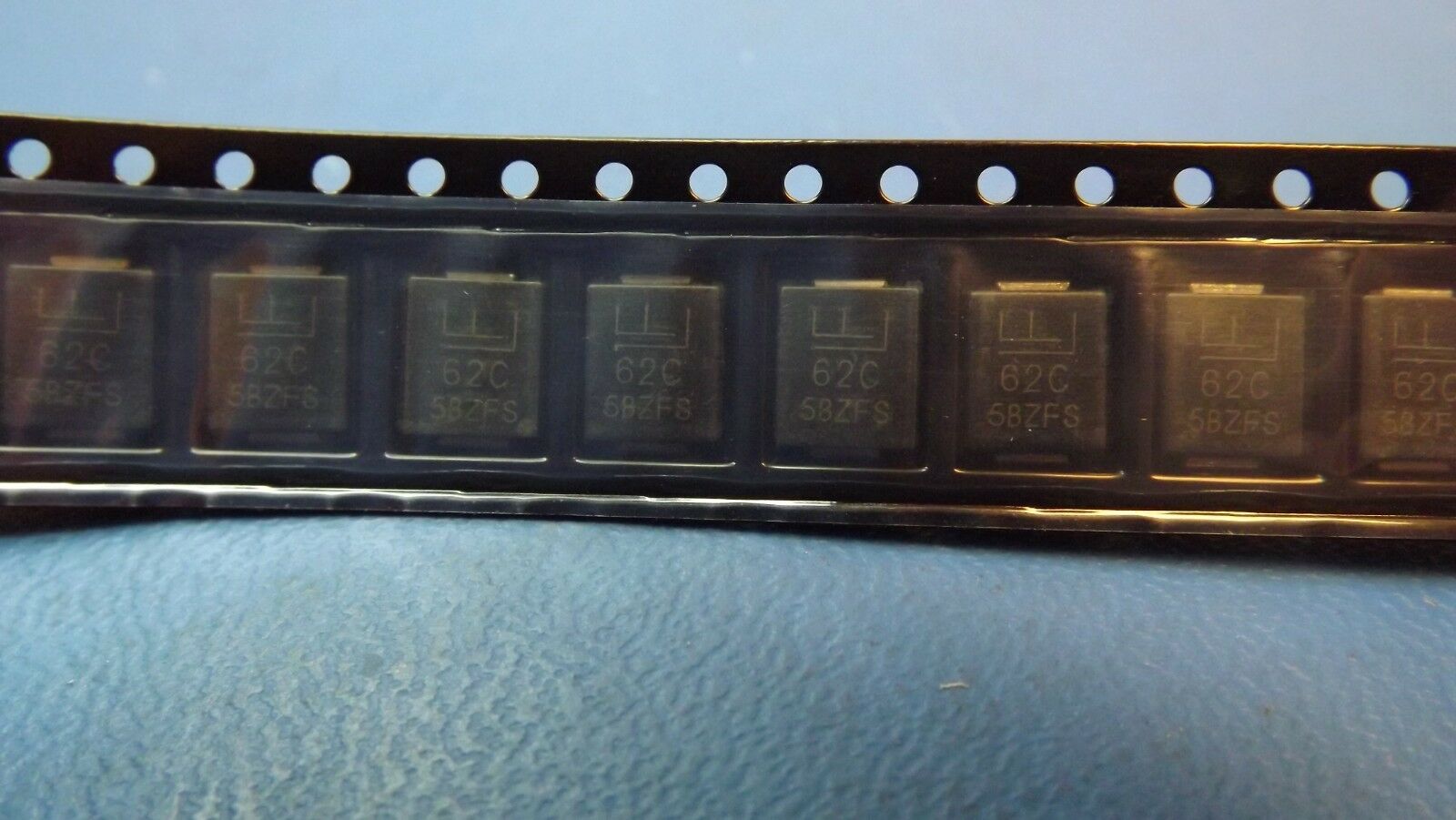

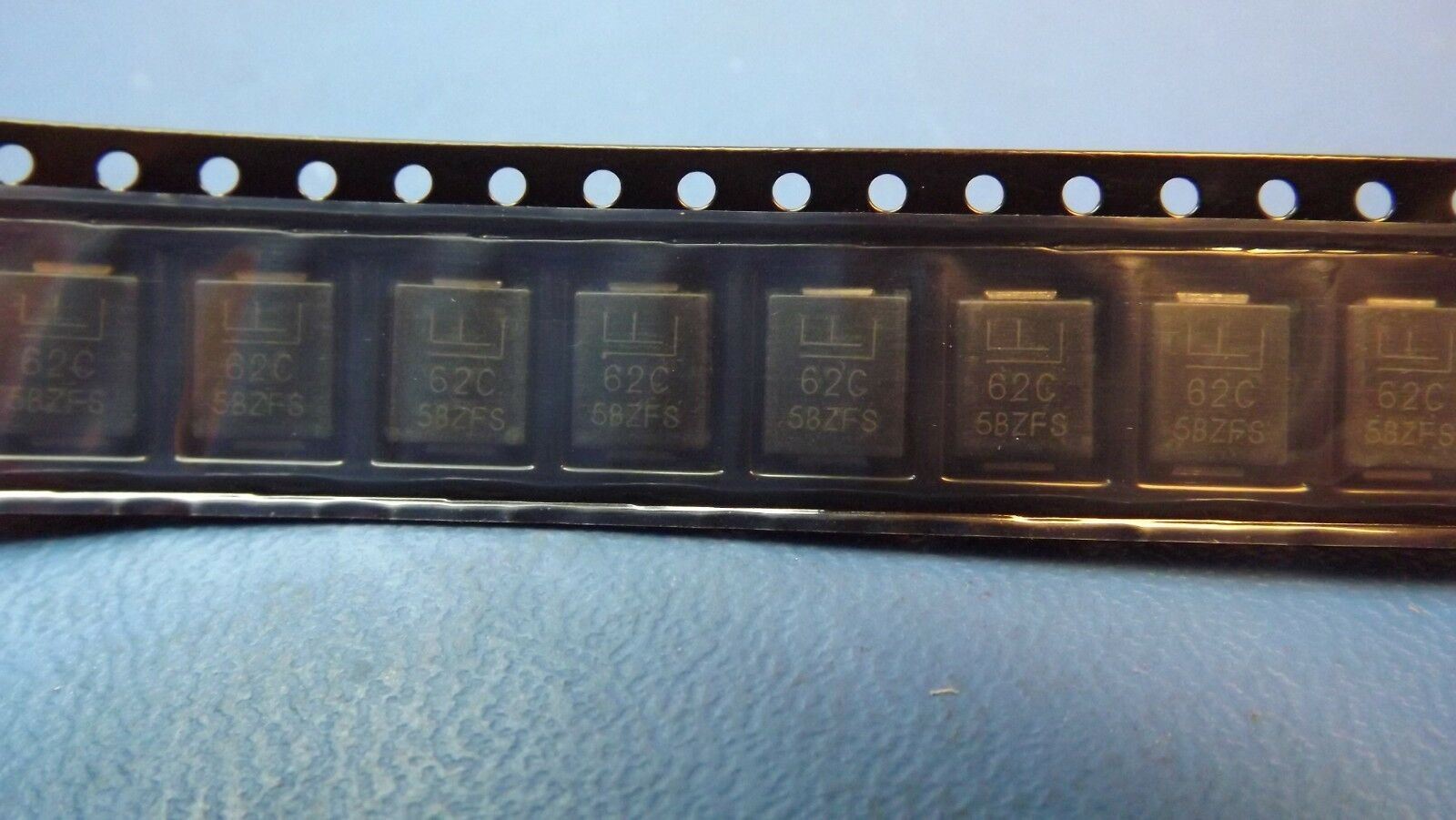

(10PCS) 1.5SMC62CA LITTELFUSE TVS DIODE 53V 85V DO214AB

  • $5.00
    Unit price per
Tax included.

Only 18 left!

THIS LISTING IS FOR (10PCS) OF 1.5SMC62CA BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 62.0  V
Breakdown Voltage-Min 58.9  V
Breakdown Voltage-Max 65.1  V
Clamping Voltage-Max 85.0  V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-J2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -65.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5  W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 53.0  V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form J BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
