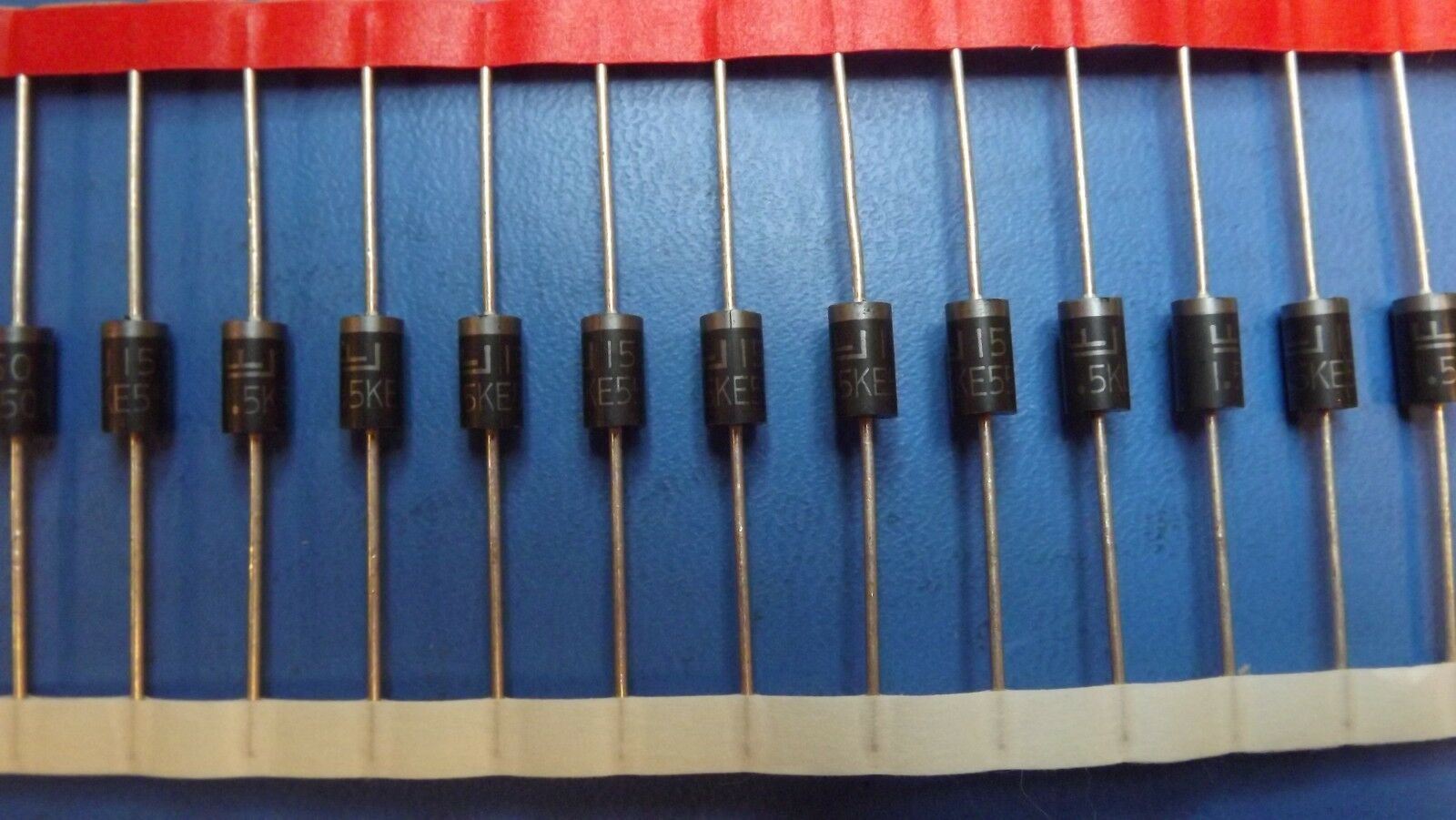

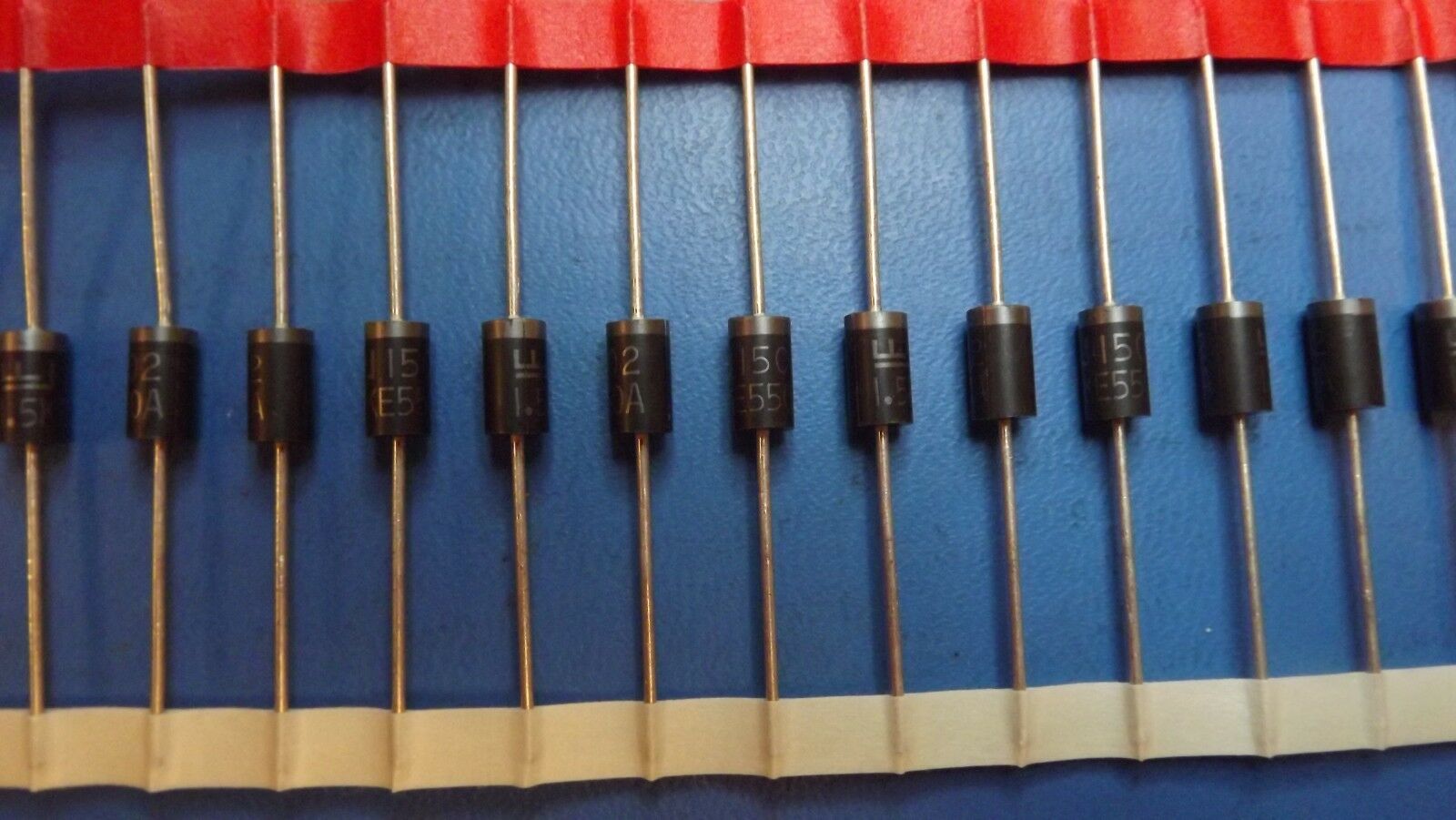

(10PCS) 1.5KE550A LITTELFUSE TVS DIODE 468V 760V DO201

  • $7.50
    Unit price per
Tax included.

Only 7 left!

THIS LISTING IS FOR (10PCS) OF 1.5KE550A BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 550.0  V
Breakdown Voltage-Min 522.5  V
Breakdown Voltage-Max 577.5  V
Case Connection ISOLATED
Clamping Voltage-Max 760.0  V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-201
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 2
Non-rep Peak Rev Power Dis-Max 1500.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 175.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 6.5  W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 495.0  V
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 30
Additional Feature UL RECOGNIZED
